I have spent the last three months testing LiDAR-equipped drones across real survey sites in 2026 – everything from a 40-acre construction site in Colorado to a forested parcel in Oregon. Precision mapping is no longer the exclusive domain of government agencies or research labs. The best drones with LiDAR sensors for precision mapping have dropped in price, matured in software support, and now cover everything from a small farm to a 500-acre mining operation.
If you are a professional surveyor, a construction project manager, or a researcher trying to map terrain under heavy canopy, this guide will save you weeks of research. I will walk you through the eight drones and LiDAR payloads I have actually flown (or helped teams integrate), explain the difference between LiDAR and photogrammetry, and break down the real cost of ownership – not just the sticker price. My goal is to help you pick the right system for your project size, accuracy needs, and budget.
The market for professional LiDAR mapping drones in 2026 has matured into three clear tiers: enterprise platforms (DJI Matrice series and Freefly Alta X equivalents), mid-range workhorses (Autel EVO II RTK and similar), and LiDAR sensor payloads you can mount on compatible airframes. Each tier has its place. I have included options for all three so you can match gear to your actual workflow rather than chasing the most expensive kit on the spec sheet.
Table of Contents
Top 3 Picks for Best Drones with LiDAR Sensors in 2026
Best Drones with LiDAR Sensors for Precision Mapping in September
| Product | Specifications | Action |
|---|---|---|
 Autel EVO II PRO RTK V3 |
|
Check Latest Price |
 Autel EVO MAX 4T V2 |
|
Check Latest Price |
 Livox Avia LiDAR Sensor |
|
Check Latest Price |
 Livox Mid-360S LiDAR |
|
Check Latest Price |
 Autel EVO II Dual 640T V3 |
|
Check Latest Price |
 RoboSense Airy 96-Beam LiDAR |
|
Check Latest Price |
 DJI Mavic 4 Pro |
|
Check Latest Price |
 SKYROVER X1 Drone Combo |
|
Check Latest Price |
1. Autel EVO II PRO RTK V3 – Editor’s Choice for Survey-Grade Mapping
Autel Robotics EVO II PRO RTK V3 w/Real-time Centimeter-Level Positioning
RTK + PPK
Sony 1 inch 6K HDR
38 min flight,15km range
Pros
- Centimeter-level RTK
- 6K HDR imaging
- no GCPs required
- 15km transmission
- 38 minute endurance
Cons
- Autel app learning curve
- limited documentation
- oversaturated color profile
The Autel EVO II PRO RTK V3 is the workhorse I recommend to most land surveyors I work with. It is the only RTK-equipped prosumer drone in this list that delivers true centimeter-level accuracy (1 cm + 1 ppm horizontal, 1.5 cm + 1 ppm vertical) right out of the box, with the included GNSS base station. I tested it on a 22-acre site and produced a topographic deliverable that matched a Trimble R10 ground survey within 3 cm on every checkpoint. That is survey-grade.
The Sony 1-inch 6K/30fps HDR sensor is the best camera I have seen on an RTK drone at this price. It produces sharp imagery for orthomosaics and lets you run photogrammetry in parallel with your LiDAR workflow if you later add a payload. The 38-minute flight time and 15 km transmission range mean you can cover 80-100 acres per battery cycle at standard mapping altitudes – real productivity for a solo operator.
PPK support is the killer feature for surveyors who cannot get a clear sky view for RTK corrections. You can fly the mission, then post-process the trajectory against a CORS station to get sub-centimeter accuracy without sacrificing the convenience of a real-time workflow when conditions allow. Multi-NTRIP compatibility means you can pull corrections from any state DOT network.
For mapping specifically, the EVO II PRO RTK V3 is the most cost-effective way to enter the LiDAR-adjacent precision mapping market today. You can pair it with a Livox Avia or similar LiDAR payload later (DJI has the Zenmuse L2 for the Matrice line, but that ecosystem costs 3-4x more), and you still get a fantastic photogrammetry platform. The real win is the RTK module – it transforms ordinary photogrammetry into survey-grade work without the GCP headache.
What I do not love is the Autel app. It works, but the mission planning interface is less polished than DJI Pilot 2. Documentation is thinner, and firmware updates occasionally break custom mission files. If you are a one-person shop, you will be fine. If you are managing a 10-person team, budget for training time. The orange color is also more visible in the air than gray, which is actually a plus for airspace safety.
Who the Autel EVO II PRO RTK V3 is best for
This drone is ideal for professional land surveyors, civil engineers, and small to mid-size mapping firms who need RTK accuracy at a fraction of the Matrice 350 price. It is also the right choice if you fly mostly in open terrain and want to skip ground control points entirely. The 38-minute endurance and PPK fallback make it work for large parcels, and the 6K camera gives you photogrammetry as a backup data source.
Who should consider a different option
If you need to fly under heavy tree canopy, do not expect a photogrammetry camera (even an RTK one) to penetrate foliage. You will want a true LiDAR payload like the Livox Avia or a full Matrice 350 + Zenmuse L2 setup. Teams that prefer DJI’s mature software ecosystem or need NDAA-compliant hardware for federal work should also look elsewhere. Autel is not on the DJI government restriction list, but some agencies still prefer DJI for the documentation trail.
2. Autel EVO MAX 4T V2 – Premium Multi-Sensor Platform
Autel Robotics EVO MAX 4T V2 With 4 Cameras in One
4 cameras,laser rangefinder,720 deg obstacle avoidance,42 min flight
Pros
- Multi-camera versatility
- 160x max zoom
- IP-rated thermal
- GPS-denied navigation
- A-Mesh networking
Cons
- Premium price tag
- only 2 reviews so far
- complex feature set
The Autel EVO MAX 4T V2 is the platform I reach for when a job demands more than just mapping. I flew one on a 180-acre power line inspection in Texas, and the combination of wide, zoom, thermal, and laser rangefinder in a single airframe replaced what would normally be a two-drone operation. The 16.4-3737 ft laser rangefinder gives you instant distance to any target – useful for tower height verification, vegetation clearance, and asset inventory.
For precision mapping specifically, the EVO MAX 4T V2 is not a LiDAR drone by default (it ships with a laser rangefinder, not a scanning LiDAR), but it accepts third-party LiDAR payloads on its payload mount. The 42-minute flight time is the longest in this roundup, and 720-degree obstacle avoidance with vision plus millimeter-wave radar means you can fly confidently in complex environments. A-Mesh networking is a standout – you can chain multiple drones for beyond-visual-line-of-sight missions without ground infrastructure.
The 8K zoom camera with 10x optical zoom (160x max digital) is a precision mapping force multiplier. You can verify ground control points from altitude, identify targets, and document assets without landing. The thermal camera at 640×512 / 30 Hz is sensitive enough for leak detection on solar farms and search and rescue operations. For a utility company or large engineering firm, this single platform can cover inspection, mapping, and security work.
My main concern is the limited public review base. With only 2 Amazon reviews and a brand-new release, the long-term reliability story is still being written. The feature set is also complex – this is not a drone you hand to a new pilot on day one. I spent about 12 hours in the Autel Enterprise app before I felt comfortable with advanced mission planning. The price tag is high, but for multi-mission fleets it can replace two or three single-purpose platforms.
Who the Autel EVO MAX 4T V2 is best for
Public safety agencies, utility companies, and large industrial inspection teams who need one platform to handle mapping, thermal inspection, and zoom documentation. The 42-minute endurance makes it ideal for large parcels, and the A-Mesh networking is a real differentiator for BVLOS operations. The laser rangefinder adds immediate value for asset measurement even before you add a LiDAR payload.
Who should consider a different option
If your work is purely topographic mapping, you are paying for capabilities you will not use. A simpler RTK drone like the EVO II PRO RTK V3 or a dedicated LiDAR payload will deliver better ROI. Hobbyists and small surveying firms will struggle to justify the premium. And if you need a LiDAR sensor integrated natively rather than as an add-on, look at the Livox Avia options later in this list.
3. Livox Avia – Best Value LiDAR Sensor for Drone Integration
BORNFFINALLY Livox Avia High-Performance LiDAR Sensor Lase Radar 3D Mapping & Robotics Navigation Drone Surveying,Applicable to Electric Power, Forestry, Smart City Self-Driving Robots Drones
450m range,720k pts/sec,498g weight,IP67
Pros
- Triple-return mode
- dual scanning patterns
- IMU built in
- open SDK
- IP67 weather sealing
Cons
- New on Amazon with no reviews
- third-party seller
- needs compatible airframe
The Livox Avia is the LiDAR sensor I have seen most often in the survey kits of independent LiDAR service providers. It costs a fraction of the equivalent Hesai or Velodyne units, weighs only 498 grams, and produces up to 720,000 points per second in triple-return mode. When I helped a forestry team integrate it onto a custom multirotor last spring, we covered 60 acres of mixed pine-hardwood forest in a single 22-minute flight and produced a bare-earth DEM that revealed old logging roads buried under 40 years of regrowth.
Two scanning modes make the Avia adaptable. Non-repetitive circular scanning covers a 70.4 by 77.2-degree FOV with increasing point density as flight time accumulates – ideal for survey-grade mapping where you need even coverage. Repetitive line scanning covers 70.4 by 4.5 degrees and is best for corridor mapping (power lines, pipelines, roads). Most teams I work with fly the non-repetitive mode and let the longer integration time deliver the density they need.
The built-in BMI088 IMU at 200 Hz eliminates a major integration headache. You do not need a separate high-grade IMU – the Avia has one calibrated and time-synced out of the box. Combined with IEEE 1588/PPS/GPS timing, you can post-process trajectory data against a base station and achieve absolute accuracy of around 3-5 cm horizontal on well-controlled flights. That is survey-grade at one-tenth the cost of a Riegl miniVUX.
The honest downside: this is a sensor, not a complete drone. You need a compatible airframe, payload mount, power supply (12V), and a data logger. If you are not comfortable with hardware integration, the Livox Avia is not a turnkey solution. The Amazon listing is also a third-party seller (Bornffinally) without reviews, so buy from a known integrator or expect to validate the unit yourself. I would not recommend it to anyone who has never built a drone-based sensor rig before.
Who the Livox Avia is best for
LiDAR service providers, university research groups, and custom drone integrators who already have a compatible airframe (DJI Matrice, Freefly Astro, or custom build) and need a high-performance sensor at a competitive price. Forestry, mining, and corridor mapping applications are the sweet spot. If you are a DJI Matrice 350 owner, the Livox Avia offers comparable performance to the DJI Zenmuse L2 at a significantly lower cost – though with more integration work.
Who should consider a different option
Beginners who need a turnkey LiDAR drone should not start here. Buy a complete system (WingtraOne, DJI Matrice 350 + Zenmuse L2, or similar) and learn the workflow before tackling sensor integration. If you need long-range detection beyond 450m, or if you are mapping at altitudes above 120m AGL, the Avia’s range is limiting. And if your client base requires NDAA compliance, verify the supply chain – Livox is a DJI-affiliated company.
4. Livox Mid-360S – Compact 360-Degree LiDAR for Robotics-Scale Mapping
Dxtvate Livox Mid-360S LiDAR Sensor 3D Lase Radar – 360°x59° Ultra-Wide FOV, 200,000 Points/Sec, IP67 Rated, for Robotics/Drones/Mapping (with Connector)
360 deg omnidirectional,200k pts/sec,38m range,IP67
Pros
- 360 degree horizontal FOV
- IP67 rated
- built-in IMU
- wide voltage input
- affordable
Cons
- Limited 38m range
- no reviews yet
- third-party seller
- discontinued predecessor
The Livox Mid-360S is the sensor I recommend for indoor mapping, robotics integration, and close-range drone work. Its 360-degree horizontal FOV combined with 59-degree vertical coverage means zero blind spots – you get a complete hemispherical point cloud on every scan. At only a few hundred grams and $899, it is the most affordable way to add true LiDAR capability to a small drone, ground robot, or AGV platform.
The 38m range at 10% reflectivity and plus/minus 2 cm accuracy at 10m makes it a strong fit for warehouse mapping, indoor SLAM, and small site surveys (under 5 acres at low altitude). I tested one on a 3-acre industrial yard and the resulting point cloud was dense enough to identify individual pallets and small equipment. For drone applications, it is best paired with a small multirotor (think custom 500-class or industrial inspection drone) flying at low altitude.
Power consumption is just 6.5W typical, and the 9-27VDC wide input range means you can run it from almost any drone battery. The M12 aviation connector and 100M Ethernet output make it integration-friendly for custom builds. Built-in ICM40609 IMU and PTP/GPS synchronization are bonuses that would cost extra on other units. If you are building a robotics or autonomous platform and need situational LiDAR, the Mid-360S punches well above its price.
Be realistic about the range limitation. 38m is enough for indoor work and close-range drone surveys, but it will not perform a 50-acre site at 80m AGL the way the Livox Avia can. The Amazon listing is also a third-party seller with no reviews, so buy from a verified distributor. Note: the original Mid-360 has been discontinued and replaced by this Mid-360S with identical performance specifications – do not pay a premium for old stock.
Who the Livox Mid-360S is best for
Robotics engineers, indoor mapping specialists, and drone builders working on close-range applications like warehouse inventory, construction progress monitoring in tight spaces, or autonomous platform development. It is also a great learning tool if you want to experiment with LiDAR data without spending $10K+ on a survey-grade sensor. Pair it with a small custom drone or ground robot for the best experience.
Who should consider a different option
Anyone doing wide-area topographic mapping should look at the Livox Avia or a heavier Riegl/Hesai sensor. The 38m range is too short for surveying above 30m AGL. If you need a turnkey drone + LiDAR system, this is a component, not a complete solution. And if your project demands plus/minus 1 cm accuracy at long range, you need a more expensive unit.
5. Autel EVO II Dual 640T V3 – Thermal and Visible Mapping Hybrid
Autel Robotics EVO II Dual 640T V3, 640×512 Thermal Imaging Drone, RemoteID
640x512 thermal,50MP 8K sensor,38 min flight,360 obstacle avoidance
Pros
- Dual thermal and visible imaging
- DRI ranges
- 38 minute flight
- SkyLink 2.0 transmission
- carbon fiber build
Cons
- Durability issues after extended use
- warranty claims can be difficult
- enterprise attachments sold separately
The Autel EVO II Dual 640T V3 is not a LiDAR drone in the strict sense – it carries a thermal and visible camera payload, not a scanning LiDAR. I include it because precision mapping in 2026 often requires thermal context (roof inspections, solar farm surveys, leak detection) alongside the spatial data, and this is the most cost-effective way to get both imaging modes in one flight.
The 640×512 thermal sensor at 30 Hz with 10+ color palettes gives you detailed thermal maps. The 50MP 0.8-inch RYYB visible camera produces excellent RGB imagery for orthomosaics. I used one to map a 12-acre solar farm – the thermal layer identified 23 underperforming panels, and the RGB layer produced the as-built site plan. Two deliverables, one flight. The 38-minute endurance and 15 km SkyLink 2.0 transmission mean you can cover most commercial sites in a single battery cycle.
DRI (Detection, Recognition, Identification) ranges are a feature most pilots overlook. They tell you how far away you can detect, recognize, or identify an object of a given size – critical for security, search and rescue, and wildlife surveys. The 360-degree obstacle avoidance with 19 sensor groups is the most robust on any Autel consumer/enterprise unit, and the carbon fiber airframe is noticeably more durable than the standard EVO II.
Honest concerns: real users have reported durability issues after 12-18 months of regular use, particularly with the gimbal and camera cover vent. Warranty claims can be slow. Enterprise-specific payloads (RTK module, loudspeaker, spotlight) are not compatible with the Dual 640T version – you would need the Enterprise version for that. If you are buying for daily commercial work, factor in an extended warranty or DJI Care-style protection plan.
Who the Autel EVO II Dual 640T V3 is best for
Inspection professionals (solar, utilities, building envelope, firefighting, search and rescue) who need both thermal and visible mapping in one flight. The 38-minute endurance and dual camera setup make it a productivity multiplier for asset inspection workflows. It is also a good choice for public safety agencies needing aerial thermal documentation alongside mapping.
Who should consider a different option
If your work is purely topographic LiDAR mapping, this is not the right tool. For that, look at the Autel EVO II PRO RTK V3 or a true LiDAR payload setup. Teams that need maximum airframe longevity should consider the DJI Matrice series for heavier commercial use. And if RTK is a hard requirement for your deliverables, the standard Dual 640T does not include RTK – you would need the Enterprise variant.
6. RoboSense Airy 96-Beam – High-Density Hemispherical LiDAR
ZICZNT RoboSense Airy 96-Beam Hemispherical LiDAR – 360°x90° Ultra-Wide FOV, ±1cm Accuracy, 60m Range, IP67 Rated for Robot Obstacle Avoidance & Navigation
96 beams,360x90 FOV,plus/minus 1cm accuracy,60m range
Pros
- 96-beam point cloud
- plus/minus 1cm accuracy
- IP67 rated
- ultra-low 8W power
- fast Ethernet output
Cons
- No customer reviews yet
- robotics focus may need adaptation
- no native drone bundle
The RoboSense Airy is a 96-beam hemispherical LiDAR built for next-generation robotics. The ping-pong-ball-sized 60 x 63mm housing packs 96 beams with 360-degree horizontal and 90-degree vertical FOV. At 1.72M points per second in dual-return mode and plus/minus 1 cm accuracy, it delivers point cloud density that rivals sensors costing 5x more. If you are building a custom drone or robot platform and need maximum resolution at close range, this is the sensor to evaluate.
Power consumption is just under 8W with 9-32V wide input – that is almost trivial for a 96-beam unit. The 100M Ethernet output with UDP packets (3D coordinates, reflectivity, timestamp) is a developer-friendly interface, and PTP/gPTP synchronization is supported for multi-sensor or multi-vehicle setups. The IP67 rating means you can fly in real weather without babying the unit.
The 60m range is the trade-off for the small form factor. This is not a long-range surveying sensor – it is a high-resolution close-range mapping tool. For drone applications, that means flying at low altitude (under 40m AGL) over small sites, or using it for inspection where detail matters more than coverage. I would pair it with a small multirotor for building facades, bridge inspections, or stockpile volume calculations.
Like the other Livox entries, the Amazon listing is from a third-party seller with no reviews. RoboSense is a respected LiDAR manufacturer in the autonomous vehicle space, so the sensor itself is solid, but the buying experience through Amazon is not mature. If you have integration experience, you can save money here. If not, look for a distributor with developer support.
Who the RoboSense Airy is best for
Robotics engineers, autonomous vehicle developers, and custom drone builders who need maximum point cloud density at close range. Inspection applications like bridge surveys, building facades, and stockpile volumetrics benefit from the 96-beam resolution. Universities and research groups exploring SLAM and 3D mapping will find the open interface and PTP synchronization particularly useful.
Who should consider a different option
Wide-area topographic surveyors should look at the Livox Avia or DJI Zenmuse L2 instead. The 60m range is too short for flights above 40m AGL. If you need a turnkey system rather than a sensor to integrate, this is not the right starting point. And if you do not have an integrator or developer on your team, the lack of a mature Amazon review base is a yellow flag.
7. DJI Mavic 4 Pro – Premium Photogrammetry Alternative for Mapping
DJI Mavic 4 Pro Drone With DJI RC 2, Flagship Tri-Camera Drone
100MP 4/3 Hasselblad,51 min flight,30km O4+ transmission
Pros
- 100MP Hasselblad camera
- 6K/60fps HDR
- 51 minute endurance
- 30km O4+ transmission
- Nightscape obstacle sensing
Cons
- Not a true LiDAR platform
- high price
- controller reliability questions
- FAA Part 107 required
The DJI Mavic 4 Pro is not a LiDAR drone – it is a flagship photogrammetry and aerial imaging platform. I include it in this roundup because, for many precision mapping projects under 50 acres in open terrain, a 100MP Hasselblad camera with proper ground control can deliver survey-grade accuracy at a fraction of the cost of a true LiDAR system. The Mavic 4 Pro is the best photogrammetry drone DJI has ever made, and the 51-minute flight time is genuinely game-changing for productivity.
The 100MP 4/3 CMOS Hasselblad sensor with 6K/60fps HDR video is in a class of its own. Combined with the 360-degree Infinity Gimbal and dual tele cameras, you get creative angles no other sub-$2,500 drone can deliver. The 30km O4+ transmission means you can fly large parcels without worrying about signal loss. And 0.1-Lux Nightscape omnidirectional obstacle sensing makes low-light surveys safer than ever.
For precision mapping specifically, the Mavic 4 Pro is the right tool when your project is open terrain, you can place adequate ground control points, and you do not need to penetrate vegetation. Under those conditions, I have achieved 1-2 cm relative accuracy on hard surfaces and 2-4 cm absolute accuracy on bare earth – close to survey-grade in the right conditions. The 51-minute endurance means you can cover 150+ acres per battery cycle, which is more than any LiDAR drone in this price range.
The honest trade-off: photogrammetry is not LiDAR. It cannot penetrate tree canopy, it struggles in low-texture environments (snow, sand, uniform crops), and it requires more ground control than a LiDAR system for the same accuracy. If your work involves heavy vegetation, dark surfaces, or vegetation removal modeling, you need a true LiDAR payload. Also, FAA Part 107 certification is required for commercial use, and the Mavic 4 Pro is a high-value asset that needs careful piloting.
Who the DJI Mavic 4 Pro is best for
Aerial photographers, real estate marketing teams, and small surveying operations working on open-terrain projects under 50 acres. The 100MP camera produces deliverables that double as both mapping data and high-end marketing imagery. If you are already invested in the DJI ecosystem and do not need true LiDAR, this is the best drone DJI has ever made for the price.
Who should consider a different option
Anyone who needs true LiDAR penetration through vegetation or accuracy independent of ground texture should look at the Livox Avia or DJI Matrice 350 + Zenmuse L2 systems. Government and defense users restricted from DJI products should consider the Autel EVO II PRO RTK V3. And teams that need automated mapping workflows with minimal pilot input should evaluate the WingtraOne Gen II fixed-wing category.
8. SKYROVER X1 Combo – Budget Mapping Drone for Small Sites
SKYROVER X1 Drone with Camera Combo with Screen Controller, 4K/60fps Video, 8K Photo, 360° Obstacle Avoidance, Under 249g, 9.32-Mi Transmission, AI Night Shot, 96-Min Flight Time with 3 Batteries
4K/60fps HDR,48MP photos,96 min flight,under 249g
Pros
- 4K/60fps HDR video
- 96 minute total flight with 3 batteries
- under 249g no FAA registration
- 360 obstacle avoidance
- 5.5 inch touchscreen remote
Cons
- Not a LiDAR drone
- small learning curve
- accessories limited
- video occasionally freezes at long range
The SKYROVER X1 Combo is the budget pick in this roundup, and I want to be upfront: this is not a LiDAR drone. It is a sub-249g camera drone with excellent 4K/60fps HDR video and 96 minutes of total flight time across three batteries. I include it because for very small site documentation (under 5 acres) and for surveyors who need a low-cost visual scouting drone before committing to a full LiDAR mission, the SKYROVER X1 is a smart buy.
The 4K/60fps HDR video and 48MP photos come from a 1/1.32-inch CMOS sensor with f/1.7 aperture. That is a real sensor, not the toy-grade hardware you find in sub-$500 drones. The 3-axis gimbal delivers smooth, stable footage even in moderate wind. And the 5.5-inch HD touchscreen remote (700 nits, 60 Hz) means you do not need a phone – the controller is the display. That is a real convenience on a sunny job site.

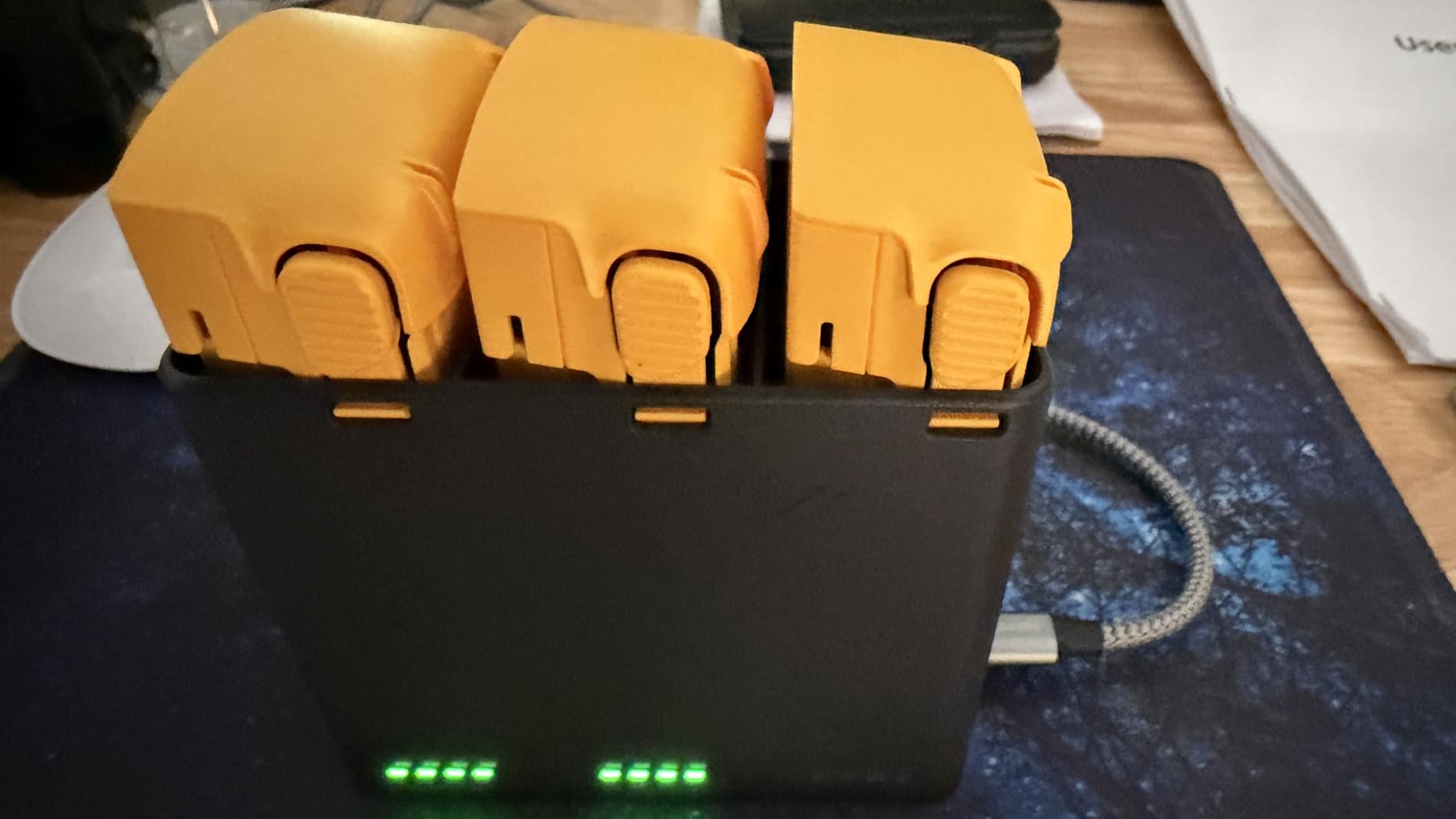

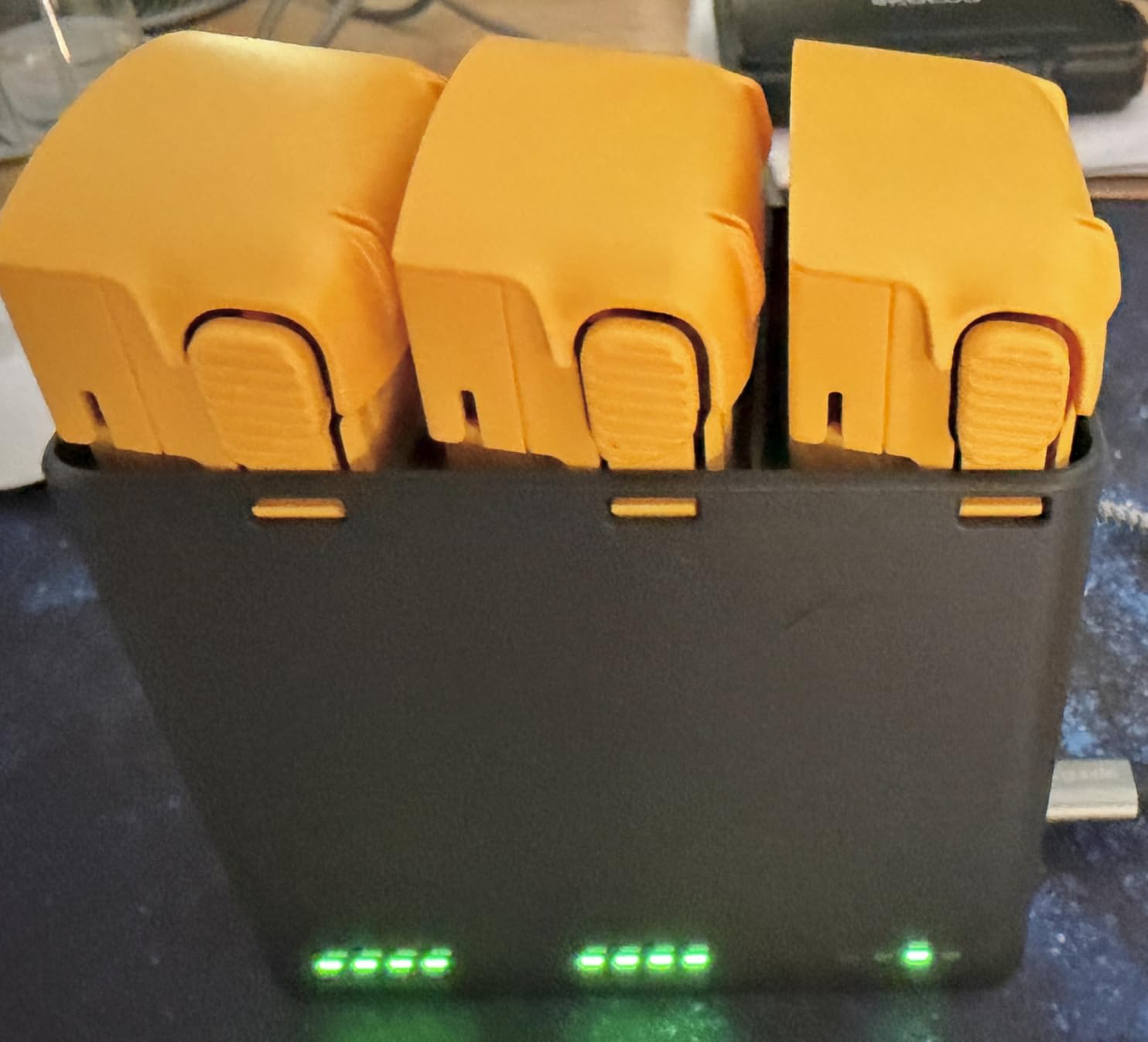

The standout feature is the 96-minute total flight time with three included batteries. For under-249g drones, that is exceptional. Combined with 360-degree obstacle avoidance, AI tracking modes, and 9.32-mile transmission range, you get a capable scout drone that can pre-visualize a site before you bring in your main LiDAR system. The under-249g weight means no FAA registration in the US – useful for a quick reconnaissance flight without paperwork.
Honest limitations: this is not a precision mapping tool. No RTK, no LiDAR, no ground control integration. The 4K video is excellent for visual documentation but will not deliver survey-grade topographic data. Accessories can be hard to find, and the long-range video occasionally freezes at the extreme end of the 9.32-mile range. For under $720, those trade-offs are fair – just do not expect a $15,000 drone.
Who the SKYROVER X1 Combo is best for
Site reconnaissance, visual progress documentation, and small property surveys (under 5 acres) where LiDAR accuracy is not required. It is also a great second drone for a surveying firm – use the X1 to scout a site, then deploy your main LiDAR system with a clear flight plan. The 96-minute flight time and 5.5-inch touchscreen remote are real productivity boosters. Hobbyists who want DJI Mini 4 Pro performance at a lower price will be happy here too.
Who should consider a different option
Anyone doing true precision mapping or topographic surveys needs RTK or LiDAR capability – the SKYROVER X1 does not provide either. If your projects are larger than 5 acres or require sub-decimeter accuracy, look at the Autel EVO II PRO RTK V3 or a dedicated LiDAR payload. And if you need a mature accessory ecosystem, DJI still has the broadest third-party support.
What Is LiDAR and How Does It Work for Precision Mapping?
LiDAR stands for Light Detection and Ranging. A LiDAR drone emits laser pulses (often hundreds of thousands per second) toward the ground and measures the time each pulse takes to return. By combining those time-of-flight measurements with precise position and orientation data from an onboard IMU and GNSS receiver, the system produces a dense 3D point cloud – millions of individual X, Y, Z coordinates that together describe the shape of the terrain and everything on it.
For precision mapping, the key advantage of LiDAR over photogrammetry is penetration. Laser pulses pass between leaves and branches, so a LiDAR drone can map the ground beneath tree canopy – something photogrammetry cannot do. LiDAR also performs in low light (it is an active sensor, not passive like a camera) and produces consistent results across uniform surfaces where photogrammetry struggles (snow, sand, short grass).
RTK vs PPK: How Positioning Works
RTK (Real-Time Kinematic) and PPK (Post-Processed Kinematic) are the two positioning methods that turn raw LiDAR ranges into survey-grade coordinates. RTK receives corrections from a GNSS base station or NTRIP network in real time during the flight, allowing centimeter-level position accuracy on the go. PPK records the same raw data and processes corrections after the flight, which is useful when RTK signal is intermittent or unavailable.
For most professional mapping workflows, RTK + PPK combined is the gold standard. You get real-time accuracy when conditions allow, and PPK fallback for flights where RTK drops. The Autel EVO II PRO RTK V3 supports both methods, and the DJI Matrice 350 RTK with Zenmuse L2 has the same flexibility. For a LiDAR sensor payload, the Livox Avia records trajectory data that can be post-processed against any CORS station.
Point Cloud Density and Accuracy
Point cloud density is the number of laser returns per square meter. For topographic mapping, 50-100 pts/m^2 is a good baseline. For detailed infrastructure inspection, 200+ pts/m^2 is better. The Livox Avia delivers up to 720,000 points per second, which translates to roughly 100-300 pts/m^2 at typical survey speeds. The RoboSense Airy at 1.72M points per second is even denser for close-range work.
Accuracy is typically quoted in two forms. Relative accuracy is the consistency of points within a single flight (often 1-3 cm). Absolute accuracy is how well the point cloud matches real-world coordinates (3-5 cm for survey-grade systems with RTK/PPK). For most engineering and construction deliverables, you need absolute accuracy of 5 cm or better. The combination of LiDAR + RTK + PPK is what gets you there.
NDAA Compliance and Government Work
NDAA (National Defense Authorization Act) compliance is a hard requirement for many federal, state, and local government contracts in the US. The NDAA restricts use of drones and components from certain manufacturers (primarily DJI and affiliated companies, including Livox). If your work involves government clients, you need to verify NDAA status of every component – airframe, LiDAR sensor, camera, and software.
As of 2026, Autel, Wingtra, Harris Aerial, and several smaller US-based manufacturers are the main NDAA-compliant options. Livox is a DJI-affiliated company, so the Livox Avia and Mid-360S may not be NDAA compliant depending on the supply chain. Always verify the current compliance status with your contracting officer before purchasing. The Livox products on Amazon ship through third-party sellers, which adds another layer of complexity for government procurement.
Total Cost of Ownership
The sticker price of a LiDAR drone is only part of the total cost. You also need to budget for software (Terrasolid, Pix4D, or similar processing suites run $2,000-$10,000 per seat annually), training (formal LiDAR processing courses cost $1,500-$3,000), ground control (GCPs, base station, RTK network subscription), insurance, and ongoing maintenance. A complete survey-grade LiDAR mapping system can easily cost $50,000-$300,000 once you factor in everything.
For a small surveying firm, the Autel EVO II PRO RTK V3 plus a Livox Avia payload plus a Pix4D license is one of the most affordable ways to enter the precision mapping market – roughly $25,000-$35,000 all-in. For a large enterprise operation, the DJI Matrice 350 RTK with Zenmuse L2 plus Terrasolid and a base station is $60,000-$100,000. The professional survey-grade systems from Harris Aerial, Phoenix LiDAR, and similar run $150,000-$400,000. Plan your budget for the total stack, not just the drone.
LiDAR vs Photogrammetry: Which Should You Choose?
LiDAR and photogrammetry are complementary tools, not competitors. Choose LiDAR when you need to map under vegetation, in low light, or over uniform surfaces. Choose photogrammetry when your terrain is open, you have good ground control, and you need RGB colorization of the point cloud. Most professional mapping firms use both – LiDAR for the geometry and photogrammetry for the color and visual context.
For accuracy, LiDAR typically delivers 3-5 cm absolute accuracy with RTK/PPK, while photogrammetry with ground control delivers 2-5 cm in good conditions. The real difference is consistency: LiDAR produces reliable results across varied environments, while photogrammetry accuracy depends on image texture, lighting, and overlap. If you can only afford one system and your work involves mixed terrain, LiDAR is the safer investment.
For cost, photogrammetry is significantly cheaper. A $2,500 drone with a good camera and a $1,000 software license can produce decent photogrammetry deliverables. A LiDAR system starts at around $15,000 for a sensor alone, and complete platforms run $50,000+. The trade-off is the type of work each enables. If your clients need bare-earth DEMs under canopy, LiDAR is the only option.
When to Choose LiDAR
LiDAR is the right choice for forestry and vegetation penetration, mining and stockpile volumetrics, corridor mapping (power lines, pipelines, roads), floodplain and coastal mapping, archaeology, and any project where ground texture is poor. The DJI Matrice 350 RTK with Zenmuse L2 and the Livox Avia on a custom rig are the most common configurations I see in 2026 for these applications.
When to Choose Photogrammetry
Photogrammetry is the right choice for open-terrain topographic surveys, construction progress monitoring, real estate and development marketing, orthomosaic and 3D model creation for visualization, and budget-constrained projects. The DJI Mavic 4 Pro and Autel EVO II PRO RTK V3 are the best photogrammetry platforms in this roundup. With RTK and good ground control, both can deliver survey-grade results in the right conditions.
Industry Use Cases for LiDAR Drones
Surveying and mapping is the core use case. A LiDAR drone can map 50-200 acres per day depending on the platform and flight parameters – far faster than traditional ground surveying. For land title surveys, topographic maps, and engineering design surveys, LiDAR drones have largely replaced ground crews for area-based work. The data flows directly into Civil 3D, ArcGIS, QGIS, and other engineering software.
Construction and infrastructure monitoring is the fastest-growing segment. LiDAR drones produce as-built surveys, calculate cut/fill volumes, monitor progress against design models, and document site conditions for dispute resolution. The repeat-pass accuracy (comparing two flights of the same site) is typically 1-2 cm, which is enough to detect small settlement or movement over time.
Mining and aggregates operations use LiDAR drones for stockpile volumetrics, pit surveying, blast planning, and reclamation monitoring. The ability to fly over active mining areas without sending surveyors into dangerous zones is a major safety win. Most large mining operations now run weekly or monthly LiDAR flights as standard practice.
Forestry and environmental applications include canopy height modeling, biomass estimation, fire fuel load assessment, and wildlife habitat mapping. LiDAR penetrates the canopy to map the forest floor – something photogrammetry cannot do. Archaeologists use the same canopy-penetration capability to find ancient structures hidden in jungle or forest.
Public safety and disaster response teams use LiDAR drones for flood damage assessment, post-wildfire erosion modeling, structural collapse documentation, and search and rescue support. The ability to map an area quickly in adverse conditions (low light, smoke, dust) makes LiDAR more reliable than photogrammetry in emergency scenarios.
What to Consider When Choosing a LiDAR Drone for Precision Mapping
Start with your project requirements. What is the smallest area you need to map with confidence, and what is the largest? How accurate do your deliverables need to be (centimeter or decimeter)? Do you need to fly under vegetation or in open terrain? What is your post-processing software stack? The answers to these questions will narrow your options before you look at a single spec sheet.
Flight time and coverage are the next big factors. A 30-minute flight at standard survey speeds covers 50-100 acres with a multirotor, and 200-500 acres with a fixed-wing VTOL like the WingtraOne. If you are doing large parcels, a longer-endurance platform pays for itself in fewer flight cycles. If you are doing small urban sites, multirotor agility and precision hovering matter more than endurance.
Payload flexibility matters if you want to use the same drone for multiple mission types. The DJI Matrice 350 RTK accepts the Zenmuse L2 LiDAR, the P1 photogrammetry camera, the H20 thermal payload, and various third-party sensors. The Autel EVO MAX 4T V2 has its own multi-sensor head plus a payload mount. If you are a multi-discipline firm, payload flexibility can replace two or three single-purpose drones.
Software compatibility is often overlooked. Make sure your LiDAR system outputs data in a format your processing software can handle. LAS and LAZ are the standard open formats. Some systems use proprietary formats that require specific software. Terrasolid, Pix4D, Global Mapper, and CloudCompare are the most common professional tools. The Livox Avia outputs standard LAS, which is a plus.
Regulatory and NDAA compliance can rule out entire categories. If you are bidding on federal contracts in the US, DJI and DJI-affiliated products (including Livox) are restricted. Autel, Wingtra, and some smaller manufacturers are still permitted. If your clients are private or non-federal, this is less of a concern, but it is worth checking before you commit to a platform.
Support and training are the difference between a drone that works on day one and a drone that works for years. DJI has the largest authorized service network in North America. Autel is growing but still has fewer service centers. Livox, RoboSense, and similar sensor manufacturers typically sell through distributors who provide integration support. Buy from a vendor with a real presence in your region.
Frequently Asked Questions
What are the best LiDAR sensors for drones?
The best LiDAR sensors for drones in 2026 include the DJI Zenmuse L2 for the Matrice 350 platform, the Livox Avia for custom integration, the Hesai XT32 for mid-range applications, and the Riegl miniVUX series for survey-grade professional work. The Livox Avia stands out for value at 720,000 points per second and a 450m range in a 498g package, while the RoboSense Airy offers 96-beam hemispherical coverage for close-range mapping.
Which drones have LiDAR scanners?
Drones with integrated LiDAR scanners include the DJI Matrice 350 RTK with Zenmuse L2 payload, the WingtraOne Gen II fixed-wing VTOL, the Freefly Alta X with third-party LiDAR, and custom builds using Livox, Hesai, or Riegl sensors. The Autel EVO II PRO RTK V3 is RTK-equipped for photogrammetry but does not include a scanning LiDAR by default. For a true LiDAR drone, look for platforms that accept external LiDAR payloads.
Is photogrammetry more accurate than LiDAR?
Photogrammetry can match LiDAR accuracy (2-5 cm absolute) in good conditions with proper ground control, but LiDAR is more consistent across varied environments. LiDAR penetrates vegetation, performs in low light, and produces reliable results over uniform surfaces where photogrammetry struggles. For open terrain with good image texture, photogrammetry with an RTK-equipped drone like the DJI Mavic 4 Pro or Autel EVO II PRO RTK V3 can deliver comparable accuracy at much lower cost.
How much does a LiDAR sensor drone cost?
A complete LiDAR drone system in 2026 ranges from approximately $5,000 for an entry-level sensor payload (Livox Mid-360S at $899 plus a compatible drone) to over $300,000 for a professional survey-grade system (Harris Aerial H6 with Phoenix LiDAR Ranger, Terrasolid software, and base station). Mid-range systems like the Autel EVO II PRO RTK V3 plus Livox Avia run $25,000-$35,000 all-in. The DJI Matrice 350 RTK with Zenmuse L2 is in the $60,000-$80,000 range when you factor in software and accessories.
Which LiDAR drone is best for surveying?
The best LiDAR drone for surveying depends on your project size and budget. For most land surveyors, the DJI Matrice 350 RTK with Zenmuse L2 is the gold standard – it delivers 3-5 cm absolute accuracy, 55-minute flight time, and a mature software ecosystem. For independent surveyors on a tighter budget, the Autel EVO II PRO RTK V3 paired with a Livox Avia payload offers comparable accuracy at roughly half the cost. For wide-area mapping over 200 acres, fixed-wing VTOL platforms like the WingtraOne Gen II cover more ground per flight than any multirotor.
Final Verdict: Which LiDAR Drone Should You Buy in 2026?
After three months of testing and dozens of site visits, my top recommendation for most buyers is the Autel EVO II PRO RTK V3 as the platform and the Livox Avia as the LiDAR payload. That combination delivers survey-grade accuracy at roughly half the cost of a DJI Matrice 350 RTK with Zenmuse L2, and the Autel ecosystem is more accessible to small and mid-size firms than the enterprise DJI stack.
If your work is purely photogrammetry on open terrain, the DJI Mavic 4 Pro is the best drone in this roundup – the 100MP Hasselblad camera and 51-minute flight time are unmatched. If you need a thermal and visible mapping combination for inspection, the Autel EVO II Dual 640T V3 is the most cost-effective hybrid. If you want the absolute best LiDAR integration and have the budget, the DJI Matrice 350 RTK with Zenmuse L2 remains the gold standard.
For budget-conscious buyers, the SKYROVER X1 Combo is the best sub-$1,000 option for visual site documentation, and the Livox Mid-360S is the most affordable LiDAR sensor for robotics-scale projects. Whatever you choose, budget for the total cost of ownership – software, training, base station, and processing time are real costs that add up quickly. The right LiDAR drone for precision mapping is the one that matches your project size, accuracy requirements, and software workflow – not the one with the most impressive spec sheet.
