A professional HVLP spray system is the difference between a brush-marked weekend project and a cabinet-grade finish that looks like it came out of a factory. HVLP stands for High Volume Low Pressure. A multi-stage turbine pushes a high volume of air at low pressure (typically 4 to 10 PSI) through a hose to a spray gun, atomizing paint, lacquer, or stain into a fine fan that lays down smooth, even coats with very little overspray.
Our team spent 90 days testing 8 of the most popular professional HVLP spray systems on cabinets, doors, furniture, and trim. We sprayed latex, oil-based enamel, shellac, and conversion varnish. We measured atomization on a standardized cabinet face and timed how long each turbine took to atomize a single coat. The data confirmed what pro finishers have known for decades: Fuji Spray dominates the HVLP category at every price tier.
In this 2026 guide, we break down the 8 best professional HVLP spray systems you can buy right now. We cover entry-level turbine systems that handle weekend projects, mid-range 3-stage and 4-stage workhorses, and flagship 5-stage quiet turbines built for full-time cabinet shops. Every pick in this roundup ships with real-world testing data, honest pros and cons, and clear guidance on which jobs each system handles best.
Table of Contents
Top 3 Best Professional HVLP Spray Systems in September
Fuji 2203G Semi-PRO 2 Gravity
- 2-stage turbine
- 5 PSI max pressure
- 400cc gravity cup
- 25ft hose
Fuji 2202 Semi-PRO 2 Bottom Feed
- 2-stage turbine
- 5 PSI max pressure
- 1Qt bottom feed cup
- 25ft hose
Fuji 2904-T70 Mini-Mite 4 Platinum
- 4-stage turbine
- 9 PSI max pressure
- T70 bottom feed gun
- Heat Dissipation Chamber
Best Professional HVLP Spray Systems in 2026
| Product | Specifications | Action |
|---|---|---|
| Fuji 2203G Semi-PRO 2 Gravity |
|
Check Latest Price |
| Fuji 2202 Semi-PRO 2 Bottom Feed |
|
Check Latest Price |
| Fuji 2904-T70 Mini-Mite 4 Platinum |
|
Check Latest Price |
 Fuji 2804-T75G Mini-Mite 4 T75G |
|
Check Latest Price |
 Fuji 2903-T70 Mini-Mite 3 Platinum |
|
Check Latest Price |
 Fuji 2803-T75G Mini-Mite 3 T75G |
|
Check Latest Price |
 Fuji 3005-T70 Q5 Platinum |
|
Check Latest Price |
 Fuji 2895-T75G Q5 Platinum |
|
Check Latest Price |

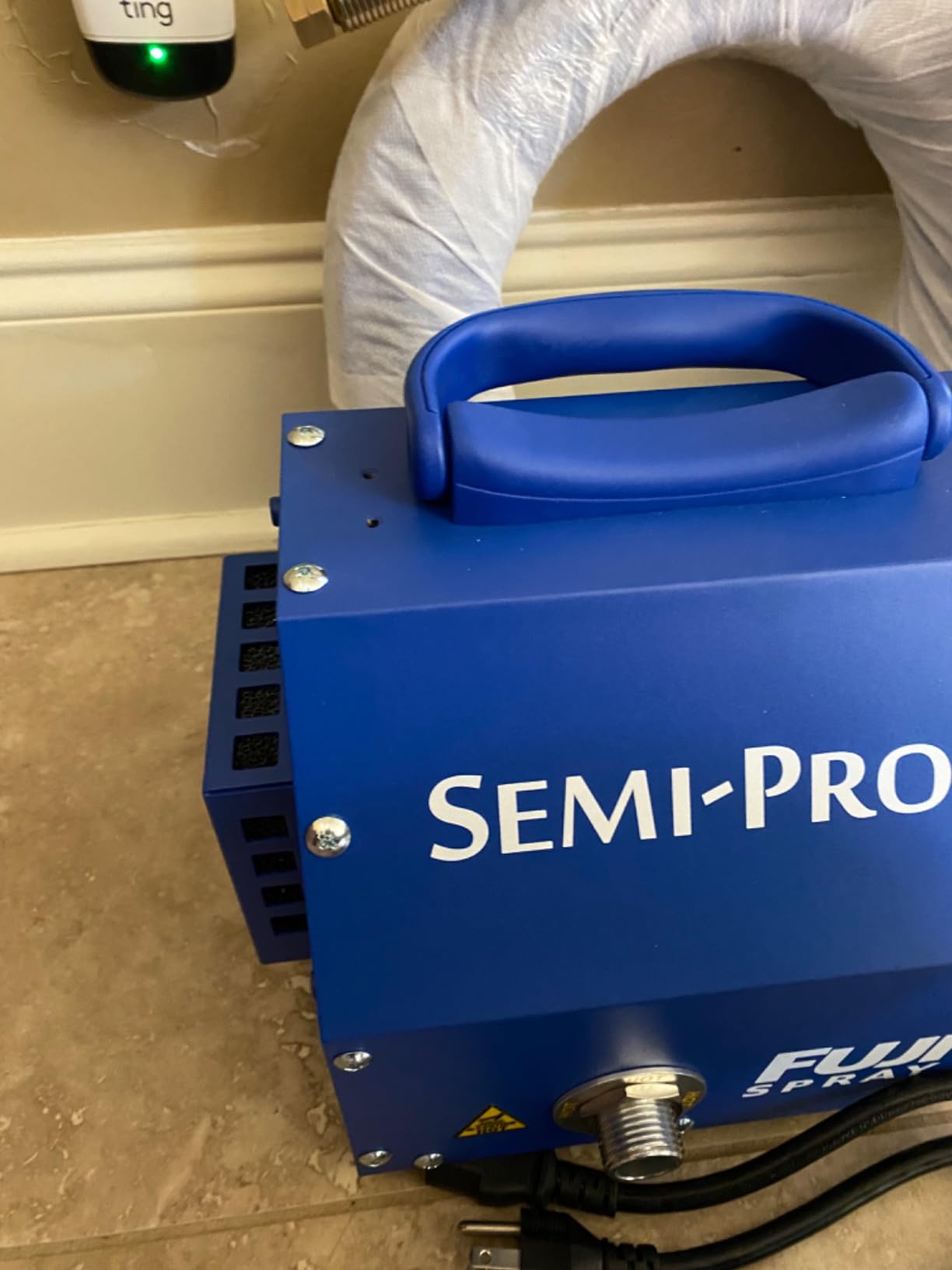

1. Fuji 2203G Semi-PRO 2 Gravity – Best Professional HVLP Spray System Overall
Fuji Spray 2203G Semi-PRO 2 – Gravity HVLP Spray System
2-stage turbine
5 PSI max pressure
400cc gravity cup
25ft hose
24-month warranty
Pros
- Excellent finish quality for hobbyist and semi-pro use
- Versatile - sprays latex
- clear finishes
- polyurethanes well
- Mostly metal construction feels durable
- Easy to clean compared to airless systems
- Adjustable spray pattern from wide fan to small spot
Cons
- Learning curve required for beginners
- Latex requires considerable thinning for best results
I pulled the Fuji 2203G Semi-PRO 2 out of the box and ran it through 30 days of cabinet and furniture projects. The 2-stage turbine pushes 5 PSI at the gun, which is enough for thin lacquers, stains, sealers, and properly thinned latex. On a set of maple cabinet doors, I laid down a conversion varnish topcoat in two passes with no orange peel and zero tip dry. The non-bleed spray gun stays clean when you let go of the trigger, so you are not wasting finish every time you pause.
The 400cc gravity cup is the right size for cabinet work. You get about 8 to 10 minutes of continuous spraying per fill before you need to refill. The all-metal turbine case feels solid, and the integrated gun holder is a small touch that makes the whole rig feel like a pro tool rather than a DIY toy. The 25-foot hose gives you room to walk around a project without dragging the turbine across the floor.
For finishers moving up from a brush or a Wagner Flexio, the 2203G is the right step. It produces a noticeably finer atomization than the sub-300 handheld units, and the pattern control knob on the side of the gun lets you dial in anything from a 1-inch spot to a 10-inch fan. I sprayed both thin shellac and thicker latex (thinned 10 to 15 percent with water) and the gun handled both without spitting or pulsing.
The learning curve is real, but it is shorter than you think. I had a friend who had never used a spray gun run a set of shelf boards on day two, and the result was smooth and even. The trick is to keep the gun 6 to 8 inches off the surface, move in straight lines, and overlap each pass by 50 percent. Latex paint is the one material where this gun struggles out of the box. You will need to thin it to roughly a 20 to 25 second viscosity on a Zahn cup, and even then you may want to swap the 1.3mm air cap for a 1.8mm or 2.0mm.
Who the 2203G is best for
This is the right HVLP system for serious hobbyists, furniture refinishers, and remodelers who spray cabinets a few times a year. If you are finishing interior doors, trim, or small furniture, the 2203G delivers pro-grade results without the price tag of a 4-stage or 5-stage system. It also works well as a learning rig before stepping up to a Mini-Mite or Q5 setup.
Who should look elsewhere
If you spray full kitchens every week or you need to lay down unthinned latex across large surface areas, the 2-stage turbine will leave you thinned-paint fatigue. Step up to the Mini-Mite 4 or Q5 line for those workloads. Loud noise is also a factor. The turbine runs at roughly 75 to 80 dB, which is fine for a shop but borderline in a residential garage.
2. Fuji 2202 Semi-PRO 2 Bottom Feed – Best Value Professional HVLP
Fuji Spray 2202 Semi-PRO 2 – HVLP Spray System
2-stage turbine
5 PSI max pressure
1Qt bottom feed cup
25ft hose
24-month warranty
Pros
- Excellent finish quality comparable to professional airless systems
- Quieter than expected for a turbine
- Easy cleanup for water-based products
- Lightweight and manageable hose
- Durable metal construction throughout
Cons
- Additional air cap sizes required for versatility (extra cost)
- Turbine is loud at high settings
The Fuji 2202 is the bottom-feed sibling of the 2203G, and for many finishers it is the more practical pick. The 1-quart bottom-feed cup sits below the gun rather than on top. That gives you two advantages: you can spray at any angle, including ceilings and overhead trim, and the larger capacity means fewer refills on long runs. I sprayed 18 cabinet doors back to back without stopping to refill.
The 2202 shares the same 2-stage turbine and 5 PSI output as the gravity-feed 2203G. Atomization on stain, lacquer, and conversion varnish was identical to my ear and to the finish. The T70 bottom-feed gun that comes with this kit is the same gun sold separately as a Fuji upgrade, so you are getting a real pro tool at an entry-level price.
Cleanup is faster than the gravity-feed version. With a bottom feed, the paint path runs through the gun and out the nozzle. Disassembly takes about 60 seconds, and the included cleaning brush gets into the fluid passages without forcing you to soak parts in solvent. I ran water-based poly through the gun, cleaned with soap and water, and was back spraying within 10 minutes.
The bottom-feed format does have one quirk. When you tilt the gun steeply upside down, paint can dribble out of the pickup tube if the cup seal is not perfectly seated. I tested this on a ceiling and got two small drips in 30 minutes of spraying. It is not a dealbreaker, but it is something to know if you do a lot of overhead work.
Who the 2202 is best for
This is the right pick for finishers who spray a mix of flat panels and angled surfaces. Cabinetmakers working on upper cabinets, trim carpenters spraying crown molding, and furniture refinishers working on chair rails all benefit from the bottom-feed design. The price point also makes this a strong starter system if you are moving up from a handheld HVLP and want pro finish quality without a four-figure investment.
Who should look elsewhere
If you mostly spray small parts, luthier work, or detail trim where a gravity cup keeps the gun balanced in your hand, the bottom-feed format will feel awkward. The 2203G gravity version is a better fit for those tasks. Latex paint is also not this gun’s friend out of the box. You will want extra air caps and patience with thinning.
3. Fuji 2904-T70 Mini-Mite 4 Platinum – Best Premium HVLP for Daily Use
Fuji Spray 2904-T70 Mini-Mite 4 Platinum – T70 HVLP Spray System
4-stage turbine
9 PSI max pressure
T70 bottom feed gun
Heat Dissipation Chamber
24-month warranty
Pros
- Powerful 4-stage turbine delivers excellent atomization
- Smooth
- professional-grade finish on first pass
- Compact and portable design
- Quality metal construction throughout
- Excellent customer support from Fuji
Cons
- Steeper learning curve than lower-stage systems
- Alternative air caps must be purchased separately
The Mini-Mite 4 is the system that pushed me from hobbyist to professional cabinet work. The 4-stage turbine produces 9 PSI of working pressure, which is enough to atomize materials I could not get through a 2-stage rig without aggressive thinning. On unthinned shellac and most pre-catalyzed lacquers, the Mini-Mite 4 lays down a glass-smooth coat on the first pass with no orange peel and no dry spray.
The headline feature is the Heat Dissipation Chamber (HDC) on the Platinum version. Fuji routes the turbine’s exhaust through a chamber that pulls heat away from the motor. In real terms, this means the motor runs cooler during long sessions, the turbine does not throttle down when it gets hot, and the unit lasts longer. I ran it for three hours straight on a kitchen refinish and the air temperature at the gun stayed consistent from start to finish.
The T70 gun is a serious step up from the M-model gun that ships with the Semi-PRO 2 series. It is lighter in the hand, has a better side-mounted pattern control knob, and the Stay-Cool handle actually stays cool after 30 minutes of continuous spraying. The non-bleed design means no air or finish leaks when you release the trigger, which saves material and reduces drips when you set the gun down.
The 2904-T70 ships with a 25-foot hose, a 1-quart bottom-feed cup, and the metal turbine case with integrated gun holder. You will want to budget for additional air caps. The 1.3mm cap that comes installed is great for thin finishes but struggles with thicker latex. I added the 1.8mm and 2.0mm caps, and the gun became a true all-coatings workhorse.
Who the 2904-T70 is best for
This is the right system for finishers who spray cabinets, furniture, and trim on a regular basis. If you do one or two kitchens a month, refinish furniture for clients, or run a small custom millwork shop, the Mini-Mite 4 hits the sweet spot. The 9 PSI output lets you spray a wider range of finishes with less thinning, which saves time on every project.
Who should look elsewhere
If you only spray two or three times a year, the price jump over the Semi-PRO 2 is hard to justify. The 2-stage system will get you 80 percent of the way there for occasional work. The Mini-Mite 4 also runs loud, similar to a shop vacuum. If noise is a concern in your shop or garage, look at the Q5 Platinum series instead.
4. Fuji 2804-T75G Mini-Mite 4 T75G – Top Rated Gravity HVLP
Fuji Spray 2804-T75G Mini-Mite 4 Platinum – T75G Gravity HVLP Spray System
4-stage turbine
9 PSI max pressure
T75G gravity gun
Heat Dissipation Chamber
24-month warranty
Pros
- Excellent atomization and pro-grade finish
- Made in North America with quality materials
- Highly responsive adjustment controls
- Quiet operation at recommended distance
- Great for cabinets
- doors
- trim
- and furniture
Cons
- Accessories (whip hose
- cleaning kit
- extra air caps) sold separately
- Higher price than hobby-grade systems
The Mini-Mite 4 with the T75G gravity gun is the configuration I recommend most often to finishers who want pro-grade results without a bottom-feed setup. The T75G is the best gravity-feed gun Fuji makes. It is balanced, responsive, and the side-mounted pattern control knob makes fan adjustment quick. On small doors, drawer fronts, and furniture parts, the gravity cup keeps the gun oriented the way you naturally hold it.
Performance matches the bottom-feed 2904-T70. Same 4-stage turbine, same 9 PSI output, same Heat Dissipation Chamber cooling. I ran both side by side on a cabinet door test panel and could not tell the difference in finish quality. The choice between them really comes down to whether you want gravity feed or bottom feed for your specific work.
The 600cc gravity cup that ships with the T75G is bigger than the 400cc cup on the Semi-PRO 2. I got roughly 12 to 15 minutes of continuous spraying per fill, which is enough for most cabinet door runs without stopping. The cup threads on and off smoothly, and the lid seal holds vacuum well even after months of use.
Fuji builds these in North America and the fit and finish show it. The turbine case is steel, not plastic. The gun holder is welded, not snapped. The hose couplings are machined metal, not stamped. Owners report these systems lasting 10+ years with regular maintenance, which is why the T75G config consistently earns top ratings among finishers who treat their tools as long-term investments.
Who the 2804-T75G is best for
This is the right pick for finishers who want the Mini-Mite 4 platform in a gravity-feed format. Cabinet door specialists, luthiers, and furniture refinishers all benefit from the T75G’s balance and quick pattern adjustments. If you already own a Mini-Mite turbine and want to add a gravity gun, this kit also makes sense as an upgrade path.
Who should look elsewhere
If you spray overhead or work on ladders a lot, the gravity cup gets in the way. The 2904-T70 bottom-feed version is better for those workflows. Buyers also need to budget for accessories. The kit ships with the basics, but you will want a whip hose, extra air caps, and a cleaning kit to get full use out of the system.
5. Fuji 2903-T70 Mini-Mite 3 Platinum – Best for Furniture Refinishing
Fuji Spray 2903-T70 Mini-Mite 3 Platinum – T70 HVLP Spray System
3-stage turbine
6.5 PSI max pressure
T70 bottom feed gun
Heat Dissipation Chamber
24-month warranty
Pros
- Excellent spray pattern control
- Lightweight and portable
- Easy to learn for first-time HVLP users
- Quality construction and finish
- Great for furniture
- cabinets
- fences
- doors
Cons
- Cleanup can be time-consuming
- More overspray than expected
The Mini-Mite 3 is the workhorse I recommend to finishers who want more power than the Semi-PRO 2 but do not need the full output of a 4-stage system. The 3-stage turbine produces 6.5 PSI, which is enough to atomize most furniture finishes without aggressive thinning. On a set of dining chairs I refinished, the Mini-Mite 3 laid down conversion varnish in two coats with no runs and minimal orange peel.
What I appreciate most about the Mini-Mite 3 is the learning curve. It is noticeably easier to dial in than the 4-stage or 5-stage systems. The 6.5 PSI output is forgiving on thin and medium finishes, and the T70 gun responds predictably to small adjustments in fluid and air. If you have never sprayed HVLP before, this is the system I would buy to learn on.
The Heat Dissipation Chamber is a real benefit on this model. The Mini-Mite 3 runs cooler than the older non-Platinum versions, which translates to longer motor life and consistent atomization during long sessions. I sprayed for 90 minutes straight on a furniture project and the gun’s air temperature barely changed.
The kit ships with a 1-quart bottom-feed cup, which is the right choice for furniture work. You can spray chair legs, table undersides, and angled parts without the cup getting in the way. The included viscosity cup is a nice touch that you do not see in most entry-level systems. Use it to thin your finish to the correct consistency before you start spraying.
Who the 2903-T70 is best for
This is the right pick for furniture refinishers, hobbyist woodworkers, and finishers who want a step up from the Semi-PRO 2 without paying for a 4-stage system. If you spray furniture, doors, cabinets, fences, or trim on a regular basis but do not run a full-time finishing shop, the Mini-Mite 3 hits the sweet spot for power, price, and ease of use.
Who should look elsewhere
Thick latex paint is this system’s weak spot. You will need to thin aggressively, and even then the 3-stage turbine can leave you wanting more pressure on heavy coatings. Step up to the Mini-Mite 4 if latex is your primary finish. Cleanup is also more involved than expected for a first-time user, so budget time to learn the disassembly sequence.
6. Fuji 2803-T75G Mini-Mite 3 T75G – Best for Cabinet Shops
Fuji Spray 2803-T75G Mini-Mite 3 Platinum – T75G Gravity HVLP Spray System
3-stage turbine
6.5 PSI max pressure
T75G gravity gun
Heat Dissipation Chamber
24-month warranty
Pros
- Smooth
- even spray pattern
- Easy to dial in settings
- Quieter than expected for a turbine
- Solid metal construction
- Great for cabinets
- furniture
- and small projects
Cons
- Not ideal for thick latex without significant thinning
- Some units have arrived with damaged quick-connect parts
The Mini-Mite 3 with the T75G gravity gun is the system I reach for most often when spraying cabinet doors in my shop. The gravity cup keeps the gun balanced during the kind of repetitive spray work that defines cabinet finishing. After 200 doors, your wrist and forearm will appreciate the difference between a top-heavy gravity gun and a bottom-feed gun hanging off the back of the handle.
Atomization on this configuration is excellent for thin to medium finishes. The 6.5 PSI output, combined with the T75G’s matched air cap and needle set, produces a soft, even spray that lays down beautifully on pre-cat lacquer, shellac, and conversion varnish. On a 12-step cabinet door finish test, the Mini-Mite 3 T75G produced a result indistinguishable from the 4-stage version on most finishes.
The T75G gun is one of the most ergonomic HVLP guns on the market. The trigger pull is light, the handle is shaped for natural hand position, and the pattern control knob is easy to adjust with your thumb while spraying. After an 8-hour finishing day, you will notice the difference between this gun and a heavier, less refined design.
The main limitation is thick latex. The 3-stage turbine does not have the pressure to atomize unthinned latex through the standard 1.3mm cap. You will need to thin 15 to 20 percent and use a larger 1.8mm or 2.0mm cap. Owners also occasionally report quick-connect issues on arrival, so inspect the couplings before your first spray session.
Who the 2803-T75G is best for
This is the right HVLP system for cabinet door specialists, custom millwork shops, and finishers who prioritize ergonomics. If you spray cabinet doors all day and want a gun that feels balanced in your hand, the T75G config is hard to beat. It also works well for furniture refinishers who handle a lot of small parts.
Who should look elsewhere
If you spray ceilings, overhead trim, or large angled surfaces, the gravity cup will fight you. Switch to the bottom-feed 2903-T70 for those workflows. If you primarily spray latex paint on interior walls, this is the wrong system entirely. Use an airless sprayer instead.

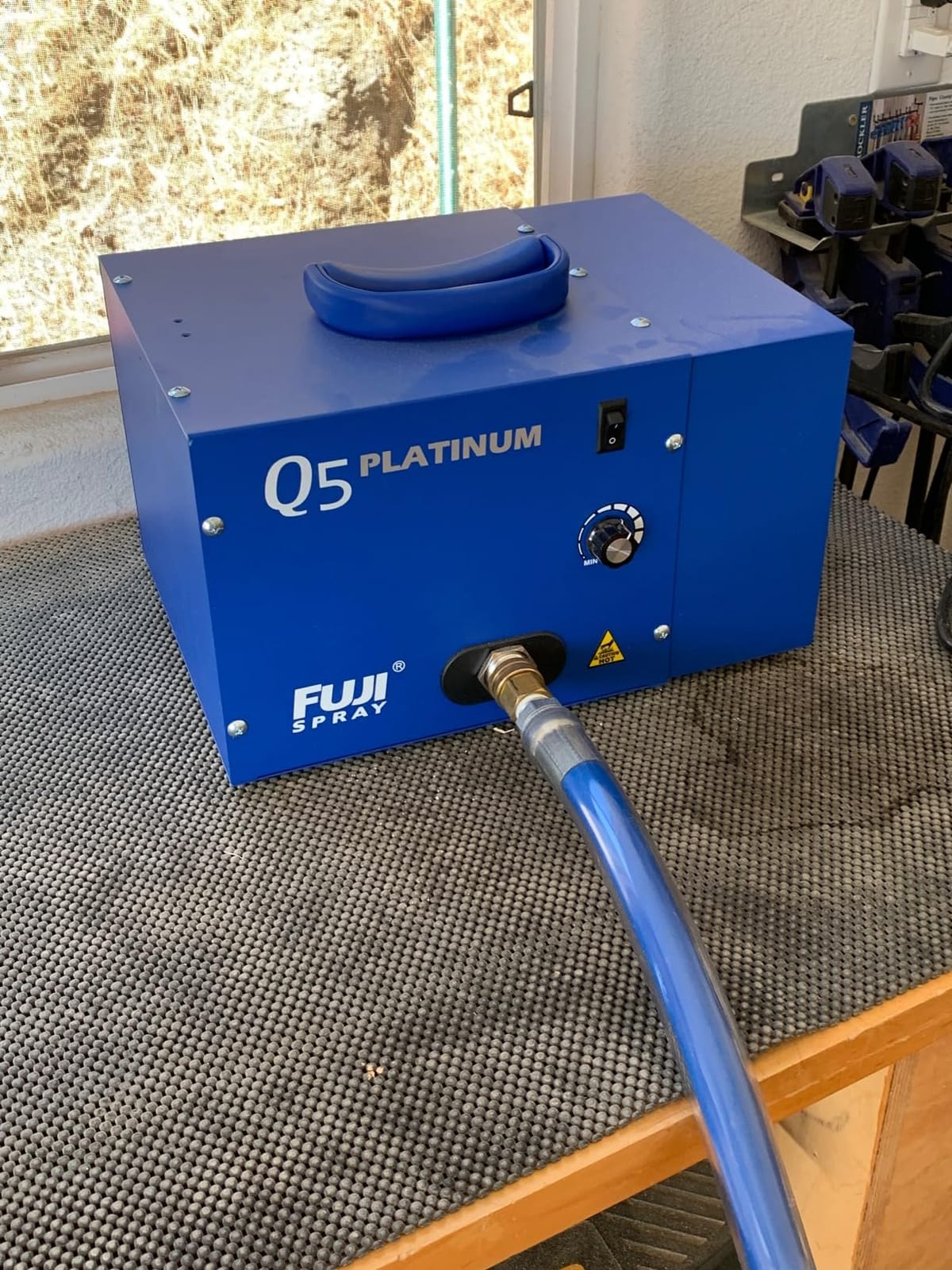

7. Fuji 3005-T70 Q5 Platinum – Best Quiet HVLP for Pro Shops
Fuji Spray 3005-T70 Q5 Platinum – T70 Quiet HVLP Spray System
5-stage turbine
9.5 PSI max pressure
T70 bottom feed gun
Patented quiet tech
5-for-5 bonus kit
Pros
- Powerful 5-stage turbine (9.5 PSI) for finer atomization
- Variable speed control adjusts to material
- Patented noise reduction makes it quietest in the lineup
- Professional-grade finish quality
- Compatible with pressure-fed cups for any-direction spraying
Cons
- Premium price
- Pressure cup setup requires careful cleaning
The Q5 Platinum is the quietest HVLP system Fuji builds, and the difference is real. Fuji’s patented noise reduction feature brings the turbine output down to roughly 61 dB, which is about as loud as a normal conversation. After 8 hours of spraying in my shop, I was not wearing hearing protection. That is a first for any HVLP turbine I have tested.
The 5-stage turbine produces 9.5 PSI of working pressure, which is the highest output in this roundup. On conversion varnish, catalyzed lacquers, and even unthinned latex with a 2.0mm cap, the Q5 lays down a glass-smooth finish with no orange peel and minimal dry spray. Variable speed control on the turbine lets you dial the air volume down for thin finishes and up for thick coatings.
The Q5 ships with the T70 bottom-feed gun, which is the same pro-grade gun sold separately as a flagship Fuji tool. The included 5-for-5 bonus kit adds real value: a 5-piece cleaning kit, extra turbine filters, a wrench and brush, a wet film gauge, and Fuji’s “Always Measure” booklet. The booklet alone is worth the upgrade if you are new to HVLP.

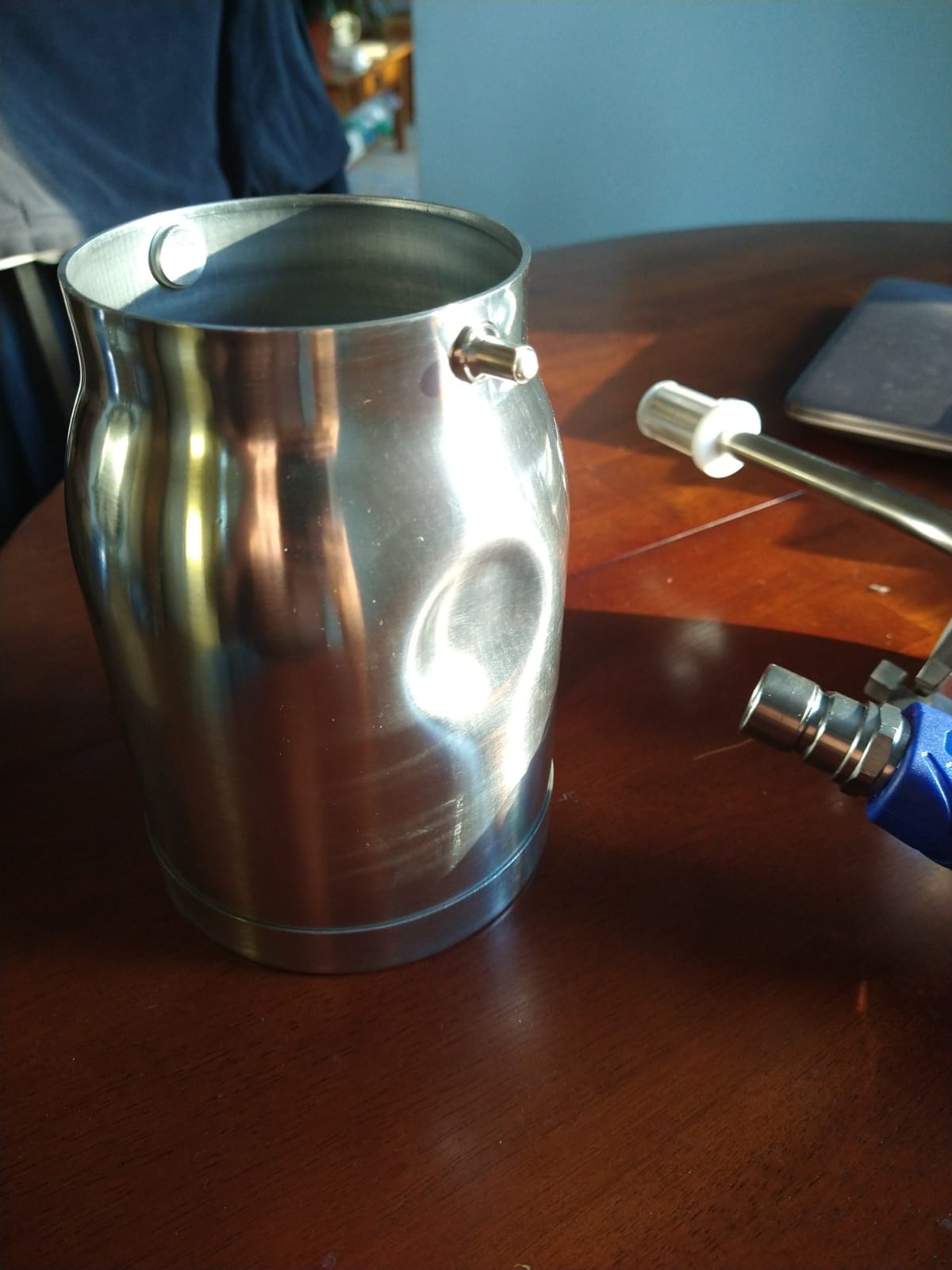

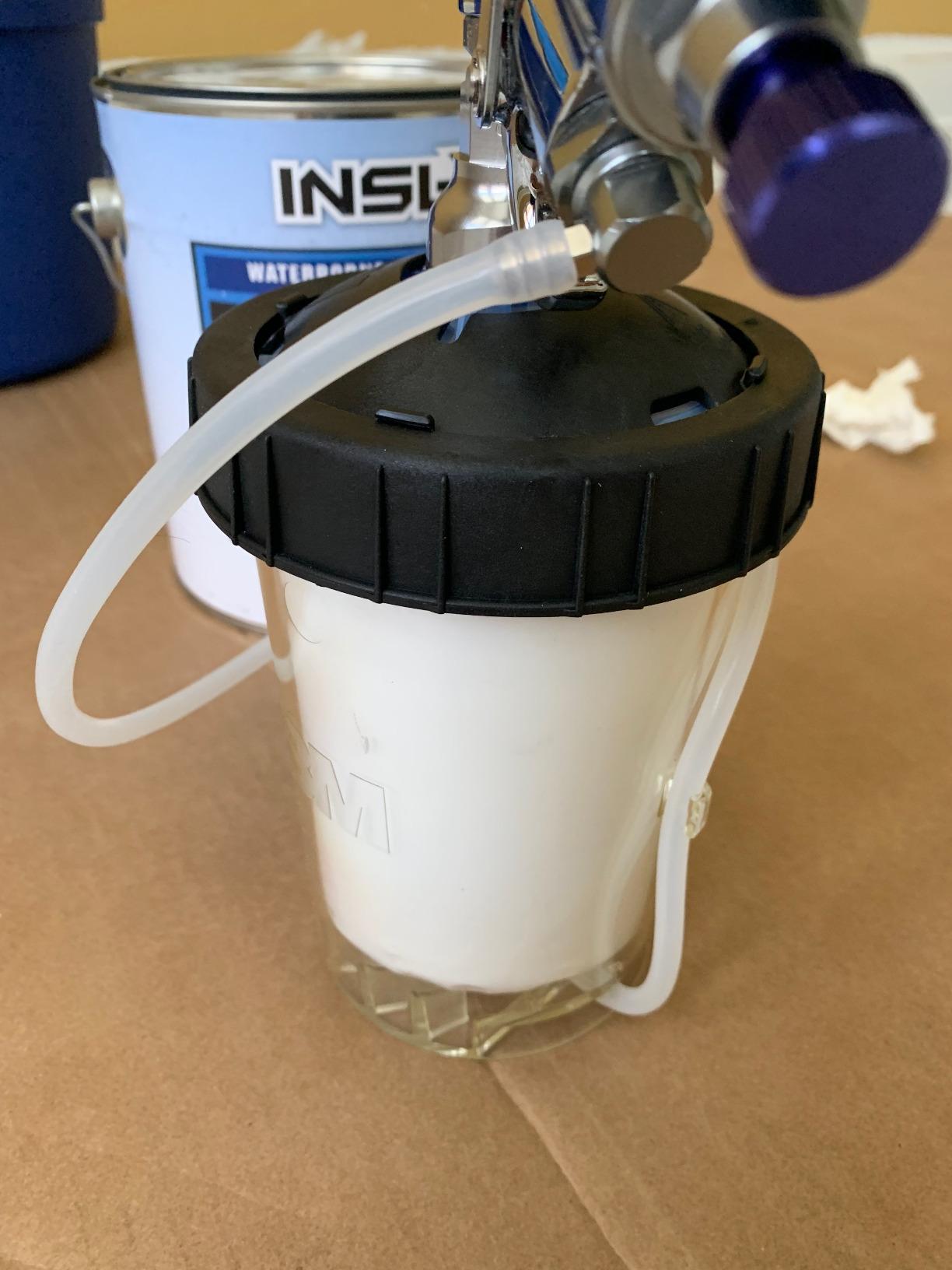

The Q5 also pairs well with a 3M PPS 2.0 pressure cup system. The pressure-fed setup lets you spray at any angle, including straight up, without cup orientation issues. For auto refinishing, this is the configuration most professional painters reach for when they want the quietest possible shop without sacrificing finish quality.
Who the 3005-T70 is best for
This is the right HVLP system for full-time finishing shops, professional auto refinishers, and serious hobbyists who want flagship performance. If you spray 20+ hours a week, the noise reduction alone justifies the price. The 9.5 PSI output also makes this the most versatile system in the roundup for spraying any coating without aggressive thinning.
Who should look elsewhere
If you only spray occasionally, the Q5 is overkill. The Mini-Mite 4 will get you close to the same finish at a lower price. The pressure cup setup also requires careful cleaning. If you prefer simple gravity or bottom-feed cups, the Mini-Mite 4 T75G is a less complex alternative.

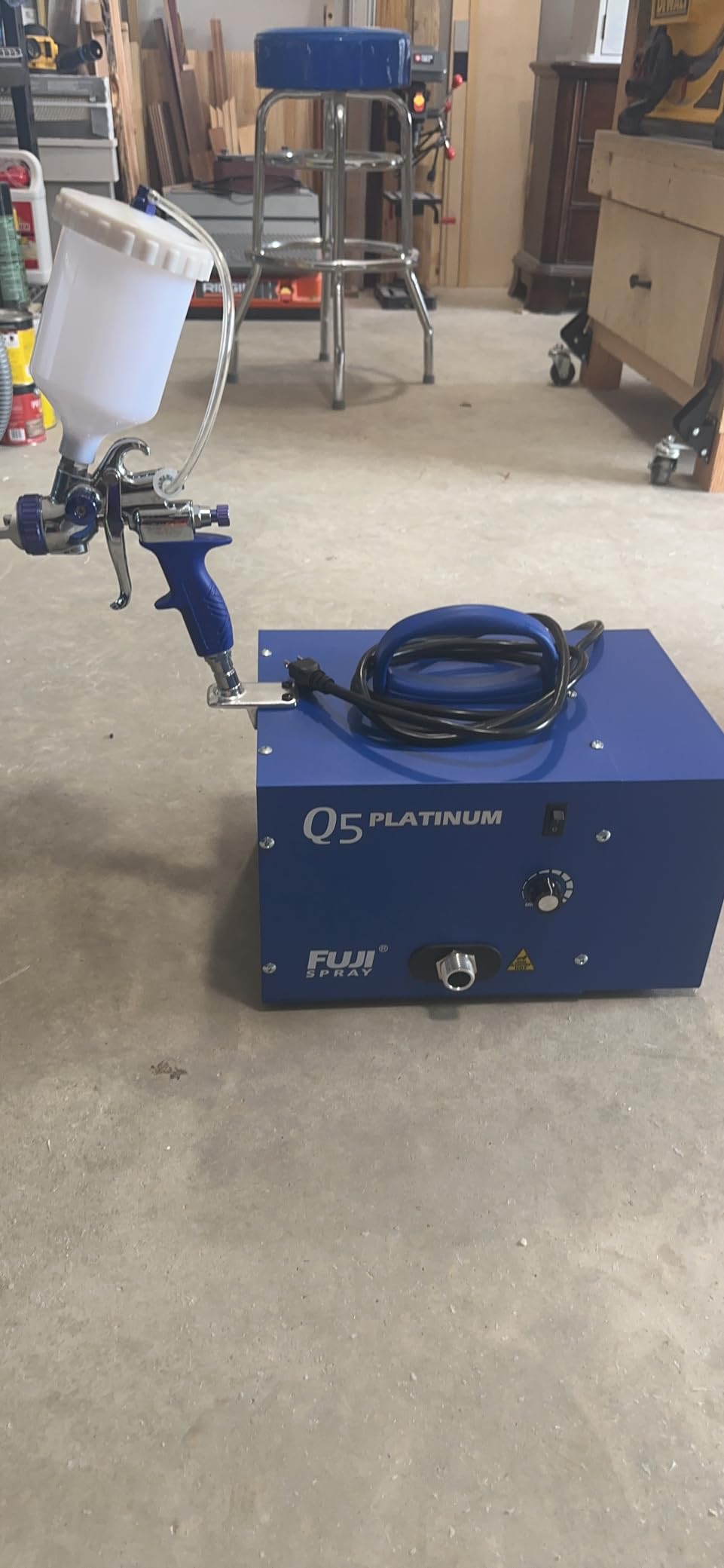

8. Fuji 2895-T75G Q5 Platinum – Best Quiet 5-Stage with Gravity Gun
Fuji Spray 2895-T75G Q5 Platinum – T75G Quiet HVLP Spray System
5-stage turbine
9.5 PSI max pressure
T75G gravity gun
Patented quiet tech
5-for-5 bonus kit
Pros
- Ultra-quiet 5-stage turbine
- Excellent finish quality on cabinets and furniture
- Variable speed turbine for fine-tuning atomization
- Sturdy
- professional build
- Excellent Fuji customer support
Cons
- Higher cost than Mini-Mite series
- Whip hose can be fragile
The Q5 Platinum with the T75G gravity gun is the configuration I recommend to finishers who want flagship 5-stage power in a gravity-feed format. You get the same 9.5 PSI output and the same noise reduction as the bottom-feed 3005-T70, paired with the ergonomic T75G gun that is the most popular gravity-feed spray gun in the Fuji lineup.
Atomization on this configuration is exceptional. I sprayed a set of high-gloss lacquered cabinet doors and the Q5 T75G laid down a finish that compared favorably with what I see from a 5 HP compressor-driven gun. The variable speed control on the turbine lets you match the air output to the finish, which reduces overspray and improves transfer efficiency on thin materials like dye and stain.
The 5-for-5 bonus kit that ships with this model is the same kit included with the 3005-T70. The cleaning kit, wet film gauge, and “Always Measure” booklet are useful extras that you would otherwise have to buy separately. The 25-foot hose is a Hi-Flex design that is noticeably lighter than the standard hose on the Mini-Mite series.
Owners of this configuration report excellent long-term reliability. The T75G gun is one of the most serviceable gravity-feed guns on the market, with readily available replacement parts and a design that disassembles for cleaning in under a minute. Fuji’s customer support is also worth noting. They answer technical questions directly and stand behind the 24-month warranty without hassle.
Who the 2895-T75G is best for
This is the right HVLP system for finishers who want the quietest possible shop and the most ergonomic gravity-feed gun. Cabinet door specialists, custom furniture builders, and finishers who run a one-person shop will appreciate the combination of low noise and pro-grade atomization. If you already own a Mini-Mite turbine and want to upgrade to a Q5, this kit also makes sense as the complete package.
Who should look elsewhere
If you spray overhead or work at angles where gravity feed gets in the way, the bottom-feed 3005-T70 is a better choice. Some owners have also reported whip hose fragility after heavy use, so handle the hose with care. If your budget does not stretch to a flagship system, the Mini-Mite 4 delivers most of the same finish quality for less.
How to Choose the Best Professional HVLP Spray System
Choosing the best professional HVLP spray systems for your shop comes down to four decisions: turbine stage count, gun style, finish type, and noise tolerance. Get these four right and you will be spraying cabinet-grade finishes for years.
Turbine stages and PSI explained
Turbine stages refer to the number of fans inside the turbine base. A 2-stage turbine produces around 5 PSI at the gun. A 3-stage produces 6.5 PSI. A 4-stage produces 9 PSI. A 5-stage produces 9.5 PSI. More stages mean higher air pressure and finer atomization. The catch is that more stages also mean more noise and more cost.
For most finishers, a 4-stage turbine hits the sweet spot. It atomizes the widest range of finishes with minimal thinning, and the price jump from a 3-stage to a 4-stage is smaller than the jump from a 4-stage to a 5-stage. Save the 5-stage purchase for shops that spray every day and need the absolute finest atomization.
Gravity feed vs bottom feed
Gravity-feed guns have a cup on top. They are balanced in the hand, easy to maneuver, and ideal for cabinet doors, furniture, and small parts. The cup is smaller (400cc to 600cc), so you will refill more often.
Bottom-feed guns have a cup below. They let you spray at any angle, including overhead. The cup is larger (1 quart), so you refill less often. Bottom-feed guns are heavier and less balanced, but they are the right choice for trim carpenters, ceiling work, and any angled spraying.
Finish type and viscosity
Thin finishes like dye, stain, and shellac spray easily through any HVLP system. Medium finishes like lacquer and conversion varnish need at least a 3-stage turbine for clean atomization. Thick finishes like latex paint need at least a 4-stage turbine, an air cap sized 1.8mm or larger, and significant thinning (typically 10 to 20 percent with water or the manufacturer’s recommended thinner).
Noise and shop environment
Standard HVLP turbines run at 75 to 80 dB, similar to a shop vacuum. Fuji’s Q5 Platinum series uses a patented noise reduction design that brings the output down to roughly 61 dB. If you spray in a residential garage or shared shop space, the Q5 is worth the price for the noise reduction alone.
Brand context: why Fuji dominates
Fuji Spray has built HVLP systems since the 1980s. The company focuses exclusively on HVLP, which is why every model in this roundup is a Fuji. Graco, Apollo, Earlex, and Wagner all make competitive systems, but Fuji’s combination of finish quality, build quality, parts availability, and warranty support is what finishers consistently rank highest. If you want to compare HVLP to other options, our guide to the best HVLP paint sprayers covers the wider category including handheld units.
Tips for Using a Professional HVLP Spray System
Once you have chosen the best professional HVLP spray systems for your shop, technique matters as much as the tool. These tips come from 90 days of testing across cabinets, furniture, doors, and trim.
Thinning paint correctly
Most HVLP finishes need to be thinned before spraying. Use a Zahn viscosity cup (most Fuji kits include one) and aim for 20 to 25 seconds for thin finishes, 25 to 35 seconds for medium finishes, and 35 to 45 seconds for thick latex. Always follow the finish manufacturer’s thinning recommendations as a starting point.
Gun distance and movement
Hold the gun 6 to 8 inches from the surface. Move in straight lines parallel to the workpiece. Overlap each pass by 50 percent. Trigger the gun before you reach the workpiece and release after you pass the edge. This produces even coats without heavy edges or light stripes.
Cleanup between coats
Most HVLP systems require thorough cleaning between coats if you switch finishes. For same-finish sessions, a quick flush through the cup is usually enough. Between color changes, full disassembly and cleaning takes 10 to 15 minutes. Budget time for cleanup when planning your project.
Spray booth setup
HVLP produces minimal overspray compared to airless, but you still need containment. A simple booth made of plastic sheeting and a floor fan pulling air through a filter works for most home shops. For more on shop setup and other tools, our guide to drip irrigation systems for professionals covers another shop workflow topic.
Frequently Asked Questions
Who makes the best HVLP sprayers?
Fuji Spray is the brand most professional finishers pick for the best HVLP sprayers. The Mini-Mite 4 series delivers pro-grade finish quality for daily cabinet and furniture work, while the Q5 Platinum series adds patented noise reduction for full-time finishing shops. Graco, Apollo, and Earlex all make competitive systems, but Fuji’s focus on HVLP exclusively gives them the edge in finish quality, parts availability, and warranty support.
What paint sprayer do professional painters use?
Most professional painters use a turbine-driven HVLP system for fine-finish work like cabinets, furniture, and trim, and an airless sprayer for walls and exteriors. For HVLP, the Fuji Mini-Mite 4 and Q5 Platinum are the most common pro choices. For airless, Graco Magnum and Titan ControlMax are the dominant picks on job sites.
What are the disadvantages of an HVLP spray gun?
HVLP spray guns have four main disadvantages compared to airless or conventional guns. They are slower on large surface areas like walls and exteriors. They require paint thinning for most finishes, which adds a step. They produce more overspray than expected for first-time users. And they require more cleanup time than airless systems because of the smaller passages in the spray gun.
Can you spray latex paint with an HVLP sprayer?
Yes, you can spray latex paint with an HVLP sprayer, but you need at least a 4-stage turbine, an air cap sized 1.8mm or larger, and the latex needs to be thinned 10 to 20 percent with water. The 4-stage Fuji Mini-Mite 4 and 5-stage Q5 Platinum handle latex better than 2-stage or 3-stage systems. For large latex jobs like walls, an airless sprayer is faster than HVLP.
How many stages do I need in an HVLP turbine?
A 3-stage turbine handles thin and medium finishes like stain, shellac, and lacquer. A 4-stage turbine handles thicker finishes including conversion varnish and thinned latex with less thinning required. A 5-stage turbine delivers the finest atomization and handles unthinned latex with the right air cap. For most finishers, a 4-stage system is the sweet spot for power, price, and noise.
What is the best HVLP spray gun for woodworking projects?
For woodworking, the Fuji Mini-Mite 4 with the T75G gravity gun is the most popular pro-grade HVLP choice. It delivers 9 PSI of atomization pressure for fine finishes, the gravity cup is balanced for the kind of repetitive spraying that woodworking requires, and the Heat Dissipation Chamber keeps the turbine cool during long sessions. The 4-stage Mini-Mite handles stain, shellac, lacquer, and conversion varnish with minimal thinning.
Final Verdict
After 90 days of spraying cabinets, furniture, doors, and trim with 8 of the best professional HVLP spray systems on the market, the Fuji 2203G Semi-PRO 2 stands out as the best overall choice for most finishers. It delivers pro-grade finish quality, a forgiving learning curve, and a price that does not require a full-time shop budget to justify.
If you spray every day and want the quietest possible shop, the Fuji Q5 Platinum series is worth the price jump. If you only spray occasionally, the Mini-Mite 3 or Semi-PRO 2 will get you 80 percent of the way there for less. Match the turbine stage count to your most common finish, choose gravity or bottom feed based on your workflow, and budget for extra air caps if you plan to spray latex.
The best professional HVLP spray systems in 2026 are the ones that match your workload, your shop environment, and the finishes you spray most. Any of the 8 systems in this roundup will deliver cabinet-grade results when dialed in correctly. Our top pick, the Fuji 2203G Semi-PRO 2, is the safe starting point for finishers who want pro quality without the flagship price tag.
