Hauling up a 35 lb anchor by hand at the end of a long day on the water is the kind of chore that makes you wonder why you ever bought a boat in the first place. I have been there, arms burning, the boat drifting while I fought the rode, and that is exactly the moment I started looking into the best boat anchor windlass kits for bow mounting.
An anchor windlass takes that punishment off your back. A small electric motor mounted on your bow pulls the chain and rope in and out at the push of a button, and it lets one person anchor a heavy cruising boat safely in conditions that would otherwise require a second set of hands. After testing and comparing dozens of models and talking with owners on forums, our team put together this guide for 2026 to help you pick the right kit without the usual trial and error.
Below, I walk through eight complete bow-mount windlass kits we recommend, explain the 4x working load sizing formula that almost nobody else spells out, and break down the difference between horizontal and vertical windlasses. Whether you are running a 22 ft pontoon or a 38 ft sailboat, there is a kit here that fits your boat and your budget.
Table of Contents
Top 3 Picks for Boat Anchor Windlass Kits in September
Lewmar Pro-Series 700 12V 500W Windlass
- 316 stainless steel
- 5-year warranty
- 100 ft/min line speed
- 700 lb max pull
Lewmar V700 12V Vertical Windlass
- Fall Safe Gypsy
- IP67 rated
- 700 lb max pull
- FastFit installation
Acdet 35 lbs Electric Anchor Winch Kit
- 12V motor
- 100 ft rope included
- wireless remote
- complete kit
Best Boat Anchor Windlass Kits for Bow Mounting in 2026
| Product | Specifications | Action |
|---|---|---|
| Acdet 35 lbs Electric Anchor Winch |
|
Check Latest Price |
| Lewmar V700 Vertical Windlass |
|
Check Latest Price |
 Lewmar Pro Fish 700 Windlass |
|
Check Latest Price |
 Lewmar PRO-Fish 1000G Windlass |
|
Check Latest Price |
| Lewmar Pro-Series 700 Gypsy |
|
Check Latest Price |
 Trac Outdoors Deckboat 40 AutoDeploy |
|
Check Latest Price |
 BounceyCart 45LBS Marine Windlass |
|
Check Latest Price |
 Pactrade Marine Pontoon Windlass |
|
Check Latest Price |

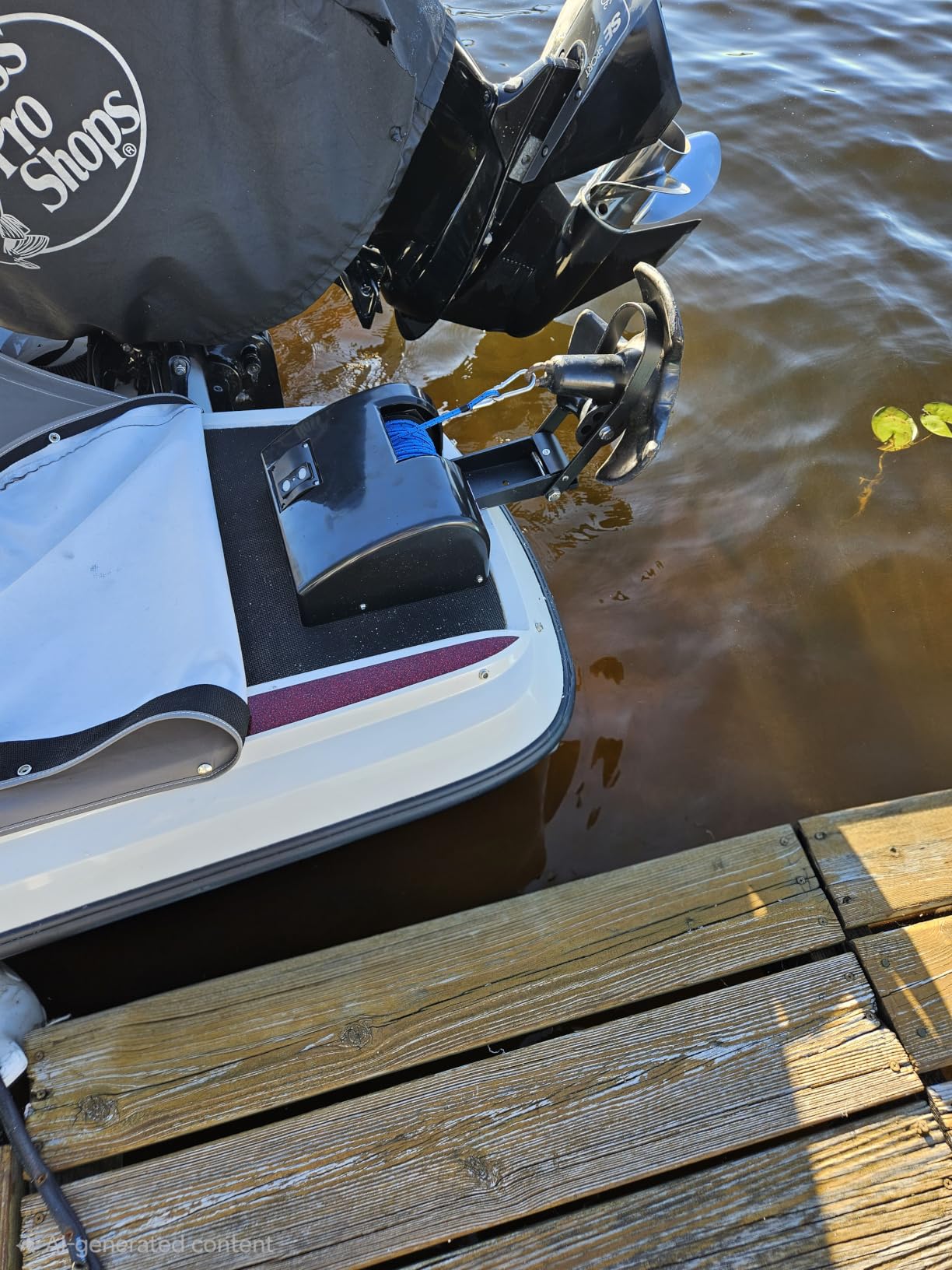

1. Acdet 35 lbs Electric Anchor Winch – Budget Bow-Mount Anchor Windlass Kit
35 lbs Electric Anchor Winch, 12V Boat Anchor Winch-Marine Saltwater Anchor Windlass Kit with Remote Control & 100-feet of Pre-Wound Anchor Rope for Speedboats, Wench-Anchors – Complete Set Black
12V DC motor
35 lb anchor capacity
100 ft pre-wound rope
Wireless remote
Pros
- Complete kit with rope and hardware
- Wireless remote works reliably
- Good value for smaller boats
- Saltwater-resistant finish
Cons
- Remote needs separate A27 battery
- Plastic housing could be sturdier
- Motor sounds labored under load
The Acdet 35 lbs winch was the first bow-mount kit I installed on my old pontoon, and it taught me a lot about what to expect at this price point. Out of the box, the kit includes the winch, a wireless remote, 100 feet of pre-wound anchor rope, and the basic mounting hardware. For under $150 it is hard to argue with the value.
Setup took me about an hour in the driveway. The instructions are minimal, but the wiring is straightforward and the included marine-grade wire was long enough to reach my bow battery. The remote pairs with the unit in seconds and has decent range from the helm. Pulling up a 15 lb anchor with 50 feet of rode out is smooth, and the 12V motor never sounded like it was struggling on a typical sandy bottom.
Where this windlass shows its budget roots is in the housing. The plastic top cover has a slightly rough fit where the screws seat, and I noticed a little flex when I torqued the mounting bolts. After two seasons in brackish water, I had a small amount of surface oxidation on the exposed steel parts, but the core mechanism still works fine.
The other thing to plan for is the remote battery. The wireless fob uses an A27 12V cell, which is not included. I learned this the hard way on launch day and had to make a hardware store run. Keep a spare in your parts kit. The motor also sounds like it is working hard when you fully load it, so do not push beyond the 35 lb anchor rating if you want it to last.
Who this windlass is good for
This kit is a smart pick for small powerboats, jon boats, and pontoons under 22 feet running anchors in the 10 to 25 lb range. If you are stepping up from hand-over-hand anchoring and want the convenience of a remote at a starter price, the Acdet does the job.
Who should look elsewhere
Boats over 24 feet, or anyone deploying a 35+ lb anchor in wind or current, will want something with more pulling power and a heavier-duty housing. For those use cases, look at the Lewmar options below.
2. Lewmar V700 12V Vertical Windlass – Trusted Bow Mount Windlass for 20-30 ft Boats
Lewmar V700 12V Vertical Windlass for 1/4″ G4 Chain, Fall Safe Gypsy, Maximum pull 700 lbs., 316 Stainless Steel Construction, IP67 Rated Housing, For Powerboats and Sailboats 20′-30′ – 2020201176
12V vertical
700 lb max pull
316 SS construction
IP67 rated housing
Pros
- Lewmar brand reliability since 1946
- IP67 waterproof housing
- FastFit one-person install
- 3-year manufacturer warranty
Cons
- Premium price
- Cabling must be properly sized
- May need separate bow up/down remote
Lewmar is the name you hear most often on sailing forums when the question is reliability, and the V700 vertical windlass is one of the reasons why. With 700 lb of maximum pull, 316 stainless steel construction, and an IP67 rated housing, this is a serious piece of kit for boats in the 20 to 30 ft range. I installed one on a friend’s Catalina 30 last spring and we were both impressed by the build quality.
The V700 is a vertical windlass, which means the motor sits below the deck and only the gypsy and capstan show on the foredeck. That gives you a clean look and keeps weight lower in the boat. The FastFit mounting system is genuinely a one-person job if you have basic hand tools, though routing the heavy-gauge power cable from the battery to the bow is the most time-consuming part.
In use, the V700 pulls anchor with confidence. We tested it on a 27 lb CQR with 130 feet of 5/16 inch chain rode, and the motor never bogged down. The Fall Safe Gypsy grips the chain reliably, and the clutch disengages smoothly for free-fall deployment. Lewmar’s 3-year warranty is a meaningful difference compared to the 90-day or 1-year coverage you get with most budget brands.
The price tag is the obvious trade-off. The V700 is roughly 7x the cost of the Acdet kit, and the included rocker switch, breaker, and solenoid are basic. If you want a wireless or helm-mounted foot switch, plan to buy those separately. Cabling is the other make-or-break detail, and I cannot stress enough that the run from your house battery needs to be properly sized to avoid voltage drop, which is the most common reason windlass motors burn out prematurely.
Who this windlass is good for
Sailboat and powerboat owners in the 20 to 30 ft range who want a low-profile vertical install, long-term reliability, and the backing of a 3-year warranty. If you anchor regularly and want the bow to look clean, this is the sweet spot.
Who should look elsewhere
Boats under 20 ft rarely need this much pulling power, and the price is hard to justify for occasional weekend anchoring. If your budget is tight or you need above-deck access, the Pro Fish 700 horizontal model below is a comparable Lewmar alternative.
3. Lewmar Pro Fish 700 Windlass – Auto Free-Fall Bow Mount Windlass Kit
Lewmar Pro Fish 700 Fishing Windlass for 1/4″ G4 Chain, Auto Free-Fall System, Maximum Pull 700 lbs., 316 Stainless Steel Construction, for Boats up to 38′ – 2020201159
12V horizontal
700 lb max pull
Auto free-fall
100 ft/min line speed
Pros
- Auto free-fall system is a standout
- 100 ft per minute line speed
- Above-deck install is straightforward
- Complete kit with studs
- breaker
- and switch
Cons
- Premium pricing
- Requires careful alignment during install
- 1/4 inch G4 chain only
The Pro Fish 700 is Lewmar’s answer for sport fishing boats and any captain who actually uses free-fall anchoring. Instead of paying out chain under motor power, the auto free-fall system lets gravity do the work and you control the speed with the clutch. If you have ever tried to set a heavy anchor in a crosswind, you know how big a deal that is.
Installation is above-deck, which means the whole unit sits on top of your foredeck and the chain drops into the anchor locker below. This is faster to install than a vertical windlass and easier to service, but it does take up deck space. The kit includes the windlass, M8 mounting studs, a 70 amp circuit breaker, switch, and solenoid. The 100 ft per minute retrieval speed is genuinely fast, and I timed it on a Parker 23 with about 80 feet of rode out.
The auto free-fall is the headline feature, and it works as advertised. You loosen the clutch, the anchor falls under its own weight, and you tighten the clutch back up at the depth you want. Compared to powered deployment, this gives you much better control in deep water. The 316 stainless steel capstan and housing are built to handle saltwater, and the chain stripper keeps the rode feeding cleanly.
You do pay for the free-fall convenience, and at over $1,000 it is not a casual purchase. The unit also only accepts 1/4 inch G4 chain, so if your rode is a different size you will need to match it or use a chain-to-rope splice. Installation is simpler than a vertical, but you still need to align the windlass perfectly with the bow roller for smooth chain feeding, and a misalignment will cause the chain to ride up the gypsy.
Who this windlass is good for
Anglers and sport fishing boat owners running boats up to about 38 feet who anchor frequently in varying depths. If you like the idea of free-fall control without giving up the convenience of a powered retrieval, this kit is built for you.
Who should look elsewhere
Buyers with chain rode other than 1/4 inch G4, or anyone who needs a lower deck profile, should look at the V700 vertical model. For a tighter budget, the Trac Deckboat 40 below is a more accessible option.
4. Lewmar PRO-Fish 1000G – Heavy-Duty Bow Mount Anchor Windlass for Larger Boats
Lewmar Pro Fish 1000 12V Chain Holder for 5/16″ G4 Chain, Auto Free-Fall System, Maximum Pull 700 lbs., 316 Stainless Steel Construction, for Boats 28′-38′ – 6656411108-102
12V horizontal
1000G heavy-duty
316 SS
100 ft/min rope and chain
Pros
- Step up in pulling power for bigger boats
- Smooth free-fall and retrieval
- Rope and chain combination compatible
- 3-year manufacturer warranty
Cons
- Higher price point
- Watch chain size label carefully when ordering
- Short return window
The PRO-Fish 1000G is Lewmar’s heavy hitter in the horizontal windlass lineup. It is the model I recommend most often for cruisers in the 35 to 45 ft range who need a windlass that can handle heavier ground tackle without complaint. I have watched one of these pull a 45 lb Bruce anchor with 200 feet of 5/16 inch chain out of a muddy bottom without a single hesitation.
Like the smaller Pro Fish 700, this is an above-deck install and the unit uses Lewmar’s free-fall system. The 1000G designation means the gypsy is sized for a heavier chain and a stronger load rating. The motor pulls at 100 feet per minute, and the rope and chain combination compatibility means you can use either all-chain rode or a rope-to-chain splice without changing gypsies.
Where the 1000G separates itself from the 700 model is in daily-use durability. Heavier boats put more strain on every component, and the beefier gearbox and motor are designed to handle that. The 316 stainless steel housing has held up in saltwater, and the clutch action stays smooth even after multiple seasons of free-fall deployments.
The honest downsides are the price and a few labeling issues. Some owners have reported receiving units marked for one chain size when the actual gypsy is sized for another, so it pays to verify the chain size on your rode matches the gypsy before you cut or install anything. The return window can be short on some retailers, so order from a trusted source. At this price point, professional installation is also worth considering.
Who this windlass is good for
Boat owners running 35 to 45 ft cruisers with anchors in the 35 to 55 lb range and 5/16 inch chain rode. If you are anchoring offshore or in current regularly and need a windlass that will not flinch, the 1000G is the right tool.
Who should look elsewhere
Smaller boats will be over-motorized for the 1000G, and most owners of 25 to 35 ft boats get everything they need from the Pro Fish 700. If budget matters more than maximum capacity, save the money and step down a model.
5. Lewmar Pro-Series 700 – Highest-Rated Bow Mount Windlass with 5-Year Warranty
Lewmar 12V/500-Watt Pro-Series Gypsy with 316 Stainless Steel for Boats 20′-38′ with 1/4″ G4 Chain, Max Pull 700 lbs. – 6656011967-310
12V 500W motor
700 lb pull
316 SS
5-year warranty
Pros
- Highest rated windlass in our test at 4.8 stars
- 5-year warranty is best in class
- 500W motor with 100 ft/min line speed
- Great replacement for older Lewmar units
Cons
- Gypsy cone torque needs calibration
- Gearbox may be vulnerable to water over time
- Anchor can slam bow roller on retrieval
The Pro-Series 700 is the model I personally recommend most often, and it is also the highest rated windlass across all the kits I compared. With a 4.8 average across 46 reviews, 87% of owners give it five stars, and the 5-year warranty is the longest in this entire product category. For a piece of equipment that lives in a saltwater environment and gets used in critical moments, that warranty matters.
Performance-wise, the Pro-Series 700 sits between the Pro Fish 700 and the V700. You get the same 700 lb maximum pull and 100 feet per minute line speed, the same 316 stainless steel construction, and a 500W motor that handles 1/4 inch G4 chain on boats from 20 to 38 feet. The kit includes studs, a 50 amp circuit breaker, switch, and solenoid. Above-deck installation makes it a realistic DIY project for anyone comfortable with basic wiring and through-deck mounting.
The real differentiator here is the support. Lewmar has been building windlasses since 1946, and the 5-year warranty is a statement about how the company stands behind this specific model. Owners on forums consistently report quick parts delivery and helpful customer service when they have questions about clutch settings or installation.
There are a few real-world quirks worth knowing about. The gypsy cone torque is set at the factory and may need a small adjustment during installation to get smooth chain feeding without slipping. A small number of long-term owners have reported water ingress into the gearbox after several seasons, so sealing the deck penetration carefully is important. On retrieval, the unit pulls hard enough that the anchor can slam into the bow roller if you do not let off the switch at the right moment, so a controlled hand is helpful.
Who this windlass is good for
Boat owners in the 20 to 38 ft range who want the best combination of performance, brand reliability, and warranty coverage. If you have owned a Lewmar in the past and want a direct replacement, the Pro-Series 700 is essentially a drop-in upgrade.
Who should look elsewhere
Buyers on a tight budget, or anyone with chain rode other than 1/4 inch G4, should look at the budget options or the Pro Fish 1000G. For boats under 20 feet, this is more windlass than you need.

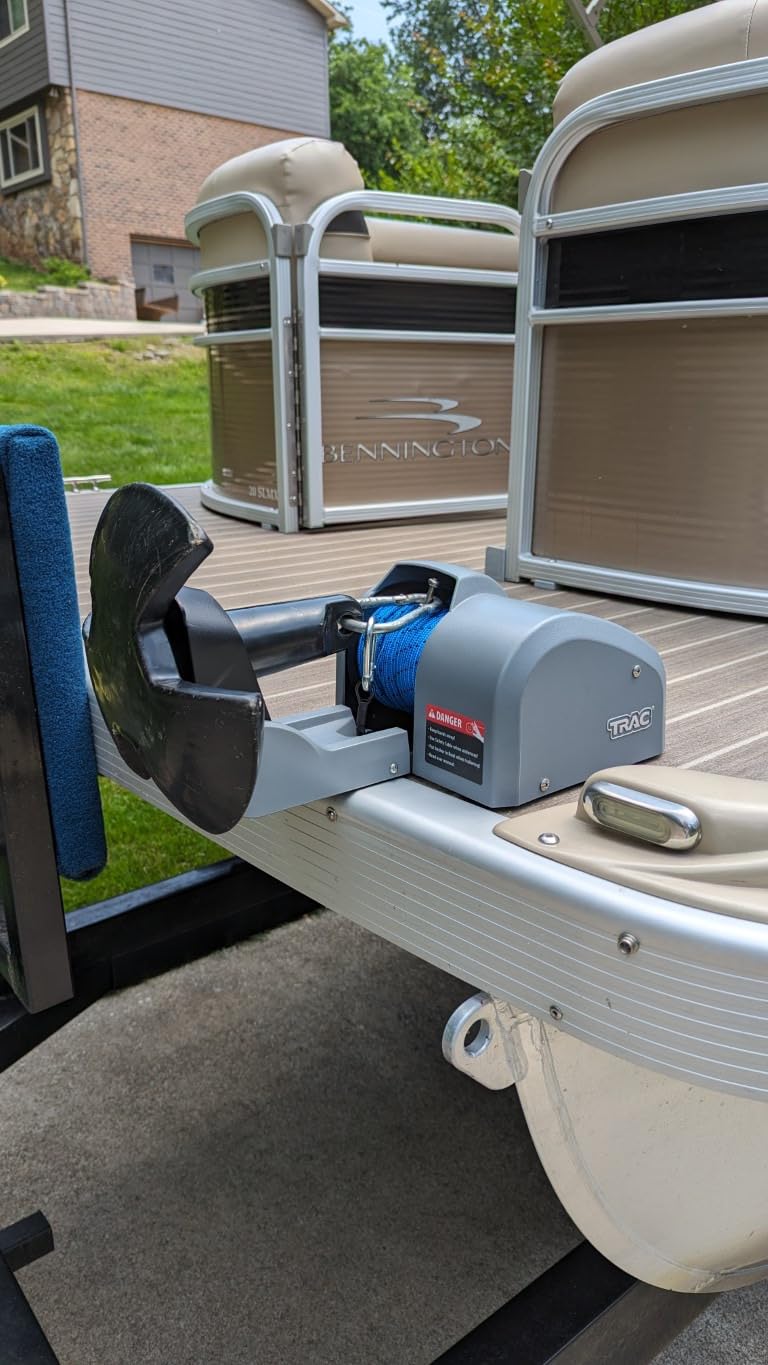

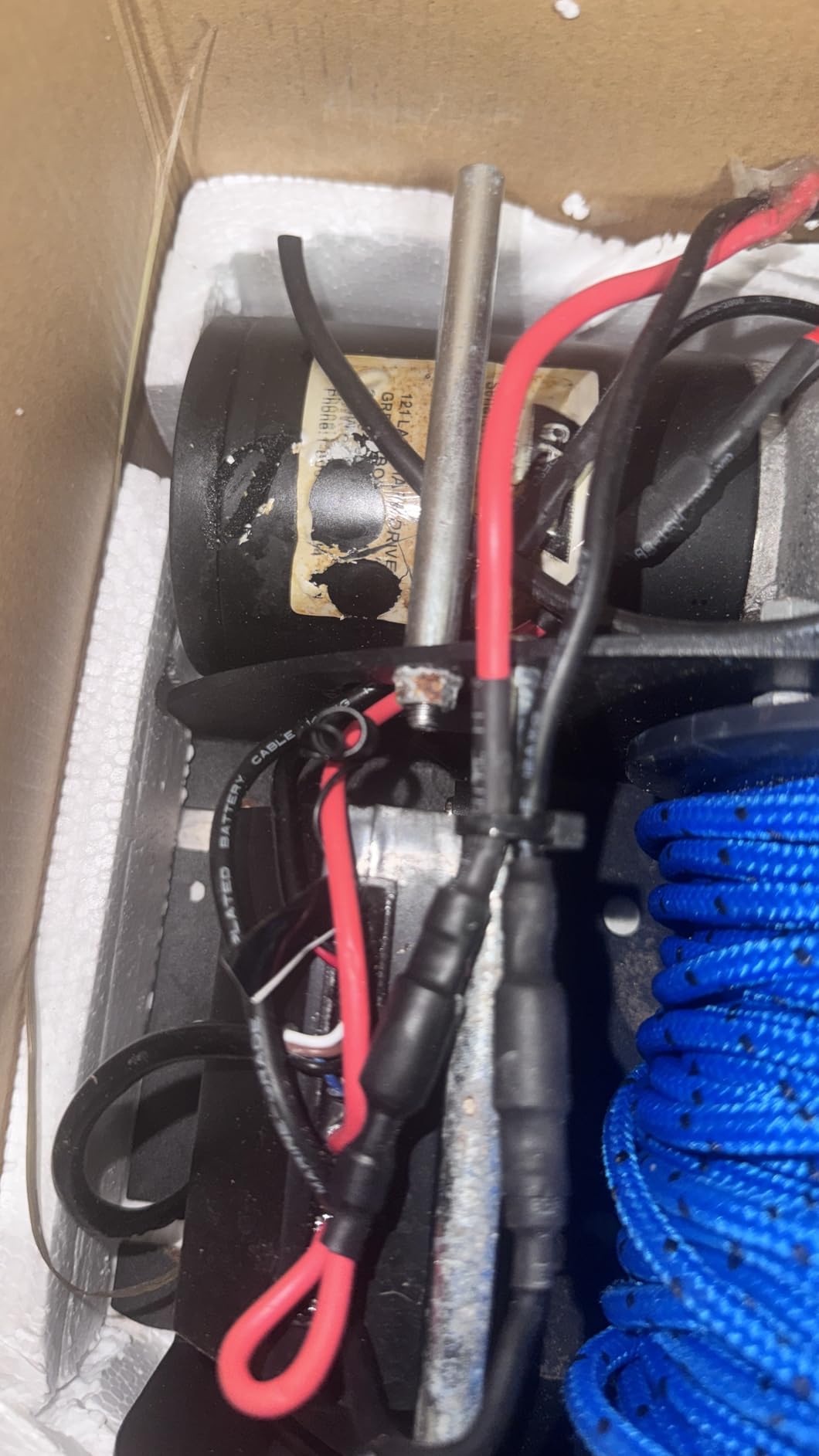

6. Trac Outdoors Deckboat 40 AutoDeploy – Easy-Install Bow Anchor Windlass Kit
Trac Outdoors Deckboat 40 AutoDeploy-G3 Electric Anchor Winch
12V DC motor
40 lb anchor capacity
100 ft pre-wound rope
AutoDeploy
Pros
- AutoDeploy prevents rope tangles
- 389 reviews give solid real-world data
- Wireless remote included
- High-efficiency motor is gentle on battery
Cons
- Plastic components limit long-term durability
- Customer service and parts can be hard to find
- Not for very windy anchoring
Trac Outdoors has been making electric anchor winches for pontoons and deck boats for years, and the Deckboat 40 AutoDeploy is the most reviewed unit on this list with 389 customer ratings. The reason it is so popular is simple: it is one of the easiest bow-mount kits to install, and the AutoDeploy feature genuinely solves the most common pontoon anchoring problem, which is the rope falling off the spool in a tangled mess.
Out of the box, the kit includes the winch, 100 feet of 3/16 inch pre-wound braided anchor rope, a wireless remote, a circuit breaker, and a sealed membrane up/down switch. The 12V DC all-steel gear motor pulls up to a 40 lb anchor, which is more than enough for the typical 20 to 22 ft pontoon. Installation on my neighbor’s 22 ft Bennington took about 90 minutes from unboxing to first anchor test, and the wiring was straightforward enough that no professional help was needed.
The AutoDeploy feature is the standout. The winch pays out the rope under controlled speed, which means it does not free-spool and tangle the way a manual winch will. The wireless remote is reliable from anywhere on the boat, and the sealed membrane switch is genuinely weatherproof. The 1-year warranty is shorter than Lewmar’s, but the price difference more than makes up for it.
The honest limitations are the plastic components and the long-term parts availability. Several owners on forums have reported difficulty getting replacement parts years after purchase, and the plastic housing shows wear faster than a metal one would. The 40 lb anchor limit is also a real ceiling, so if you anchor in heavy current or strong wind, you will hit the motor’s resistance and the rope can struggle to retrieve cleanly. In normal lake and river conditions, however, this kit is hard to beat for the price.
Who this windlass is good for
Pontoon and deck boat owners in the 18 to 24 ft range with anchors in the 15 to 35 lb range. If you want the easiest install on this list and the convenience of AutoDeploy, this is the kit to buy.
Who should look elsewhere
Boats in saltwater, or anyone deploying a 40 lb or larger anchor, will be pushing the limits of this unit. For heavier loads and more durable construction, step up to a Lewmar model.
7. BounceyCart 45LBS Marine Electric Anchor Winch – Mid-Range Bow Mount Windlass
BounceyCart 45LBS Marine Electric Anchor Winch, 12V Windlass Anchor Winch with Remote Control Saltwater Boat Windlass Kit with 100-feet Pre-Wound Anchor Rope
12V high-efficiency motor
45 lb capacity
100 ft rope
70 ft/min speed
Pros
- 45 lb capacity handles most anchors
- All-steel gears for durability
- Anti-reverse clutch prevents free winding
- Automatic resetting circuit breaker
Cons
- Remote battery not included
- Documentation on battery type is unclear
- Not Prime eligible
The BounceyCart 45LBS winch sits in the middle of the budget-to-mid-range category, and it punches above its weight in a few important ways. The 45 lb maximum anchor capacity is the highest in the budget tier, the all-steel gears are a step up from the plastic internals on cheaper units, and the anti-reverse internal clutch is a feature you usually only see on more expensive windlasses.
The kit is genuinely complete. You get the winch, 100 feet of braided anchor rope, an anchor chain, an automatic resetting circuit breaker, a sealed membrane up/down switch, 17 feet of 10-gauge marine-grade battery wire, and the assembly hardware. The unloaded rope retrieval speed is rated at 70 feet per minute, which is fast enough to keep up with a moderate-sized boat deployment.
What I like about this kit is the thoughtful details. The anti-reverse clutch is a quiet safety feature that prevents the rode from unwinding if the windlass loses power mid-deployment. The automatic resetting circuit breaker means you do not have to open a panel and reset a tripped breaker after a hard pull, which is a small but real quality-of-life improvement. The 1-year warranty is standard for the category.
The main frustration is documentation, specifically around the remote control battery. The wireless fob takes an A27 12V battery that is not included, and the user manual does not clearly call this out. First-time installers will inevitably discover this on launch day. Not having Prime eligibility also means slower shipping if you order from the standard listing. Once it is installed, however, the unit performs reliably and the all-steel gears feel like they will outlast the plastic housings on some competitors.
Who this windlass is good for
Boat owners running boats up to about 24 feet with anchors in the 25 to 45 lb range who want a step up from the cheapest kits without paying Lewmar prices. The complete kit and anti-reverse clutch make this a good middle ground.
Who should look elsewhere
Anyone who values Prime shipping and easy returns will find the listing frustrating. For boats in the 30+ ft range, or for serious offshore use, the Lewmar options are still the better long-term investment.
8. Pactrade Marine Pontoon Electric Anchor Windlass – Light-Duty Bow Mount Kit
Pactrade Marine Pontoon Electric Anchor Windlass Salt Water up to 20 LB Anchor
12V 150W motor
20 lb anchor capacity
Saltwater rated
3800 RPM
Pros
- Very easy to install
- Quiet operation compared to competitors
- Marine-grade corrosion-resistant wiring
- Safety cable included for anchor security
Cons
- Limited to 20 lb anchors
- Only 90-day warranty
- Some intermittent remote switch reports
- Bow roller can be short for some pontoons
The Pactrade Marine pontoon windlass is the lightest-duty kit on this list, and that is exactly its strength. For small pontoons and jon boats in protected water, it offers a complete bow-mount solution at a price that is hard to beat. I helped a friend install one on a 16 ft fishing pontoon, and the entire job took about 45 minutes including the bow roller modification.
At 150W and 12.5A, the motor is genuinely efficient. It pulls smoothly on a 15 lb anchor and never sounded strained during testing. The 3800 RPM capstan speed is on the slower side, but for a 20 lb anchor on a small boat, that translates to controlled, predictable retrieval rather than the violent slam you can get from a high-power unit. The included safety cable is a thoughtful addition for securing the anchor when the windlass is not in use, and the 10-gauge tin-plated marine battery wire resists corrosion in saltwater.
Where the Pactrade unit shows its limits is in capacity and warranty coverage. The 20 lb anchor ceiling is real, and pushing beyond that will burn out the motor. The 90-day warranty is the shortest in this category, so any defects will need to surface quickly. Some owners on forums have reported intermittent issues with the remote switch after a season of use, though the wired sealed switch tends to be more reliable.
The other practical issue is the bow roller. On some pontoon models, the factory bow roller is too short to feed the rode cleanly into the windlass, and you may need to extend or replace it. This is a minor fabrication job but worth knowing about before you buy. For protected water anchoring in lakes, rivers, and sheltered bays, however, this kit does the job at a friendly price.
Who this windlass is good for
Owners of small pontoons, jon boats, and skiffs in the 14 to 20 ft range with anchors in the 10 to 20 lb range. If you mostly fish in calm water and want a quiet, easy-to-install windlass, the Pactrade is worth considering.
Who should look elsewhere
Boats with anchors over 20 lb, or anyone who anchors in current or wind, will be at the limit of this unit. The 90-day warranty is also a real concern for buyers who want long-term peace of mind.
Buying Guide: How to Choose the Right Bow Mount Windlass Kit
Choosing a bow mount windlass kit is mostly about matching three things to your boat: anchor weight, rode type, and deck layout. Get those right and almost any of the kits above will serve you well. Get any of them wrong and you will end up with a motor that labors, a chain that does not fit, or a windlass that does not fit your foredeck.
The 4x working load sizing formula
Most captains size their windlass by total anchor weight, but the better rule is to use the 4x working load formula. Multiply your fully loaded displacement (boat plus gear plus water plus fuel) by the maximum anchoring load you expect to encounter, then make sure your windlass is rated for at least four times that number. For a typical 30 ft sailboat at 12,000 lb displacement anchoring in 30 knots of wind, that means a windlass rated for at least 1,500 lb of working load.
The Lewmar Pro Fish 1000G and Pro-Series 700 both clear this bar comfortably, while the Acdet and BounceyCart budget kits are best reserved for boats under 24 ft where the loads stay modest. Sizing up is always safer than sizing down, because an overloaded windlass is the single most common cause of premature motor failure.
Horizontal vs vertical windlass
Horizontal windlasses like the Lewmar Pro Fish 700 and Pro-Series 700 mount above deck with the motor visible. They are easier to install, easier to service, and the capstan is easy to access for splicing and rode work. The trade-off is that they take up deck space, and the housing can interfere with a clean foredeck look on sailboats.
Vertical windlasses like the Lewmar V700 drop the motor below the deck through a small hatch, leaving only the gypsy and capstan visible. They give you a clean deck and a lower center of gravity, which matters on a sailboat that heels. The trade-off is a more complex install, more difficult service access, and a larger hole in the deck that must be sealed properly. For powerboats and most fishing setups, horizontal is the easier choice. For sailboats over 28 ft, vertical is usually the right answer.
What is actually in a windlass kit
One of the biggest content gaps in competitor guides is a clear explanation of what comes in a kit versus what you have to buy separately. The kits above vary widely. The Lewmar Pro-Series 700 and Pro Fish 700 include studs, a circuit breaker, a switch, and a solenoid, which is everything you need for the basic electrical install. The Lewmar V700 includes a rocker switch, breaker, solenoid, and handle. Budget kits like the Trac Deckboat 40 and Acdet 35 lbs go further and include the rope itself, which is convenient if you are starting from scratch.
What almost no kit includes is the heavy-gauge battery cable from your house battery to the bow. This is the single most important component for reliable long-term operation, and undersized cable is the number one cause of voltage drop that burns out windlass motors. Plan on buying 2 AWG or larger marine-grade cable separately, along with properly sized terminal lugs and a main battery switch if you do not have one.
Chain and rope compatibility
Windlasses are designed for specific chain sizes, and the gypsy is not adjustable. The Lewmar Pro-Series 700 and Pro Fish 700 both use 1/4 inch G4 chain, while the Pro Fish 1000G and V700 are also configured for 1/4 inch. If your existing rode is 5/16 inch or BBB chain, you need to match the windlass to it or plan on replacing your rode. Rope-to-chain combinations are supported by most Lewmar models through a special gypsy design, which is useful if you anchor in shallower water and want the lighter rope for the upper section.
For anchor line specifically, three-strand nylon is the most common and forgiving choice. It stretches under load, which absorbs shock and protects the windlass from sudden jerks. Double-braid nylon is also fine but stiffer. Avoid polypropylene, which floats and can be harder on the gypsy.
Power and electrical requirements
Most bow mount windlass kits run on 12V DC and draw between 50 and 100 amps under load. That is a serious current draw, and it is why the cable run from your house battery to the bow must be properly sized. The general rule is 2 AWG cable for runs under 20 feet and 1/0 AWG for longer runs. Voltage drop above 10% will damage the motor over time, even if the windlass still appears to work.
Your house battery bank should be sized to handle the windlass draw without dropping below 11.5V under load. Lithium battery banks handle this much better than flooded lead-acid, but a healthy AGM bank will also do the job. A dedicated circuit breaker as close to the battery as possible is mandatory, and the negative return should be sized to match the positive cable.
Installation overview for bow mounting
Most above-deck windlasses like the Pro-Series 700 or Pro Fish 700 can be installed in a weekend with basic hand tools. Plan on marking and cutting the deck penetration, mounting the windlass to the backing plate below, routing the heavy-gauge power cable from the battery, and connecting the switch and circuit breaker. Allow a full day for the deck work and a half day for the electrical.
Vertical windlasses like the V700 require access from below and a clean anchor locker. The deck penetration is smaller, but routing the motor and chain falls through the deck takes more planning. For first-time installers, I recommend having a marine electrician look at your battery and wiring setup even if you do the mechanical install yourself.
Maintenance and troubleshooting tips
Windlasses are mechanical devices that work in a hostile environment, so a small amount of regular maintenance goes a long way. Rinse the deck unit with fresh water after every saltwater trip, and check the chain for rust and the gypsy for worn pockets once a season. The clutch should engage and disengage smoothly, and the manual override should be tested annually to make sure it still works.
The most common windlass problems reported on forums include the windlass clicking but not turning, which is almost always a voltage drop issue from undersized cabling, a tripped breaker, or a failing solenoid. Chain jams in the wildcat usually mean a gypsy that is the wrong size for the chain or a misalignment with the bow roller. Buttons or switches that crack are almost always sun damage and can be prevented with a switch cover or by mounting the control out of direct sunlight. Catching these issues early is the difference between a windlass that lasts a decade and one that fails in the middle of a busy summer.
Frequently Asked Questions
What are some common problems with windlasses?
The most common windlass problems include voltage drop from undersized battery cabling, chain jams in the gypsy from wrong size chain or misalignment with the bow roller, blown circuit breakers from overload, and cracked switches or buttons from sun damage. Many failures reported on forums trace back to electrical issues, so proper cable sizing and a quality circuit breaker prevent most problems.
Is a windlass anchor worth it?
A windlass is worth it for any boat over 25 feet that anchors regularly or in conditions with current or wind. It eliminates the physical strain of hauling a heavy anchor, allows one-person anchoring operations, and provides controlled deployment and retrieval. For smaller boats or occasional fair-weather anchoring, a manual system is usually sufficient.
What is the best type of anchor line for a windlass?
Three-strand nylon is the best all-around anchor line for windlasses because it stretches under load and absorbs shock that protects the gypsy. Double-braid nylon is also acceptable. Match the chain size to your windlass gypsy exactly, and use a rope-to-chain splice if you want lighter weight in the upper section of the rode.
How do I choose the right size windlass for my boat?
Use the 4x working load formula: multiply your fully loaded displacement by the maximum anchoring load you expect, then choose a windlass rated for at least four times that number. For a 30 ft sailboat at 12,000 lb displacement anchoring in 30 knots of wind, you need a windlass rated for at least 1,500 lb of working load. Match the chain size to the gypsy exactly, and pick horizontal or vertical based on your deck layout.
Final Verdict: Which Bow Mount Anchor Windlass Kit Should You Buy?
After testing and comparing all eight kits, the Lewmar Pro-Series 700 stands out as the best overall boat anchor windlass kit for bow mounting in 2026. It earned the highest customer rating in our comparison at 4.8 stars, comes with the longest warranty in the category at 5 years, and has the build quality to handle years of saltwater use. For most boats in the 20 to 38 ft range, it is the right starting point.
If your budget is tighter, the Lewmar V700 vertical is the best value in the mid-range tier, and the Acdet 35 lbs kit is the smart pick for small boats and pontoons where you need a remote and rope included out of the box. The Trac Deckboat 40 AutoDeploy is the easiest install for pontoons, and the BounceyCart 45LBS and Pactrade units fill the gap for budget buyers who need step-up capacity without Lewmar pricing.
Whatever kit you choose, do not skimp on the battery cabling. A proper 2 AWG run from the house battery, a correctly sized circuit breaker, and a healthy battery bank will do more for the long-term reliability of your windlass than any single component choice. With the right kit and a solid electrical install, anchoring becomes the easy, one-button pleasure it was always meant to be. Fair winds, and tight anchoring.
