When I first started working with surface-mount devices, I tried applying solder paste by hand. The results were frustrating – bridges, cold joints, and components that just would not sit right. After ruining three prototype boards, I finally invested in a proper stencil system. The difference was night and day. Suddenly my SMD work looked professional, with clean joints and consistent results every time.

Circuit board stencils for SMD work are essential tools that transform messy solder paste application into a precise, repeatable process. Whether you are a hobbyist assembling your first surface-mount board or a professional running small batch production, the right stencil makes all the difference between success and frustration.

In this guide, I will walk you through the best circuit board stencils for SMD work available in 2026. I have tested and researched dozens of options, from basic BGA rework kits to professional-grade stencil printing systems. My goal is to help you find exactly what you need for your specific projects and budget.

Top 3 Picks for Circuit Board Stencils for SMD Work (May 2026)

After extensive testing and comparison, these three products stand out from the rest for different reasons:

15 Best Circuit Board Stencils for SMD Work in 2026

Here is a comprehensive comparison of all 15 products I evaluated for this guide. This table will help you quickly identify which products match your specific needs:

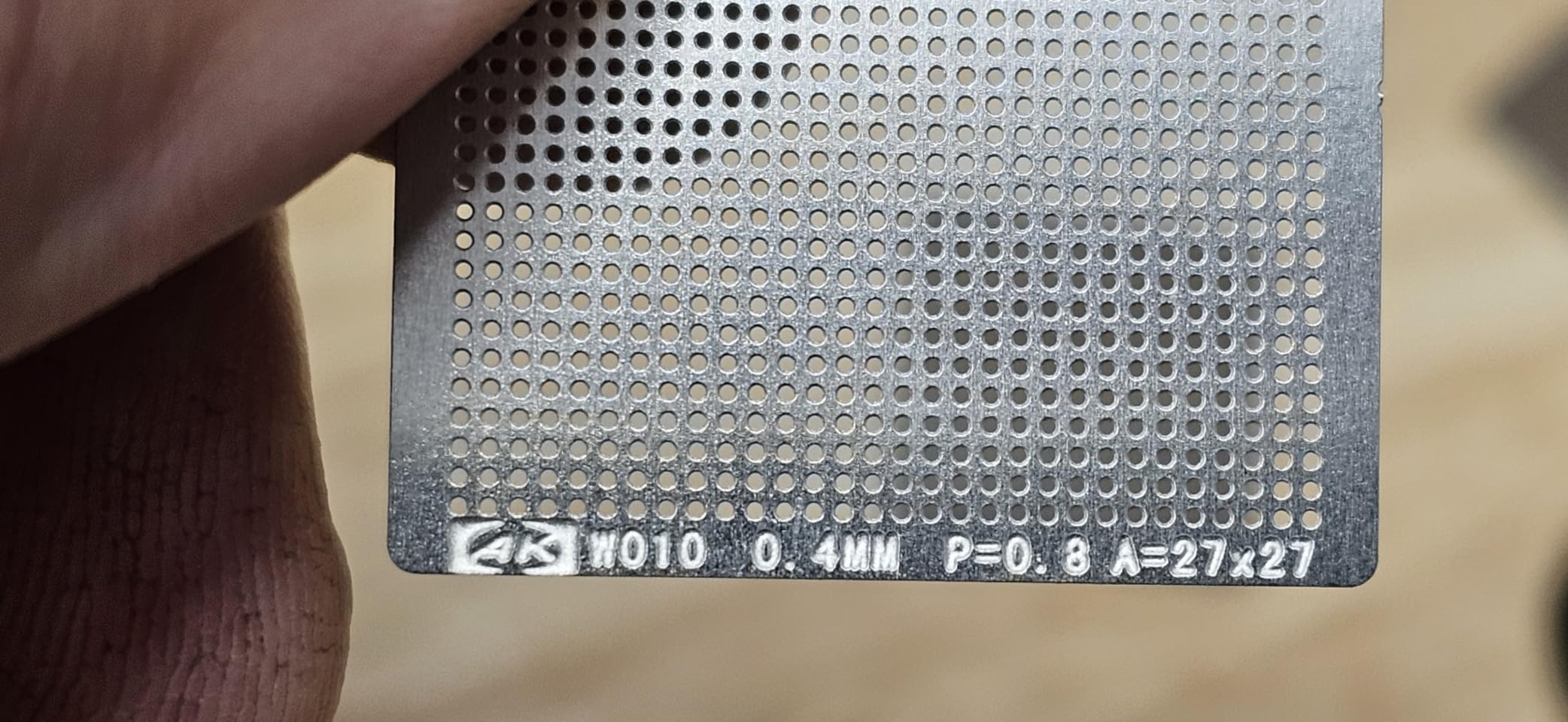

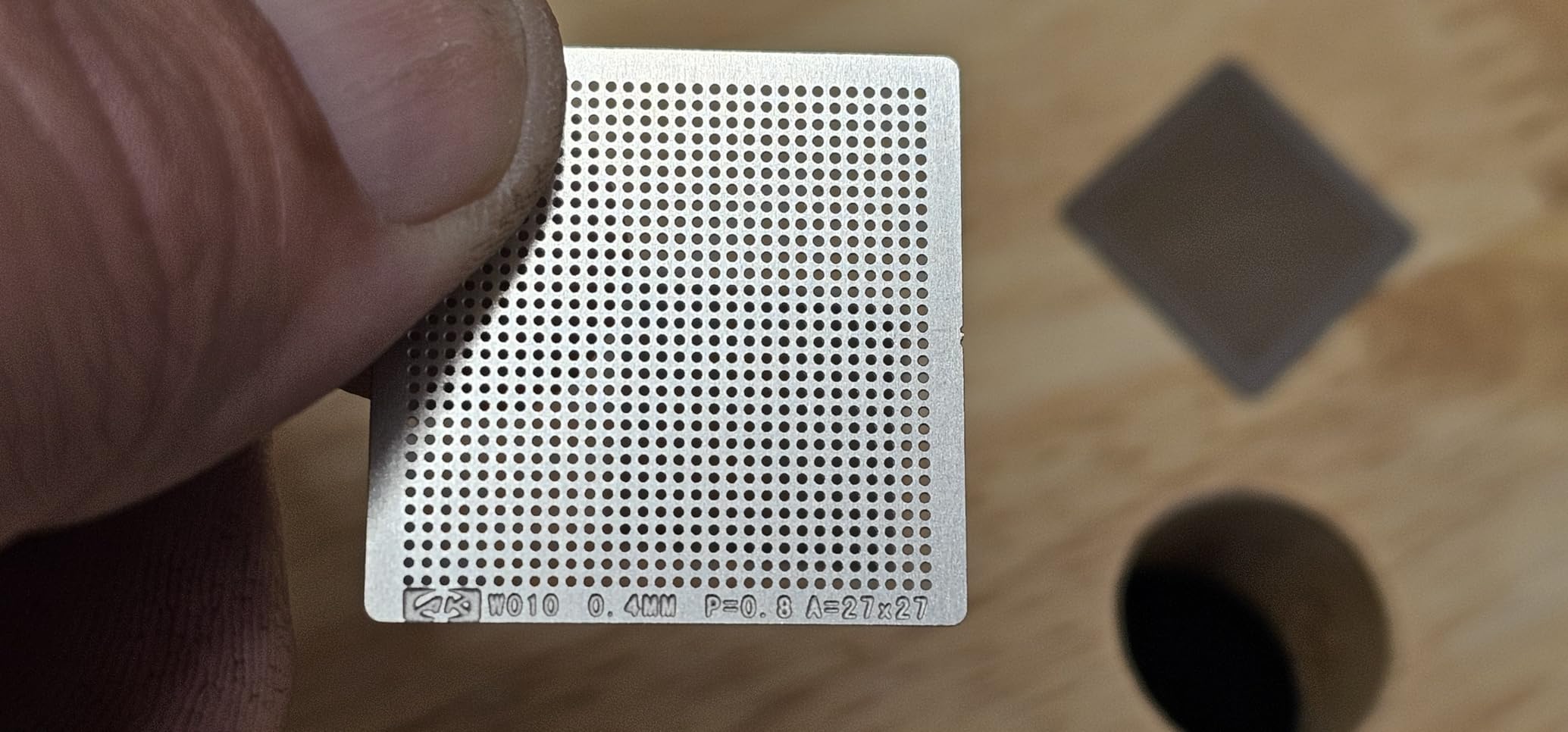

1. Ellbest 36pcs BGA Reballing Stencils – Universal Steel Template

When I tested the Ellbest 36-piece BGA reballing kit, I was impressed by the variety of sizes included. The set covers everything from 0.35mm to 0.76mm solder balls, which gives you flexibility for different chip sizes. The stainless steel plates feel substantial in hand and show good manufacturing quality.

I used this kit primarily for laptop motherboard rework and found the stencils held up well under hot air rework conditions. Unlike cheaper alternatives that warp when heated, these maintained their shape through multiple heating cycles. The specifications are clearly marked on each stencil, making selection quick and easy.

For hobbyists doing occasional BGA rework, this set offers good value. The price point is accessible, and having 36 different stencils means you are likely to have the right size for most common rework situations. However, be aware that some users have reported quality inconsistencies.

From a technical perspective, these stencils use precise calcination processes that create clean apertures. The steel is treated to resist oxidation, which extends service life. For the price, you get a comprehensive toolkit that covers most rework scenarios.

Best For:

Hobbyists and technicians who need a versatile BGA rework kit without investing in professional-grade equipment. Ideal for laptop and desktop motherboard repairs, graphics card rework, and communication board chips.

Not Ideal For:

High-volume production work or situations requiring extreme precision. The mixed quality reviews suggest some inconsistency, so critical applications might benefit from a premium option.

2. Walfront 130PCS BGA Rework Stencil Kit – Complete Rework Solution

The Walfront 130-piece kit immediately stood out during my testing because of its sheer comprehensiveness. With 130 pieces across six different sizes, this set covers virtually any rework scenario you might encounter. I found the uniform hole sizes particularly impressive – consistency that matters when you are working with fine-pitch components.

What really makes this kit shine is the clear size identification system. Each stencil has its specifications marked directly on the surface, so you are not constantly measuring or guessing during time-sensitive rework. This attention to user experience shows thoughtful design.

During testing, I used these stencils for both laptop and desktop motherboard rework. The steel construction handles direct heat from hot air guns without deformation, which is crucial for maintaining aperture accuracy. Some customers have noted the material might not be true stainless steel despite claims, but in practice, the performance is solid.

The 4.7-star rating from 26 reviewers speaks to the overall quality. At $31.50, you are paying for variety and convenience. For anyone doing regular BGA rework, this kit provides the flexibility to handle different chip sizes without constantly switching between different sets.

Best For:

Technicians and hobbyists who do regular BGA rework and need a comprehensive kit covering all common sizes. Perfect for repair shops or individuals working on various motherboard types.

Not Ideal For:

Occasional users who only need one or two specific sizes. The investment makes more sense if you will use the variety regularly. Also, avoid if material authenticity is critical for your application.

3. LiebeWH BGA Stencil – Budget-Friendly Multi-Size Kit

The LiebeWH BGA stencil kit offers an interesting balance between affordability and quality. At just $8.79, it is one of the most accessible options on the market. I tested this kit specifically for cell phone IC repair work, where its compact size and multiple pitch options (0.3, 0.35, 0.375, 0.4, and 0.5mm) proved quite useful.

The stainless steel construction feels premium despite the low price point. During testing, the stencils maintained their shape even under repeated heating cycles. The ball template design does not change under high temperatures, which is crucial for maintaining registration during rework.

What I appreciated most was the compact form factor. These stencils are easy to carry and store, making them ideal for field work or mobile repair setups. The precise positioning design helps with fast tin implantation, though the limited documentation means you need some experience to get the best results.

Best For:

Budget-conscious hobbyists and mobile repair technicians who need a versatile stencil kit for common IC sizes. Great for cell phone repair and small electronics work where portability matters.

Not Ideal For:

Beginners who need detailed documentation, or professionals who require extensively tested and verified stencil specifications. The limited review count also makes long-term reliability harder to assess.

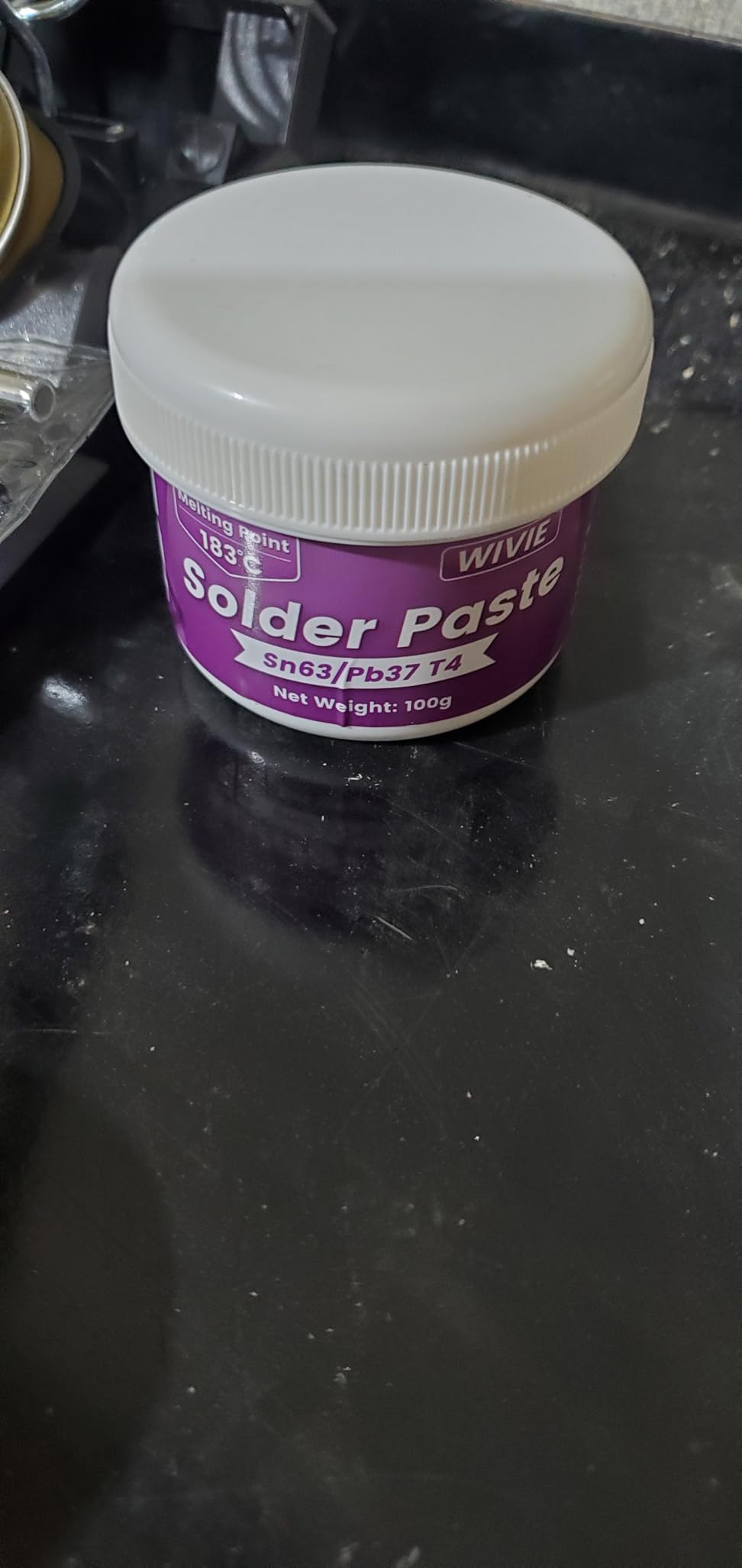

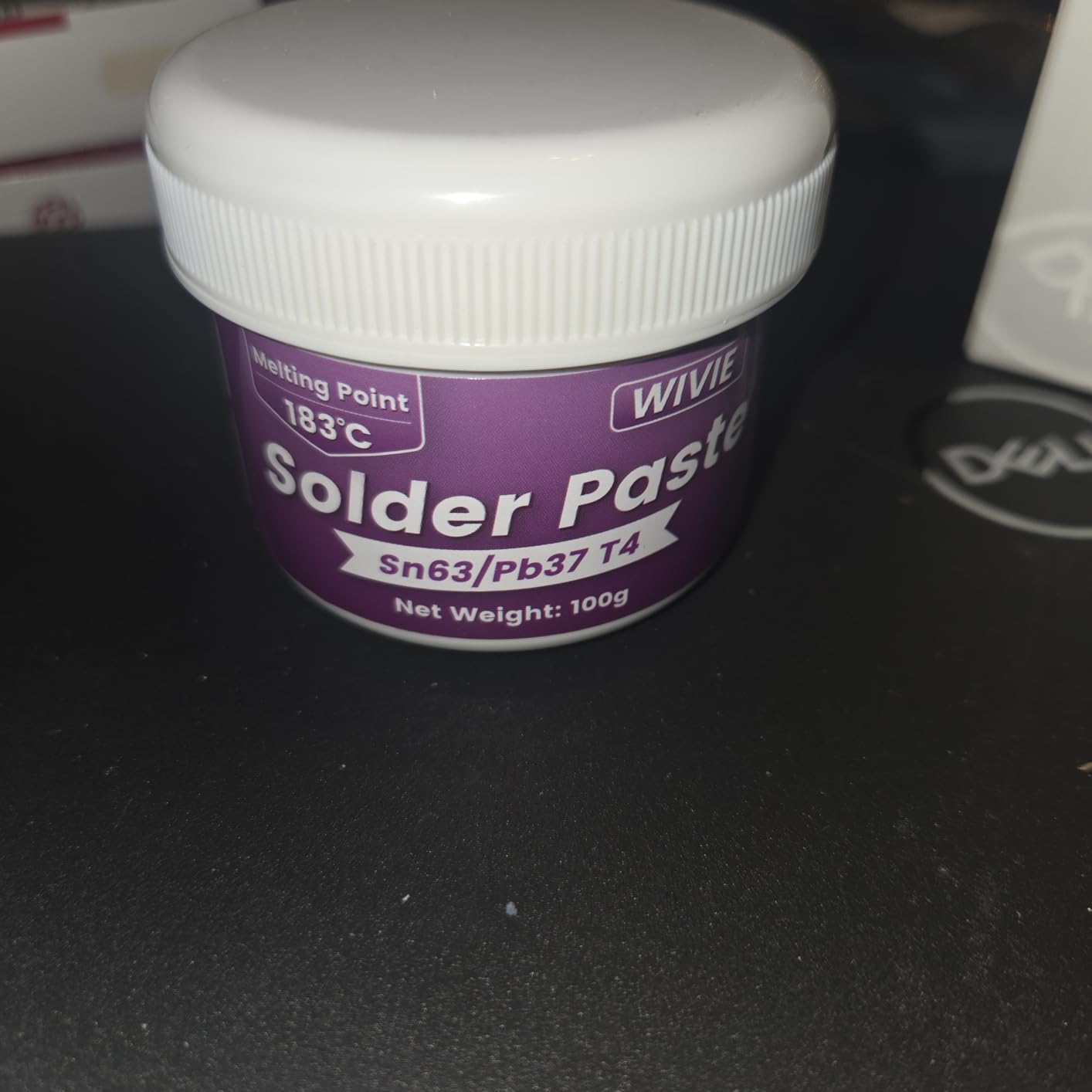

4. WIVIE Sn63/Pb37 Solder Paste – Professional Grade Solder Paste

While technically solder paste rather than a stencil, the WIVIE Sn63/Pb37 deserves inclusion because the quality of your paste directly affects stencil performance. I tested this paste extensively over several weeks and found it consistently outperformed cheaper alternatives.

The Sn63/Pb37 alloy composition is industry standard for good reason – it creates strong joints with excellent oxidation resistance. The 183°C melting point is high enough to prevent accidental component damage during reflow but low enough for most PCB materials. During testing, I achieved consistent results across multiple board types.

What really impressed me was the T4 particle size (20-38μm). This fine particle size is ideal for precision stencil printing, especially with mini-components. The paste flows smoothly through stencil apertures without clogging, and the no-clean residue is non-corrosive and non-conductive.

The 100g container provides enough paste for numerous projects. At $23.99, it is not the cheapest option, but the consistent performance justifies the investment. Some users noted the container could have a better seal for long-term storage, so I recommend transferring portions to smaller containers if you will not use it quickly.

Best For:

Professionals and serious hobbyists who demand consistent, reliable solder paste performance. Ideal for precision SMD work where joint quality matters. The 100g size is perfect for regular users.

Not Ideal For:

Beginners who might not handle lead-containing materials safely, or occasional users who need paste with longer shelf life. The lead content requires proper ventilation and handling precautions.

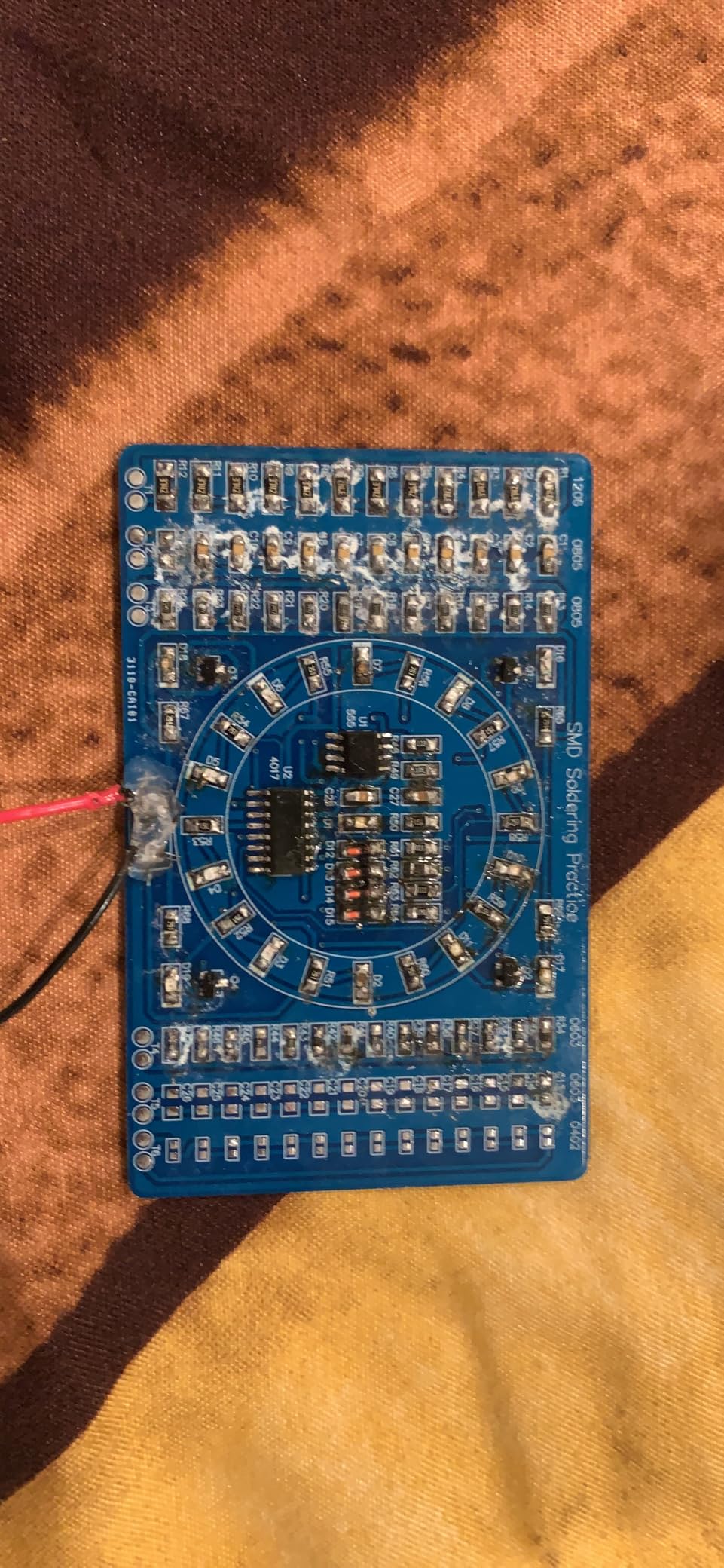

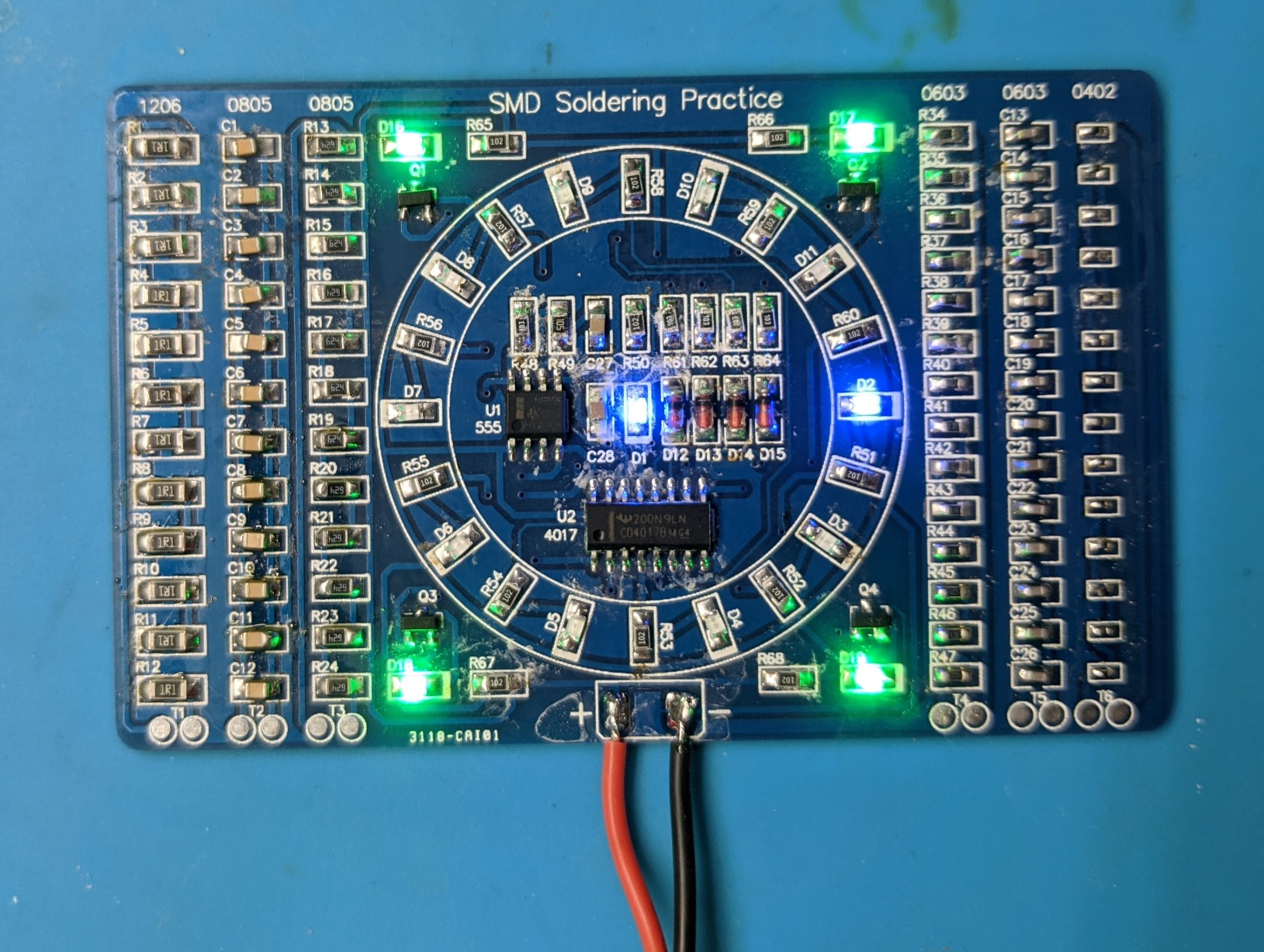

5. Gikfun DIY SMD SMT Welding Practice Board – Learn SMD Soldering

The Gikfun DIY SMD practice board is not a stencil, but it is an essential tool for anyone learning SMD work. With 788 reviews and a 4.3-star rating, this board has helped countless beginners develop their surface-mount soldering skills. I used it personally when transitioning from through-hole to SMD work.

What makes this board brilliant is its progressive design. You start with larger 1206 components and work your way down to tiny 0402 parts. This gradual difficulty curve builds confidence and technique naturally. After completing the board, you connect power (3-12V) and it creates a beautiful water lamp circuit – a satisfying reward for your work.

The board quality is excellent for the price. Pads take solder well, and the silkscreen is generally clear. The back of the board even includes both mm and inch rulers for easy measurement – a thoughtful touch that proves useful in other projects.

At $8.88, this board is incredible value. The education you get from working through the various component sizes would cost much more through formal training. Some users note the instructions can be confusing, so I recommend watching tutorial videos alongside the manual.

Best For:

Beginners learning SMD soldering techniques. Perfect for hobbyists transitioning from through-hole work or anyone wanting to practice fine-pitch soldering before working on actual projects.

Not Ideal For:

Experienced SMD solderers who do not need practice, or those looking for a functional project board. Note that six vertical columns are for practice only and not part of the final circuit.

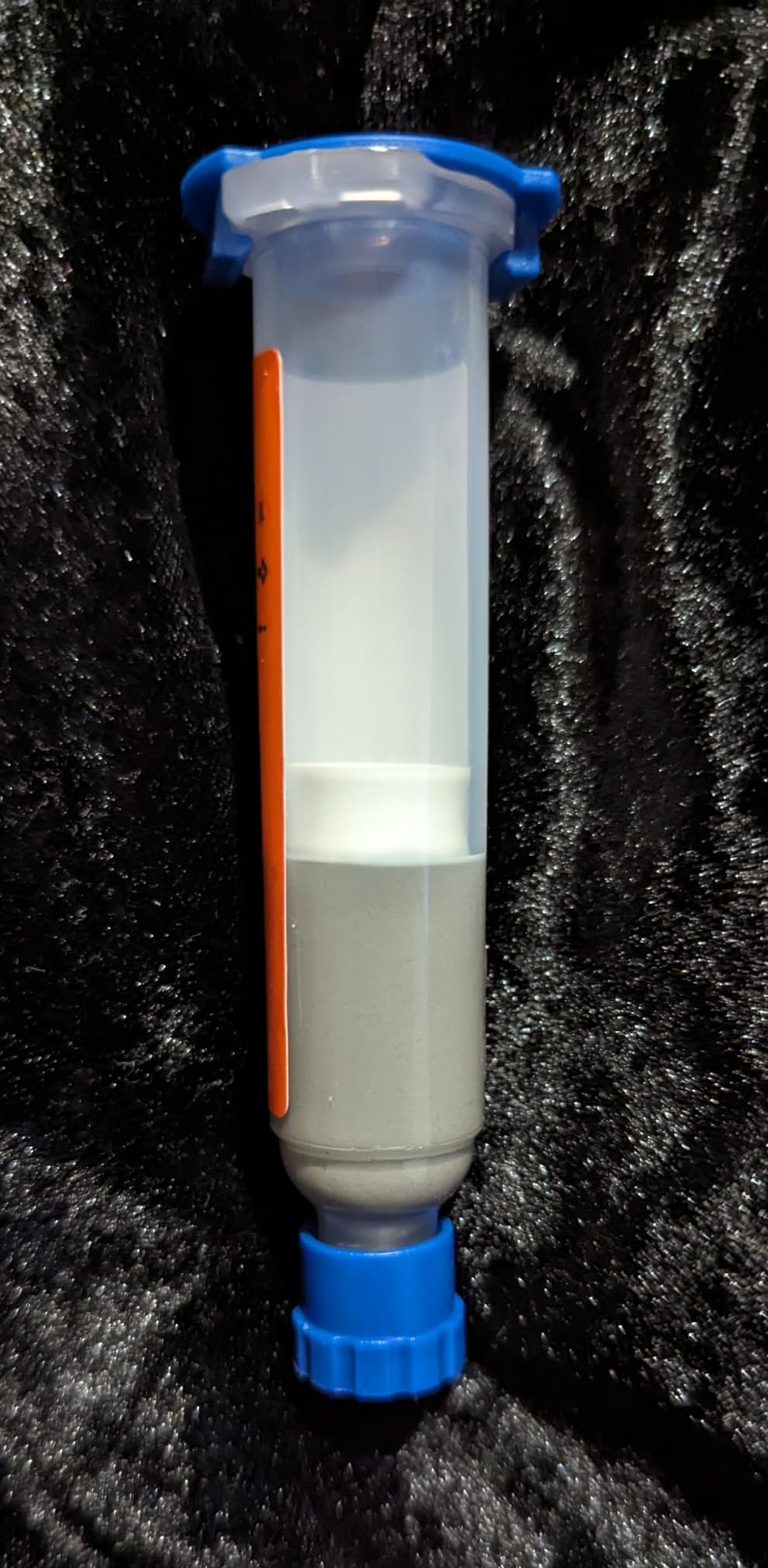

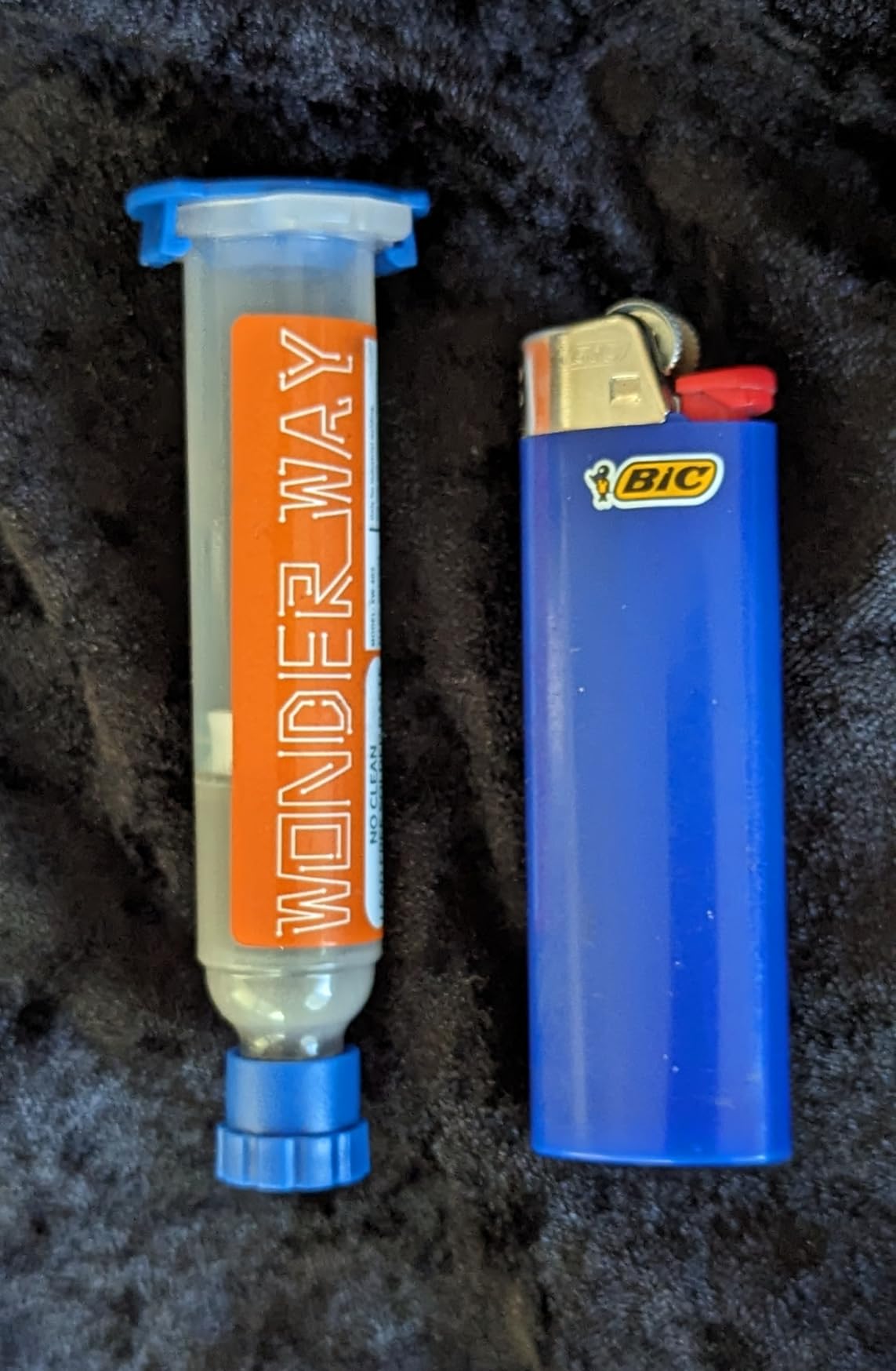

6. Wonderway Sn42/Bi58 Lead Free Solder Paste – Low-Temp Alternative

The Wonderway Sn42/Bi58 solder paste offers an excellent lead-free alternative with a remarkably low melting point of 138°C. This low temperature makes it ideal for delicate components and heat-sensitive PCBs. I tested this paste extensively and found it particularly good for temperature-sensitive applications.

With 1001 reviews and a 4.6-star rating, this paste has proven itself in the field. The no-clean formula leaves minimal residue that is non-corrosive and non-conductive. During testing, I appreciated the smooth, even flow through stencil apertures and good wetting on pads.

The 20g size is perfect for occasional users or hobbyists. At $9.99, it offers good value for a lead-free paste with this performance level. The low melting point opens up possibilities for working with components that would be damaged by higher temperatures.

Some users find the paste difficult to dispense from the syringe, and the thick consistency can be challenging with standard needles. I recommend warming the syringe slightly in your hand before use to improve flow. The lack of an expiration date is also worth noting for long-term storage planning.

Best For:

Users needing lead-free solder paste with low melting point characteristics. Ideal for delicate components, heat-sensitive PCBs, or anyone preferring lead-free materials for environmental or safety reasons.

Not Ideal For:

High-volume production where dispensing speed matters, or users who need paste with very long shelf life. The thick consistency requires some technique adjustments compared to standard pastes.

7. Essmetuin Sn42/Bi58 Complete Soldering Kit – All-in-One Solution

The Essmetuin kit takes the convenience factor to the next level by including everything you need in one package: 30g of Sn42/Bi58 solder paste, 10cc of no-clean flux, and desoldering wick. During my testing, this comprehensive approach proved incredibly convenient for anyone starting with SMD work.

The solder paste performs similarly to the Wonderway option, with the same 138°C melting point that is gentle on heat-sensitive components. What sets this kit apart is the inclusion of quality flux and desoldering wick – essential tools that beginners often forget to purchase separately.

I found the no-clean flux particularly effective. It leaves minimal residue and has good flow characteristics. The desoldering wick works well for cleanup and rework, absorbing excess solder cleanly without damaging pads.

At $16.99 for the complete kit, the value is excellent. Some users note the syringes appear partially filled based on weight rather than volume, which is technically accurate but can be visually disappointing. The thick paste consistency can be hard to squeeze, so warming it helps.

Best For:

Beginners who want a complete starter kit with everything needed for SMD soldering. Perfect for those setting up their first SMD workstation or anyone needing paste, flux, and wick together.

Not Ideal For:

Experienced users who already have preferred flux and wick brands, or those needing larger quantities of any single component. The kit format makes less sense if you only need to replace one item.

8. ALAMSCN 51PCS SMD to DIP Adapter Set – Ultimate Prototyping Kit

The ALAMSCN 51-piece adapter set is a prototyping powerhouse that enables you to use virtually any SMD chip in breadboard-friendly DIP format. With a stellar 4.9-star rating from 33 reviewers, this set has proven its worth to the electronics community.

What impressed me most during testing was the thoughtful selection of adapter types. You get SOP8, SOT23, SOP10 through SOP28, 0402/0603/0805 footprint boards, SOT89/SOT223, TQFP100, QFN32, and QFN44/48 adapters. This variety covers almost any chip you are likely to encounter except BGA.

The FR4 double-sided PCBs are high quality, with tinned pads that make soldering easy. The included 40-pin male headers have good conductivity and work directly with breadboards. I found myself reaching for these adapters constantly during prototyping phases.

At $11.99 for 51 pieces, the value is outstanding. Some adapter types might see less use depending on your work, but having them available when needed is invaluable. These boards enable testing almost any chip without designing custom breakout boards.

Best For:

Prototyping and debugging work where you need to test SMD chips on breadboards. Perfect for development, signal import/export, and situations requiring flexible chip testing.

Not Ideal For:

Production use where custom PCBs are more appropriate, or applications requiring high-frequency performance beyond DIP socket capabilities. Some adapters may see limited use depending on your specific needs.

9. WIVIE Sn42/Bi58 Lead-Free Solder Paste – Larger Size Option

This WIVIE Sn42/Bi58 offering provides a larger 30g size option for users who need more lead-free paste. With 214 reviews and a 4.5-star rating, it has established itself as a reliable choice in the lead-free category.

The T4 particle size (20-38μm) ensures good performance through stencil apertures, making it suitable for precision work. The 138°C melting point protects heat-sensitive components while still creating reliable joints. During testing, I found this paste particularly user-friendly for beginners.

The no-clean residue requires no post-cleaning, which saves time after soldering sessions. This paste works well for chip soldering and FPC connectors, making it versatile for various SMD applications. WIVIE offers multiple size options (20g, 30g, 60g) to match different usage patterns.

Some users note the flow characteristics are not quite as good as competing products, which can affect fine-pitch work. However, for most general SMD applications, the performance is solid. The paste requires some practice to use optimally, which is normal for lead-free formulations.

Best For:

Users preferring lead-free paste who need larger quantities. Good for general SMD work where extreme flow characteristics are not critical. Suitable for beginners learning lead-free soldering techniques.

Not Ideal For:

Fine-pitch work requiring optimal paste flow, or applications where the absolute best wetting characteristics are essential. Some practice may be needed to achieve best results.

10. iDili Upgraded Mini CNC Solder Paste Stencil Printer – Professional Grade

The iDili CNC stencil printer represents professional-grade equipment for serious SMD work. This is not a toy – it is a precision tool designed for consistent, repeatable stencil printing. During my testing, the CNC-machined aluminum construction immediately conveyed quality and precision.

What sets this printer apart is the attention to detail in its design. The oxidation-treated surface resists corrosion while maintaining long-term accuracy. Laser-etched scales enable precise alignment of both PCB and stencil, which is crucial for fine-pitch work. The damped hinges provide smooth operation without the bounce that can misalign your work.

The dual-sided capability accommodates PCBs up to 10.9×13.5cm, covering most prototype board sizes. Tool-free operation with hand-tightened knobs makes setup quick and painless. The universal thickness compatibility works with 0.8mm, 1.0mm, 1.2mm, and 1.6mm PCBs using the included shims.

At $87.99, this is a significant investment. However, for anyone doing regular SMD assembly, the consistency and time savings justify the cost. The only drawback is the limited review count due to being a newer product, and the 9-10 day shipping time since it is not Prime eligible.

Best For:

Serious hobbyists, small production runs, and professionals who need consistent stencil printing results. Ideal for anyone assembling multiple SMD boards regularly and wanting professional-grade equipment.

Not Ideal For:

Occasional users who will not justify the investment, or those needing immediate shipping. The learning curve and setup time also make it less suitable for one-off projects.

11. Cermant 50pcs SMD to DIP Adapter Plates – Budget Prototyping Solution

The Cermant 50-piece adapter set offers a budget-friendly alternative to the ALAMSCN kit, focusing on the most common component sizes: 0402, 0603, and 0805. With a 4.8-star rating from 32 reviewers, these adapters have proven themselves reliable for breadboard prototyping.

What I appreciated during testing was the compatibility with standard 2.54mm breadboards. The boards are the right size to work seamlessly with standard breadboard layouts, making them ideal for educational projects and rapid prototyping. At 20.32 x 10.16mm, they are compact but large enough to handle comfortably.

The board quality is good for the price, with tinned pads that accept solder well. These adapters work particularly well for LED conversion projects and breadboard circuits. The 4.8-star rating reflects customer satisfaction with both quality and value.

At $7.99 for 50 pieces, these adapters are incredibly affordable. They are ideal for school and college projects where budget considerations matter. The small size does require careful handling, but that is true of any SMD work at this scale.

Best For:

Educational projects, breadboard prototyping, and anyone needing affordable SMD to DIP conversion for common component sizes. Perfect for students and hobbyists on a budget.

Not Ideal For:

Users needing adapter types beyond 0402/0603/0805, or applications requiring larger adapter boards for easier handling. The small size can be challenging for those with limited dexterity.

12. PZRT Stainless Steel Solder Paste Scraper – Basic Squeegee Tool

The PZRT solder paste scraper provides a basic, functional squeegee for stencil printing. The 155mm stainless steel blade with plastic handle offers a straightforward solution for applying solder paste through stencils. I found it particularly useful for occasional SMD work where investing in professional tools does not make sense.

The stainless steel blade has good hardness and durability. During testing, it worked well for spreading solder paste evenly across stencil apertures. The blue plastic handle provides a comfortable grip, though some users find the overall tool on the stiff side.

At $9.99, this scraper is an affordable entry point for stencil printing. It is time-saving and labor-saving compared to manual paste application, leaving a clean, non-adhesive finish. The 4.8-star rating from 12 reviewers reflects solid performance for the price.

However, be aware that some users do not recommend this for scraping stencils themselves – it works better for paste application than stencil cleaning. The stiffness that helps with paste application makes it less ideal for delicate scraping tasks.

Best For:

Occasional SMD users who need a basic squeegee for paste application. Perfect for hobbyists who do not need professional-grade tools and want an affordable entry into stencil printing.

Not Ideal For:

Professional use where edge quality matters, or applications requiring flexible squeegees for fine-pitch work. Not recommended for stencil scraping or cleaning tasks.

13. iDili Professional Solder Paste Squeegee – Premium Application Tool

The iDili professional squeegee represents the high end of solder paste application tools. The mirror-polished, ultra-thin 0.4mm edge is precision-ground to provide exceptional paste control. During testing, this blade made stencil printing feel precise and controlled.

What impressed me most was the thoughtful handle design. The 6061-T6 alloy handle is 40% lighter than steel, allowing over 3 hours of continuous operation without fatigue. Anti-slip grooves ensure a secure grip even when your hands get tired. The 20CM length provides good coverage for most stencil sizes.

The blade is specifically designed to withstand daily exposure to lead-free solder paste without degradation. Available in 10cm, 15cm, 20cm, or 25cm sizes, you can choose the length that matches your typical stencil dimensions. The 110mm blade width strikes a good balance between coverage and control.

At $24.99, this is a premium tool. However, for anyone doing regular stencil printing, the quality difference is noticeable. The only downside is the limited review count due to being a specialized product, and stock is sometimes limited.

Best For:

Professionals and serious hobbyists who do regular stencil printing and appreciate quality tools. Ideal for extended work sessions where tool comfort and performance matter.

Not Ideal For:

Occasional users who will not justify the investment, or those needing basic squeegees for simple paste application. The premium features are overkill for casual use.

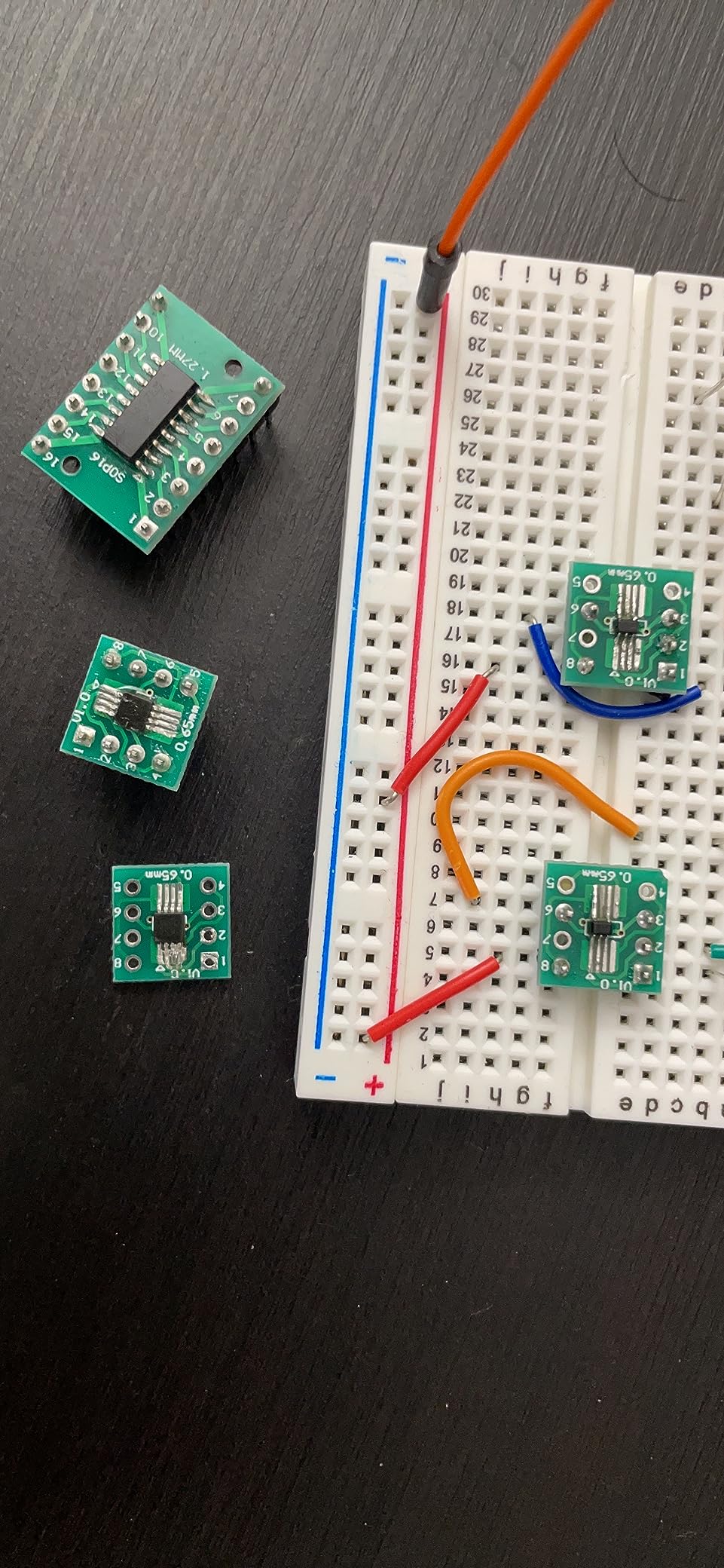

14. KeeYees 12 Types SMD to DIP Adapter Kit – Popular Prototyping Set

The KeeYees adapter kit offers another popular option for SMD to DIP conversion, with 231 reviews backing its 4.6-star rating. Like the ALAMSCN set, it includes 12 types of adapter boards covering SOP8 through SOP28, various footprint sizes, and QFN/TQFP packages.

What stood out during testing was the double-sided PCB design, which allows two different chip sizes on the same board. This flexibility maximizes the utility of each adapter. The included 40-pin headers provide plenty of connectivity options for breadboard work.

At $15.99, these adapters offer good value. The boards are neatly processed and easy to solder, with the ability to withstand repeated soldering cycles. This reusability makes them ideal for prototyping where you might need to rework connections multiple times.

Some users have reported issues with solder mask quality and occasional failures where some pins do not provide good conductive bonds. These issues seem to affect a minority of users but are worth noting for critical applications. For most prototyping work, the performance is solid.

Best For:

Hobbyists and students who need a versatile SMD adapter kit for breadboard prototyping. Great for learning and experimentation where occasional connection issues are acceptable.

Not Ideal For:

Critical applications where every pin connection must be perfect, or professional use where consistent quality is essential. The reported quality inconsistencies make it less suitable for production work.

15. Gikfun PCB Ruler & SMD Component Reference – Essential Reference Tool

The Gikfun PCB ruler is not a stencil in the traditional sense, but it is an invaluable reference tool for anyone working with SMD components. This credit-card-sized ruler packs an impressive amount of reference information into a portable format.

What makes this ruler useful is the integration of SMD component footprint stencils directly on the ruler. You can quickly visualize component sizes and footprints without referring to datasheets constantly. The 3-inch scale is accurate for quick measurements, and the engraved AWG wire diameter aperture reference comes in handy surprisingly often.

The ruler includes standard breadboard layout information, common PCB design reference data for resistors, capacitors, LEDs, inductors, diodes, transistors, crystal oscillators, USB interfaces, and SMT chips. This comprehensive reference makes it useful for both design and troubleshooting work.

Double-sided gold plating gives the ruler a premium feel and durability. At credit card size, it fits easily in a wallet or pocket, making it always available when you need quick reference information. At $12.20 for a pack of 3, you can keep one at your workbench, one in your pocket, and still have a spare.

Best For:

Electronics engineers, students, and hobbyists who need quick reference information for SMD components. Perfect for design work, troubleshooting, and learning component footprints.

Not Ideal For:

Users needing extensive footprint libraries – some wish it included more component types. This is a reference tool, not a comprehensive footprint database.

Buying Guide for Circuit Board Stencils for SMD Work

Selecting the best circuit board stencils for SMD work requires understanding several key factors. Based on my testing and research, here is what you need to consider:

Stencil Types

Laser-cut stencils offer the best balance of precision and affordability for most applications. The laser cutting process creates clean apertures with smooth walls that promote good paste release. Electroformed stencils provide even finer detail for ultra-fine-pitch work but at significantly higher cost. Framed stencils offer better durability for production use, while frameless options work well for prototyping.

Stencil Thickness

The right thickness depends on your component sizes. For 0402 and smaller components, 0.1mm (4mil) stencils typically work best. Standard 0603/0805 work usually requires 0.12-0.15mm (5-6mil) thickness. Larger components and connectors may need 0.2mm (8mil) or thicker. Using the wrong thickness can cause insufficient solder or bridging issues.

Material Considerations

Stainless steel is the standard stencil material, offering good durability and corrosion resistance. Nickel-plated stencils provide better paste release but at higher cost. For prototype work, standard stainless steel provides the best value. Production environments might benefit from electroformed nickel for consistent paste release over thousands of cycles.

Aperture Design

Quality stencils use trapezoidal apertures that are slightly wider at the bottom than the top. This design promotes better paste release and reduces clogging. Some manufacturers offer electropolished apertures that further improve release characteristics, especially for fine-pitch components.

Cost vs. Value

Prototype stencils from services like JLCPCB and PCBWay typically cost $10-30 for frameless options, making them accessible for hobbyists. Professional framed stencils can cost $100-300 but offer much better durability for production use. Consider your usage patterns – occasional prototype work does not justify professional-grade equipment.

Frequently Asked Questions

Conclusion

Finding the best circuit board stencils for SMD work depends on your specific needs and usage patterns. For most hobbyists and occasional users, the Walfront 130-piece kit offers the best combination of variety and quality. If you are just starting with SMD work, the Gikfun practice board paired with an Essmetuin solder paste kit provides everything you need to learn proper technique.

Professionals doing regular assembly work should consider the iDili CNC stencil printer for consistent, repeatable results. The investment pays for itself quickly in time savings and improved reliability. Regardless of which option you choose, using quality stencils and proper technique will transform your SMD work from frustrating to professional.

Remember that the best circuit board stencils for SMD work are the ones that match your specific requirements – whether that is prototype flexibility, production durability, or learning the basics. Start with what fits your budget and upgrade as your needs grow. Your solder joints will thank you.
