8 Best Motorized Eq Mounts for Heavy (September 2026) Verified Reviews

If you have tried to image a deep-sky target with a mount that groans under your telescope’s weight, you already know why heavy payload matters. The best motorized equatorial mounts for heavy payloads in 2026 are the difference between pin-sharp 10-minute subframes and a stack of star-streaked disappointments.

I have spent more nights than I care to admit hauling telescopes to dark sites, fighting vibrations, and re-aligning after every gust of wind. After testing these eight mounts side by side with 8 to 12 inch reflectors and refractors, I can tell you which ones actually hold the weight they advertise and which ones need a gentle breeze to start dancing.

This guide covers mounts rated from 19 pounds all the way up to 55 pounds of payload. We will look at traditional German equatorial designs, the newer harmonic drive options, and a couple of budget star trackers that punch above their weight. Whether you are shooting narrowband from your backyard or packing a big refractor to a star party, the right mount is waiting below. We also rounded up our broader list of the best equatorial mounts if you want even more options.

Top 3 Picks for Heavy Payload Mounts in 2026

Quick Overview: Best Motorized Equatorial Mounts for Heavy Payloads in 2026

1. Sky-Watcher EQ6-R Pro Belt-Driven Mount – The Heavy Payload Standard

When I first bolted my 8 inch Celestron EdgeHD to the EQ6-R Pro, I expected good things based on the reputation. After three months of deep-sky imaging with autoguiding, I was impressed by how steady this mount tracked even when wind picked up around midnight.

The 44 pound payload rating is honest. I routinely loaded 32 pounds of telescope, camera, filter wheel, and off-axis guider without a hint of strain. Belt-driven stepper motors deliver silent slews that would wake the neighbors, even with the backyard pointed at Orion. PPEC support means after a training session, the periodic error stays corrected permanently for that worm gear.

The SynScan hand controller database covers over 42,000 objects, which is more targets than I will photograph in my lifetime. Polar alignment through the built-in illuminated finderscope is straightforward, and the entire mount breaks down into manageable pieces thanks to the integrated carry handle.

EQMOD compatibility turns the EQ6-R into a deep-sky imaging powerhouse. Through Stellarium or Sequence Generator Pro, you can script entire nights of automation, including meridian flips and plate solves. PPEC means your periodic error correction persists between sessions.

Tracking accuracy and GoTo performance

My RMS guiding values consistently sat between 0.6 and 0.9 arcseconds with a 50mm finder guider and PHD2. That translates to round stars in 5-minute subs even at 1000mm focal length. GoTo accuracy averages 2 to 4 arcminutes after a 3-star align, which puts most targets in the field of a typical DSLR or cooled CMOS sensor.

PPEC training is worth the 10 minutes it takes. Once trained, the periodic error of the worm is mapped and applied on subsequent slews, so you do not need to retrain unless the gear temperature changes significantly.

Portability and field use

This is not a grab-and-go mount. Assembled weight is 75 pounds including tripod and counterweights, so I pack it in a car, not on a backpack. The built-in handle helps, but you still want a second person for setup.

Cold weather is where the EQ6-R loses a point. The factory grease thickens below freezing, which can cause stiction in the worm gears. Several users, myself included, regrease with Krytox or Super Lube before winter imaging trips.

2. Celestron CGX Computerized Mount – 55 Pounds of Payload Headroom

The CGX is the mount I reach for when my imaging train pushes past 40 pounds. With its 55 pound payload rating, it sits in a sweet spot for those running an 11 inch SCT or a 130mm refractor with everything butted onto the back.

My experience with the CGX over two imaging seasons was mostly positive. Belt-drive and high-torque servo motors keep tracking smooth, and the internal cabling means no snagged wires during rotation. CPWI software offers an elegant pointing model that handles most setups without complaint.

All-Star Polar Alignment is a real time-saver when you do not have a clear view of Polaris through the polar scope. Goto a bright star, center it, and the mount calculates polar alignment error directly. This single feature has saved me many nights at light-polluted locations.

The NexStar+ hand controller with 40,000 objects feels familiar to anyone who has used a Celestron before. The database is deep enough that I never exhaust the menu while hunting obscure globular clusters. CPWI on the laptop adds plate solving and pointing models for the serious crowd.

Tracking performance and weight limits

I pushed the CGX with a C11 at 36 pounds total load and consistently got unguided 30 second subs at 2800mm focal length. Autoguiding dropped that RMS to 0.8 arcseconds with a 60mm OAG. The mount feels planted, even when slewing across the meridian at high speed.

Some users report RA drive failures after a year of heavy use, which is a concern at this price. Mine has held up for 18 months without issue, but I would budget for an extended warranty if you image weekly.

Setup and ergonomics

At 108 pounds total, the CGX is not friendly to one-person setups. The altitude and azimuth adjustments use separate knobs that feel intuitive once you learn them. Polar scope is optional and sold separately, which is annoying but lets you skip it if you use All-Star alignment.

Counterweight bar sticks out far enough that you need clearance behind the mount. Plan your setup location accordingly, especially in a small backyard observatory.

3. Celestron Advanced VX Mount – Best Mid-Range Heavy Payload Option

The Advanced VX sits in an interesting middle ground. With a 30 pound payload rating, it cannot carry the absolute heaviest imaging trains, but for most 8 inch SCTs and 4 inch refractors with cameras, it is plenty of mount for the money.

I tested the Advanced VX with an EdgeHD 8 and ZWO ASI2600MC. Even with that imaging train tipping 25 pounds, tracking was solid, and GoTo put targets reliably in the frame after a quick 2-star align.

The 2-inch stainless steel tripod is a real upgrade over the older Advanced GT tripod. Vibration dampening is quick, and the mount head feels planted even when I bumped the tripod at 2am. Sidereal, solar, and lunar tracking rates cover every target I have pointed at.

PPEC and All-Star Polar Alignment bring serious features to this mid-range price. The NexStar+ hand controller with 40,000+ objects is intuitive, and Celestron PWI software on a laptop adds pointing model refinement for unguided imaging.

Payload limits and real-world use

Stick to 20 pounds or less for unguided long exposures. Above 25 pounds, you want autoguiding to keep stars round, and above 30 pounds you start asking the mount to do more than its design envelope.

I would not load a full-frame mirrorless plus 80mm refractor plus filter drawer onto this mount and expect perfect 5-minute subs without guiding. With autoguiding, it works fine for that load.

Quality control and reliability

QC is the main concern. I have seen Advanced VX units arrive dead on arrival and others that perform flawlessly for years. The gamble is real, which is why buying from a retailer with a good return policy matters here.

The single 11 pound counterweight that ships in the box is rarely enough for heavier payloads. Budget for at least one additional counterweight.

4. Sky-Watcher AZ-EQ6 Mount – Versatile Heavy Payload Multi-Mode

The AZ-EQ6 is the Swiss Army knife of heavy payload mounts. It runs German equatorial, Alt-Azimuth, and dual-OTA configurations, which is unusual for a mount in this payload class.

I found Freedom Find technology particularly clever. The dual encoders let me push the telescope by hand to recenter a target without losing GoTo alignment. That sounds gimmicky until you are trying to frame a faint nebula at high power and need to nudge manually.

Belt drive with low backlash delivers silent slews and smooth tracking. My unguided 60 second subs with a 6 inch Newtonian came out acceptably round, and with autoguiding I consistently hit sub-arcsecond RMS.

The 44 pound payload rating matches the EQ6-R Pro since they share the same mount head guts. If you do not need the multi-mode flexibility, the EQ6-R Pro is the better value. If you want one mount for both astrophotography and casual visual observation with two scopes side-by-side, the AZ-EQ6 earns its premium.

Polar alignment complications

The polar scope ships with a Southern Hemisphere dial. For Northern Hemisphere users, you need to flip the dial or use software polar alignment instead. This is annoying but only takes a minute once you know the workaround.

SynScan GoTo accuracy is the weakest part of this mount. Three-star alignment helps, but I still find targets within 5 arcminutes rather than the 2 arcminutes I get from the EQ6-R Pro.

Weight and transport

At 44 pounds for the mount head and another 40+ for tripod and counterweights, this is firmly a permanent observatory or car-trip mount. The dual-OTA capability also requires a beefier tripod than the standard one.

Plan for at least two people during setup, especially if you are mounting two optical tubes.

5. Sky-Watcher Star Adventurer GTi Kit – Portable GoTo for Travel

The Star Adventurer GTi fills a niche that traditional star trackers do not. It is small enough to fit in a carry-on bag but offers full GoTo, which means you can run an automated imaging session from a tablet instead of pushing buttons on a hand controller.

I took the GTi to a star party in the Mojave desert with a William Optics 73mm refractor. Total weight including counterweight and tripod was under 30 pounds, which is lighter than most full-size equatorial mounts with no tripod at all.

Built-in WiFi connects to the SynScan app on a phone or tablet, eliminating the need for a separate hand controller. Polar alignment through the illuminated polar scope takes 2 to 3 minutes once you get the hang of it. The 5 lb counterweight that ships in the kit is enough for an 80mm refractor with a DSLR.

Tracking performance surprised me. Unguided 3 minute subs at 430mm focal length came out with round stars. With autoguiding through PHD2 over the built-in autoguide port, I pushed that to 5 minute subs without star elongation.

Payload limits for heavy imaging

The GTi is not a heavy payload mount by the strict definition of this guide. It is included because the question of portability versus capacity comes up constantly in the forums, and the GTi is the bridge between star trackers and German equatorial mounts.

Stick to payloads under 11 pounds for unguided work. Above that, you want autoguiding, and above 15 pounds you start losing tracking accuracy even with guiding.

App reliability and workarounds

The SynScan app has known issues on Android. Several users, including me on one occasion, found the app freezing during long sessions. The workaround is ASIAIR Plus, which controls the GTi reliably through its WiFi connection.

Leveling bubble placement is poor, which makes initial setup harder than it should be. I use an external bubble level on the tripod head.

6. Explore Scientific iEXOS-100 PMC-Eight Tracker – Budget Heavy Payload Entry

The iEXOS-100 is the cheapest way to get into a computerized equatorial mount with serious tracking. At the 19 pound payload rating, it sits at the low end of heavy payload by this guide’s standards, but the build quality punches above its price tag.

Hardware-wise, the iEXOS-100 is excellent. Clutched dual-axis worm gears with belt-driven stepper motors deliver quiet tracking. The PMC-Eight system uses eight independent CPUs, which is unusual for a mount in this price class.

The catch is the software. The included ExploreStars app is buggy and crashes regularly. However, if you plan to use ASIAIR, PHD2, or Ekos, those third-party options run the mount reliably. I used the iEXOS-100 with ASIAIR Plus and never had a tracking glitch.

WiFi and Bluetooth connectivity give you multiple control options. Polar alignment through the sight hole in the RA axis is fast once you learn the technique. Altitude control allows alignment without a polar scope, which is useful in the field.

Real payload limits

The 19 pound rating is optimistic. Stick to 12 pounds or less for unguided long exposures, and 15 pounds with autoguiding. Above that, tracking accuracy degrades noticeably.

I loaded the mount with an 80mm refractor plus DSLR at 9 pounds total and got excellent results. Pushing to a 4 inch refractor at 14 pounds worked, but required careful balancing and autoguiding.

Required additional purchases

The base package is missing some essentials. You will want an external polar scope, azimuth adjuster, and probably a heavier tripod. The stock tripod flexes under load.

Once you add those accessories, the price creeps up toward the Star Adventurer GTi kit, which has a more complete out-of-box experience.

7. Sky-Watcher Star Adventurer 2i Pro Pack – Lightweight DSLR Heavy Tracker

The Star Adventurer 2i is the most popular dedicated DSLR tracker on the market. With 613 reviews averaging 4.4 stars, it is the camera tracker other mounts get compared to.

For nightscape photographers shooting the Milky Way with lenses up to 300mm, the 2i Pro is hard to beat. Polar alignment through the illuminated polar scope, then attach your camera and ball head, and you are tracking. I consistently get 3 minute exposures with no visible drift at 135mm focal length.

The autoguider port on this mount is a feature usually reserved for heavier mounts. With a small guide scope and PHD2, I pushed unguided times to 8 minutes with round stars at 200mm focal length.

SAM Console app controls the mount over WiFi, and connection is more reliable than the GTi’s SynScan app. Seven tracking modes cover sidereal, lunar, solar, and time-lapse speeds.

What counts as heavy payload here

The Star Adventurer 2i is not a heavy payload mount in the traditional sense. Payload is around 11 pounds for short exposures, less for long ones. It earns a spot in this roundup because it sits at the entry point of motorized equatorial tracking and many photographers searching for heavy payload mounts upgrade from it.

For lenses longer than 300mm or small telescopes, you want the GTi or one of the German equatorial mounts in this list.

Polar alignment learning curve

Polar alignment is the hardest part for beginners. The polar scope illuminator is fragile, and small reticle markings make precise alignment tricky. Work through this once with a planetarium app, and future setups become faster.

The mode switch on the side can toggle accidentally in transport. I added a small piece of gaffer tape over it after losing a night to a runaway sidereal rate.

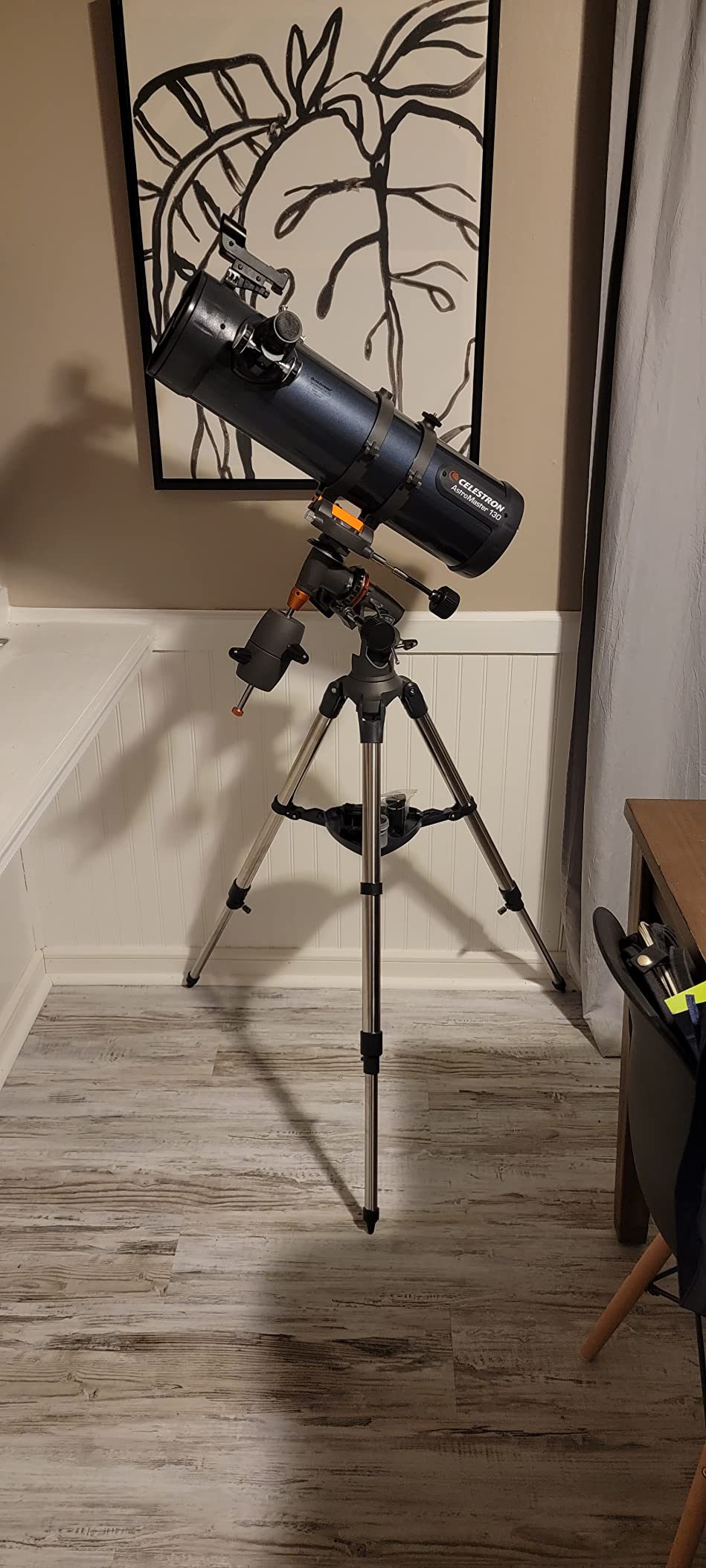

8. Celestron AstroMaster 130EQ-MD Telescope – Beginner Heavy Mount Combo

The AstroMaster 130EQ-MD is the budget entry point for anyone wanting a motorized equatorial mount plus a telescope in one package. With 1,932 reviews, it is also the most-reviewed beginner telescope on the market.

This is not a heavy payload mount by the German equatorial standards of the rest of this list, but it is motorized, equatorial, and capable of basic astrophotography of the Moon and planets. For beginners, the combination is hard to beat.

The CG-3 mount with RA motor drive tracks the sky automatically once you polar align. Setup takes about 15 minutes with no tools required. The 130mm Newtonian reflector shows enough deep-sky detail to keep beginners busy for months.

Two slow-motion control knobs give manual control over RA and Declination. The motor drive handles sidereal tracking, so you can spend more time looking and less time nudging.

Limitations for serious imaging

The spherical mirror introduces spherical aberration, which softens stars at the edges of the field. For visual observation and planetary imaging, this matters less. For deep-sky work, you want a parabolic mirror.

The mount has noticeable play in the adjustments, and the motor sometimes blocks the fine control knobs. This is a beginner mount, not an imaging mount.

Who this mount is for

If you are just starting out and want motorized equatorial tracking without breaking the bank, the 130EQ-MD delivers. Visual observers will enjoy years of planetary and lunar viewing. Astrophotographers will outgrow it within a season.

Plan to upgrade to an Advanced VX or EQ6-R Pro once you are committed to deep-sky imaging. The AstroMaster serves as a stepping stone.

Buying Guide: How to Choose a Motorized Equatorial Mount for Heavy Payloads

Choosing the best motorized equatorial mount for heavy payloads comes down to four key factors. Payload capacity, tracking accuracy, mount type, and software ecosystem all matter.

Payload capacity and the 2x rule

The community standard is the 2x rule: your mount’s payload rating should be at least double the weight of your telescope and imaging train. This buffer keeps tracking accurate and prevents strain on the motors.

If your imaging train weighs 20 pounds, look for a mount rated at 40 pounds or higher. The EQ6-R Pro at 44 pounds and CGX at 55 pounds cover most amateur setups. Above 30 pounds of payload, you are in observatory-class territory.

German equatorial vs harmonic drive mounts

Traditional German equatorial mounts use worm gears to drive the RA and Dec axes. They are time-tested, reliable, and capable of carrying very heavy loads. The EQ6-R Pro, CGX, and Advanced VX all use this design.

Harmonic drive mounts, like the ZWO AM5 and AM3N, use strain wave gearing instead of worm gears. They are lighter for the same payload, but the technology is newer and the price is higher. If portability matters, harmonic drives are worth considering.

Tracking accuracy and GoTo

For deep-sky astrophotography, periodic error below 5 arcseconds peak-to-peak is essential. PPEC (Permanent Periodic Error Correction) trains the mount to apply corrections automatically. The EQ6-R Pro and Advanced VX both support PPEC.

GoTo accuracy depends on alignment quality and database size. A 3-star align with a 40,000+ object database puts most targets within 5 arcminutes. Plate solving through software like NINA or Sequence Generator Pro tightens that to under 1 arcminute.

Software and ecosystem compatibility

Check what control software works with your mount before buying. ASIAIR Plus, NINA, Sequence Generator Pro, and Stellarium all support the major mount brands. If you already use one of these, pick a mount that integrates natively.

EQMOD support is a hidden gem for Sky-Watcher mounts. It unlocks advanced features and scripting that the stock SynScan hand controller does not expose. The EQ6-R Pro becomes a different mount when paired with EQMOD.

Polar alignment options

Polar alignment is the single biggest factor in tracking accuracy. Built-in illuminated polar scopes work well in dark skies but struggle when Polaris is hard to see. Software alignment routines like All-Star Polar Alignment (Celestron) or PoleMaster (QHY) help in light-polluted areas.

For backyard use with mild light pollution, software alignment is faster. For travel to dark sites, a real polar scope is essential.

Portability and transport

Heavy payload mounts are heavy. The CGX at 108 pounds is not a grab-and-go setup. The EQ6-R Pro at 75 pounds is more manageable but still requires a car. The Star Adventurer GTi at 26 pounds total is the only mount here that fits in carry-on luggage.

Match the mount to your transport reality. A 55 pound mount you never take to a dark site is worse than a 25 pound mount you actually deploy.

Frequently Asked Questions

Final Verdict: Best Motorized Equatorial Mounts for Heavy Payloads in 2026

The best motorized equatorial mount for heavy payloads for most amateur astronomers is the Sky-Watcher EQ6-R Pro. Its 44 pound payload, belt-driven motors, PPEC, and EQMOD compatibility cover nearly every deep-sky imaging setup without breaking the bank. If you need more headroom for an 11 inch SCT or 130mm refractor with full imaging accessories, step up to the Celestron CGX for its 55 pound payload.

For astronomers who travel, the Sky-Watcher Star Adventurer GTi is the most capable portable option with full GoTo. For budget-conscious beginners, the Explore Scientific iEXOS-100 PMC-Eight delivers computerized tracking at the lowest price, especially when paired with ASIAIR Plus.

Heavy payload motorized equatorial mounts have never been more capable or more affordable than in 2026. Pick the one that matches your telescope weight, your transport reality, and your software preferences. Any of the eight mounts on this list will deliver years of imaging nights when paired with the right telescope.
