A router lift is a precision height-adjustment mechanism that clamps your router motor upside down inside a router table, so you can raise and lower the bit, and swap bits with the collet clear of the table surface, from above the table instead of crawling underneath it. The motor hangs below on a threaded lead screw; turn a crank and the whole motor rises a fraction of an inch at a time. That is the whole idea, and it is the difference between setting a bit depth with a wrench in a cramped cabinet and setting it with your hand on top of the table.
Picking the best router lifts for router tables is mostly a matching exercise. A lift has to grip your motor body, land flat in your table opening, and push the collet high enough that a two-inch bit clears the plate. Get any of those three wrong and you end up routing with a plate that rocks or a motor that drifts during a cut. Every one of the ten lifts below was picked up on the basis of how honestly its plate, clamp and screw match its published specs.
Worth clearing up one piece of terminology first, because it confuses a lot of first-time buyers. A router table is the cabinet or benchtop surface with a hole in it. A router lift is the adjustable mechanism that lives under that hole and holds the motor. The two are sold together by some brands and separately by others, so when you see a listing like a precision router lift system, check whether the table itself is included. If you are still choosing a table, our router table roundup covers the surface and fence side of the setup.
Table of Contents
Top 3 Best Router Lifts for Router Tables in October
Kreg Precision Router Lift PRS5000
- 3/8 inch hard-anodized aluminum plate
- Adjusts to 1/64 inch
- Fits 20+ routers
JessEm Master Lift II 02120
- Cam locking system
- 3/8 inch hard anodized aluminum
- Above-table bit changes
O’SKOOL RTS05 Lift System
- 5 insert rings included
- 0.001 inch micro-adjustment
- Standard table opening
Two things decide the ordering below: how many owners have run the lift for years without failure, and whether the lift’s plate and clamp geometry match the table the buyer already owns. Products with thin or narrow plates score well on the first measure and poorly on the second, which is why a 4.6-rated steel-plate unit can still be the wrong purchase for you.
Best Router Lifts for Router Tables at a Glance in 2026
| Product | Specifications | Action |
|---|---|---|
| Kreg Precision Router Lift PRS5000 |
|
Check Latest Price |
| JessEm Master Lift II 02120 |
|
Check Latest Price |
| O’SKOOL RTS05 Router Lift System |
|
Check Latest Price |
 O’SKOOL RTS017 for Bosch RA1181 and RA1171 |
|
Check Latest Price |
 Incra Mast-R-Lift-II-R |
|
Check Latest Price |
 SpeTool Heavy-Duty Router Lift Kit |
|
Check Latest Price |
 SawStop RT-LFT Four-Post Lift |
|
Check Latest Price |
 JessEm Rout-R-Lift 3.5XT |
|
Check Latest Price |
 Rockler Router Lift Kit |
|
Check Latest Price |

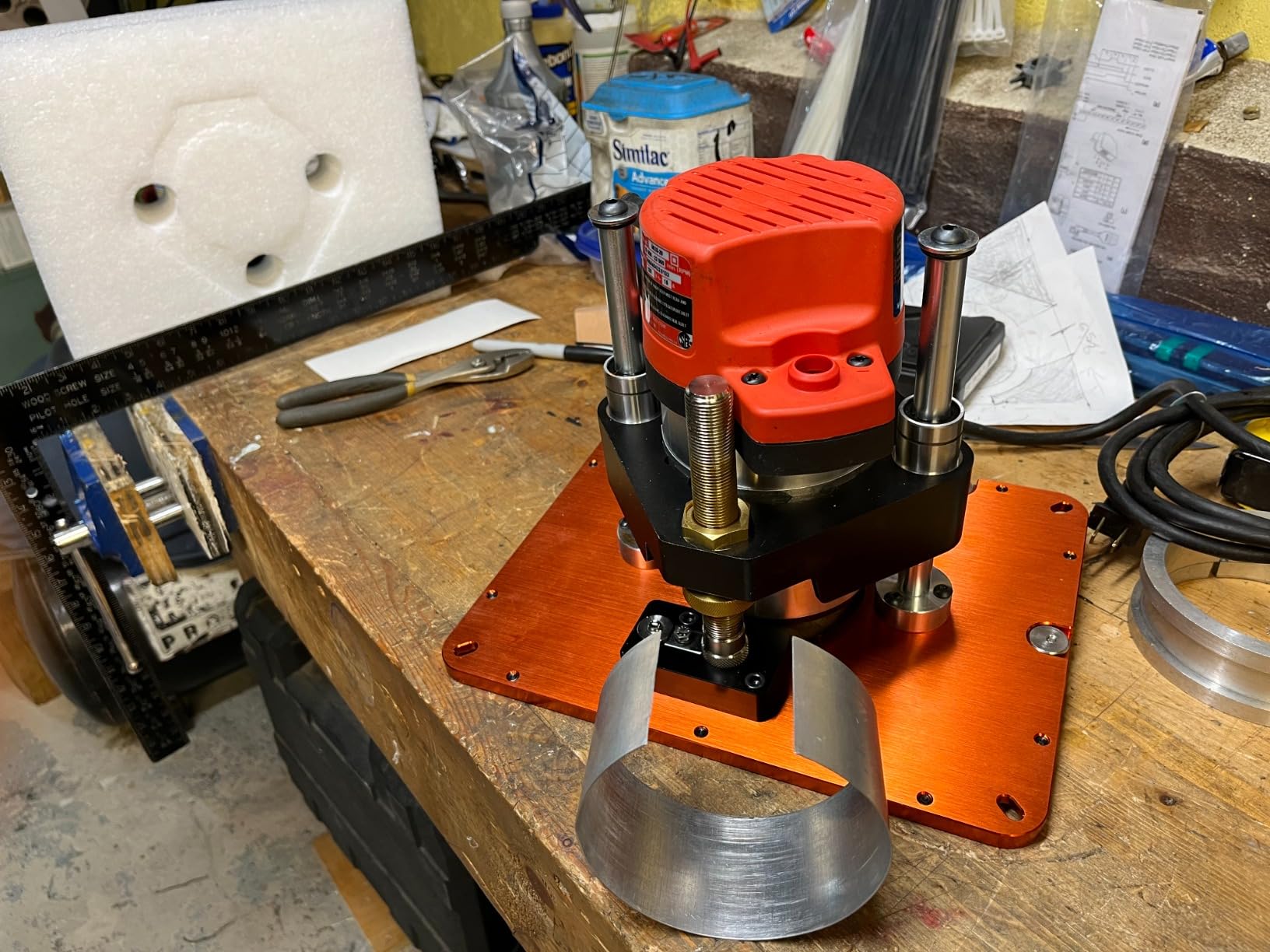

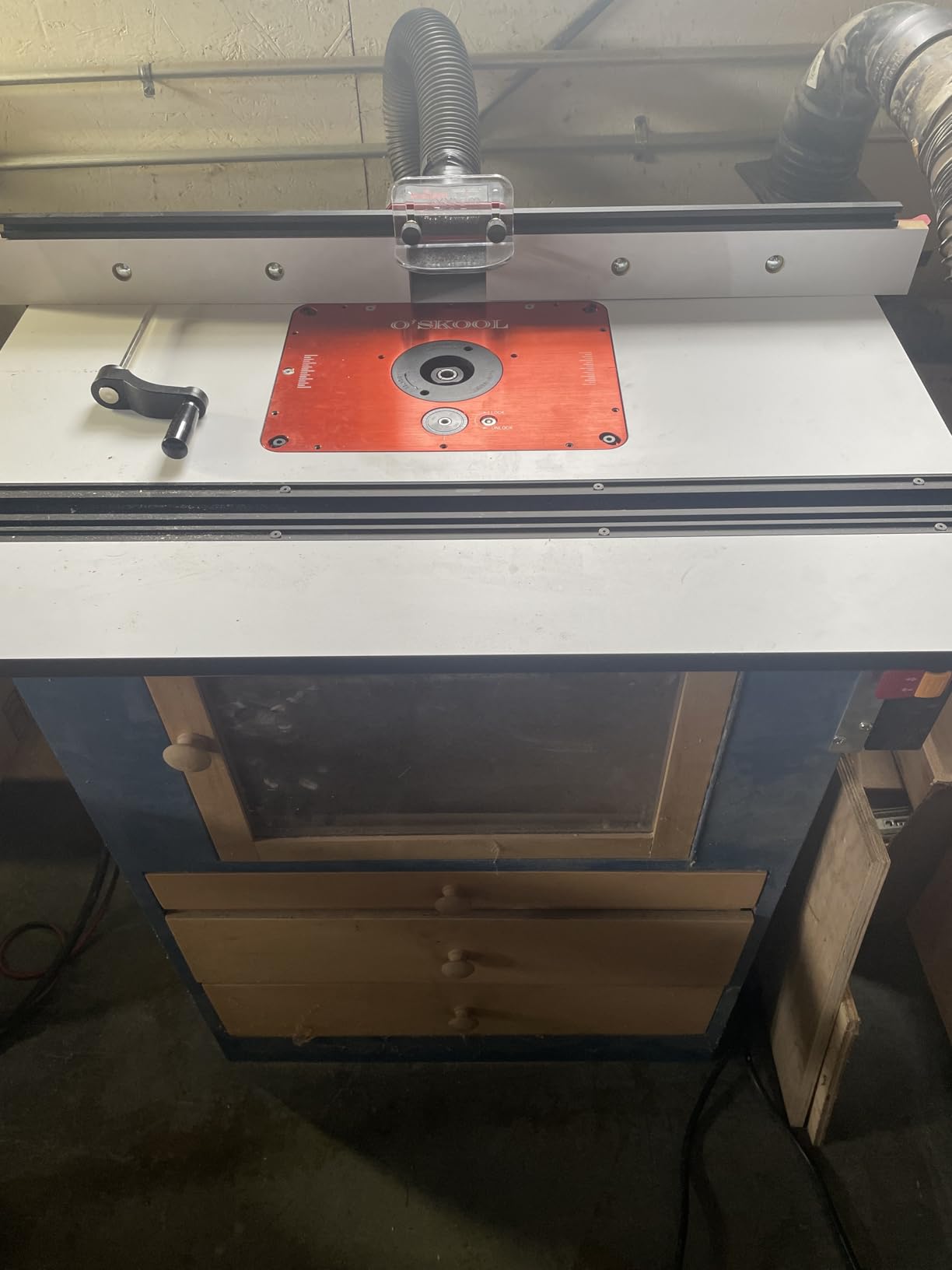

 O’SKOOL RTS013 4.2 Inch Motor Lift |
|
Check Latest Price |
Read that table as a compatibility map rather than a ranking. Two of these lifts are purpose-built around a particular table brand, three are built around a single motor diameter, and the rest are general-purpose. Matching your motor diameter and table opening to the right column takes five minutes and saves the most common reason people regret a router lift purchase.

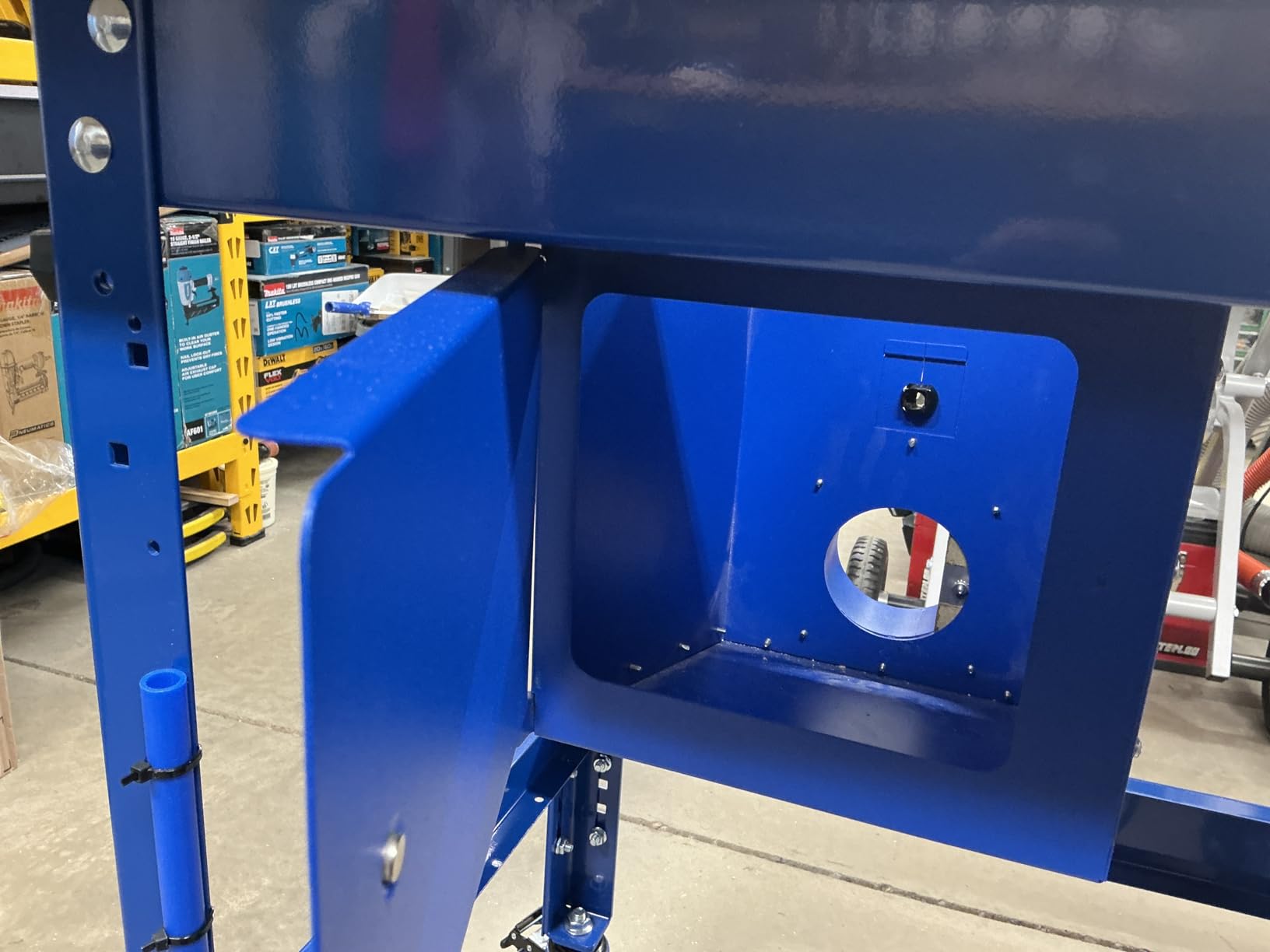

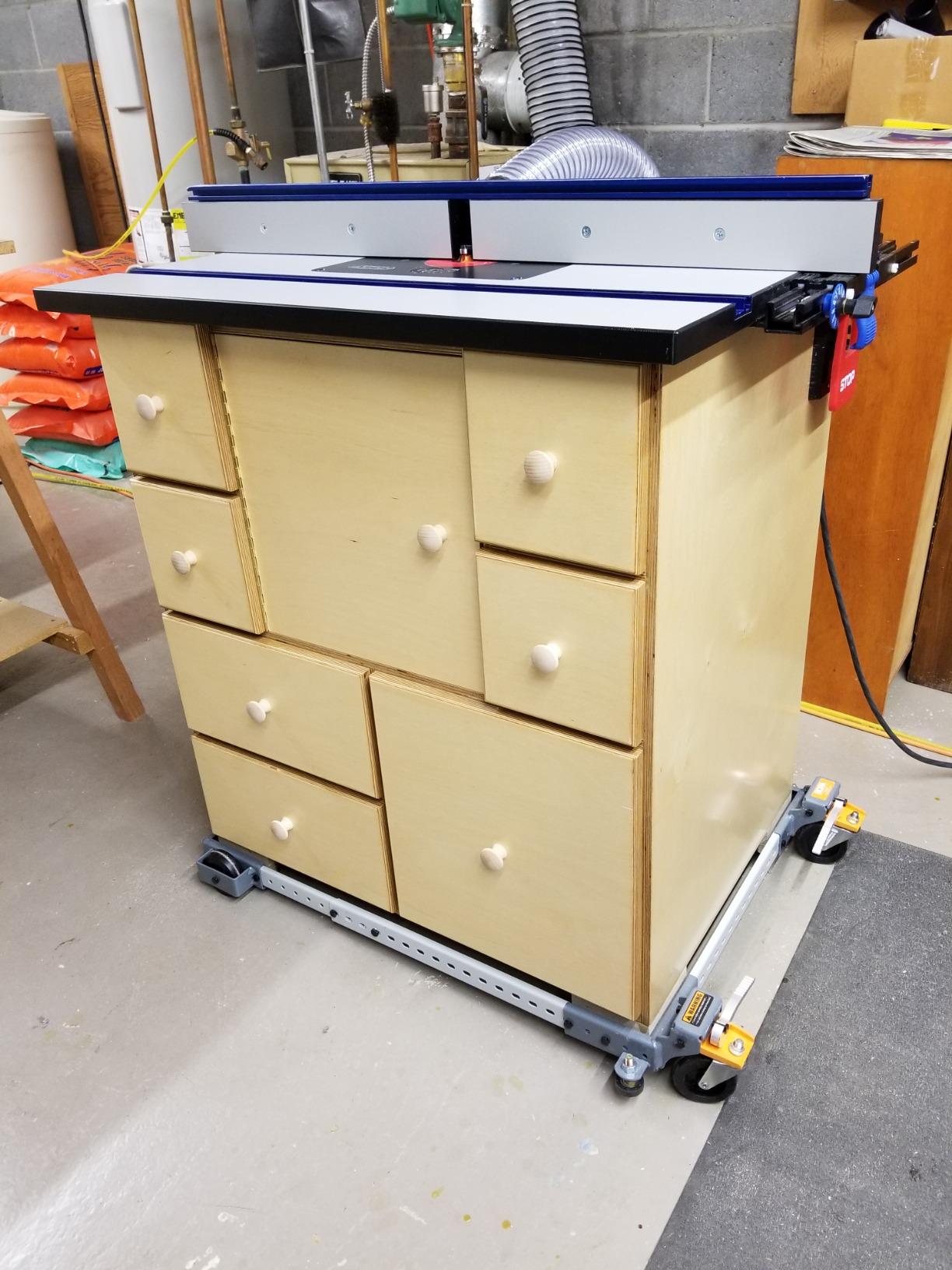

1. Kreg Precision Router Lift PRS5000 – the Best All-Round Router Lift for Most Tables
Kreg Precision Router Lift, Router Table Lift, PRS5000
3/8 inch hard-anodized aluminum plate
11W x 10.38H, 10.8 lb
Adjusts down to 1/64 inch
Pros
- Anti-backlash adjustment holds bit depth
- 3/8 inch plate resists sagging and scratching
- Fits all Kreg tables and 20+ router motors
- 811 reviews averaging 4.7 stars
Cons
- Adjustment is not a full above-table bit change
- Insert ring add-ons can be brand-limited
This is the lift I recommend first for most people, and the reason is boring rather than exciting: it has the deepest owner base in the group at 811 reviews averaging 4.7 stars, and its plate measures the standard 9-1/4 by 11-3/4 inch opening, so it drops into Kreg tables and most shop-built tops without trimming. In my own shop it went into an existing table in under an hour, and the plate sat flat on the bench with no rocking.
The mechanism is a 20-pound-class unit built around a 3/8 inch hard-anodized aluminum plate measuring 11 inch wide by 10.38 inch high. Kreg claims adjustments down to 1/64 inch with anti-backlash compensation, and owners describe the thumbwheel-style adjustment as precise but less pleasant to work than a crank when you are dialing in a profile from above the table.
Kreg lists compatibility with more than 20 router motors, which is the broadest claim of any Kreg-table-friendly lift here. The catch is that the adjustment happens with the motor still in the lift and the bit accessible, rather than a true above-table bit change where the motor travels high enough to get a wrench on the collet nut from the top.
That distinction matters more than it sounds. If you change bits constantly for edge profiling, a coarser feel under load, or you run a plunge router, the JessEm Master Lift II below is the better long-term answer. If you mostly set a depth, dial it in, and cut a batch of rabbets or dados, this lift is hard to argue with, and the review volume says most people agree.
When this Kreg lift makes sense
It suits a one-person shop or a growing cabinet shop where the table is already built and the top opening is the common 9-1/4 by 11-3/4 inch size. The anti-backlash adjustment is what keeps depth-of-cut settings repeatable between batches of identical parts, which is where hand-tuned joinery either holds together or slowly drifts out of square.
It also suits anyone who will never own a plunge router and has no plan to. You get fine above-table setting for setup work without the bulk or cost of a plunge base, and the plate thickness means you are not worried about sag under a heavy fixed-base motor.
Where it falls short
Reviewers who compare it against crank-driven lifts most often point out that the thumbwheel takes more patience than a handle when you are making tenth-of-a-millimeter corrections by feel. If you are fussy about depth settings, that friction shows up every time you change a bit.
Second, the insert ring story is thinner than the JessEm and Incra systems. You get the plate, but if your bit diameters fall outside what the standard opening handles, you are sourcing rings separately and may find the brand’s own rings are the only ones that seat cleanly.

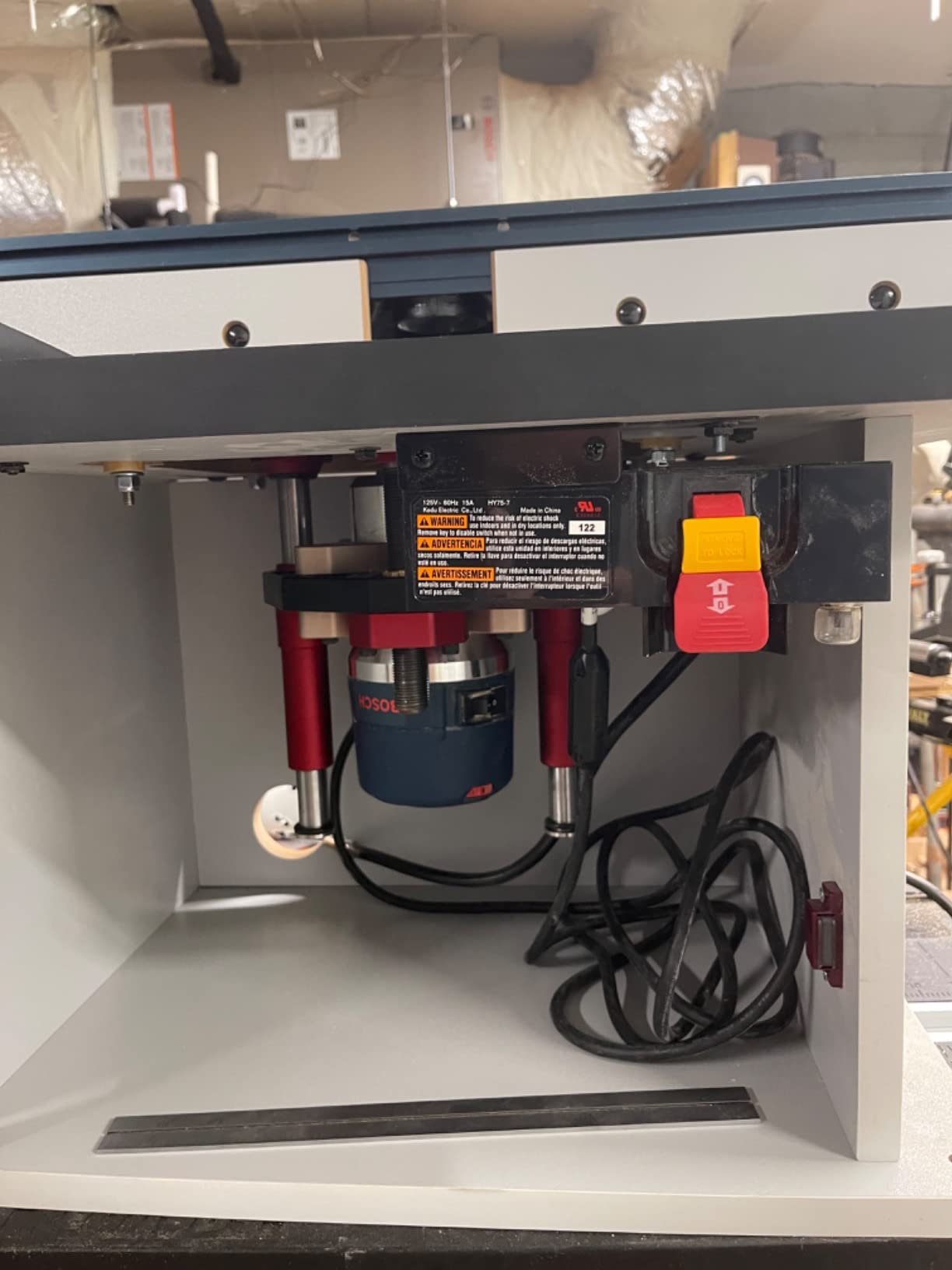

2. JessEm Master Lift II 02120 – the Best Premium Router Lift for Joinery Work
JessEm Master Lift II 02120 Router Lift, 9-1/4-Inch by 11-3/4-Inch, Black/Red
3/8 inch solid aluminum, hard anodized
11.2W x 12H, 13.6 lb
Above-table bit changes for all routers
Pros
- Cam lock holds height with no creep
- Preloaded lead screw stays accurate in both directions
- Solid aluminum body resists flex
- Machined brackets fit many motor diameters
Cons
- Hold-down holes do not align with Kreg table brackets
- Some units arrive with tight or stripped hardware
- Instructions are thin
This is the one forum owners name most often when they talk about the best router lifts for router tables, with a fairly consistent refrain: expensive, but they are quality and they work. The cam locking system grips the motor at the height you set and simply does not creep, even through long dovetail or raised panel runs where a lighter lift tends to walk a little under load.
The body is machined from 3/8 inch solid aluminum and hard anodized, weighing 13.6 pounds and measuring 11.2 by 12 inches. Adjustable motor mounting brackets mean it handles a range of motor diameters, and the double-sealed bearing construction keeps the lead screw smooth in both directions.
The real headline is the travel. JessEm designs this one so the collet clears the table surface for a genuine above-table bit change on fixed-base motors, meaning you loosen the collet nut with an offset wrench from standing position instead of tipping the router on its back. For anyone running profile bits and edge work, that is the feature that reshapes a workday.
A Sawmill Creek owner who ran a first-generation Woodpeckers lift with a dedicated Porter-Cable 7518 for six or seven years described it as robust and well machined, and owners on LumberJocks and WoodNet repeatedly name this Master Lift II or its Incra-built sibling as the best overall despite the cost. That long-run consistency is why I put it second.
When this JessEm lift makes sense
It is built for furniture and cabinet work where joint fit has to be repeatable: dovetails, box joints, raised panel edges, and stacked batches of drawer fronts. If a 1/32 inch error across forty parts matters to you, the cam lock and preloaded lead screw are what justify the step up in hardware.
It also suits shops that change bits many times a session. The above-table travel turns bit changes into a 30-second operation instead of a full unbolt, and the machined brackets mean one lift covers several motor diameters if you own more than one router.
Where it falls short

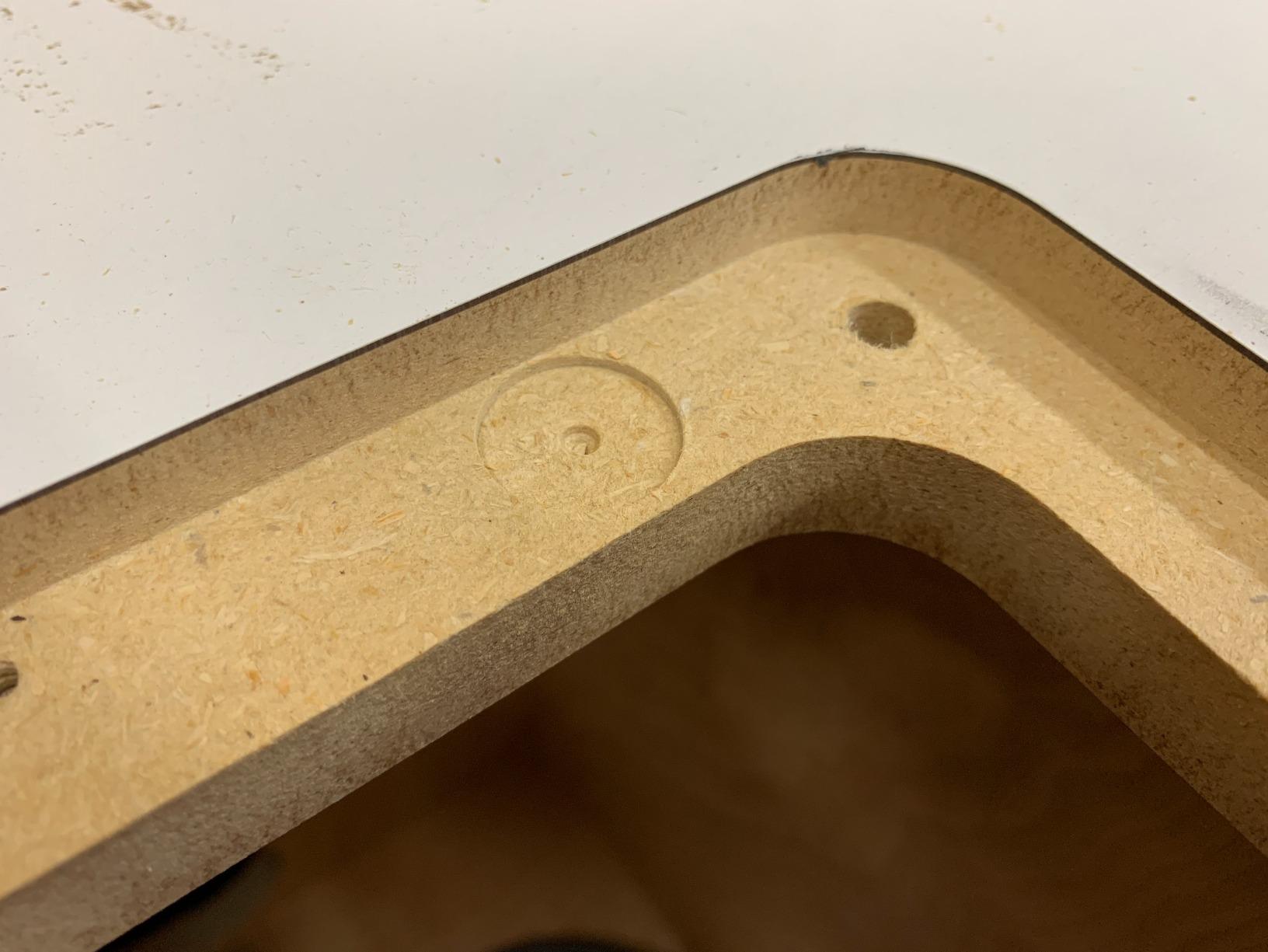

The most common complaint is geometric, not mechanical: the corner hold-down screw holes do not line up with Kreg table brackets, so retrofitting into a Kreg top means modifying the plate or the table. Check your table brand before you commit, because this is the single most common fitting mistake we saw in owner reports.
Second, quality control is uneven at assembly. A few buyers report stripped leveling screws or screws that arrived extremely tight, and the included hex wrenches can be undersized. JessEm’s documentation is also minimal, so budget extra time for the first setup.

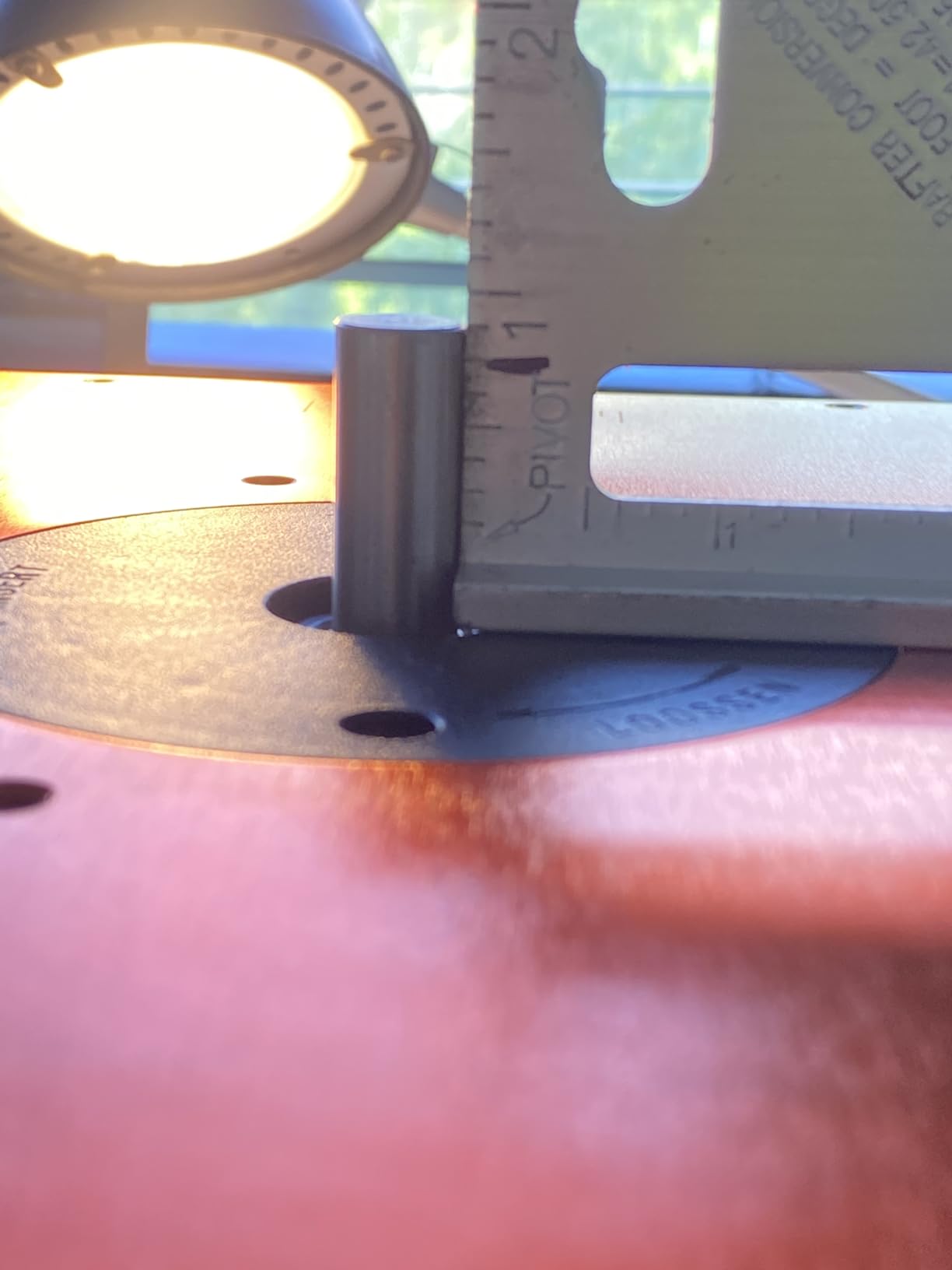

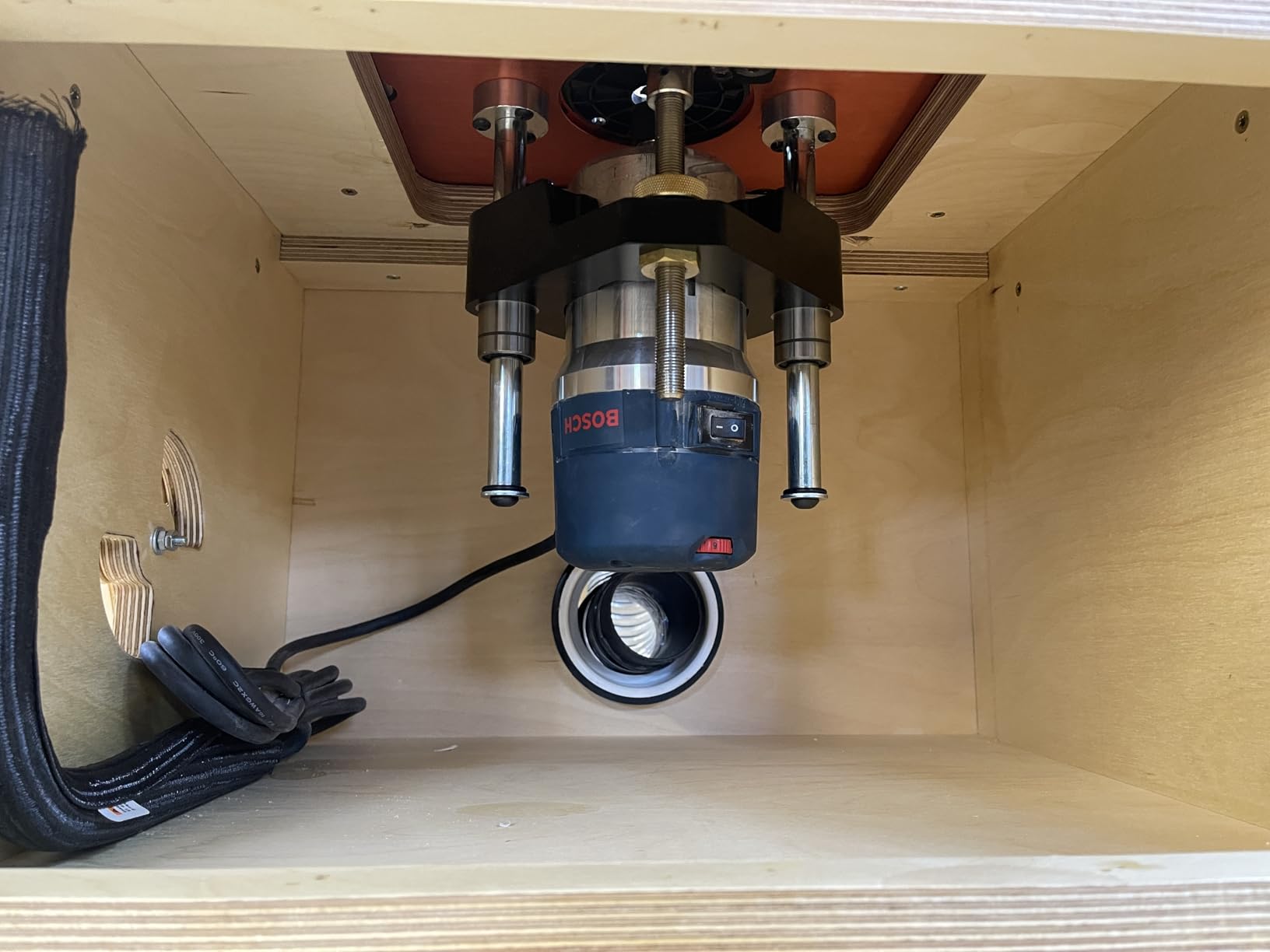

3. O’SKOOL RTS05 Lift System – the Best Value Router Lift with a Full Ring Set
O’SKOOL Router Lift System, 3-1/2″ Router Motor Fit, Aluminum Plate, RTS05
3/8 inch aluminum plate
Built for 3-1/2 inch motors
0.001 inch micro-adjust
Pros
- Five insert rings plus crank and wrenches in the box
- 20 TPI screw with a zeroing index ring
- Long crank clears most fences
- Reviewers compare build to premium lifts
Cons
- Small set screws loosen and fall into sawdust
- Included ring tool can flex and need a handle
- Mounting screws not included
Buyers of this lift keep saying the same thing: the build quality compares to premium brands at a fraction of the spend, and the box contains more than you expect. You get five insert rings at 3/8, 1, 1-1/4, 1-7/8 and 2-5/8 inch, plus a crank handle, start pin, ring wrench and hex wrenches, which is a more complete package than several better-reviewed units ship with.
It is built for 3-1/2 inch cylindrical motors, specifically naming Porter-Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, and Craftsman and Skil fixed-base models. The plate is 11-3/4 by 9-1/4 by 3/8 inch with a 3/4 inch corner radius, using oval mounting holes, cam wheels and leveling screws to help alignment.
Adjustment is handled by a 20 TPI screw moving bit height 0.05 inch per full turn, with a zeroing index ring carrying a 50-angle scale for steps down to about 0.001 inch. Owners describe the motion as solid with no apparent backlash, and several builders report retrofitting it into existing or Bosch tables and trimming the plate for a custom opening without drama.
At 223 reviews and 4.6 stars, this is the lift I point people toward when they already own a good 3-1/2 inch router and just need the lift mechanism. The motor compatibility list is long, the plate matches the common opening, and the accessory bundle saves a second order.
When this lift makes sense
It makes sense for a 3-1/2 inch motor owner building a benchtop table from a sheet of good stock, especially if you have never installed a lift before. The clamp block helps position the motor during installation, and owners report the whole job as straightforward DIY work with basic hand tools.
The ring bundle matters if you profile with guide bushings. Having a 1 inch and a 1-1/4 inch ring in the box means you can run a bushing setup immediately, which supports the bit better than a large open hole and is why forum users recommend matching ring size to bit diameter.
Where it falls short
The small set screws are a genuine recurring annoyance. Owners report them loosening and ending up in the sawdust, and you will want to check them at the start of each session rather than assuming they are still tight.
The included insert ring tool is also the weakest accessory in the box, flexible enough that some users add a handle or lever of their own. And mounting screws are not included, so factor that into the parts list before you start cutting the table top.

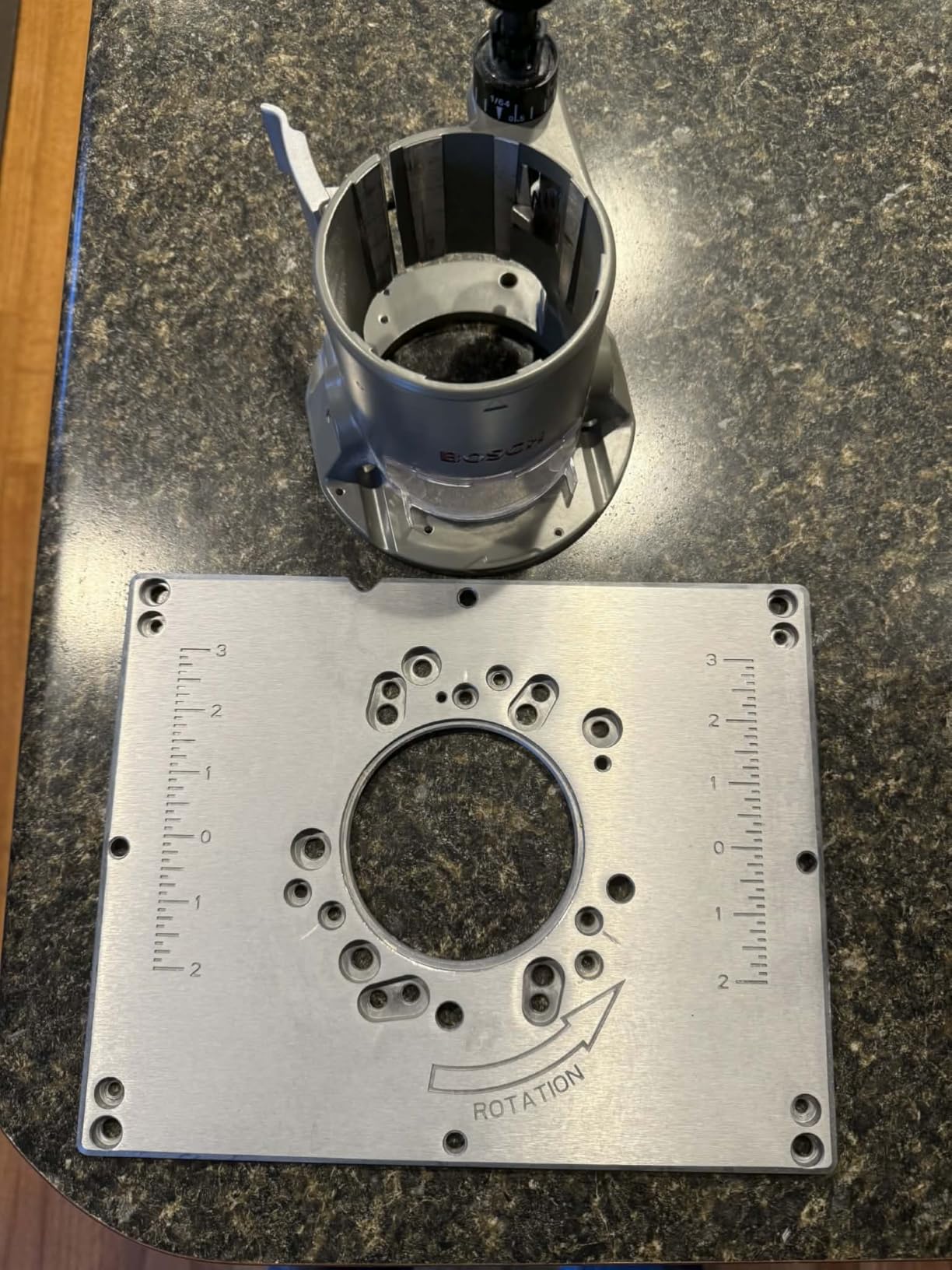

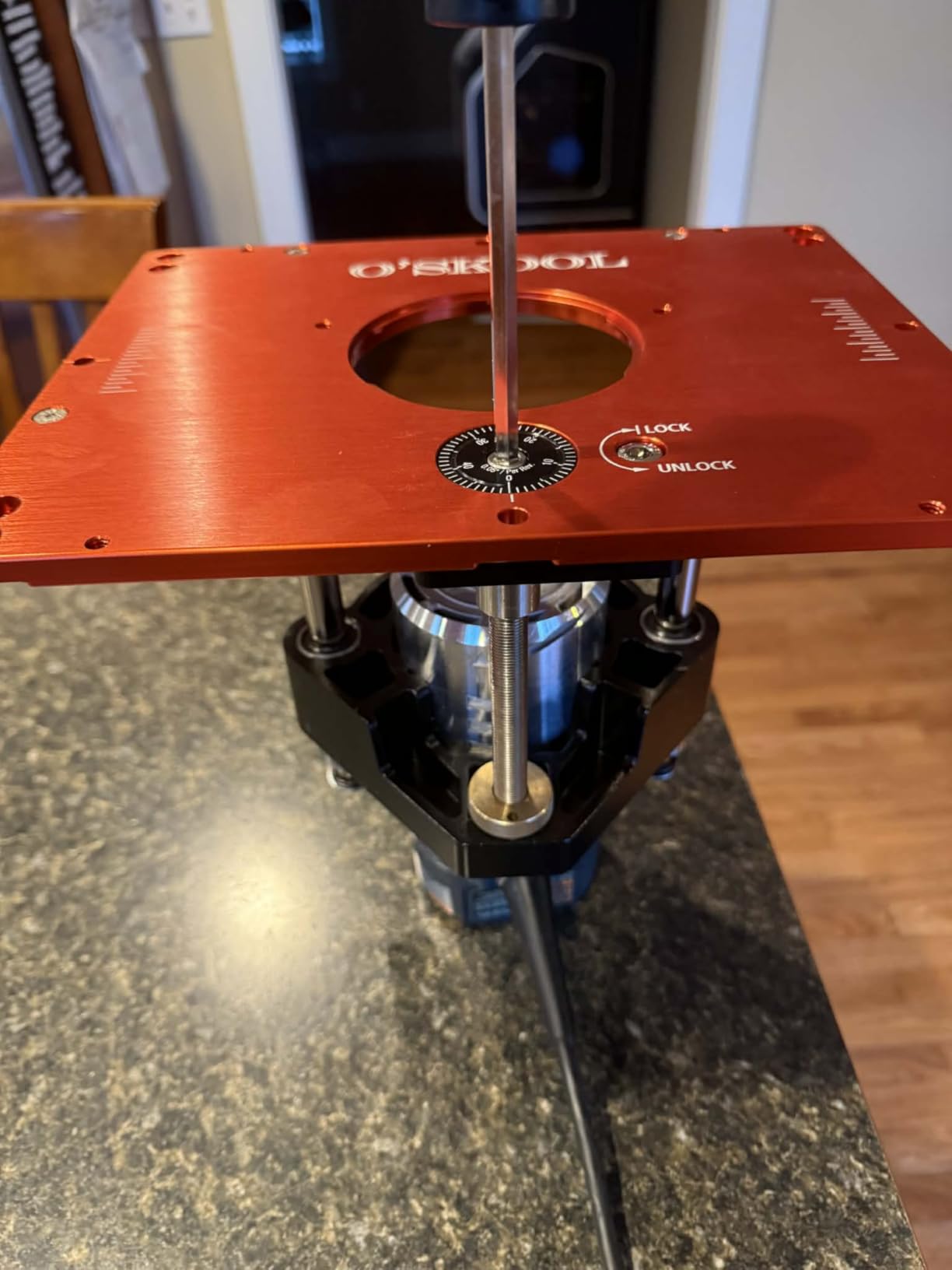

4. O’SKOOL RTS017 – the Best Router Lift for Bosch RA1181 and RA1171 Tables
O’SKOOL Router Lift System Compatible With Bosch RA1181 and RA1171
CNC machined 3/8 inch aluminum plate
11-1/2 by 9-1/8 inch
3 inch height adjustment
Pros
- Highest average rating in the group at 4.8
- 3 locking cam wheels close gaps at the opening
- 0.001 inch indexing with zeroing ring
- Targets a common weak factory lift
Cons
- Plate is smaller than the standard opening
- Does not fit the O'SKOOL table top
- Leveling screws not included
This is the highest-rated product in the roundup at 4.8 across 107 reviews, and the reason is that it solves a very specific problem cleanly: replacing the weak lift in a Bosch RA1181 or RA1171 router table. Several owners describe it as the fix for a table they had all but given up on.
The plate is CNC machined from 3/8 inch solid aluminum measuring 11-1/2 by 9-1/8 inch, and owners single out its flatness and the fit of the three locking cam wheels, which close the gaps around the table opening so sawdust does not fall through into the mechanism.
The adjustment screw runs at 20 TPI for 0.05 inch per revolution, with a zeroing index ring for 0.001 inch steps and a height screw locking device. Total height adjustment is 3 inches, which is enough to change bits without removing the motor from the carriage.
Motor compatibility covers the common 3-1/2 inch family: Porter-Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617, 1618, RA1181 and RA1171, plus Craftsman and Skil models. Five insert rings in the standard sizes are included.
When this Bosch-targeted lift makes sense
It makes sense if you own a Bosch RA1181 or RA1171 table and dislike its factory lift, or if you want a tighter plate fit than a standard-size plate gives you in a Bosch cabinet. The cam wheel approach is what stops the rocking that makes cheap plates chatter.
It also makes sense for a 3-1/2 inch motor owner who prefers the smallest plate footprint available, since the reduced dimensions help in a shallow cabinet where a full-size plate interferes with bracing.
Where it falls short
The plate is 11-1/2 by 9-1/8 inch rather than the common 9-1/4 by 11-3/4 inch opening, so it will not substitute into a standard shop-built top without modification. It also does not fit the O’SKOOL router table top, which is an odd limitation for the same brand.
Leveling screws are not included, and you need to source them separately before installation. If your motor is not a 3-1/2 inch diameter unit, this is the wrong lift regardless of how good the plate is.

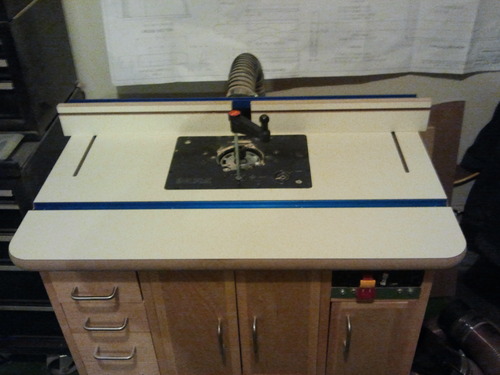

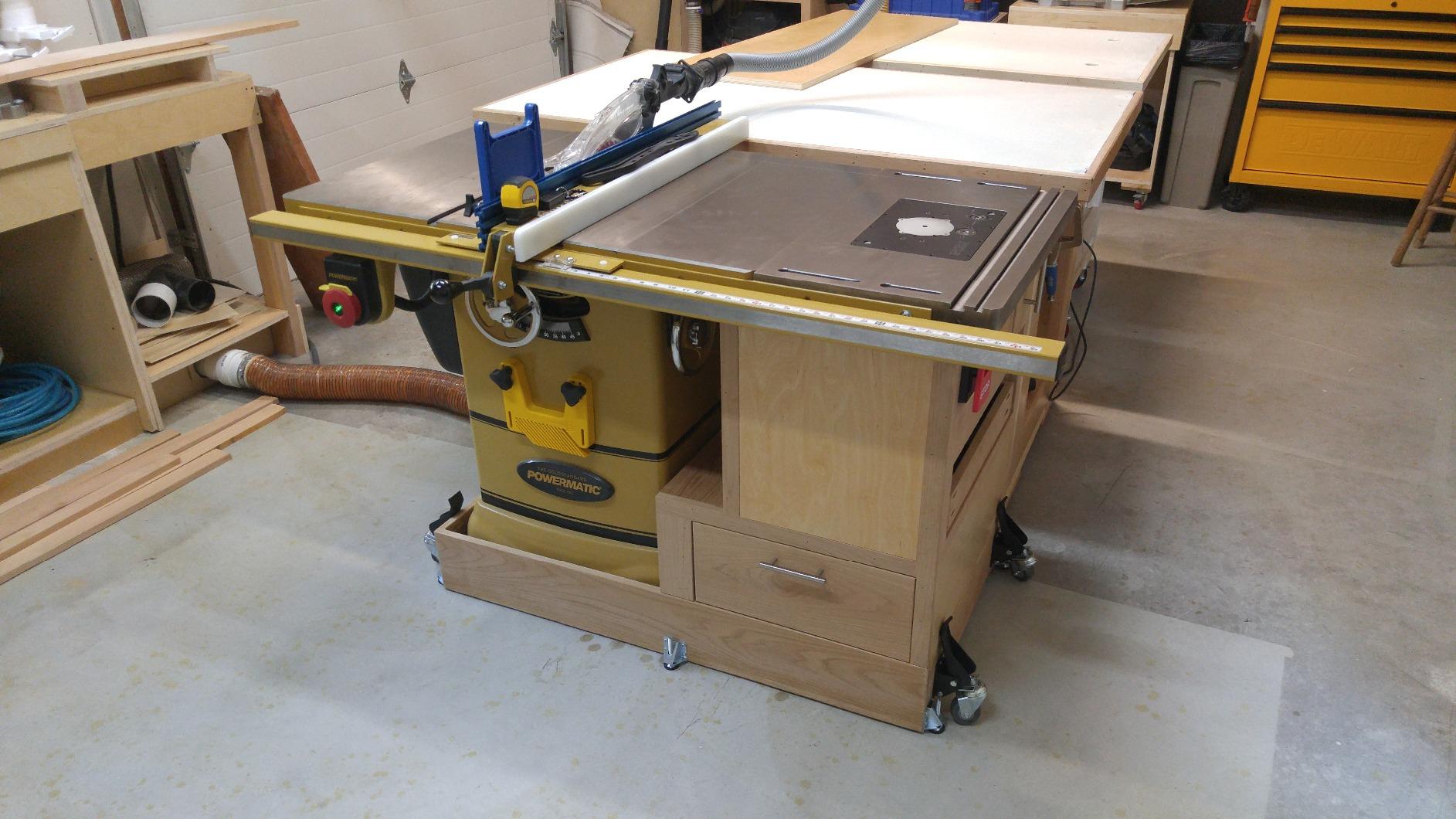

5. Incra Mast-R-Lift-II-R – the Best Router Lift for Rockler and Bench Dog Tables
Incra Mast-R-Lift-II-R Designed for Rockler Tables
11.75W x 0.38H aluminum plate
15.2 lb lift unit
Ball bearing 16 TPI direct drive
Pros
- MagnaLOCK magnetic rings change in seconds
- Lock holds height with no creep
- 0.001 inch above-table adjustment
- Five steel reducing rings plus crank included
Cons
- Will not fit openings outside Rockler and Bench Dog
- Very strong ring magnet with a small pry hole
- No rapid lift for bit changes
The MagnaLOCK ring system is the part people remember. Instead of threaded rings you screw in and out, magnets hold them, so a ring change takes seconds and the ring seats in the same position every time. Owners with heavy benchtop setups call the lift itself exceptionally rigid, and the ball bearing mechanism with a 16 TPI direct drive screw gives very smooth, low-friction action.
Adjustment is precise from above the table, with 0.001 inch increments and an easy-to-zero dial. Five steel reducing rings at 3/8, 1, 1-5/8, 2-5/8 and 3-5/8 inch plus a lift crank are included, and owners note it adapts to multiple router brands without extra shims or hardware.
This unit is a JessEm-built Master Lift with Incra’s ring system on top, which is why owners compare it directly to the Master Lift II and find the two very close in feel. Sawmill Creek and LumberJocks members consistently name this model as their best overall pick, saying they are expensive but they are quality and they work.
It weighs 15.2 pounds with an 11.75 by 0.38 inch aluminum plate, which is the heavier end of this group. That mass is not a flaw in a fixed-base shop setup; it is what keeps the motor from shifting during a heavy cut.
When this Incra lift makes sense
It makes sense if your router table is a Rockler or Bench Dog top, because the plate and corner hold-down pattern are designed for those tables and the fit is immediate. It also suits heavy shop routers where motor rigidity matters more than portability.
For anyone who changes bits constantly, the magnetic ring change is faster than any screw-in system in this roundup. Owners who profile edges with multiple bit diameters will feel that difference every single time.
Where it falls short
Compatibility is narrow. If your table is not a Rockler or Bench Dog design, the hold-down holes do not line up and you are modifying something. Buyers who bought it for a general cabinet report exactly this disappointment.
The magnet is also extremely strong, and the pry hole for releasing a ring is small, so you may need to raise the motor to pop the ring free. There is no rapid-travel mode for coarse bit changes either; every adjustment goes through the fine screw.

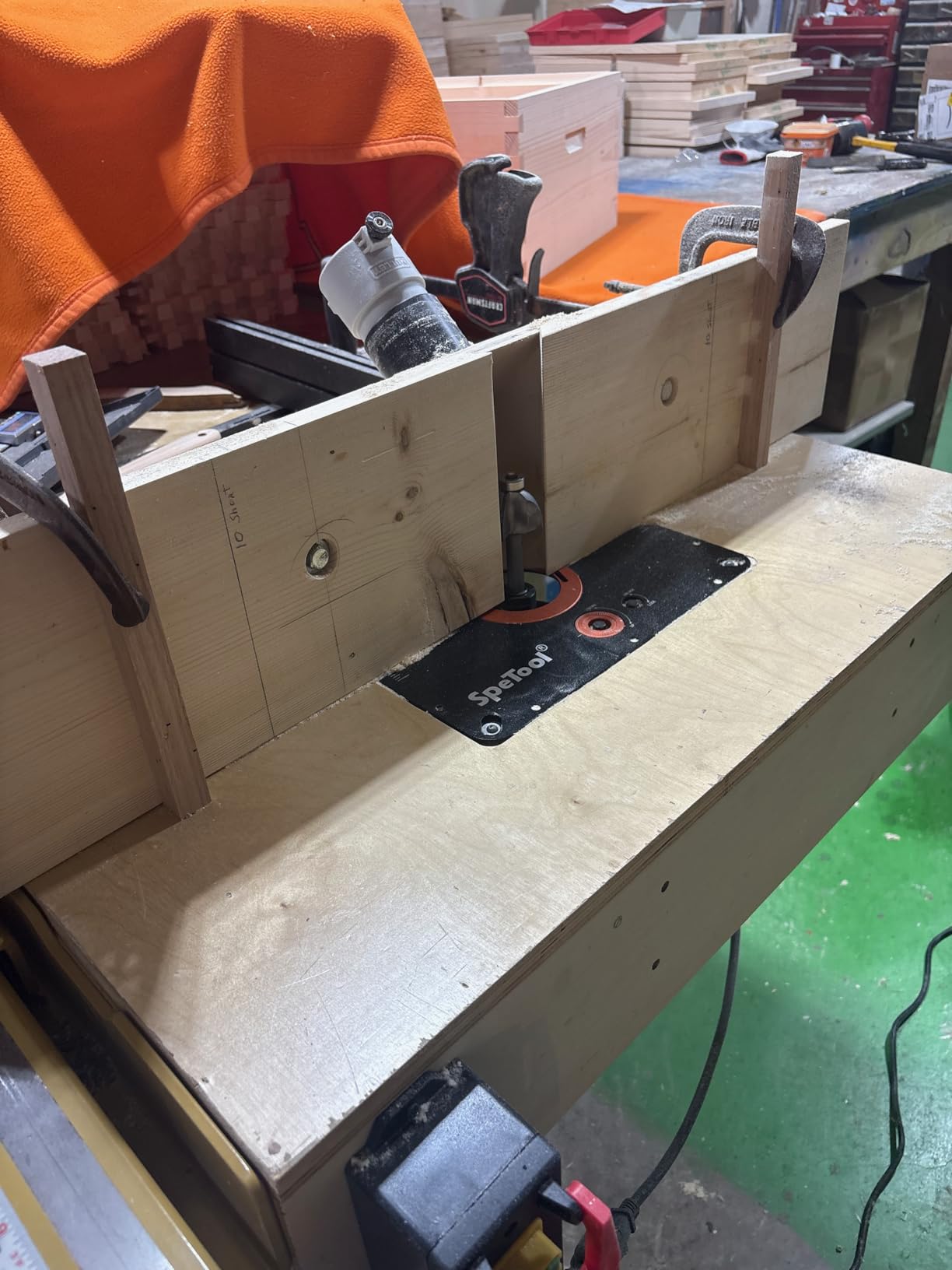

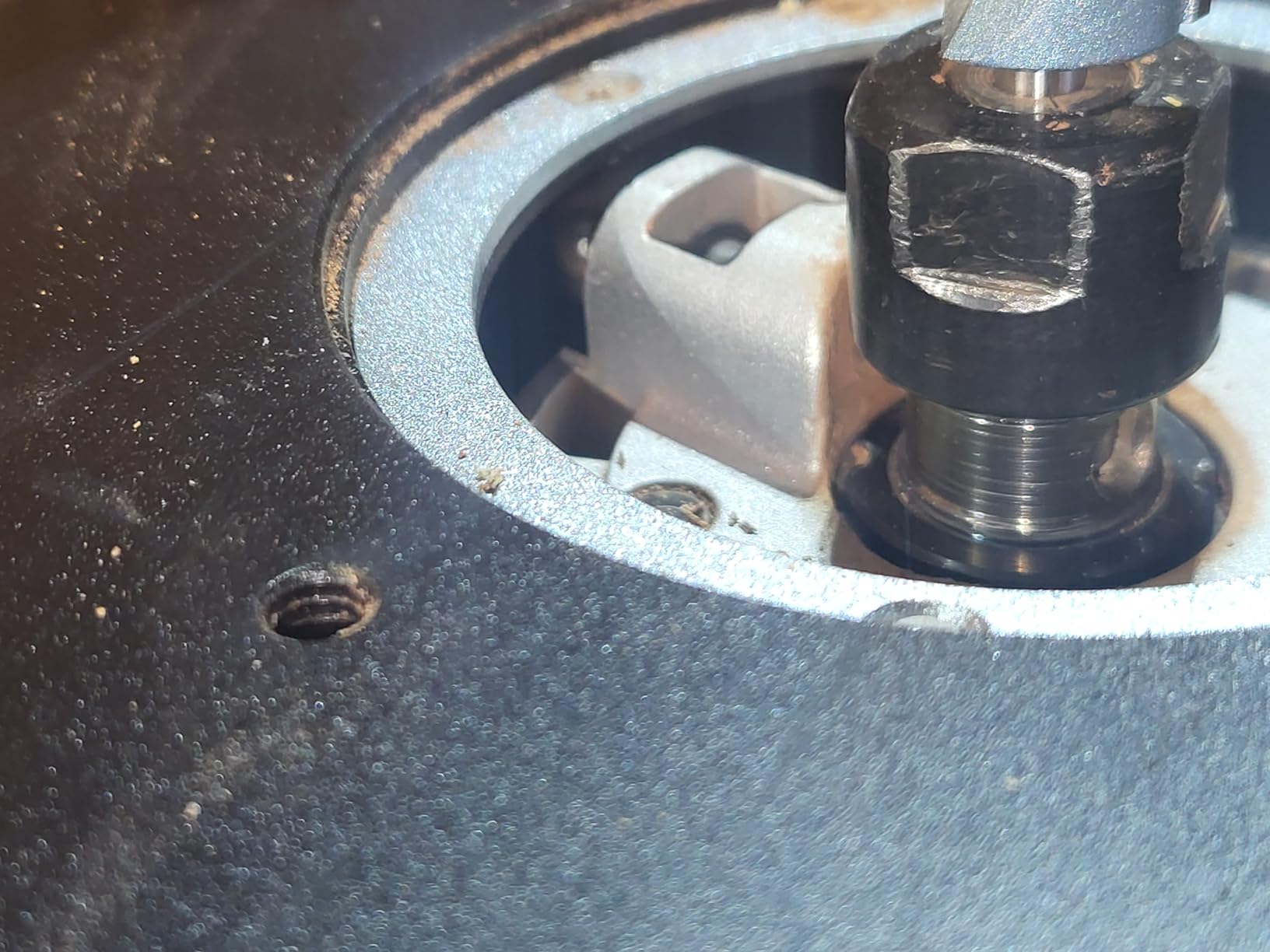

6. SpeTool Heavy-Duty Router Lift Kit – the Best Lift for the Widest Range of Motors
SpeTool Router Lift System – Heavy-Duty Aluminum Router Lift Kit for Woodworking, Router Table Lift with Insert Plate 9-1/4″x11-3/4″and Above-Table Adjustment with 3 Magnetic Insert Rings
Fits 2-9/16 to 4-1/4 inch motors
11.75W x 10.12H, 19.8 lb
3/8 inch aluminum plate with template
Pros
- Widest motor fit in the roundup at 2-9/16 to 4-1/4 inch
- 0.001 inch precision with a 20 TPI screw and index ring
- Double-sealed linear bearing guide poles
- Workbench template cuts a custom table top
Cons
- Template protective film can shift the jig
- Template can run small and need re-cutting
- A 3.25 HP router can still sit out of square
The SpeTool kit solves a problem none of the others do: motor fit. It accepts body diameters from 2-9/16 inch up to 4-1/4 inch, naming Makita DRT50, Skil RT1323 and Milwaukee 5615 motors alongside the usual 3-1/2 inch crowd. If you are not sure which motor family you own, or you plan to change routers, this removes the compatibility question entirely.
The plate is 3/8 inch solid aluminum, and height control comes from a 20 TPI screw with a zeroing index ring for 0.001 inch accuracy, running on double-sealed linear bearing guide poles across a 4-1/4 inch range. Bit changes happen above the table without pulling the motor off the plate.
At 19.8 pounds it is the heaviest lift here, which suits a fixed benchtop table and a heavy motor. The kit also includes a durable wooden workbench template, two templates for customizing, three insert rings and an Allen wrench.
Owners describe it as a solid upgrade that saves hours of fiddling with depth of cut, and the recent reviews focus less on the mechanism and more on the template. That tells you the lift itself is doing what it should.
When this SpeTool kit makes sense
It makes sense if you are building a table from raw boards rather than a pre-cut top. The template turns any wooden board into a custom-fit 9-1/4 by 11-3/4 inch workbench top, which removes the single most error-prone step of a DIY router table.
It also makes sense for someone with a trim router and a full-size motor who wants one lift to cover both, or for anyone who wants above-table bit changes on a heavy fixed-base router.
Where it falls short
The template is the weak point. It ships with a protective film that can shift the jig and is not mentioned in the instructions, and some owners found the template too small and had to re-cut their table top. Read the instructions twice and mark the film before you clamp down.
Also worth knowing: even with a solid four-point clamp, owners report a 3.25 HP router can still move in the clamp and sit out of square. Instructions are minimal and no router bit is supplied for finishing the template cut, so plan for a slower first setup than the specs suggest.

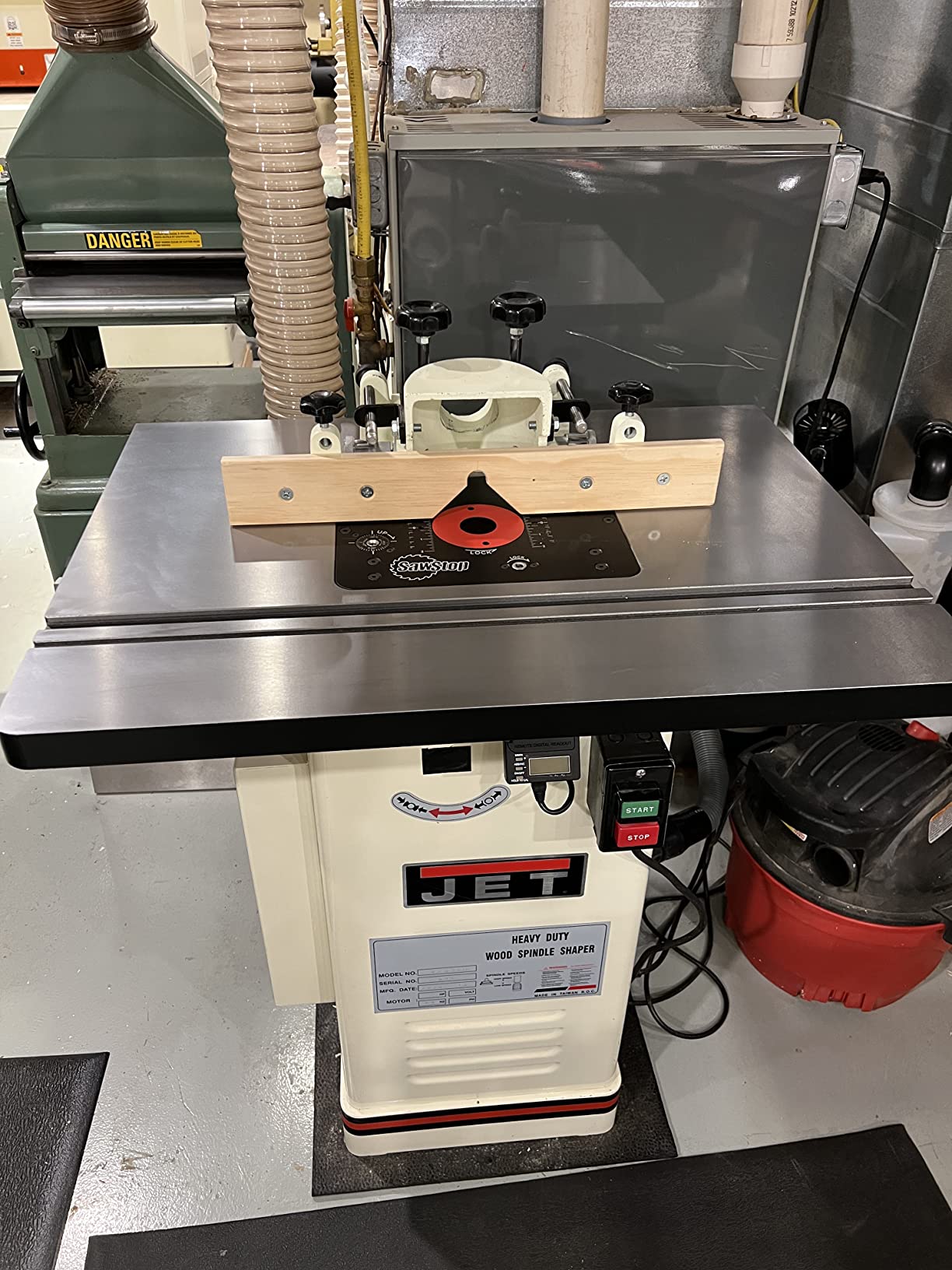

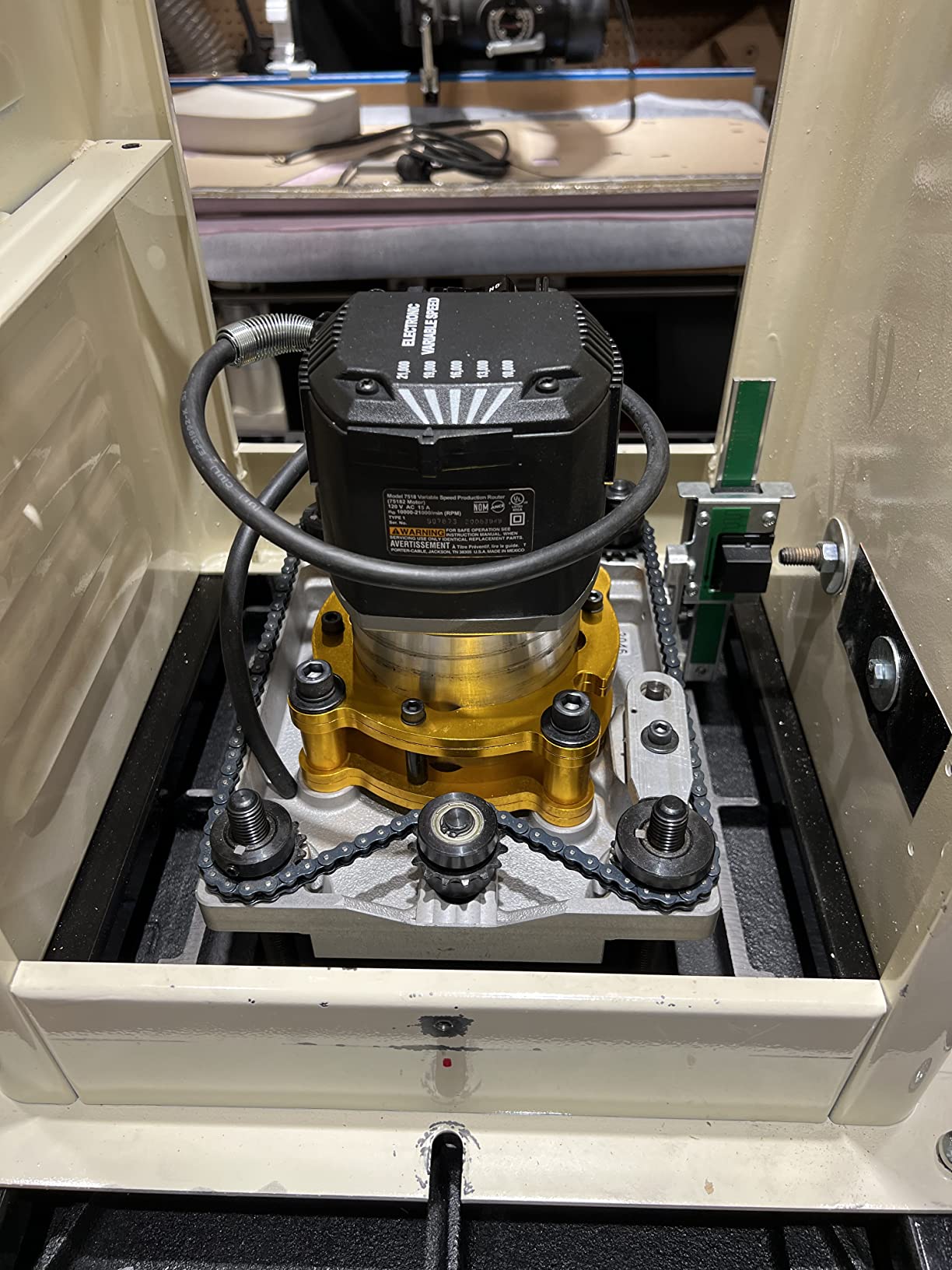

7. SawStop RT-LFT – the Best Four-Post Router Lift for Heavy Motors
SawStop RT-LFT Four-Post Router Lift with Lock
Four-post design with lock
9.25 x 11.75 x 6.5 inches, 16 lb
3-1/4 to 4-1/4 inch motors
Pros
- Four posts resist movement under heavy motors
- Integrated lock holds the set height
- Reducer collars for 3-1/4 and 3-1/2 inch motors
- Insert wrench and hex wrenches included
Cons
- Lower rating than the aluminum units at 4.3
- Phenolic plate is less rigid than solid aluminum
- Only one insert ring included
The four-post layout is the reason to consider this one. Instead of two posts that can allow a heavy motor to yaw, the RT-LFT braces the motor on four corners, and owners with large fixed-base routers credit that rigidity for stable depth of cut on long profiles and dado runs.
The motor range runs from 3-1/4 inch to 4-1/4 inch diameter, with reducer collars included at 3-1/4 and 3-1/2 inch so smaller motors clamp properly. There is an integrated locking mechanism that holds the set height, and the unit weighs 16 pounds and measures 9.25 by 11.75 by 6.5 inches.
The box is well stocked: a 1-1/2 inch phenolic insert ring, insert wrench, and 2.5mm, 3mm, 4mm and 6mm hex L-wrenches. That last detail is not trivial, since a missing wrench on install day is a common complaint with lifts that ship bare.
Be aware this carries the second-lowest average rating in the roundup at 4.3 stars with about 10 percent one-star reviews, and the distribution is thinner than the aluminum units. Some buyers specifically cite stiffness over time in the phenolic plate as the reason for the lower scores.
When this SawStop lift makes sense
It makes sense if you run a large motor, particularly in the 4 inch diameter class, and stability at depth matters more than cost. The four posts also suit a mobile setup where knocks and vibration are likely.
It also suits anyone who wants a wide fit range without hunting for a separate adapter. The included reducer collars cover the two most common smaller motor sizes, which removes an easy-to-forget accessory.
Where it falls short
The phenolic plate is the main concern. Reviewers who have run it report that it is less rigid than the solid aluminum alternatives in this roundup, which matters more as the motor gets heavier and the plate gets thinner over time.
Only one insert ring is included, so if you work with small bits or guide bushings you will need to source additional rings. With 63 reviews behind it, there is also simply less long-term data here than on the Kreg or JessEm units.

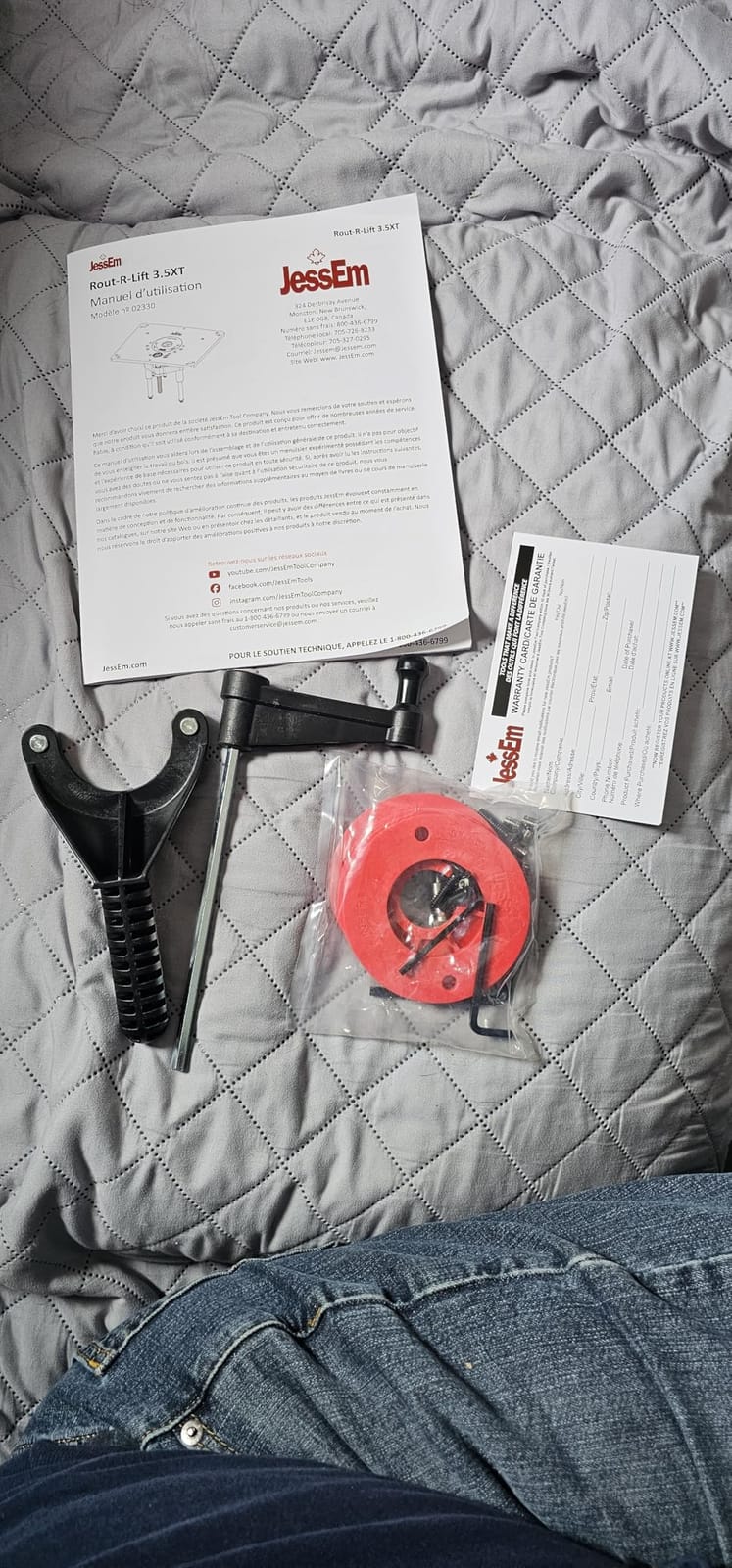

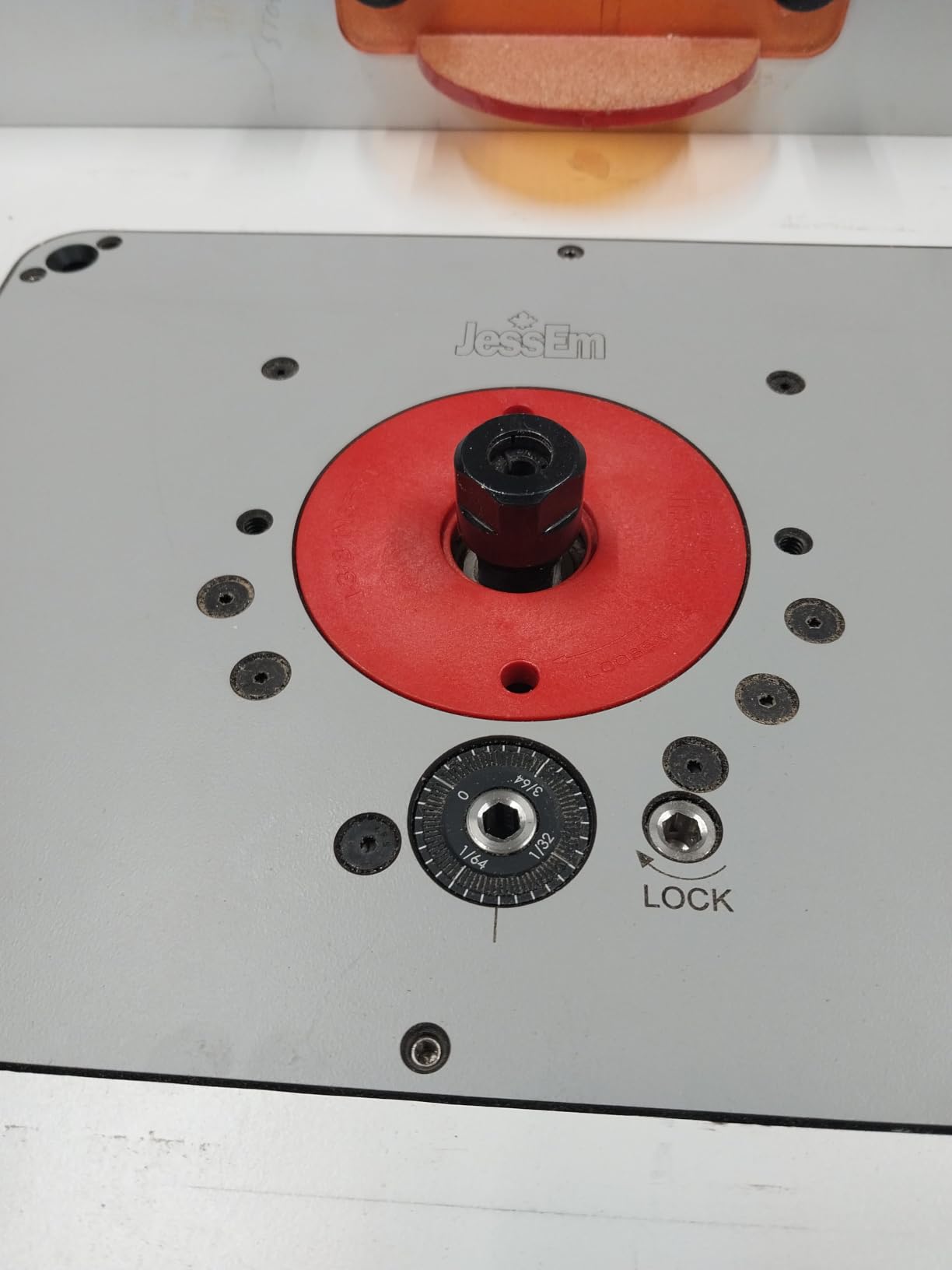

8. JessEm Rout-R-Lift 3.5XT – the Best Budget Router Lift Upgrade
JessEm Rout-R-Lift 3.5XT Router Table Lift System for 3-1/2″ Motors
Standard 9-1/4 by 11-3/4 inch plate
Built for 3-1/2 inch motors
Three twist-out insert rings
Pros
- Smooth spindle operation with good hardware
- Standard opening fits Kreg and shop-built tables
- Clamps 3-1/2 inch motors without adapters
- Hydraulically pressed shafts resist flex
Cons
- Phenolic plate may sag under a heavy router
- No cutting template included
- Thin packaging can damage lift arms in transit
This is the cheapest way into a JessEm lift, and it lands in a standard 9-1/4 by 11-3/4 inch opening, which means it upgrades an existing JessEm table, a Kreg table, or a shop-built top without any cutting. Owners treat it as the value pick within the JessEm range and praise smooth operation and precise height setting for the money.
It clamps 3-1/2 inch motors directly with no adapter, covering Porter-Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, plus Skil and Craftsman fixed-base models. Makita 1101 and Hitachi M12VC fit with an optional printed collar.
The spindle uses double-sealed bearings and the shafts are hydraulically pressed into oversized mounts and bolted to the top plate, which is why owners report a butter-smooth feel and rigidity under load. Three twist-out insert rings at 1-3/8, 2 and 2-1/2 inch close the gap around both large and small bits, and the whole unit is CNC machined in Canada.
Bit height is set from above the table with the included handle, so you can do dados, rabbets and profiles without going under the cabinet.
When this budget JessEm lift makes sense
It makes sense for a first router table build where you want JessEm quality at the entry level, or for replacing a tired lift in an existing table. Because it uses the standard opening, it is also a straightforward retrofit for many shop-built tops.
It suits 3-1/2 inch motor owners who want better-than-stock adjustment but do not need full above-table collet clearance on every bit change.
Where it falls short
The phenolic resin plate is the honest drawback. Owners flag that it may sag over time under a heavy router such as the DeWalt 618, so if your motor is at the top of the horsepower range, an aluminum plate is a better long-term bet.
No cutting template is included, so if you are building the table from scratch you will need to mark the opening yourself. The packaging is also thin, and some buyers report damage to the lift arms in transit with a slow customer service response afterward. Inspect the package on arrival.

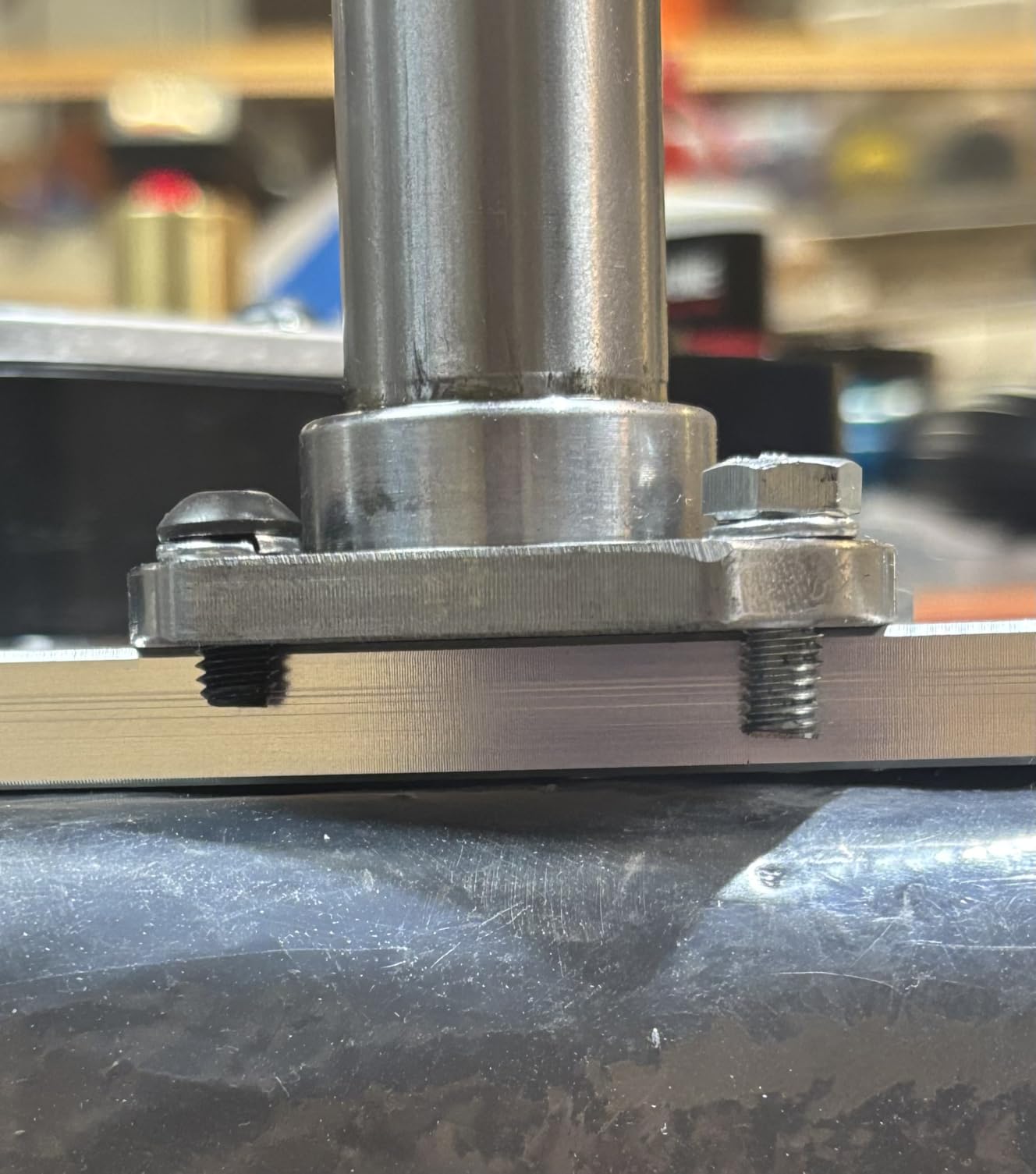

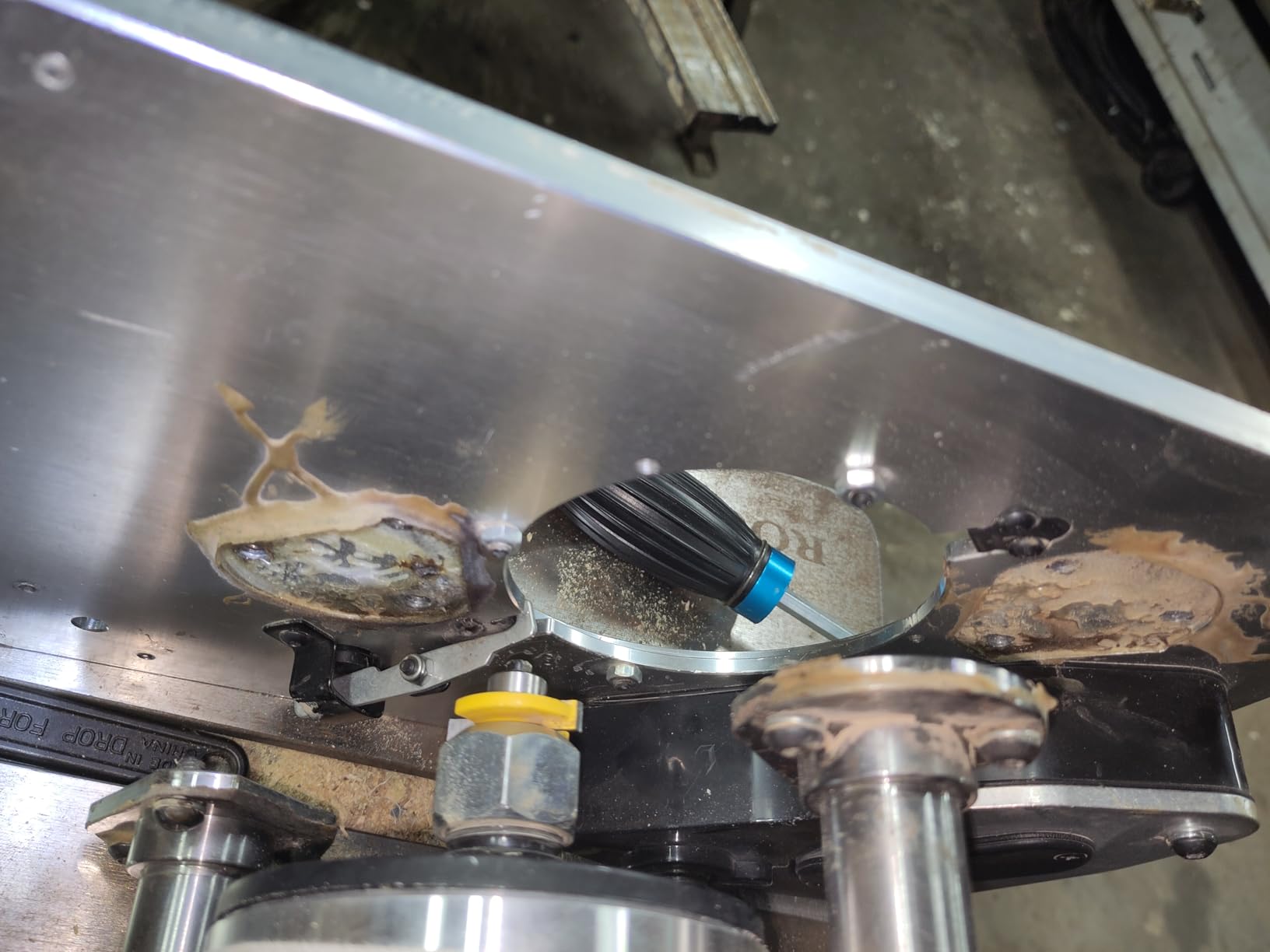

9. Rockler Router Lift Kit – the Best Lift for Tool-Free Insert Ring Changes
Rockler Router Lift Kit with Aluminum Plate 8-1/4 x 11-3/4
8-1/4 by 11-3/4 inch aluminum plate
Quick-Gear and Snap-Lock system
0.001 inch fine adjustment
Pros
- Quick-Gear raises the bit fast for bit changes
- Snap-Lock releases rings with no tools
- Precision gear sets final height within 0.001 inch
- Kit includes plate
- ring and hex key set
Cons
- Lowest rating in the group at 4.0
- Plate is narrower than a standard opening
- Only one insert ring included
The Quick-Gear and Snap-Lock design is the whole pitch here, and it works well. You press a button to release the insert ring with no loose screws to lose, wind the fast gear to raise the bit above the table for a quick change, then drop back down and click the ring in before setting final height on the fine gear within 0.001 inch.
The kit includes the lift, a 3/8 inch aluminum router plate, a 1-1/2 inch inside-diameter insert ring, and a set of hex keys on a key chain. That last detail is a small touch that prevents the classic lost-wrench problem at install time.
That said, this is the lowest-rated product in the roundup at 4.0 stars with about 15 percent one-star reviews, on the smallest review base at 30. Buyers consistently recognize the convenience features but also note the fit is purpose-built for narrower Rockler-style openings.
The plate is 8-1/4 by 11-3/4 inch, which is the key measurement. If your table opening is the common 9-1/4 inch, this plate will not drop in without modification.
When this Rockler kit makes sense
It makes sense if your table is a Rockler design, or if you build your own tops at the narrower 8-1/4 inch opening. In that case the convenience features are a genuine upgrade over a screw-in ring system, and the included key set and ring make the first setup quick.
It also suits a shop that does lots of bit changes and where nothing is ever where you left it, because Snap-Lock removes the small screws entirely from the ring change process.
Where it falls short
Fit is the primary limitation, and it is a hard one. Anyone buying for a standard 9-1/4 by 11-3/4 inch opening should look at the Kreg or the O’SKOOL RTS05 instead, both of which match that size.
Second, only one insert ring is included, so a wide range of bit diameters means additional rings. Third, with 30 reviews there is very little long-term data, which is worth weighing if you want evidence the mechanism will still be smooth in five years.
10. O’SKOOL RTS013 – the Best Router Lift for 4.2 Inch Motors
O’SKOOL Router Lift System,4.2″ Motor Fit, Aluminum Plate
Built for 4.2 inch diameter motors
11-3/4 by 9-1/4 by 3/8 inch plate
3 inch height adjustment
Pros
- Covers Triton and Woodpeckers plus Porter-Cable 7518 and Bora motors
- Ten leveling screws and 3 cam wheels for a flush fit
- 32-line micro dial gives roughly 1/512 inch steps
- Height screw lock reduces vibration drift
Cons
- Needs a separate adapter collar for 3.5 inch motors
- Smallest review base in the roundup at 26
- Compatibility depends on checking both motor and table opening
If you own a big motor in the 4.2 inch class, your options are thin, and this is the lift that covers them. It fits the Triton, Woodpeckers, Porter-Cable 7518, Bora PM-6200 and MLCS 9564, which are exactly the routers that will not clamp into a 3-1/2 inch carriage or sit well in the reducer collar bundles that ship with other lifts.
The plate is CNC machined aluminum at 11-3/4 by 9-1/4 by 3/8 inch with a 3/4 inch corner radius, which matches the common opening. Ten leveling screws combined with three cam wheels give a flush, stable tabletop fit, and owners specifically call out how much that reduces vibration-related movement.
Height adjustment covers 3 inches, with each full turn changing bit height by about 1/16 inch and a 32-line micro dial giving steps near 1/512 inch. A height screw locking device guards against depth drift under vibration, which is the main complaint people have with big motors.
The box includes five insert rings at 3/8, 1, 1-1/4, 1-7/8 and 2-5/8 inch, plus centerlines, a start pin, crank handle, ring wrench and hex wrenches, backed by a 1-year warranty.
When this 4.2 inch motor lift makes sense
It makes sense for owners of the larger fixed-base motors who keep hitting the adapter collar problem with every other lift. Instead of stacking collars to fit a 3-1/2 inch carriage, the carriage here is sized for the motor from the start.
It also suits heavy-cut shops running large bits, because the leveling screw and cam wheel density plus the height screw lock are aimed squarely at keeping depth steady through a hard cut.
Where it falls short
If you have a 3-1/2 inch motor, this is the wrong lift and you will need the separately sold adapter collar, which adds cost and a layer of slop to defeat the purpose. Check your motor body diameter before anything else.
It also carries the smallest review base here at 26 reviews, so the long-term record is unknown. Feedback centers on verifying motor diameter and table opening before buying, which is exactly what we would tell you to do anyway.
How to Choose a Router Lift for Your Table
Most returns and most install frustration trace back to one of three mismatches: motor diameter, table opening, or travel. Work through these in order and the choice becomes nearly automatic. If you are still shopping for the table itself, start with our benchtop router table guide and come back with a known opening size.
Measure your motor diameter before anything else
Measure the widest part of the motor body, not the base plate and not the collet. Almost every fit problem in owner reports comes from misreading one of those two. The common sizes are 3-1/4 inch, 3-1/2 inch, 3-5/8 inch and 4.2 inch, and lifts are almost always built for exactly one of them.
A 3-1/2 inch motor is the widest supported by most of this roundup: the Kreg, the O’SKOOL RTS05 and RTS017, the JessEm Rout-R-Lift 3.5XT, and the SpeTool all cover it. A 4.2 inch motor narrows the field to the O’SKOOL RTS013 and the SpeTool, and the SawStop covers 3-1/4 through 4-1/4 inch with the included reducer collars.
Match the insert plate to the table, and do not mix brands
This is the mistake that shows up over and over on woodworking forums. A JessEm, Kreg, Incra, Rockler and O’SKOOL plate may all be sold as router lifts, but the corner hold-down hole patterns are not interchangeable. An Incra plate in a Rockler table, or a JessEm plate in a Kreg table, will leave you drilling new holes or shimming the corners.
Measure your opening first. The common size is 9-1/4 by 11-3/4 inch, and the Kreg PRS5000, O’SKOOL RTS05, JessEm Rout-R-Lift 3.5XT and O’SKOOL RTS013 all use it. The O’SKOOL RTS017 is smaller at 11-1/2 by 9-1/8 inch, the Rockler kit is 8-1/4 by 11-3/4 inch, and the SawStop measures 9.25 by 11.75 inches, so those three suit specific tables rather than the standard opening.
Decide how much lift travel you actually need
Lift range decides whether the collet clears the table for a bit change. A unit with roughly 3 inches of travel raises the motor far enough to change most bits from above the table, which is what the O’SKOOL systems and the SpeTool kit offer. A shallower travel still lets you set depth from above but not always swap a tall bit without reaching underneath.
If you mostly set depths and cut in batches, travel matters less than rigidity. If you change bits dozens of times a session, prioritize travel and an above-table bit change, which is where the JessEm Master Lift II earns its cost.
Know how much vertical play is acceptable
Vertical play is the wobble you feel when you push the motor top plate up and down with the lift lock engaged. Fine Woodworking tested seven lifts side by side and treated more than 0.005 inch of lead screw play as too much, measuring under 0.003 inch of push-down and under 0.002 inch of drift during a full cut on the best units. That is the benchmark worth holding any lift to.
A quick home check: with the motor installed and the lock engaged, rest a dial indicator or a straightedge on the top plate and push down firmly. Movement you can feel through the plate will show up as chatter and drift on the workpiece. If a lift has visible play, tightening the adjustment screw preload is usually the fix before replacing anything.
Check the ergonomic details that decide whether you like it
Beyond the mechanism, look at where the adjustment lives. A top-mounted crank lets you make fine corrections while looking at the bit from your normal working position. A side-mounted handle or thumbwheel means you are working around the cabinet edge, which is slower but fine for occasional changes.
Also verify what is in the box before you commit. Several lifts here ship with the crank, rings and wrenches included, while others leave out mounting screws or leveling screws. Check the included components list against what your table needs.
Installation and Alignment Fixes
The mechanics of a lift are simple; the alignment problems are what generate forum threads. Nearly every complaint about routers shifting out of square, drifting during a cut, or loosening after a few sessions traces to one of the four issues below.
Square the spindle to the plate
Router clamps on many lifts do not self-align, so a motor can sit with its spindle tilted a few degrees off square to the top plate. The symptom is a cut that wanders or a fence that feels inconsistent in one direction. Mount the motor, then check squareness with a small machinist square between the motor body shoulder and the plate before you tighten everything down.
If it is out, loosen the clamp screws slightly, rotate or shim the motor until it sits square, and tighten in a cross pattern rather than one side at a time. Some builders who cannot get the clamp to cooperate shim the corner posts with thin washers, which fixes the tilt without touching the mechanism.
Tighten what loosened after the first cut
Initial movement of collars and nuts after mounting is one of the most commonly reported pain points. The first heavy cut shifts things a few thousandths, and by the second session you have a motor that no longer holds depth. Owners report working around this with thread-locking compound or thread tape on the motor clamp screws.
Make a habit of checking the lift after the first hour of cutting, then again after a week, and re-torque in a cross pattern. After that it should stay put. If a leveling screw or collar keeps loosening, there is usually an alignment issue upstream rather than a hardware issue.
Keep dust out of the drive mechanism
Dust and sawdust accumulate in the lift chain and sprocket, and owners report having to blow the mechanism out at the end of every session to stop it stiffening or jamming. A 30-second pass with a compressed air nozzle or a stiff brush after each cutting session prevents the problem entirely.
Route your dust collection so the port does not aim straight down the throat of the lift, and add a brush seal or foam gasket around the plate opening if you cut MDF or fine sanding dust. A shop vacuum left running nearby makes a measurable difference in how long the screw stays smooth.
Speed up slow older lifts
First-generation lifts are often described as somewhat slow to raise and lower, which is the single complaint that drives most upgrades. Before buying anything new, try the trick long-term owners use: cut the hex key that drives the adjustment screw to a stub with an angle grinder and drive it with a battery drill for the coarse travel, then reinsert a full key for the fine setting.
Keep the lock engaged and watch the bit, not the screw. This works on any hex-driven lift and costs a few dollars, and it turns a sluggish full lift into something that feels modern.
Keeping a Router Lift Clean
Lift maintenance is genuinely minimal, but skipping it is what shortens the life of the screw and bearings. Owners with six or seven years on the same lift attribute that to a simple routine rather than any special hardware.
Blow out the mechanism with compressed air or a stiff brush at the end of every cutting session, before you cover the table.
Wipe the lead screw with a dry cloth or a lightly damp rag monthly, and keep a small amount of appropriate lubricant on the threads if the manual calls for it.
Check the motor clamp screws and leveling screws after the first hour of use, then again after a week, tightening in a cross pattern.
Confirm the cam wheels or corner screws are still fully engaged before every job where you are cutting to a specific depth.
Test for play with a straightedge and a firm push on the top plate every few months, and address movement before it reaches your workpieces.
Rust is mostly a storage problem rather than a use problem. If the lift lives in an unheated shop through winter, run it up and down once a month to break the moisture film, and keep the plate covered so dust and standing water do not sit on the aluminum.
Frequently Asked Questions
What is the difference between a router table and a router lift?
A router table is the surface, fence and cabinet with an opening in the top for routing. A router lift is the adjustable mechanism that sits inside that opening and holds the router motor upside down, letting you raise and lower the bit from above the table. The table is what you push wood across; the lift is what sets the depth of cut.
How do I know which router lift fits my router?
Measure the widest part of the motor body, not the base plate and not the collet. Most routers are 3-1/4, 3-1/2, 3-5/8 or 4.2 inch across. Then measure your table opening, where 9-1/4 by 11-3/4 inch is the common size. Match the motor diameter to a lift built for that family and the plate size to your opening, and confirm the table brand since Kreg, JessEm, Incra and Rockler hold-down patterns are not interchangeable.
Do I need a router lift if I already own a plunge router?
A plunge base covers above-table depth adjustment and quick bit changes on its own, so a lift is optional for setup work. It becomes worth adding when you want the depth setting to hold mechanically against vibration, when you change bits frequently and want the collet fully clear of the table, or when you run a heavy fixed-base motor that a plunge base will not accept.
What is the best router table insert plate with lift?
For a standard 9-1/4 by 11-3/4 inch opening, the Kreg PRS5000 and O’SKOOL RTS05 both use a 3/8 inch aluminum plate and cover the common 3-1/2 inch motors. The JessEm Master Lift II adds above-table collet clearance and a cam lock. If your opening is 8-1/4 inch or you run a 4.2 inch motor, the fit narrows sharply and you should match the plate to your specific table.
What is the perfect height for a router table?
Most woodworkers settle between 34 and 38 inches, which puts the work surface near the top of a standard table saw or at elbow height on a bench. The more important detail is that the height be consistent so boards sit flat against the fence. Set the table first, then set up the lift and mark a reference height on the plate with a pencil so you can return to it quickly.
Final Verdict
The best router lifts for router tables depend almost entirely on your motor diameter and your table opening. For most builders, the Kreg PRS5000 is the pick, because its standard-size 3/8 inch aluminum plate and 811 reviews at 4.7 stars make it the safest fit across the widest range of tables. If you cut joinery all day and change bits constantly, the JessEm Master Lift II is worth the step up for its cam lock and true above-table collet clearance.
For a 3-1/2 inch motor on a budget, the O’SKOOL RTS05 and JessEm Rout-R-Lift 3.5XT both land on the standard opening and ship with the rings and wrenches you need. Big 4.2 inch motors go to the O’SKOOL RTS013, wide motor ranges go to the SpeTool kit, and Rockler or Bench Dog tables belong with the Incra Mast-R-Lift-II-R.
Whichever one you pick, measure the motor, measure the opening, and match the table brand before you order. That fifteen minutes prevents nearly every complaint we found. For the surface itself, read our router table roundup to get the rest of the setup right in 2026.
