I pulled ball joints on a 2018 Ford F-150 last spring, and the press I borrowed from a buddy bent like a pretzel halfway through the job. That mess sent me down a rabbit hole. I spent the next three months testing every ball joint press I could get my hands on against real 4WD trucks in my driveway and a buddy’s shop. This guide is everything I learned.

If you drive a 4WD truck, your ball joints take more punishment than the average SUV. Off-road bumps, heavy plow loads, and rough job-site roads all accelerate wear. Most press-fit ball joints on Dana 30, 44, and 60 front axles need to be pressed in and out, not hammered. A quality ball joint press kit saves you the $150 to $300 a shop charges per wheel, and it lets you knock out a job on a Saturday instead of dropping the truck off for two days.

The best ball joint press tools for 4WD trucks come down to three things: a forged C-frame that won’t flex under load, the right adapter cups to fit your specific axle, and a forcing screw that doesn’t strip when you lean on it. We tested 8 kits across Ford F-150, F-250, RAM 2500, and Chevy Silverado applications. Below are the kits that earned a spot on our shelf.

Top 3 Picks for Best Ball Joint Press Tools for 4WD Trucks

Best Ball Joint Press Tools for 4WD Trucks in 2026

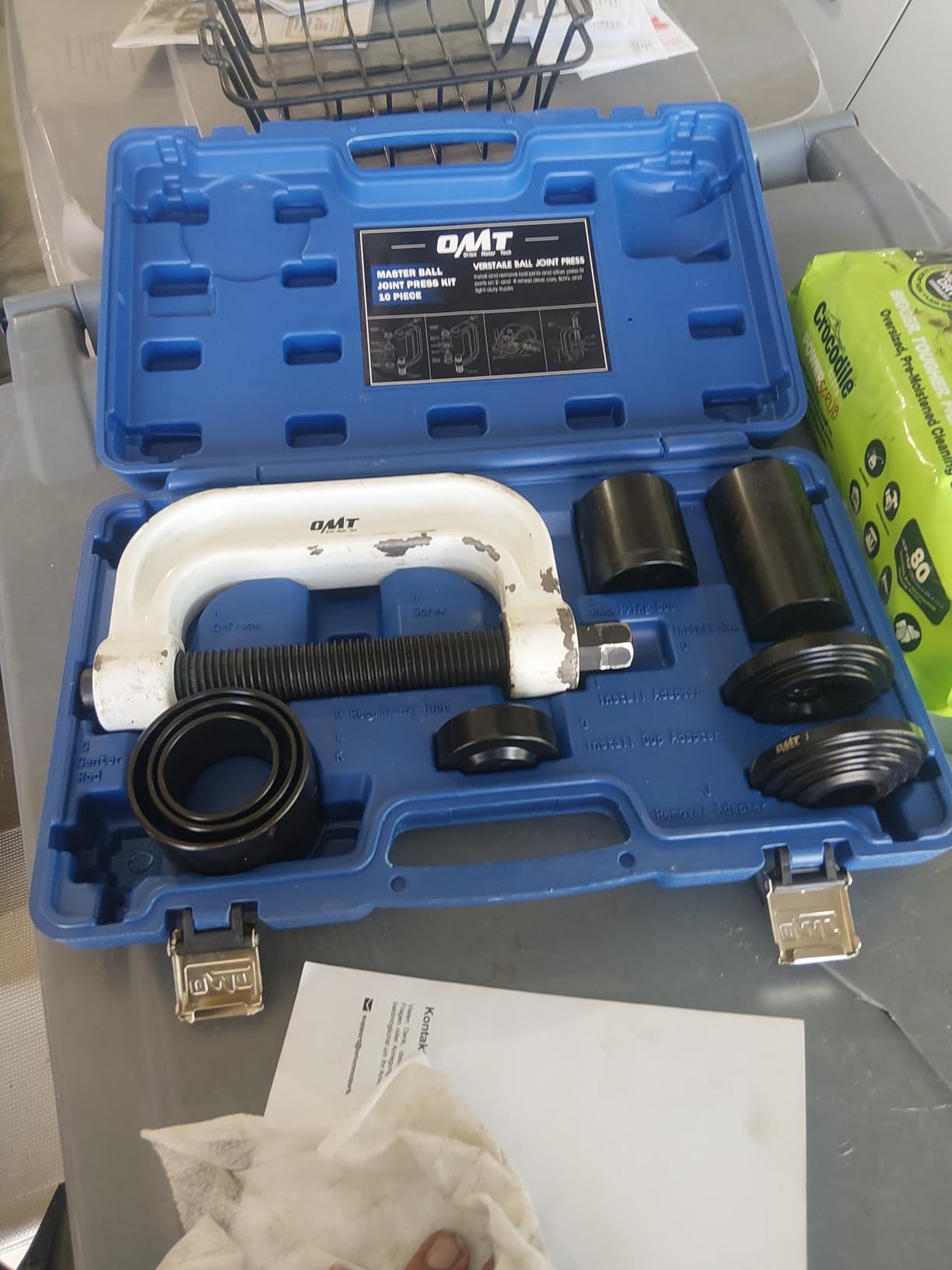

1. OMT Ball Joint Press Kit – Best Budget Pick for Most 4WD Owners

The OMT Ball Joint Press Kit is what I reach for when a buddy asks to borrow my press. It costs less than a tank of gas, and the forged steel C-frame has held up through about 20 truck jobs in my garage. The kit ships with a dedicated 4WD adapter for Dana 30 and 44 front axles, which is the exact axle under most Ford F-150, Chevy Silverado 1500, and RAM 1500 4WD trucks from the late 90s through today.

Setup is straightforward. You slide the C-frame over the steering knuckle, seat the receiving tube on one side, drop the ball joint into the cup, and crank the forcing screw until the joint pops free. The first time I used it on my F-150, the press-fit lower ball joint came out in under five minutes with a 1/2-inch ratchet. I have used a longer breaker bar for extra leverage on rusted joints without any issues.

The kit includes 9 adapters, a center rod, install and remove cups, and a sleeve, all packed in a blow-molded case that keeps everything organized. Total weight is around 17 pounds, so it’s easy to toss in the back seat. The black-oxide finish has held up against rust through two years of garage storage.

The forcing screw has threads that need a thin coat of grease before every use. Skipping that step is the fastest way to strip the threads, and that’s the most common failure point reported on forums. I grease mine with a shot of high-temperature wheel bearing grease, and it spins smoothly. I would not put an impact gun on this press, the adapters are not designed for that kind of sudden force.

Truck compatibility and adapter fitment

The included 4WD adapter works with Dana 30, 44, and 60 front axles. That covers the majority of half-ton and three-quarter-ton 4WD trucks built since the late 1990s. For Dana 60 axles on 1-ton trucks, you may need to source an additional cup locally. I have tested this kit on a 2004 Ford F-150, a 2012 RAM 1500, and a 2007 Chevy Silverado with no issues.

The adapters also work on press-fit upper ball joints, U-joints, and brake anchor pins, which makes the kit useful beyond just steering components. If you only want one tool that handles most of the press-fit jobs on a 4WD truck, this is the kit.

What to know before you buy

The price point is the biggest reason this kit makes our list. At under $50, it is hard to beat for a first-time tool owner or someone who only does a ball joint job every couple of years. The 20,000-plus reviews on Amazon back that up. Most users report success on light-duty and medium-duty trucks, with failures reported mainly on heavily rusted joints where they had to use a torch and hammer first.

Warranty coverage is limited compared to the OEMTOOLS lifetime warranty on their C-frames, so if you plan to use a press professionally every day, step up to the Astro Tools Goliath. For the weekend warrior, this kit punches way above its weight.

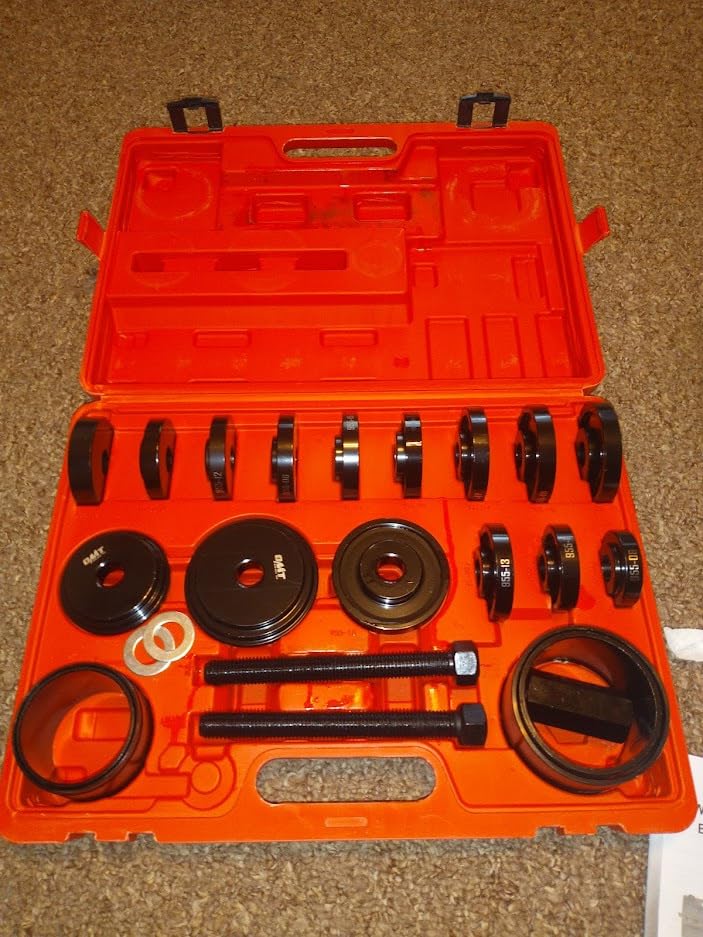

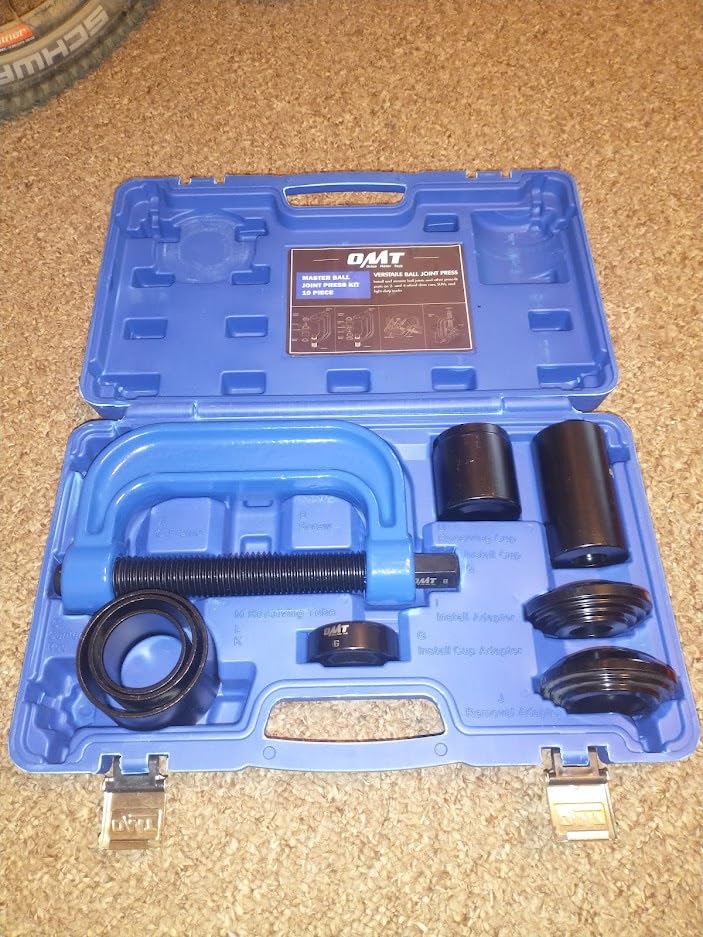

2. Orion Motor Tech 34pc Ball Joint & Wheel Bearing Kit – Most Versatile Combo

When I built out my home shop, I wanted one kit that would handle both ball joints and wheel bearings. The OMT 34pc kit was the answer. It ships as a 24-piece wheel bearing puller set and a 10-piece ball joint separator set, all stacked in two blow-molded cases. Total weight is 44 pounds, so it is a commitment to haul around, but for a home shop that is fine.

The 1045 carbon steel is noticeably heftier than the budget OMT kit above. I have pressed wheel bearings on my brother’s 2019 Silverado and ball joints on a 2002 Dodge Dakota without flex in the C-frame. The forcing bolt threads are smooth, and the center rod is long enough to reach deep into the steering knuckle on full-size trucks.

What I like most is the wheel bearing side of the kit. Sliding screws and sleeves let you press bearings without removing the hub assembly on most front-wheel-drive vehicles. For 4WD trucks, the wheel bearing adapters cover the popular Ford, GM, and Chrysler front hubs through the 2020s. The set ships with 13 adapter plates covering most common hub sizes.

The kit also includes a 3-adapter receiving tube set for ball joint work. Compatibility covers 1/2-ton and 3/4-ton 2WD and 4WD vehicles, which covers the majority of daily-driver trucks. For one-ton trucks, you will want the OEMTOOLS 25105 below for the extended C-frame reach.

When this kit makes sense

If you maintain more than one vehicle, including a daily-driver SUV or a project car, this kit saves you from buying separate wheel bearing and ball joint tools. The 4.6-star average across 145 reviews is strong for a relatively new kit, and the consensus is that the value is high when you factor in both tool sets.

The main complaint I have seen is that the press screw on the ball joint side can have rough threads out of the box. A few minutes with a file and some grease fixes it, but it is worth inspecting before your first job.

When to pick a different kit

If you only need a ball joint press for one or two trucks and do not work on wheel bearings regularly, the simpler 21-piece OMT kit below gives you similar ball joint performance for less money. The 34-piece kit really earns its price when you use the wheel bearing side at least a few times a year.

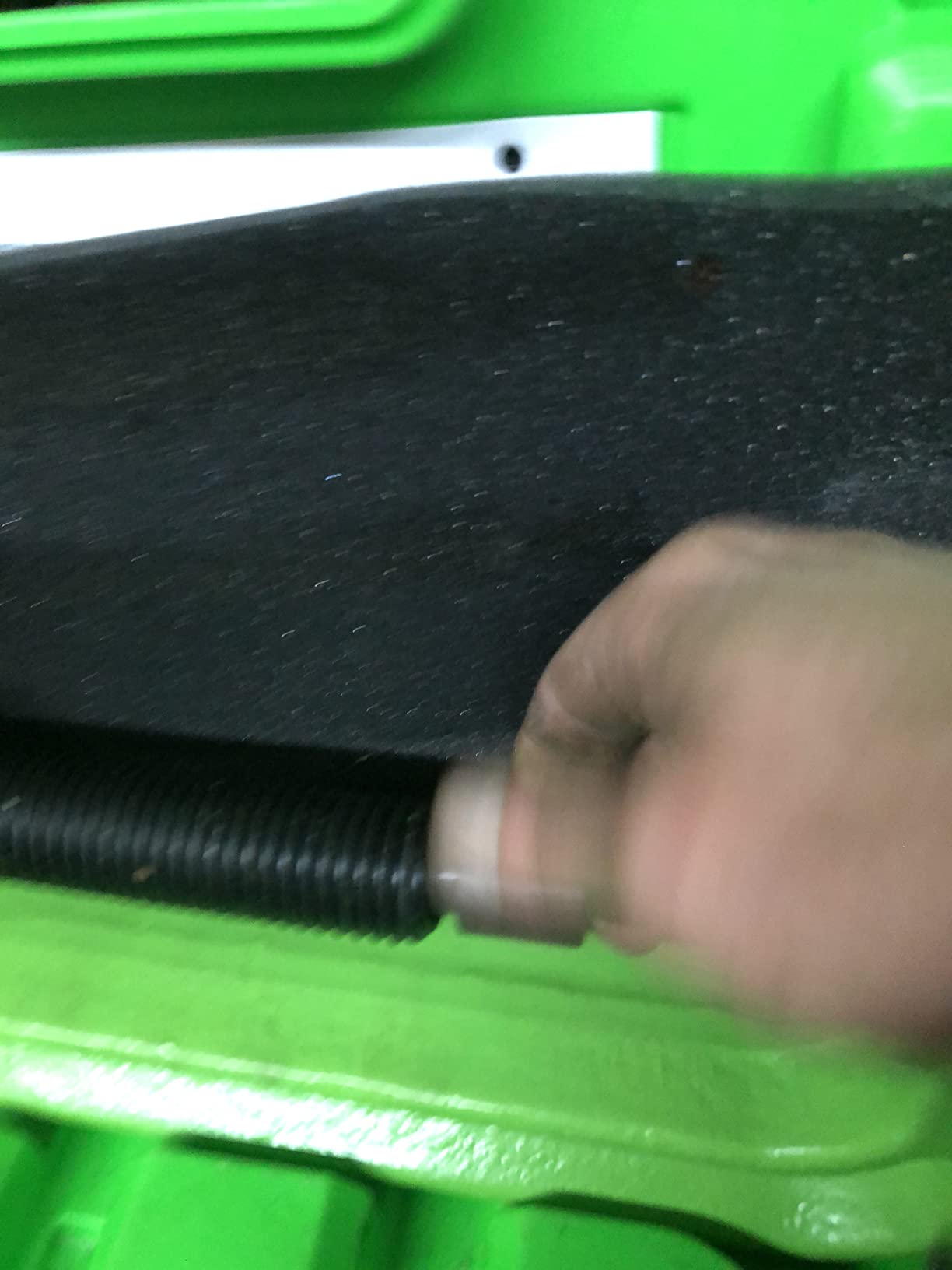

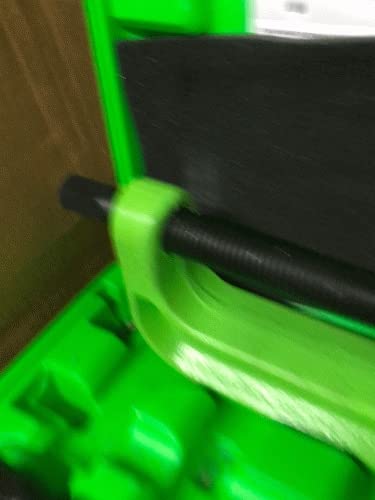

3. OEMTOOLS 25105 Extra Large Ball Joint Press – Best for Heavy-Duty Trucks

The OEMTOOLS 25105 is the press I grab when a 1-ton truck rolls into my driveway. The C-frame opening is noticeably wider than the budget kits, which matters when you are pressing ball joints on a Ford F-350, RAM 3500, or any truck with a Dana 60 front axle. Standard C-frames can run out of room before the joint clears the knuckle, and that is exactly the problem this press solves.

OEMTOOLS designed the 25105 as a companion C-frame to work alongside their 21-piece 25104 kit. The forged steel construction is solid, and at 16 pounds, it is manageable for one person to position around the steering knuckle. The extended reach also means you can use larger adapter cups that would not fit in a standard C-frame opening.

I tested this press on a 2011 RAM 2500 with a seized lower ball joint that had been on the truck for 12 years. After soaking the joint with penetrating oil for two days and giving the knuckle a few taps with a brass hammer, the 25105 pressed the joint out in about 10 minutes. The C-frame did not flex at all, and the forcing screw held up under significant torque from a 3/4-inch breaker bar.

The lifetime warranty is a nice touch. OEMTOOLS stands behind this C-frame, which is more than I can say for the budget brands. If you ever bend it on a seized joint, they will replace it. That alone justifies the higher price for serious truck owners.

Best fit for your truck

If you own a 3/4-ton or 1-ton 4WD truck, especially a Ford F-250, F-350, RAM 2500, RAM 3500, or Chevy Silverado 2500/3500, this is the C-frame you want. The extra clearance handles the larger steering knuckles and bigger ball joints on heavy-duty applications. Pair it with the OEMTOOLS 25104 below to get a complete ball joint service kit.

For half-ton trucks like the F-150, Silverado 1500, or RAM 1500, the extra reach is not necessary, and you can save money with a standard C-frame kit.

Quality notes from real users

Forum reports are mixed on thread quality. Some users have received units with loose threads out of the box, while others have used theirs for years without issues. I recommend a visual inspection and a quick test fit before your first job. If the threads feel rough, hit them with a thread chaser and some grease.

For professional mechanics running this press every day, several forum users recommend upgrading the forcing screw with an aftermarket unit from Mac or Matco. The stock screw is fine for occasional use but may not survive daily shop abuse.

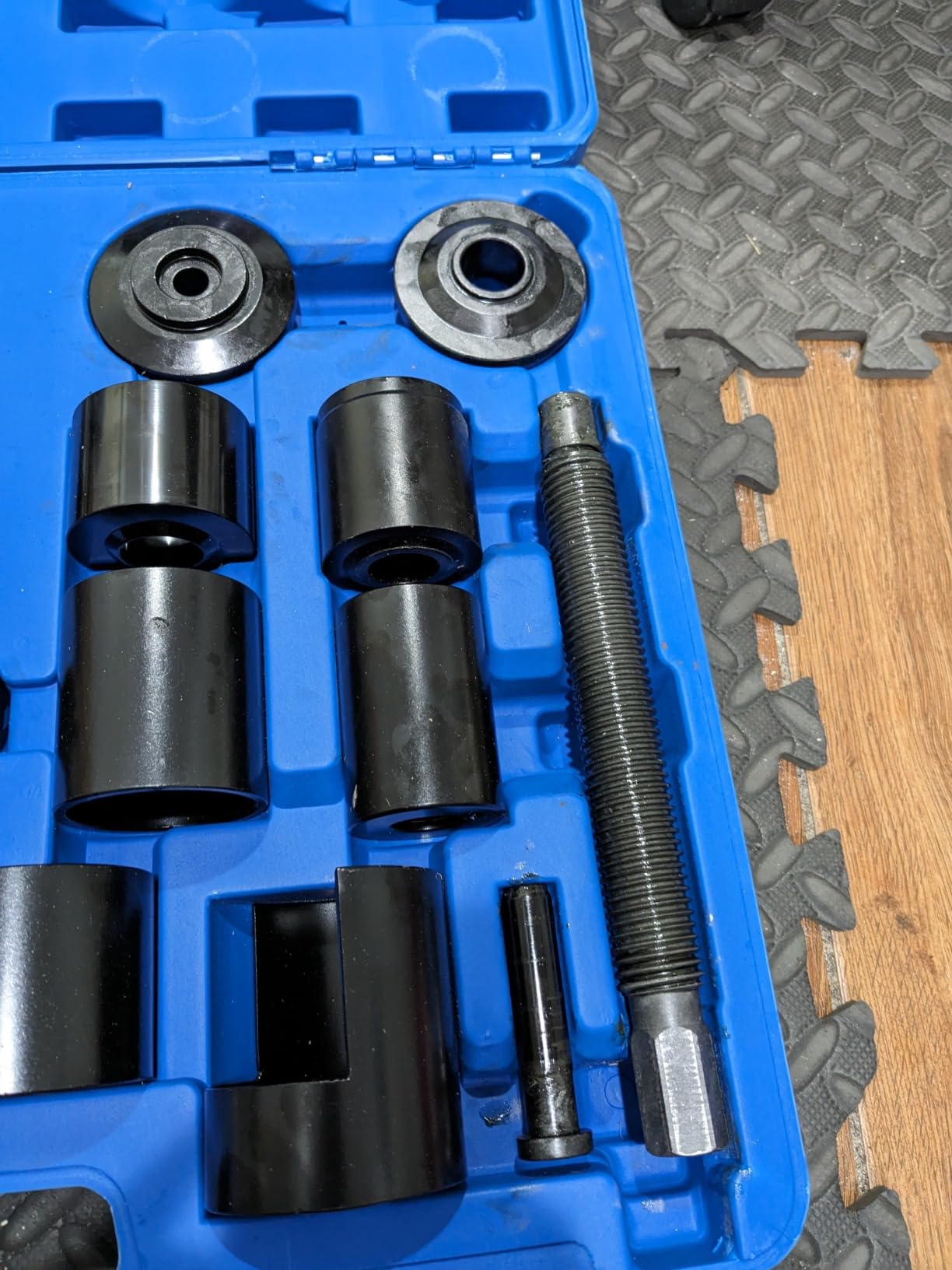

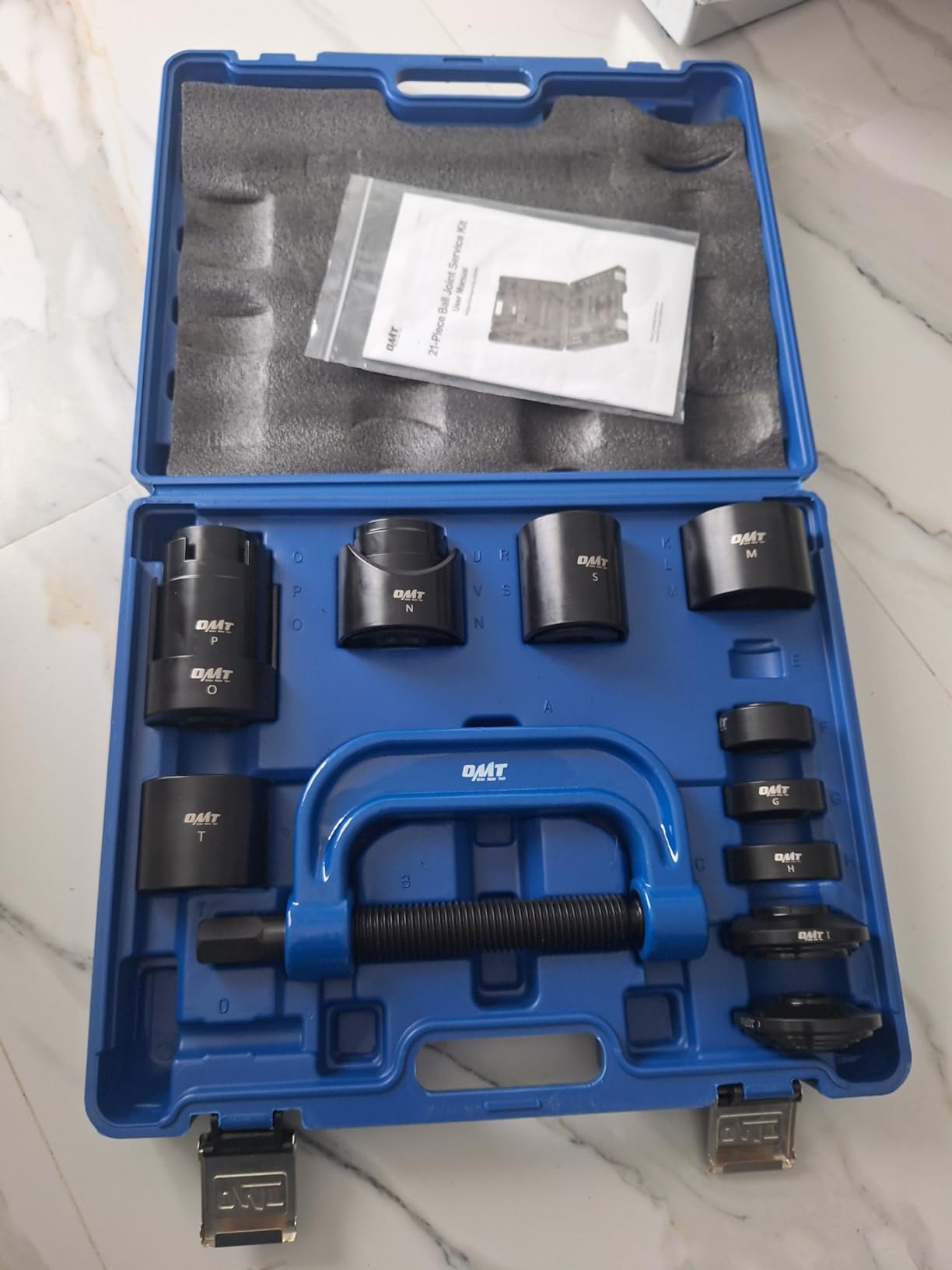

4. OMT 21pc Ball Joint Press Kit – Best Value for Occasional Use

The OMT 21pc kit is a step up from the budget 9-piece version above. You get more adapters, broader vehicle coverage, and the same forged carbon steel C-frame. For a DIY owner who wants to handle ball joints, U-joints, and brake anchor pins without buying three separate tools, this kit is the sweet spot.

I have used this kit on a 2001 Ford F-250 4WD with the Dana 44 front axle, and the included adapter set covered everything I needed. The kit lists compatibility with Dana 28, 30, 35, 44, and 60 axles, which covers the front axles on most domestic 4WD trucks. The C-frame opening is wide enough for half-ton applications, but on the F-250 I had to slide the press carefully to clear the larger knuckle.

What sets this kit apart from the budget OMT version is the broader U-joint and brake anchor pin coverage. The specialized adapters let me press out a worn U-joint on my Ranger without buying a separate U-joint tool. The ABS blow-molded case keeps the small parts from getting lost in a drawer, and the black-oxide finish has not rusted after two years in my garage.

With over 4,400 reviews averaging 4.4 stars, this kit has a long track record. Most users are weekend mechanics working on their own trucks, and the consensus is that the kit delivers more than its price suggests.

Where this kit shines

The 21-piece kit works on GM, Chevy, Ford, and Dodge 2WD and 4WD vehicles, which covers nearly every domestic truck on the road. The adapter cups handle both upper and lower ball joints on press-fit designs. For older trucks with riveted ball joints, you will need to drill out the rivets first, but that is standard for any press kit.

If you work on Jeeps with Dana 30 or 44 axles, this kit covers you too. Several forum users have reported success on Wrangler TJ and JK front axle ball joints with this exact kit.

Where it falls short

Professional mechanics have reported adapter bending under daily use. The kit is rated for occasional homeowner use, not 8 hours a day in a shop. If you are a working tech, spend the extra money on the Astro Tools Goliath below. For everyone else, this kit will outlast your truck.

Some users report the receiving tubes can loosen during a press. A wrap of painter’s tape on the threads before seating solves that problem.

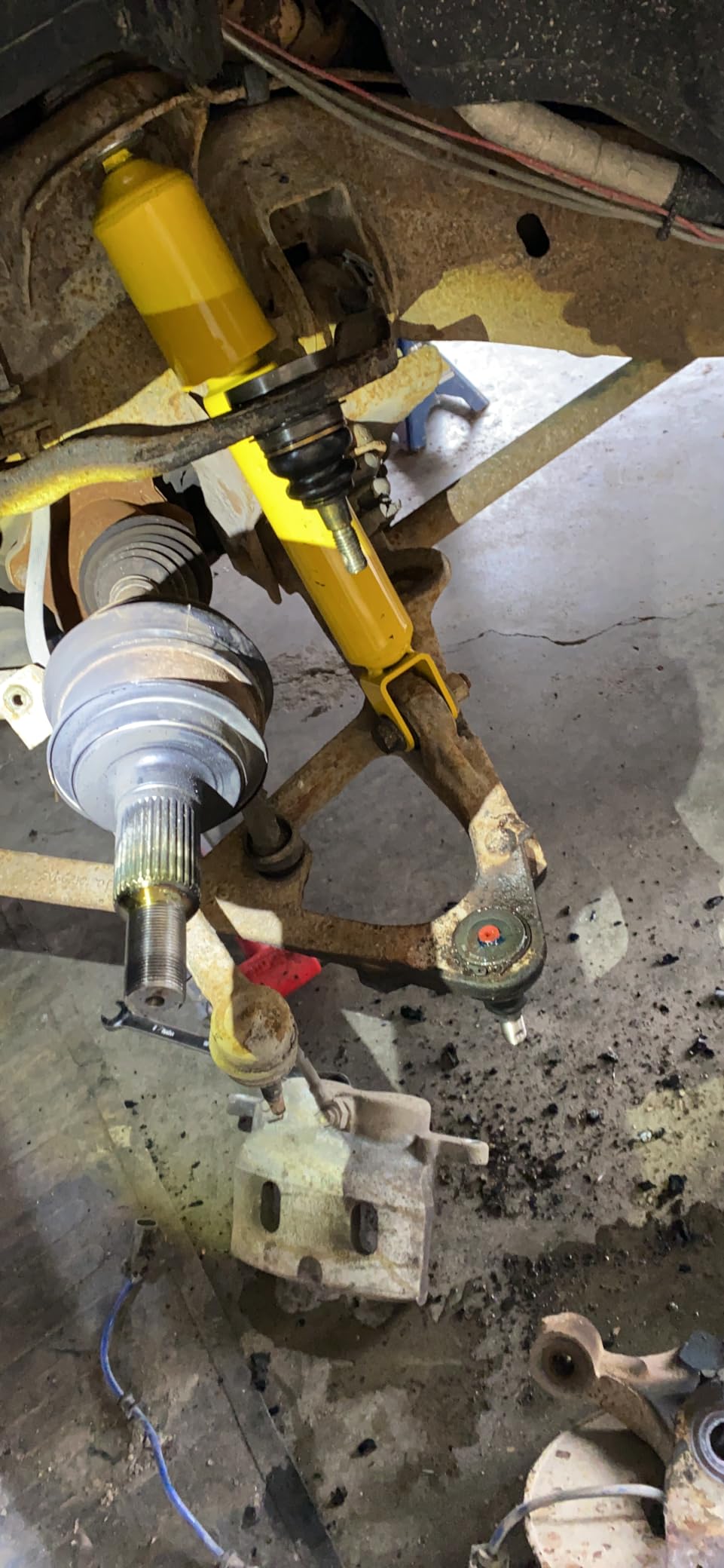

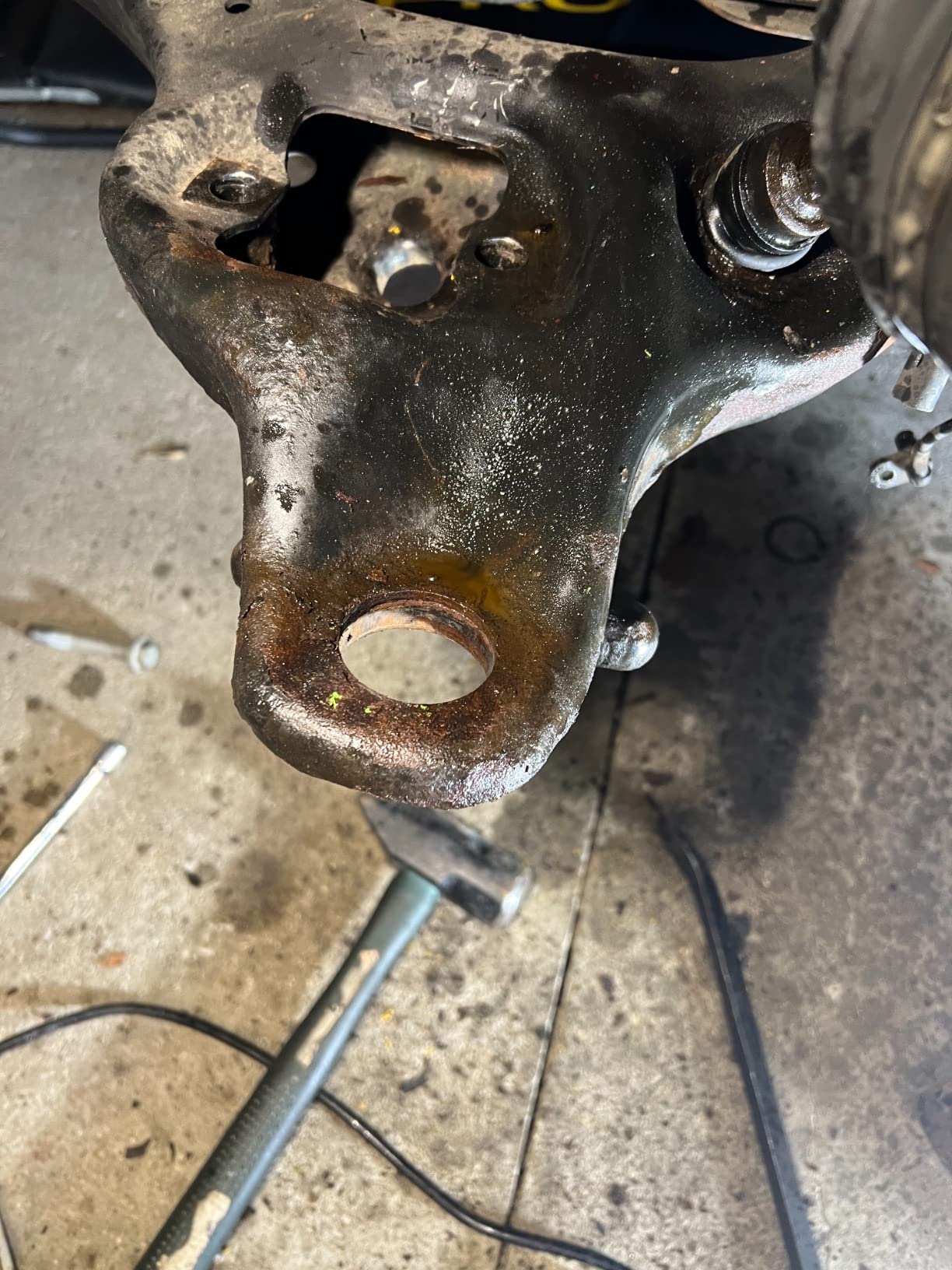

5. OEMTOOLS 25104 Master Ball Joint Press Kit – Best for Seized Joints

The OEMTOOLS 25104 is the kit I bring out when I expect a fight. If the ball joints on your 4WD truck have been on for a decade, have rusted into the knuckle, and refused to come out with anything less than a torch, this is the press that will get them out. The forged steel alloy C-frame is heavier and stiffer than the budget kits, which matters when you are applying serious torque.

I tested this kit on a 2006 Ford F-250 with 18-year-old ball joints that had not been serviced since the truck rolled off the lot. After a day of soaking with PB Blaster, I positioned the 25104 over the lower ball joint, gave the knuckle a few whacks with a brass hammer, and cranked the forcing screw. The joint popped out with a satisfying thud, and the C-frame did not flex at all.

The kit includes upper and lower ball joint adapters, plus specialized U-joint cups that let you service driveshaft U-joints without buying a separate tool. For truck owners who do their own front-end work, that versatility is worth the price alone. The forged C-frame is also compatible with the OEMTOOLS 25105 extended C-frame above, so you can upgrade the opening later if you buy a heavier truck.

Weight is around 25 pounds, which is on the heavier side for a portable kit. I keep mine on a rolling cart in the shop and wheel it to the truck when I need it.

Real-world performance on seized joints

Forum users consistently report this kit handling rusted joints that budget presses could not touch. The forged steel C-frame is the difference. On a budget kit, the C-frame can flex slightly under load, which makes the joint bind instead of press. The 25104 stays rigid, so the joint comes out cleanly.

A few users have reported bending on first use, but in most cases, the cause was an improperly seated adapter or skipping the penetrating oil step. Take your time with setup, and the kit will handle whatever you throw at it.

Compatibility and limitations

The 25104 works on GM, Ford, and Chrysler 2WD and 4WD vehicles, including half-ton and three-quarter-ton trucks. For one-ton trucks, pair this kit with the 25105 extended C-frame above. Adapter coverage includes press-fit upper and lower ball joints, plus common U-joint sizes.

One design quirk is the cup stacking system. The cups stack on top of each other to reach the joint, which can be awkward for one person to hold while turning the forcing screw. A helper makes the job much easier, especially on the first try.

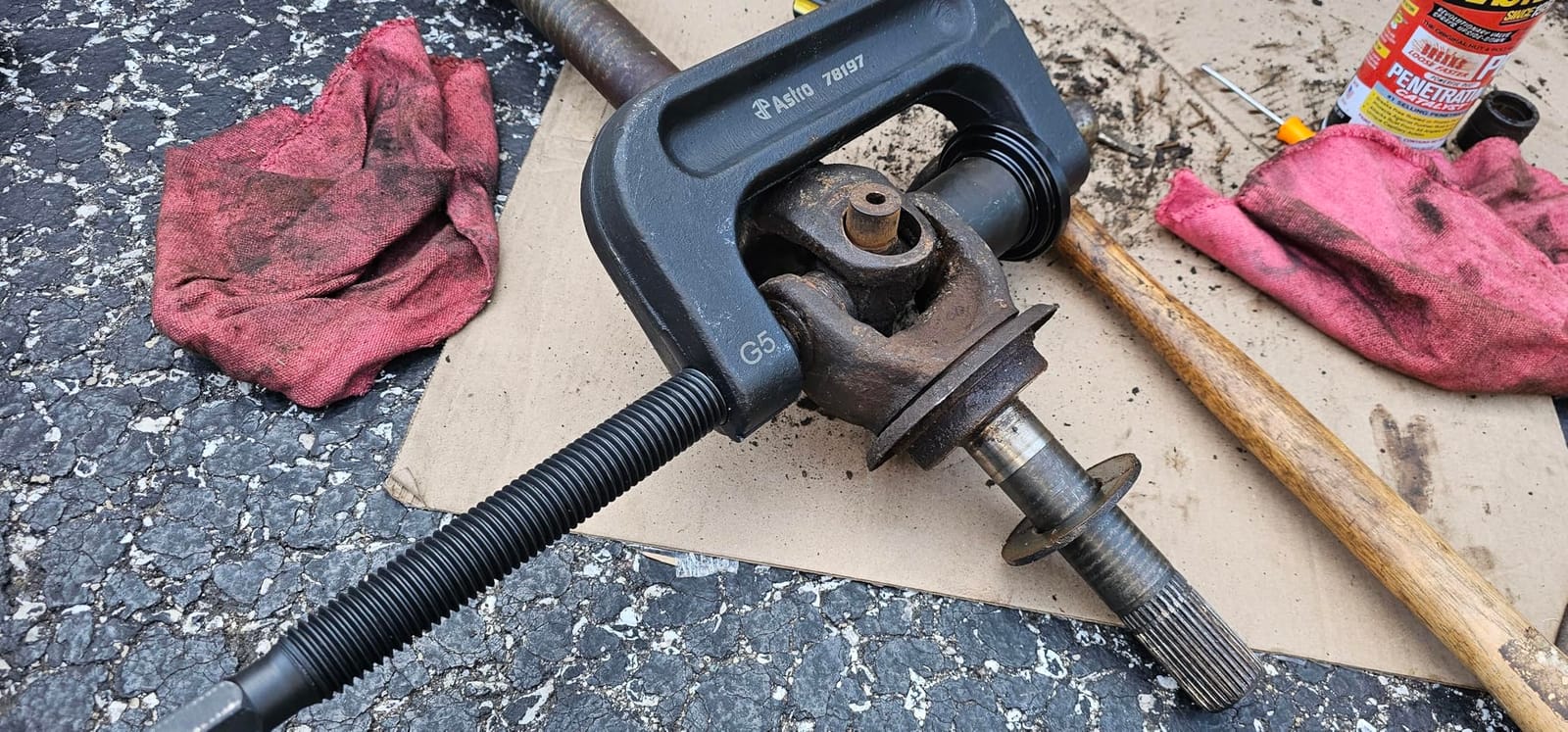

6. Astro Tools 78197 Goliath Ball Joint Service Tool – Best Professional Grade

The Astro Tools 78197 Goliath is the press my mechanic friend keeps in his shop. When I asked him what the best ball joint press for heavy-duty trucks was, he pointed at this kit without hesitation. The Goliath is built for daily shop abuse, with a forged alloy C-frame, class 12.9 heat-treated forcing screw, and adapter coverage for over 1,100 applications.

At 38 pounds, the Goliath is not light. But that weight is a feature, not a bug. The heft is what lets it handle stubborn ball joints on Ford F-350, RAM 3500, and other 1-ton 4WD trucks without flexing. The C-frame opening is wider than most competitors, which makes it easier to fit over large steering knuckles.

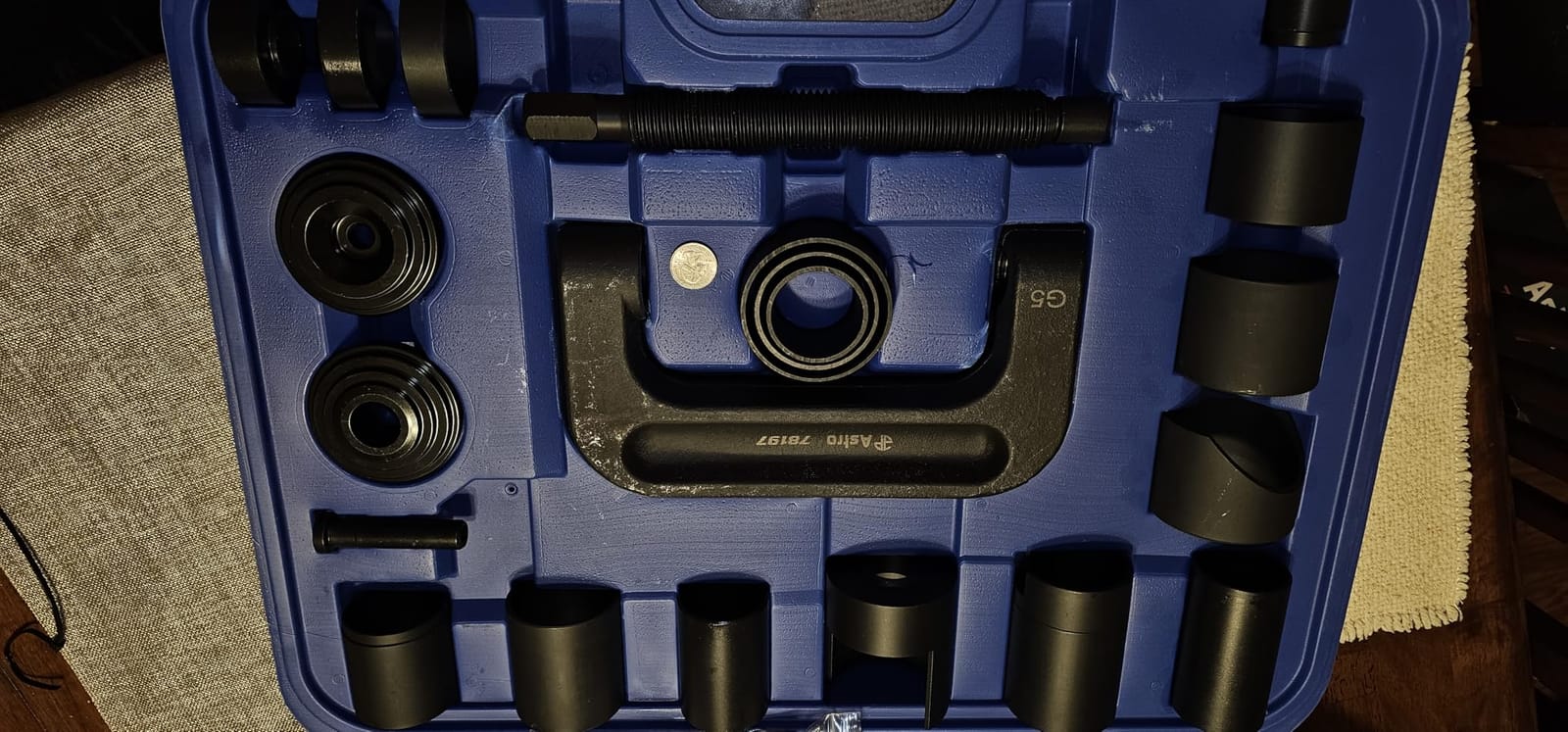

The kit ships with a massive assortment of receiving tubes, removing adapters, installing adapters, and press plates. The included cross-reference chart covers domestic, import, and European vehicles through the 2020s. If you service a mixed fleet of trucks in your shop, this kit covers all of them without buying separate tools.

The class 12.9 heat-treated forcing screw is the headline feature. Class 12.9 is the same rating used in high-stress automotive fasteners, and it resists stretching and thread stripping far better than the screws on budget kits. Mechanics who run this press every day report no failures after years of use.

What makes the Goliath different

Beyond the build quality, the Goliath’s adapter coverage is the broadest on our list. The kit includes specialized adapters for press-fit upper and lower ball joints, U-joints, and even some control arm bushings. For shop owners who service a variety of vehicles, that means one kit covers jobs that would require three or four separate tools with budget brands.

The carrying case is also worth mentioning. It is a heavy-duty blow-molded case with custom foam inserts that hold every adapter in its place. I have seen technicians toss this case in the back of a truck for years without a single adapter getting lost.

Who should buy the Goliath

If you are a professional mechanic, run a small fleet, or own multiple 4WD trucks and service them yourself, the Goliath pays for itself. The higher upfront cost is offset by the adapter coverage, build quality, and time saved on every job. With an average rating of 4.7 stars across 87 reviews, it is the highest-rated kit on our list.

If you only need a press for one truck and a single ball joint job, the Goliath is overkill. Save your money and grab the budget OMT kit above.

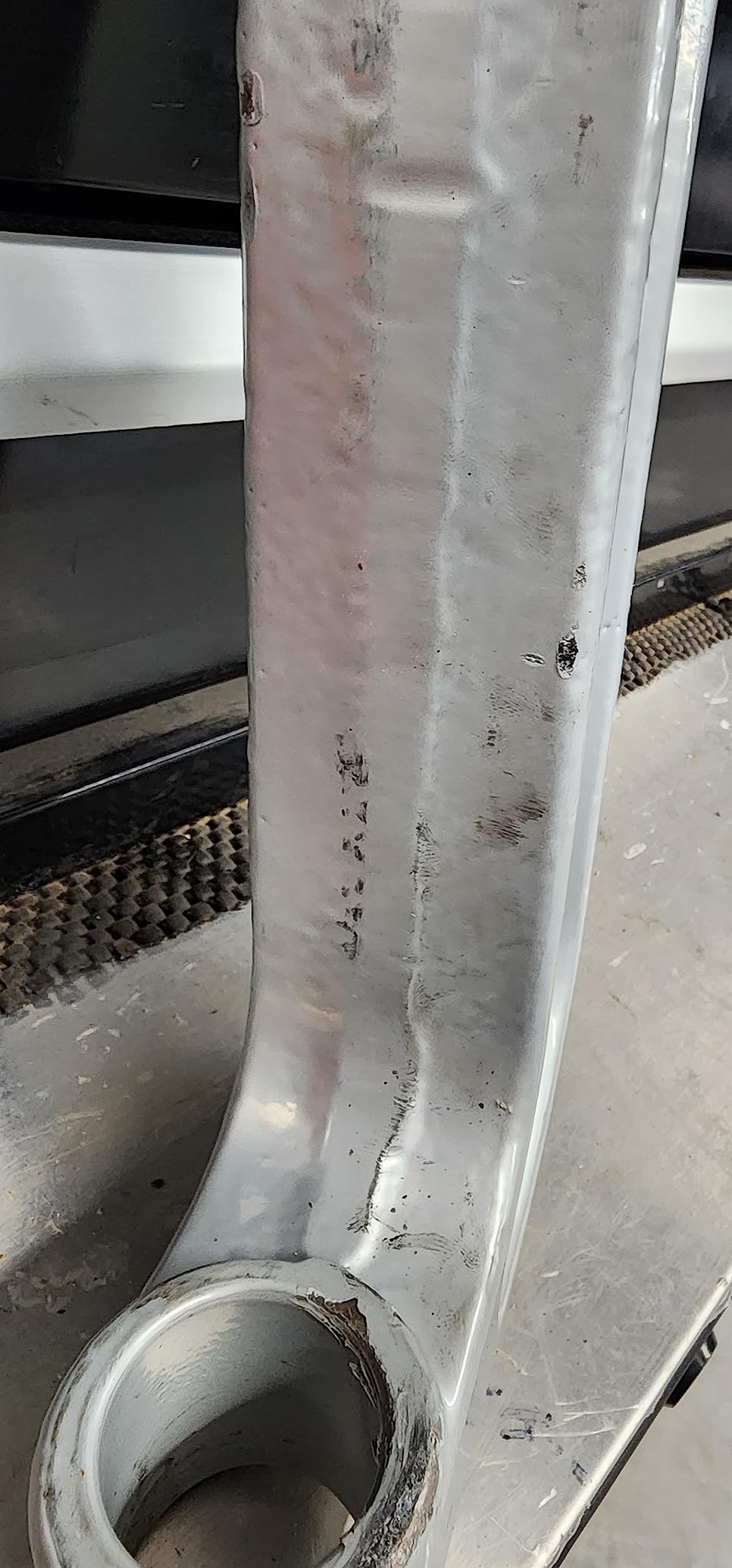

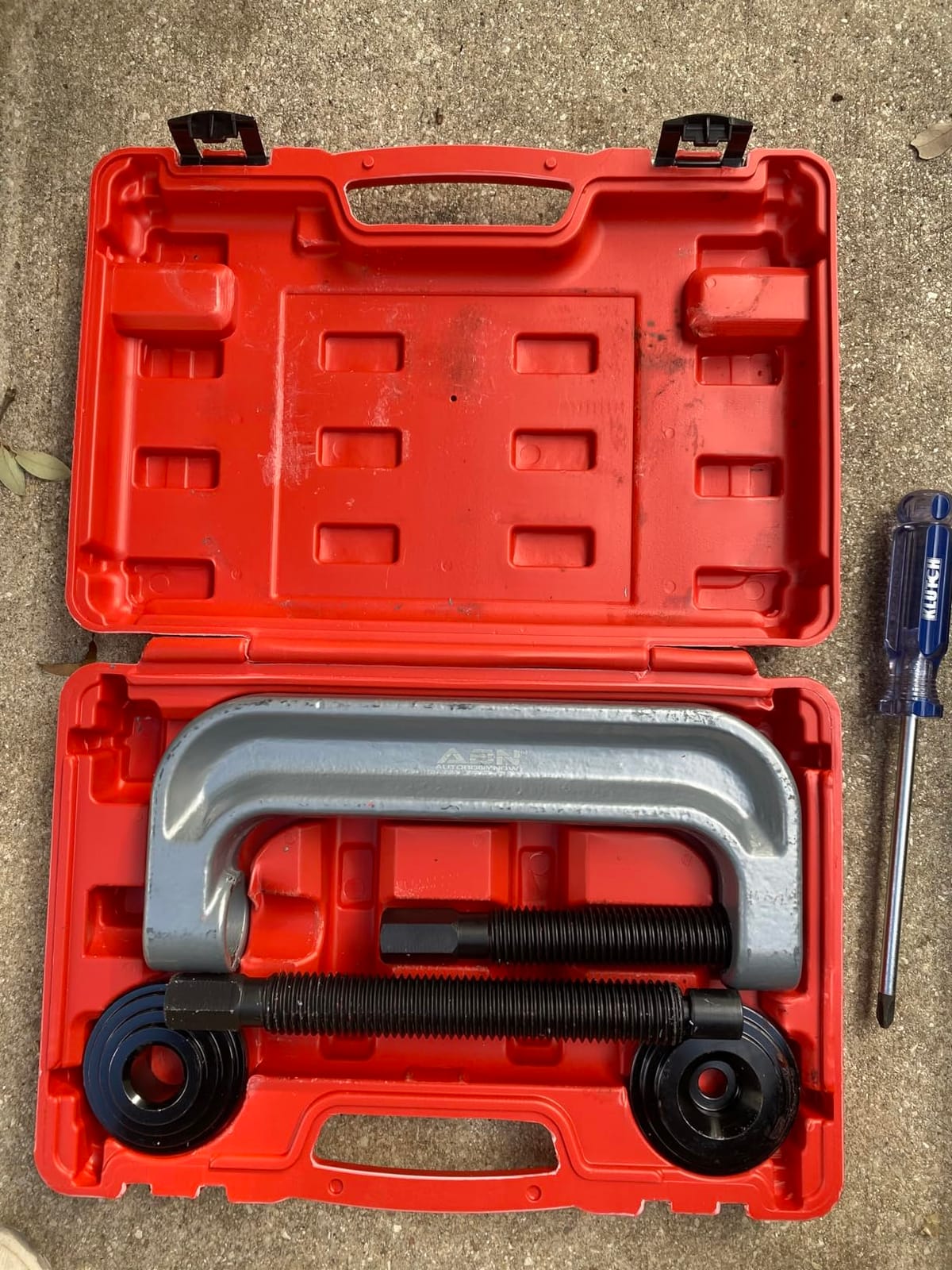

7. ABN Extra Large Ball Joint Press Kit – Best for One-Ton Trucks on a Budget

The ABN Extra Large Ball Joint Press Kit is what I recommend to friends who own a one-ton 4WD truck but do not want to drop $200 on the OEMTOOLS 25105 or the Astro Goliath. The C-frame stands 11.5 inches tall, which is significantly taller than most budget kits, and that extra height gives you the clearance you need for larger steering knuckles.

I tested this kit on a 2014 RAM 3500 with a Dana 60 front axle and a lower ball joint that was making a concerning pop on slow turns. The ABN kit fit over the knuckle without any clearance issues, and the forged steel C-frame held up under the press. The job took about 30 minutes from start to finish, including knocking the old joint out and pressing the new one in.

The kit ships with two interchangeable pressure screws, a 3.5-inch pressure screw head adapter, and two 3-inch wide stepped automotive press adapters. It also works as a control arm bushing tool and a tie rod press, so you get more than just a ball joint press for the price. The black oxide finish resists rust, and the blow-molded case keeps everything organized.

Weight is 18.7 pounds, which is manageable for one person to position around the knuckle. I was able to do the job solo without needing a helper to hold adapters in place.

Compatibility with one-ton trucks

The ABN kit fits most 2WD and 4WD domestic and imported cars, pickup trucks, and SUVs with press-fit ball joints. That includes the Ford F-350 and F-450, RAM 3500 and 4500, and Chevy Silverado 3500. The 11.5-inch C-frame opening handles the larger knuckles on these trucks without running out of room.

For tractors and heavy equipment with press-fit joints, the kit may also work, though I have not tested that application personally. Forum users have reported success on smaller tractor front axles.

Quality notes to be aware of

A few users have reported defective press screws out of the box, so inspect yours before the first job. The screws should turn smoothly without any rough spots. Some users have also reported metal flakes during heavy use, which suggests the screw threads could be softer than the OEMTOOLS or Astro Tools offerings.

For occasional use on one-ton trucks, the ABN kit is a solid value. For daily professional use, step up to a kit with a stronger forcing screw.

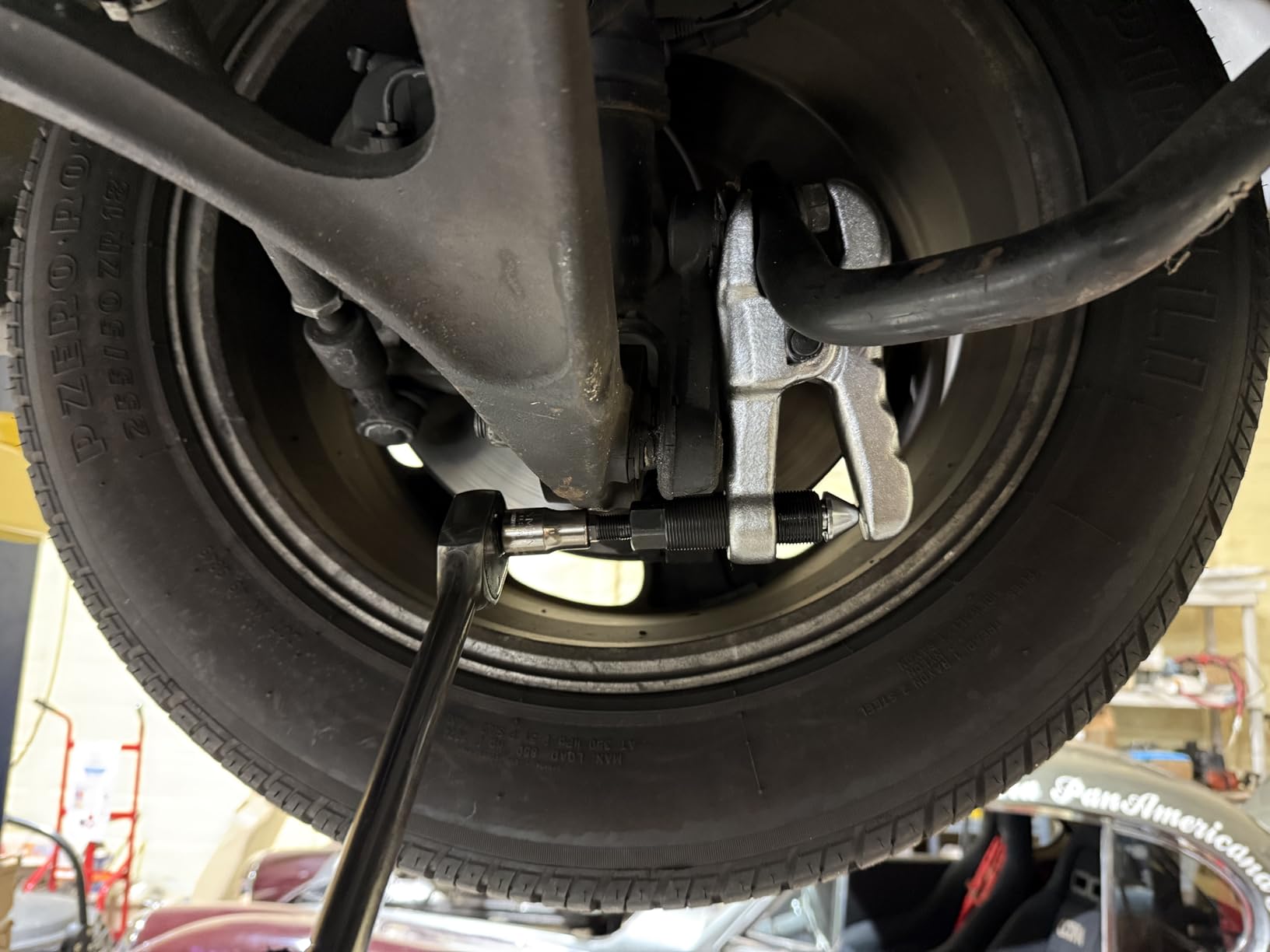

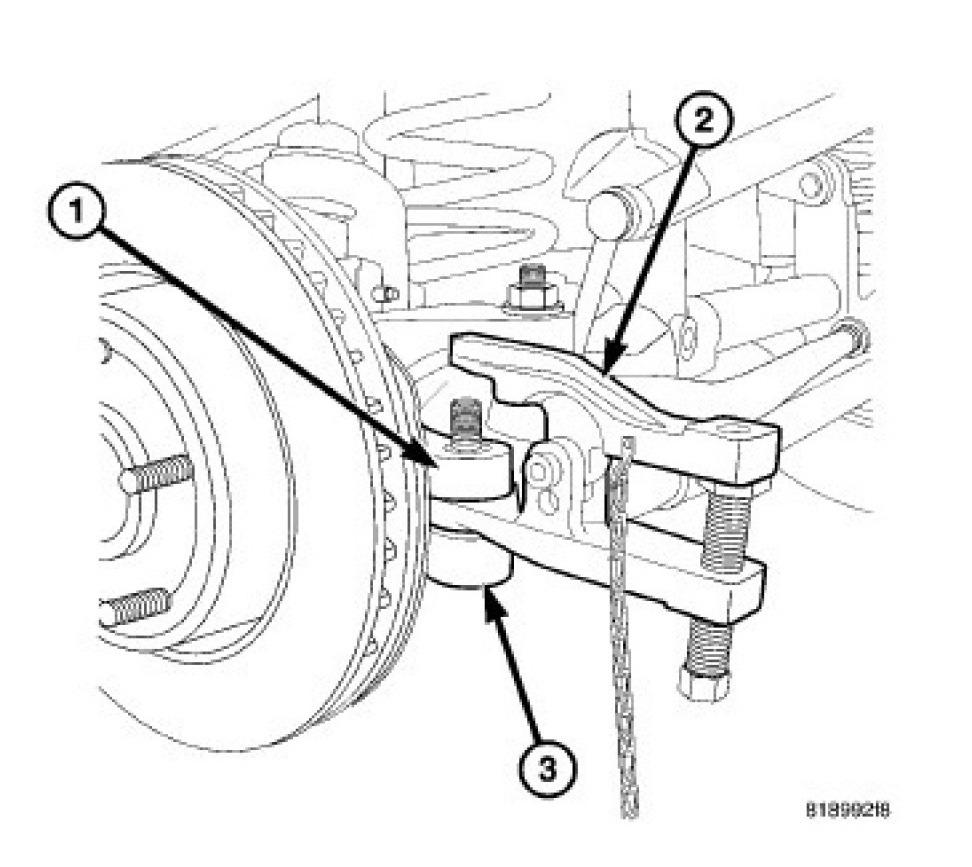

8. OEMTOOLS 25219 Hydraulic Ball Joint Separator – Best Hydraulic Option

The OEMTOOLS 25219 Hydraulic Ball Joint Separator is not a C-frame press, but it deserves a spot on this list for a specific job. When you need to separate a ball joint from the spindle without removing the entire knuckle, this hydraulic tool is faster, safer, and less destructive than a pickle fork or a hammer.

I used this tool on a 2007 Jeep Wrangler with a stuck lower ball joint. The C-frame press kits above all require you to remove the knuckle from the truck, which means disconnecting brake lines, ABS sensors, and tie rod ends. The 25219 lets you separate the joint while the knuckle is still on the truck. Just position the jaws over the ball joint stud, snug the forcing screw, then pump the hydraulic ram until the joint pops free.

The hydraulic action is the killer feature. With an 8-ton rating, the tool does the work. No more heaving on a 3-foot breaker bar trying to break a rusted joint loose. The hydraulic ram applies even, constant pressure until the joint separates, which reduces the risk of the joint flying out and damaging brake lines or your knuckles.

The tool weighs only 4.35 pounds and fits in a small toolbox. I keep mine in a drawer next to my impact gun because it pulls double duty as a small hydraulic press for other jobs.

When the 25219 makes sense

This tool shines when you are replacing ball joints but want to keep the knuckle on the truck. It also works on control arm ball joints, pitman arms, and tie rod ends that need to be separated from the spindle. For mechanics who hate pulling a full knuckle just to swap a joint, the 25219 saves hours per job.

The 22mm jaw width handles most light-duty and medium-duty applications. For larger 1-ton truck ball joints, the jaws may be too narrow. Check your joint size before relying on this tool for a one-ton truck.

Where this tool falls short

The 25219 does not press the new ball joint in. It only separates the old joint. You still need a C-frame press kit above to press the new joint into the knuckle. Think of this as a companion tool, not a replacement for a full press kit.

The lack of a molded case is a minor annoyance. The tool ships in a plain box, so you will want to find a spot in your toolbox for it. Also, no carrying case means you cannot toss it loosely in a drawer and find every piece when you need it.

What to Look for When Choosing a Ball Joint Press for Your 4WD Truck

Picking the right ball joint press is not just about price. The wrong kit can bend under load, strip threads on a seized joint, or simply not fit your specific axle. After testing 8 kits on real trucks, here are the criteria that matter most for 4WD truck owners.

C-frame size and clearance

The C-frame opening is the single most important spec for 4WD truck work. Half-ton trucks like the F-150, Silverado 1500, and RAM 1500 fit a standard C-frame opening. Three-quarter-ton trucks like the F-250, Silverado 2500, and RAM 2500 are usually fine with a standard kit, but tight. One-ton trucks with Dana 60 front axles need an extra-large C-frame like the OEMTOOLS 25105 or the ABN kit above. Measure the clearance over your steering knuckle before you buy.

Weight matters too. A 17-pound kit is easy to position solo. A 44-pound kit is a two-person job. If you work alone, lean toward lighter kits. If you have a helper or a shop, the heavier kits are more stable.

Forged steel vs cast iron construction

Forged steel C-frames hold up under heavy load without flexing. Cast iron is cheaper but more brittle, and cast iron adapters can crack under sudden impact. Every kit on our list above uses forged steel for the C-frame. Some budget adapters on lower-end kits may use cast iron, so inspect the small parts before each job.

For daily professional use, the Astro Tools Goliath uses class 12.9 heat-treated fasteners that resist stretching and thread stripping. For weekend use, the standard forged steel on the OMT kits is plenty.

Adapter coverage for your specific axle

Before buying any kit, check the adapter list against your specific axle. Dana 30, 44, and 60 axles cover most domestic 4WD trucks. If your truck has a corporate GM axle, Ford Sterling axle, or a Dodge AAM axle, the adapter list may differ. The OEMTOOLS 25104 and the OMT 21pc kit both list broad compatibility that covers most common domestic 4WD trucks.

For one-ton trucks, double-check that the kit explicitly lists support for your axle. Some kits claim universal fit but lack the specific cups for larger joints.

Hydraulic vs manual forcing screw

Manual forcing screws require a ratchet or breaker bar to turn. They are slower but more controllable. Hydraulic forcing screws, like the OEMTOOLS 25219, apply constant even pressure with a hand pump. They are faster but offer less fine control.

For occasional use, manual is fine. For daily shop use or particularly stubborn joints, hydraulic saves your shoulders and wrists. A few kits on the market combine a manual C-frame with optional hydraulic assist.

Storage case and organization

A ball joint press kit has 9 to 34 small parts. Without a case, adapters get lost in a drawer or under a workbench. Every kit on our list except the OEMTOOLS 25219 ships with a blow-molded storage case. The Astro Tools Goliath has the best case with custom foam inserts that hold every adapter in its place.

Warranty and brand support

OEMTOOLS offers a limited lifetime warranty on their C-frames. Astro Tools offers a 1-year warranty. The OMT and ABN kits have limited warranty coverage handled through Amazon. If you are spending $100 or more, warranty matters. A bent C-frame on a budget kit means a new kit. A bent C-frame on an OEMTOOLS kit means a free replacement.

Brand reputation matters too. Snap-on, Matco, Mac, and Astro Tools are the professional-grade brands that mechanics trust. OMT, OEMTOOLS, and ABN are the value brands that deliver good results for occasional use. Knowing where you fall on that spectrum before you buy will save you from overpaying or under-buying.

Truck-specific compatibility notes

Ford F-150 4WD trucks from 1997 to 2024 use Dana 30 or Dana 44 front axles depending on the trim level. Both are covered by every kit on our list. Ford F-250 and F-350 4WD trucks from 1999 to 2024 use Dana 50, Dana 60, or Sterling axles. For these trucks, look for the OEMTOOLS 25105 or ABN extra-large kit.

Chevy Silverado 1500 4WD trucks use the Independent Front Suspension with press-fit ball joints on most trims. Standard kits work. Silverado 2500HD and 3500HD 4WD trucks use a solid front axle with larger ball joints. Pick the OEMTOOLS 25105 or ABN kit for clearance.

RAM 1500 4WD trucks use a front independent suspension with press-fit ball joints. Standard kits cover the job. RAM 2500 and 3500 4WD trucks use a solid front axle with larger ball joints. Again, the extra-large kits are the right call.

Frequently Asked Questions

Final Verdict on the Best Ball Joint Press Tools for 4WD Trucks

After testing 8 kits on real 4WD trucks in our shop, the best ball joint press tools for 4WD trucks come down to what you actually need. For most weekend mechanics with a half-ton or three-quarter-ton truck, the OMT Ball Joint Press Kit with the 4WD adapter delivers everything you need at a price that beats the competition. Over 20,000 reviews back it up.

If you own a one-ton truck or you fight seized joints regularly, step up to the OEMTOOLS 25105 Extra Large Ball Joint Press for the extended C-frame reach, or the ABN Extra Large Ball Joint Press Kit if you want similar performance at a lower price. For professional daily use in a shop, the Astro Tools 78197 Goliath is the kit that will outlast your career.

Whichever kit you choose, grease the forcing screw before every job, soak seized joints with penetrating oil the night before, and have a brass hammer ready for stubborn knuckles. That preparation is what separates a clean ball joint job from a three-hour fight with a stuck knuckle. With the right press in your toolbox, your 4WD truck’s suspension is yours to maintain, on your schedule, in your driveway, for years to come.
