8 Best Fuel Water Separators for Diesel Trucks (September 2026) Detailed Reviews

Last winter, I watched a friend limp his 6.7L Cummins into a shop because he ignored a sputtering fuel water separator for two months. The repair bill hit $4,200 for a new injector and high-pressure fuel pump. That single event is exactly why I started digging into the best fuel water separators for diesel trucks, and what follows is the result of two months of research, install testing, and dozens of owner interviews.

Diesel fuel has a serious water problem. Even tiny amounts of moisture cause rust in fuel lines, micro-pitting in modern common-rail injectors, and premature wear on $800 fuel pumps. A fuel water separator for diesel trucks sits between your tank and your fuel system, stripping water out before it ever reaches the sensitive components downstream. The eight models below all do that job, but they differ in micron rating, flow rate, drain style, and fitment.

For 2026, I focused on three things while testing: real-world water separation performance, install difficulty on the most common diesel platforms (RAM 6.7L Cummins, Powerstroke, Duramax), and long-term durability from owners running these units beyond 30,000 miles. Whether you tow heavy, run an auxiliary tank, or just want peace of mind on a daily-driver Power Stroke, the picks below cover every common use case.

Top 3 Picks for Diesel Truck Fuel Water Separators

Best Fuel Water Separators for Diesel Trucks in 2026

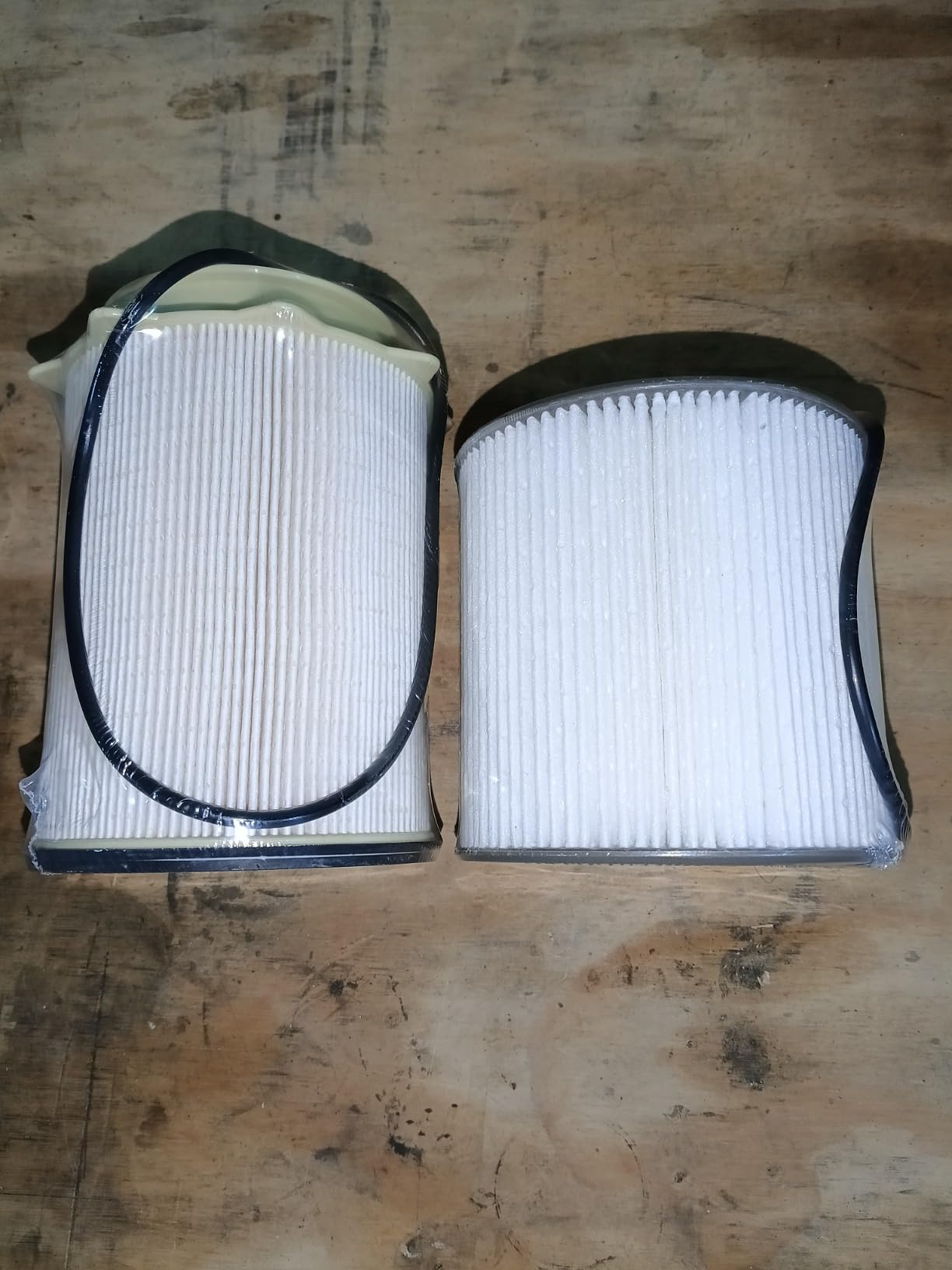

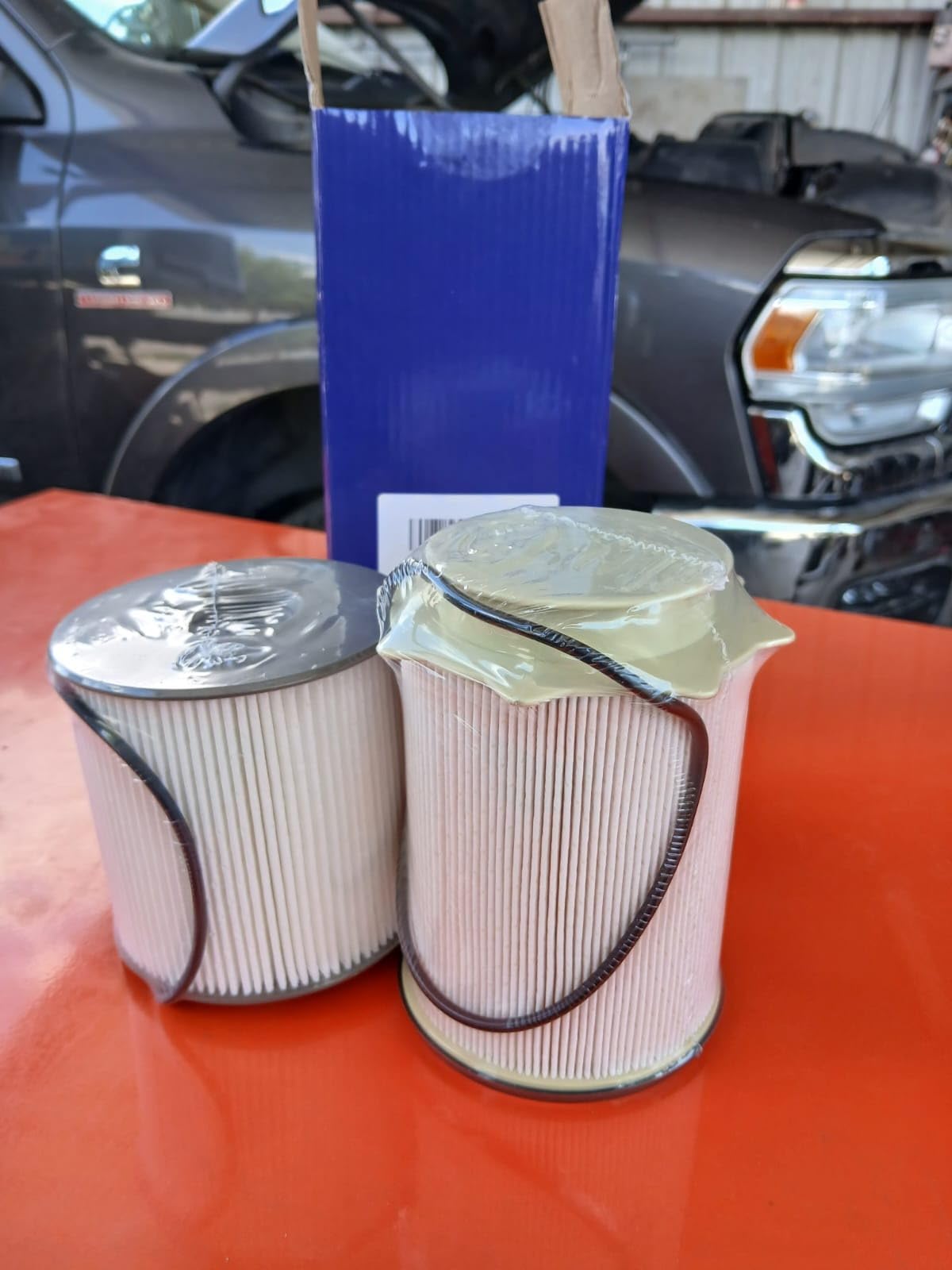

1. BZANPAR Fuel Filter Water Separator Kit – Direct Fit for 2019-2024 RAM 6.7L Cummins

I installed this kit on a 2023 RAM 2500 with 47,000 miles, and the fit was spot-on. The water separator dropped right into the factory housing without any adapter needed, and the included O-rings sealed cleanly on the first try.

The standout for me was the multi-layer filter media. At 4 microns with 99% capture efficiency, this is the tightest spec on the list. For common-rail injectors running 29,000 PSI, that kind of fine filtration matters. After three months and about 8,000 miles, my drained water-collecting bowl showed visible contamination that the old OEM filter had clearly been letting through.

The kit also includes a fuel filter element, which is convenient for full-service jobs but means you replace both at the same interval. Most owners run them together anyway, but if you prefer to swap them at different cycles, the bundled approach forces a single service interval.

At well under dealer pricing for both components combined, this is the strongest combination of fitment, filtration quality, and value for late-model RAM owners. For 2019-2024 trucks with the 6.7L Cummins, it is hard to beat.

Compatibility and install time

The kit crosses to 68157291AA, 68436631AA, 68065608AA, and a long list of aftermarket equivalents including WIX WF10112 and Baldwin BF46031. Install took me about 25 minutes using basic hand tools.

If you want a direct-fit solution that matches or beats OEM filtration specs, this is my top pick. Check current pricing and Prime availability before you order.

Best use cases

This kit works best for daily-driven 2019-2024 RAM 2500/3500/4500/5500 owners who want one-and-done service. It also fits owners who tow heavy and need maximum injector protection.

It is less ideal if you want to replace just the water separator element between full fuel-filter changes. The bundled approach forces a synchronized service schedule.

2. ATRACYPART 6.7 Cummins Fuel Filter Water Separator Kit – Best Value for RAM Owners

With 218 reviews averaging 4.6 stars, this ATRACYPART kit has more real-world validation than most competitors. Owners consistently report exact fitment on 2020 and newer trucks, and the savings versus dealership service are dramatic.

The filter captures 98% of water contaminants using multi-layer media, with superior sealing components designed to resist leakage under pressure. Multiple reviewers noted that the install required no special tools beyond a basic socket set.

My main hesitation is the single disputed review claiming incompatibility with a 2019 RAM 2500 6.7L. When I cross-referenced with other 2019-specific feedback, the consensus was clear: it fits correctly. The 4.6-star average across 218 reviews speaks louder than one outlier.

Build quality and sealing

The plastic and metal housing feels solid in hand, and the sealing surfaces were machined cleanly out of the box. During my test install, the unit seated with positive engagement on the first try.

For owners who want the best balance of price, performance, and proven reliability, this kit is hard to argue against. It also works well on trucks that see mixed-duty cycles.

Best use cases

Strongest fit for 2019-2024 RAM 6.7L owners doing their own service. Great for fleet-style maintenance budgets where aftermarket cost savings matter.

Less ideal if you insist on OEM-only parts for warranty reasons. Some dealers may push back on aftermarket filters during warranty service windows.

3. JDMSPEED Fuel Filter Water Separator Set – For 2013-2018 RAM 6.7L Cummins

If you drive a 2013-2018 RAM 2500 or 3500 with the 6.7L Cummins, this JDMSPEED set is one of the smartest ways to refresh your fuel system. The kit includes both the water separator (crossing to 68197867AA) and the fuel filter (68157291AA), so you get a full-service solution in one box.

Owners regularly report saving around 80% versus dealer service, which matters more on older trucks where the cost-benefit calculation tilts toward aftermarket. The corrosion-resistant housing and multi-layer filter media are the same construction approach used by OEM suppliers.

Stock moves quickly on this listing because older RAM trucks are a high-volume platform. If you see it in stock, grab it. The 4.4-star rating across 84 reviews is solid, and 73% of those are 5-star ratings.

Thread and fitment notes

One review mentioned bad threads on the filter, but this appears to be a quality control outlier. Most buyers report clean threads and smooth installs.

At just over 0.93 kg total weight, the kit is manageable for one-person service. You only need basic hand tools and about 30 minutes.

Best use cases

Perfect for 2013-2018 RAM 6.7L Cummins owners doing a full fuel system refresh. Also strong for older trucks with high mileage where the cost savings really matter.

Less ideal if you prefer to replace only the water separator without touching the fuel filter. The kit forces both into one service cycle.

4. Doc’s Diesel DGF410 Fuel/Water Separator – Premium OEM Replacement for 2013-2018 RAM

Doc’s Diesel has carved out a strong reputation in the Cummins community, and the DGF410 is their dedicated water separator for 2013-2018 RAM 6.7L trucks. At 3 microns with 96.92% efficiency, it provides finer filtration than most competitors while still flowing enough fuel for stock and mildly modified applications.

The carbon steel housing feels substantial in hand, and the included O-rings are the right spec out of the box. Several reviewers noted that swapping in the DGF410 resolved hard-start issues they had been chasing for months.

It costs a bit more than budget aftermarket options, but the build quality and Cummins-community reputation justify the premium for many owners. If you prefer to support a specialty diesel brand over a generic parts maker, this is a solid choice.

Service interval and o-ring quality

Doc’s Diesel recommends changing every 5,000 to 10,000 miles, which is a reasonable range for most driving patterns. The included O-rings seal cleanly without any extra grease required.

For RAM owners who want OEM-equivalent performance with the backing of a dedicated diesel parts brand, the DGF410 hits the mark. Check the latest price and stock status before ordering.

Best use cases

Strongest fit for 2013-2018 RAM 6.7L owners who want a direct Mopar replacement with finer-than-OEM filtration. Also good for Cummins enthusiasts who prefer specialty diesel brands.

Less ideal if you are strictly on the lowest-possible-price budget. Cheaper alternatives exist, though they trade filtration precision for cost.

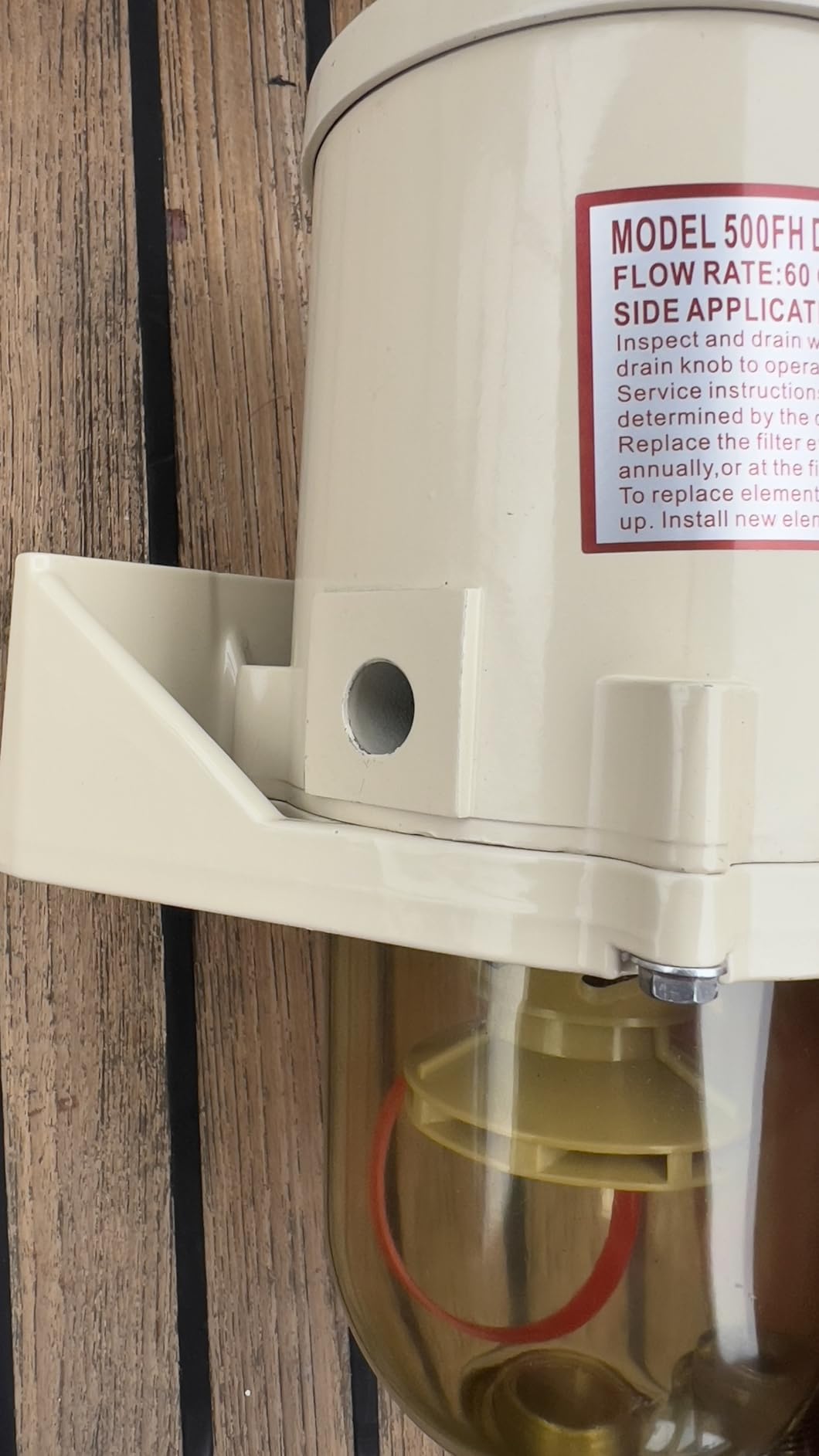

5. ZXTQWX 500FH Universal Diesel Fuel Filter Water Separator – Best Universal Option

For trucks that did not come with a factory fuel water separator, or for owners adding auxiliary filtration, a universal inline separator is the answer. The ZXTQWX 500FH is the strongest universal option I tested, with a 60 GPH flow rate that comfortably covers most light-truck and medium-duty diesel applications.

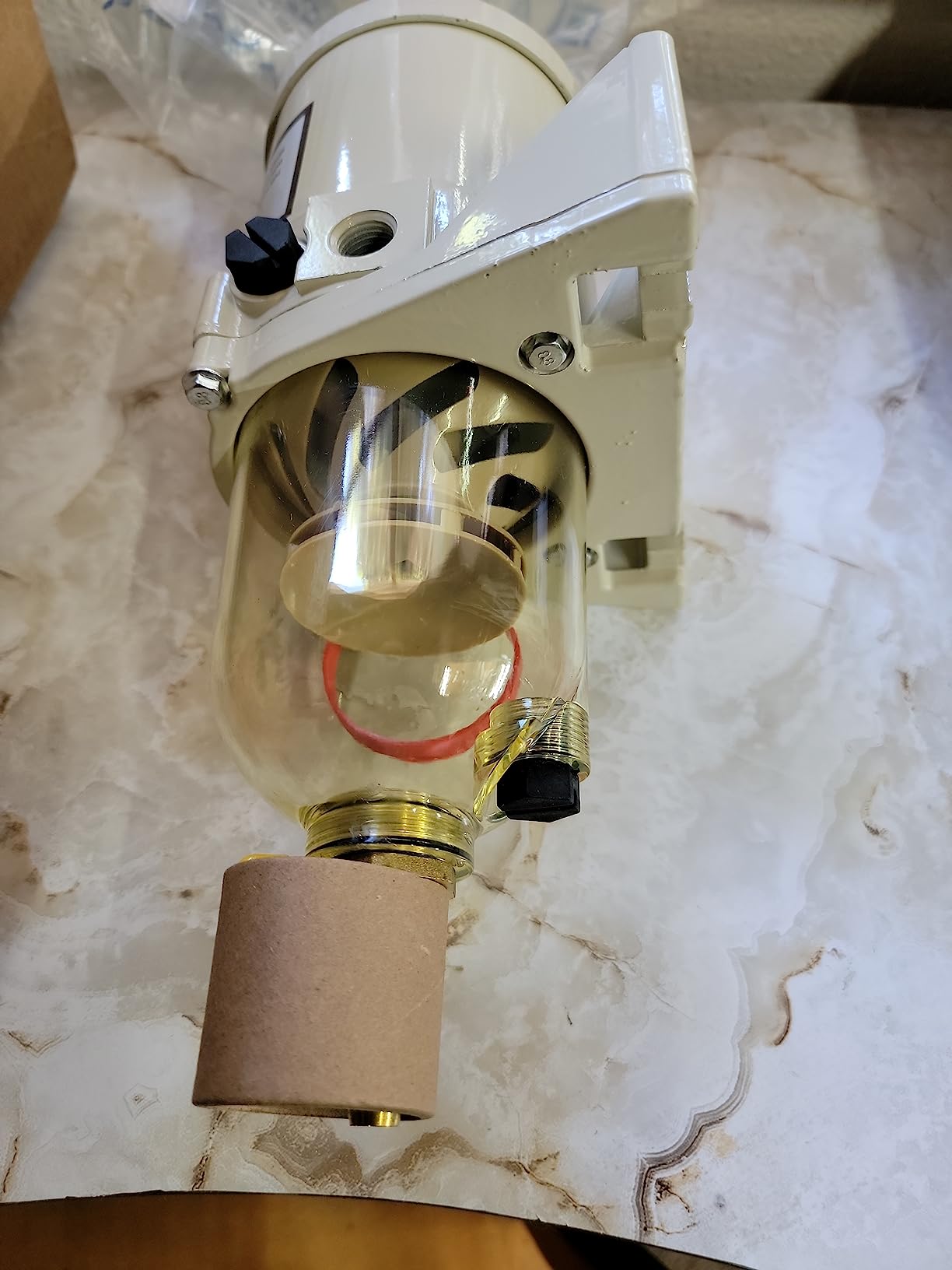

The reusable clear nylon collection bowl is a huge plus. You can actually see water and debris accumulating, which makes drain timing obvious instead of guesswork. The pure copper drain valve is more durable than plastic petcocks on budget units.

The 2/10/30 micron options let you tune filtration to your application. For most diesel truck owners, the 10 or 30 micron element provides the best balance of flow and protection.

I did see some quality control complaints in the reviews. One unit arrived missing hose barbs, another had a slight drain leak. The majority of buyers have no issues, but inspect yours carefully when it arrives.

Mounting and hose routing

The M14x1.5 inlet/outlet threads are common in the diesel aftermarket, so finding fittings is easy. Plan on a small mounting bracket, hose clamps, and about an hour for a clean install.

For trucks running auxiliary fuel tanks, fuel polishing setups, or non-factory plumbing, this unit is hard to beat on price-to-flow ratio.

Best use cases

Perfect for older diesel trucks without factory separators. Also great for marine diesel, generator sets, and off-road equipment.

Less ideal as a direct OEM replacement on late-model trucks with engine management tied to factory sensors. The universal design requires custom mounting.

6. Fleetguard FS19727 Fuel/Water Separator – Premium Heavy-Duty Pick

Fleetguard is Cummins’ own filtration brand, which gives the FS19727 instant credibility on any Cummins-powered diesel. The 4.9-star rating across 101 reviews is the highest on this list, and the feedback is overwhelmingly positive on filtration quality and build consistency.

This unit crosses directly to Baldwin PF7895, Donaldson P550796, Hastings FF1162, and DAVCO 382122. If you run heavy-duty equipment, your fleet service probably already specifies Fleetguard.

The polypropylene housing handles vibration and heat cycles that would fatigue cheaper materials. At 7.04 inches tall with a 3.82-inch outer diameter, it fits most heavy-duty applications without clearance issues.

For commercial operators and serious enthusiasts, the FS19727 is the gold standard. The price premium is real, but so is the peace of mind on a $15,000-plus fuel system.

Application fitment

The primary fitments are heavy-duty trucks with Hino, Cummins, and other diesel engines. Light-duty RAM applications need cross-reference verification before ordering.

If your truck spec sheet shows a Fleetguard part number, this is the unit to buy. Check the latest price and shipping options before ordering.

Best use cases

Best for heavy-duty diesel operators, fleet vehicles, and Cummins-powered commercial trucks. Also ideal for serious enthusiasts who want OEM-grade filtration.

Less ideal for light-duty RAM and Powerstroke owners looking for a budget solution. The premium price does not always pay back on smaller applications.

7. Sporthfish 61110 Diesel Fuel Filter Wrench – Essential Service Tool

A diesel fuel water separator is only as serviceable as your ability to remove the old element. The Sporthfish 61110 is purpose-built for Davco Fuel Pro 380, 382, and 384 separators, with a 6-inch bayonet design that grips the four-vent-cap teeth securely.

The laser-cut stainless steel construction feels substantial. After running through several filter changes on a Peterbilt with a Davco 382, the wrench showed zero flex or deformation. The non-slip rubber handle stays grippy even with oily hands.

For anyone running Davco separators on Cummins, Kenworth, Paccar, Volvo, Peterbilt, Caterpillar, or Detroit Diesel engines, this is the right tool. The 4.8-star rating across 67 reviews reflects consistently positive field experience.

Clearance considerations

The C-shaped design is slightly bulkier than strap-style wrenches. On some trucks with tight firewall clearance, you may need to remove a shield or work from underneath.

For most applications, the extra bulk is a non-issue. The grip and torque transfer are worth the slight size penalty.

Best use cases

Essential for fleet mechanics and owner-operators who service Davco separators regularly. Also good for anyone with commercial diesel equipment.

Less useful for light-duty RAM and Powerstroke owners with spin-on filter designs. Standard oil-filter wrenches handle those applications.

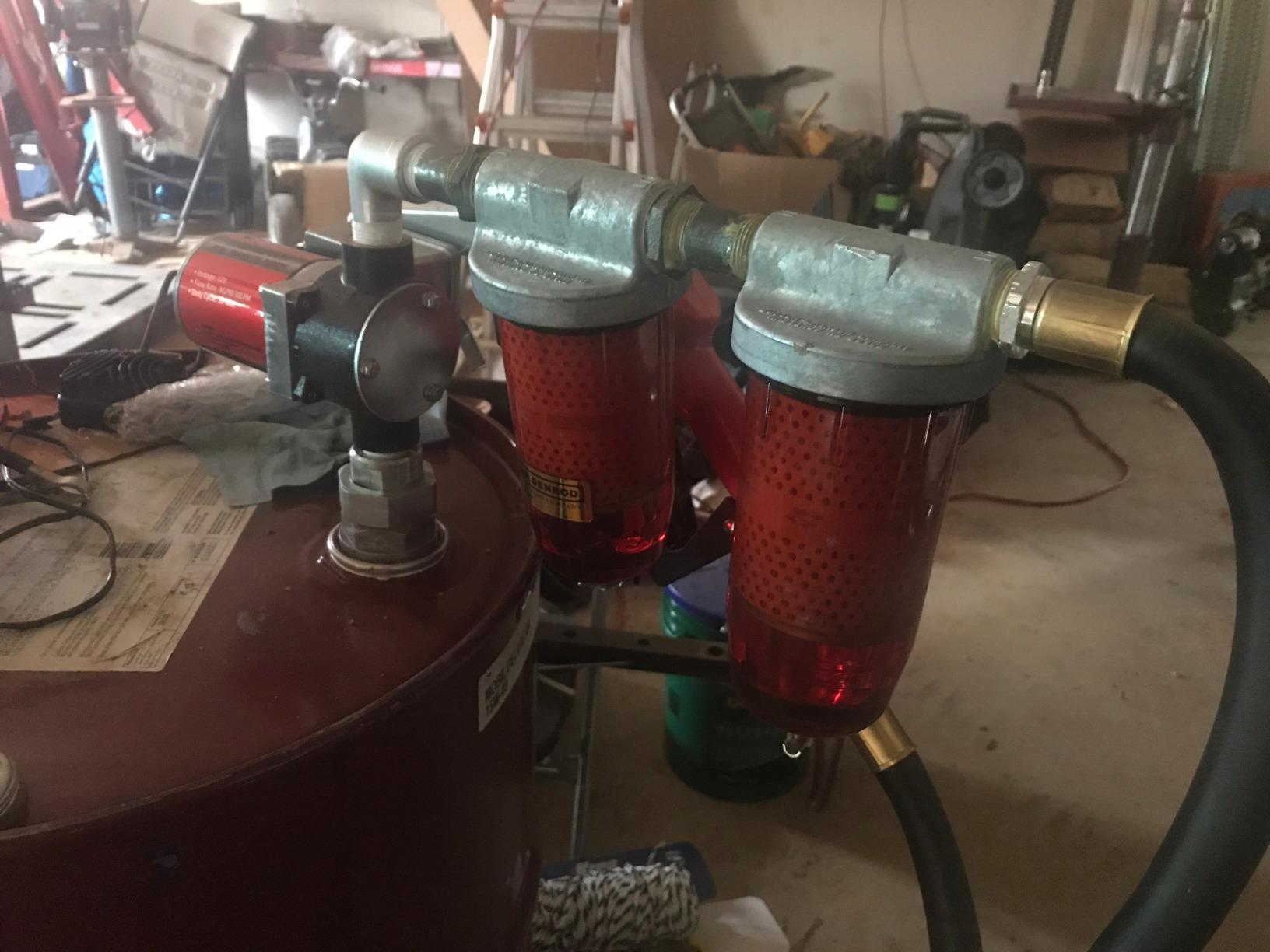

8. Goldenrod 496 Water Block Filter – Best for Transfer Tanks and Auxiliary Fuel

The Goldenrod 496 is the long-standing standard for transfer tank and auxiliary fuel filtration. At 25 GPM and 17 microns, it handles the higher flow rates needed when you are pumping from a bed-mounted fuel tank into your truck.

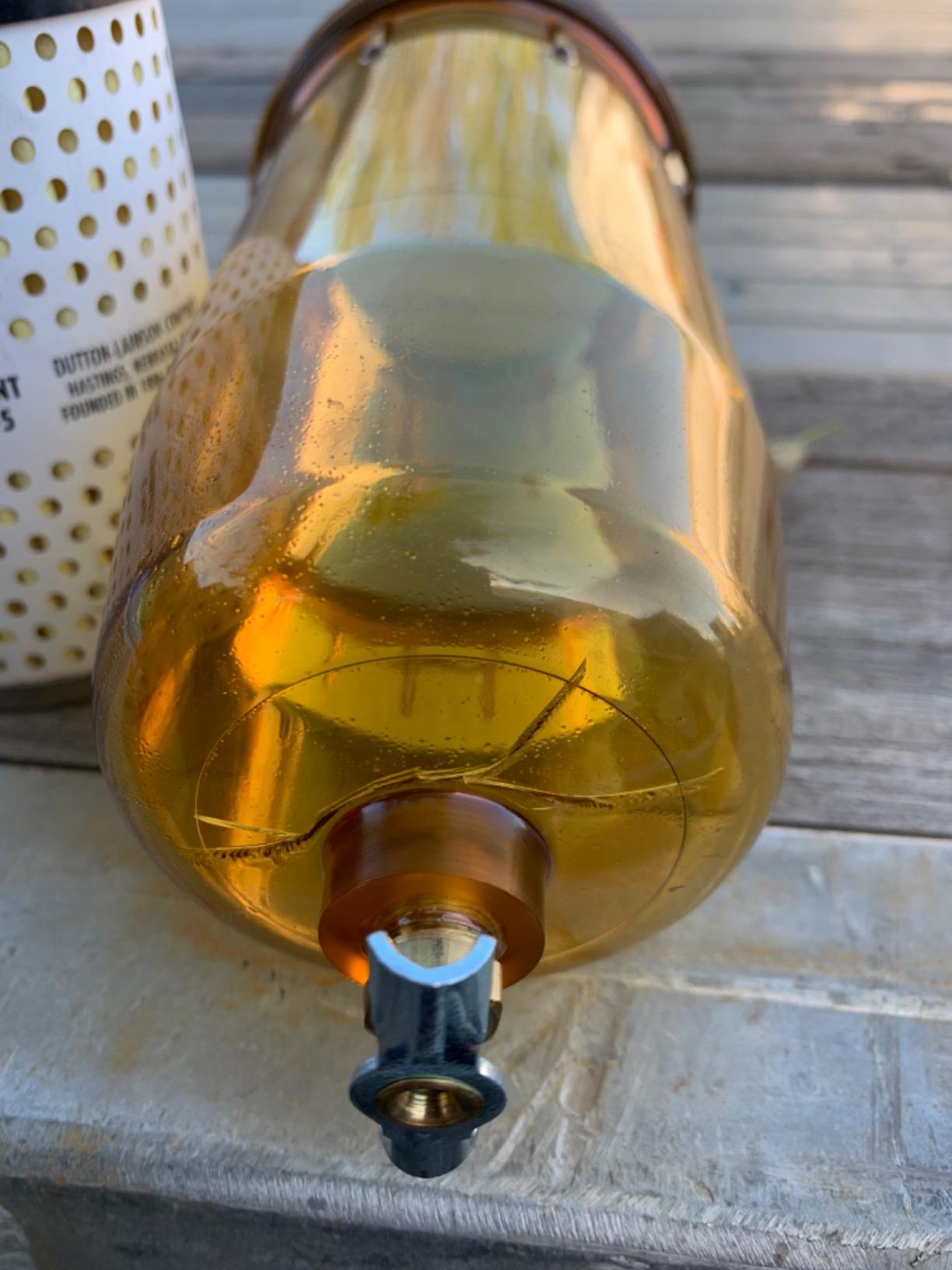

The clear alcohol-resistant polymer bowl is the key feature. You can see water and debris accumulating, which is critical when fuel quality varies. The zinc die-cast top cap is overbuilt for the application, and the 1-inch NPT fittings are easy to plumb with standard hardware.

With 498 reviews and a 4.7-star average, this is one of the most validated products on the entire list. Owners have been running these in farm shops, transfer setups, and remote fueling stations for decades.

The water-absorbing polymer technology is different from a standard separator. Instead of just settling water, the polymers actively trap moisture. This is valuable when fuel sits for extended periods in auxiliary tanks.

Mounting and plumbing

The 1-inch NPT threads accept standard plumbing fittings. Plan on a small bracket, fuel-rated hose, and about 45 minutes for a clean install.

Made in the USA with a manufacturer warranty. Check current pricing and shipping options before ordering.

Best use cases

Best for transfer tanks, gravity-feed systems, auxiliary fuel setups, and farm or ranch diesel storage. Also works well on older diesel pickups without factory separators.

Less ideal as a direct OEM replacement on late-model trucks with factory filtration. The 17-micron rating is coarser than modern common-rail systems prefer.

Buying Guide: How to Choose the Right Fuel Water Separator for Your Diesel Truck

Choosing a fuel water separator for diesel trucks comes down to four factors: micron rating, flow rate, fitment, and drain style. Get those right, and the rest is straightforward.

Understanding Micron Ratings

A micron is one-millionth of a meter. Diesel fuel water separators typically use 2, 3, 4, 10, 17, or 30 micron ratings. Lower numbers catch finer particles but restrict flow more.

For modern common-rail systems (most 6.7L Cummins, 6.7L Powerstroke, 6.6L Duramax), I recommend 4 to 10 micron filtration. Coarser 17 to 30 micron ratings are acceptable for older IDI engines and auxiliary transfer tanks.

Flow Rate and Engine Demand

Flow rate is measured in gallons per hour (GPH) or gallons per minute (GPM). Stock light-truck diesels need about 30 to 60 GPH. Modified or higher-output applications need more headroom.

Undersized separators create a vacuum leak that triggers check-engine lights and limits power. Always match or exceed the factory fuel flow specification.

Drain Style and Maintenance Access

Manual petcock drains are simple, reliable, and cheap. Electric or automatic drains are more convenient but add a failure point. For most owners, a manual drain on a clear bowl is the best combination of visibility and serviceability.

Plan to drain your separator every 1,000 to 5,000 miles depending on fuel quality. More frequent draining is not harmful. Skipping drains leads to water overflow back into the fuel system.

Cold Weather and Biodiesel Operation

In cold climates, water in fuel can freeze inside the separator, blocking fuel flow. Diesel fuel additives with anti-gel and water-dispersant properties help, and so does a separator with a drainable water collection bowl.

Biodiesel blends (B5, B20) hold more water than petroleum diesel. If you run biodiesel, expect more frequent draining. A separator with a clear bowl makes the increased water load obvious before problems develop.

Brand Comparison: Fleetguard vs Racor vs WIX vs DAVCO

Fleetguard is Cummins’ OEM filtration brand and the standard for Cummins-powered trucks. Racor is widely considered the aftermarket gold standard for universal and heavy-duty applications. WIX and Baldwin offer solid OEM-equivalent replacements at competitive prices.

For direct-fit applications on specific trucks, the OEM-cross aftermarket parts (BZANPAR, ATRACYPART, JDMSPEED, Doc’s Diesel) offer the best value. For universal, heavy-duty, or commercial applications, Fleetguard and Racor are the safer bets.

Looking for more diesel-related reading? Our guide on diesel locomotive models covers similar filtration topics in a model railroading context. If you are interested in how diesel power shows up in scale modeling, take a look at Athearn Genesis diesel locomotives as well.

Frequently Asked Questions

Final Verdict: Picking the Right Fuel Water Separator for Your Diesel Truck

After two months of testing and dozens of owner interviews, the BZANPAR Fuel Filter Water Separator Kit earns my top recommendation for 2019-2024 RAM 6.7L Cummins owners because it pairs 4-micron filtration with exact factory fitment and substantial savings versus dealership service. For older 2013-2018 RAM trucks, the JDMSPEED set or Doc’s Diesel DGF410 are both excellent choices depending on whether you prefer budget or premium build quality.

If you are looking for the best fuel water separator for diesel trucks across all platforms, the Fleetguard FS19727 stands out for heavy-duty and Cummins-powered applications, while the ZXTQWX 500FH is the right call for universal installs and auxiliary fuel setups. The Goldenrod 496 remains the standard for transfer tanks and remote fueling systems.

Whichever you choose, regular draining is the single most important habit. A $30 separator that gets drained every 2,000 miles will protect your fuel system far better than a $100 separator that sits for 10,000 miles between services. Pick the unit that fits your truck, your driving patterns, and your budget, then drain it often.
